Power Window: Notes

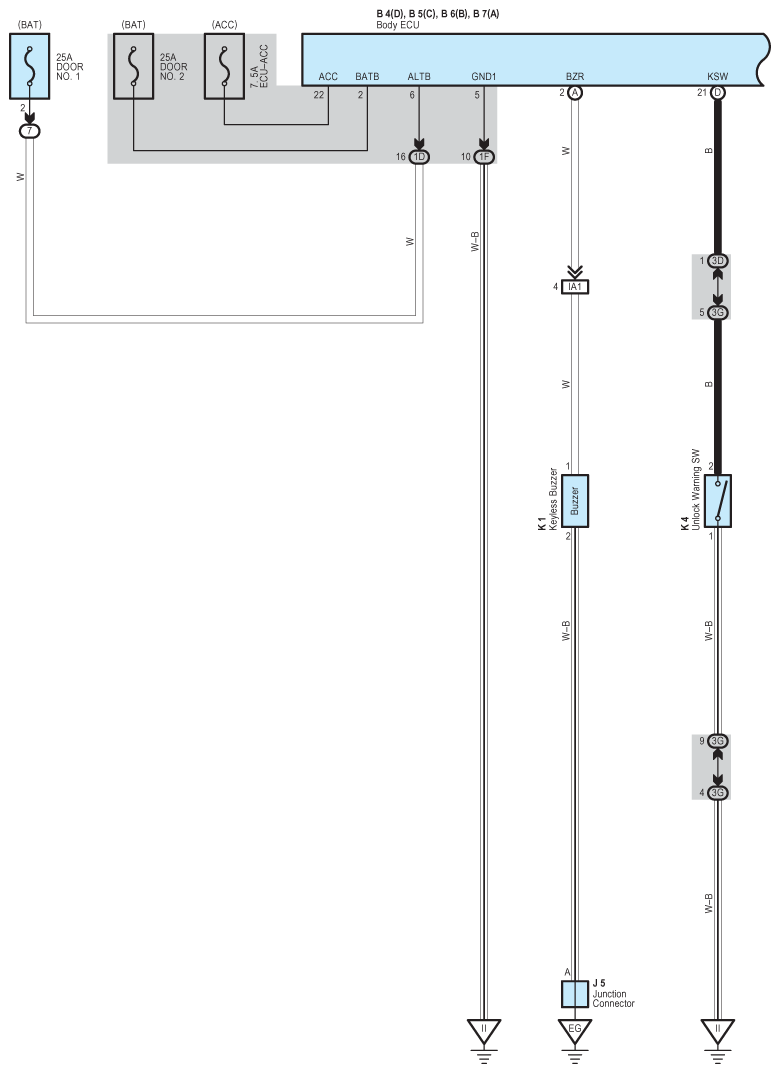

Fig 1: Power Window - Wiring Diagram (1 Of 8)

G08929044

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

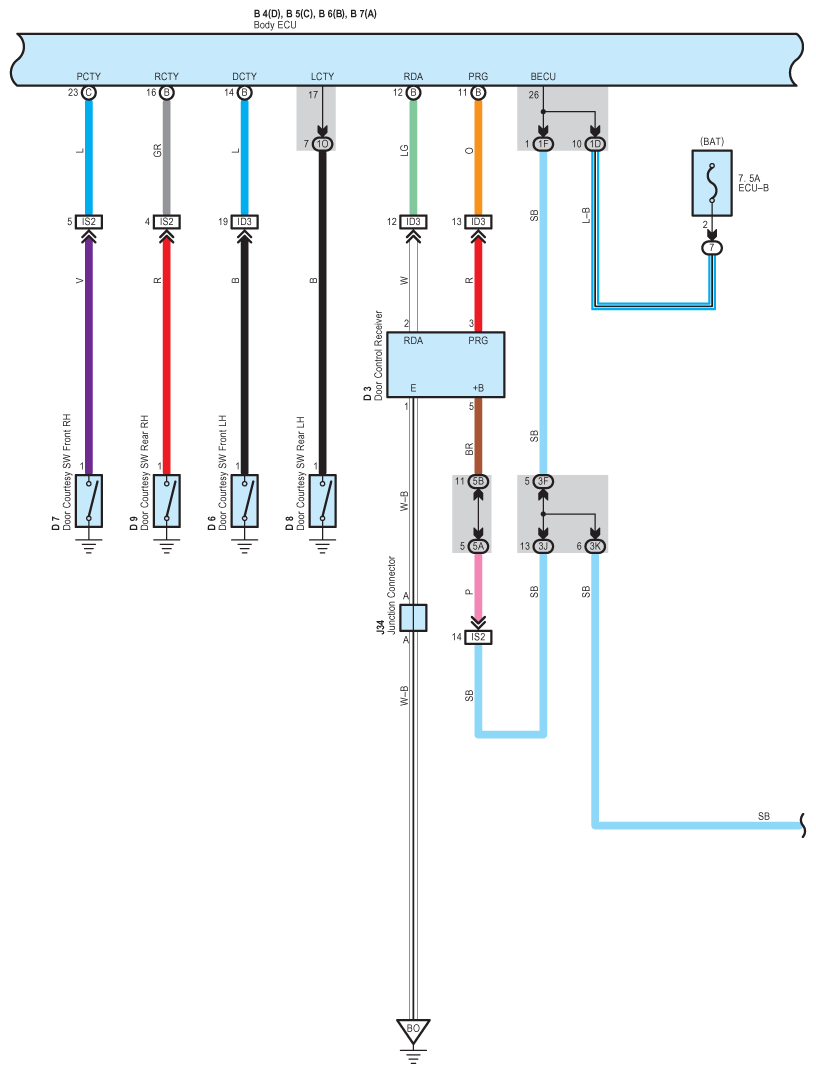

Fig 2: Power Window - Wiring Diagram (2 Of 8)

G08929045

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

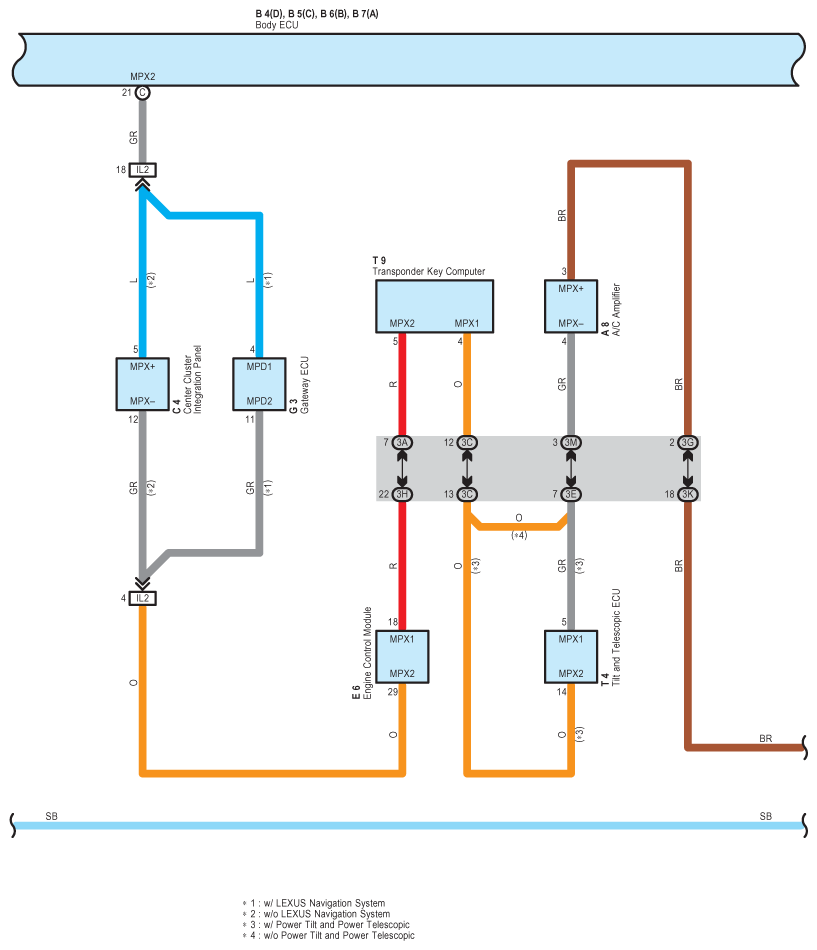

Fig 3: Power Window - Wiring Diagram (3 Of 8)

G08929046

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

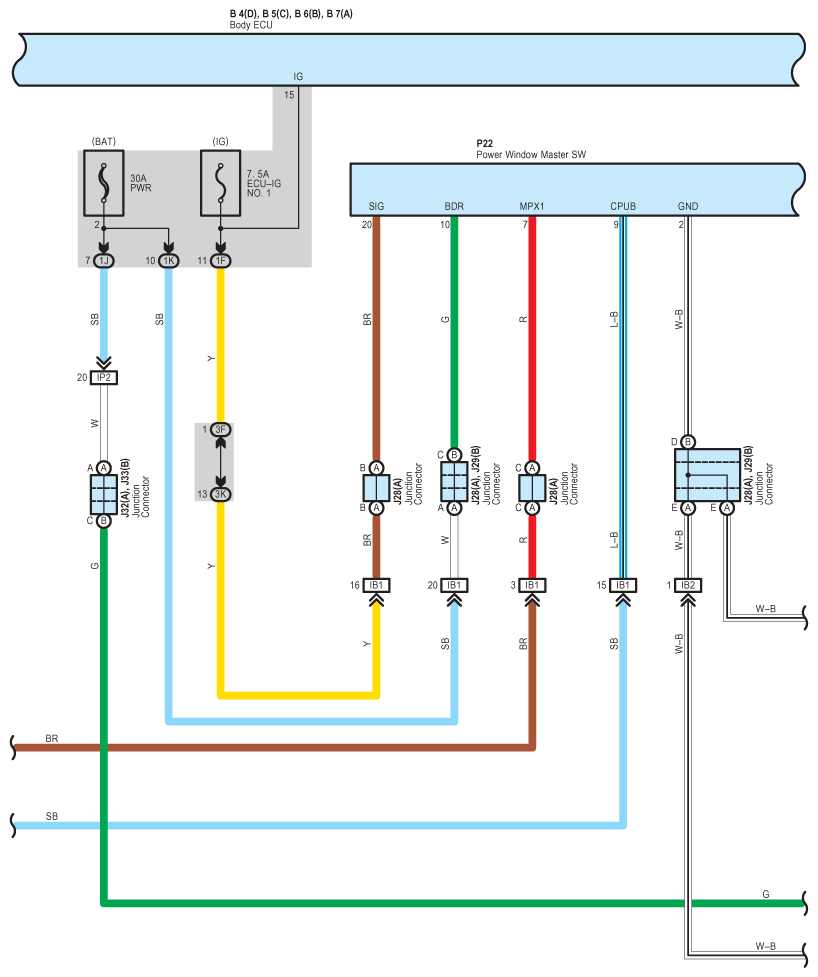

Fig 4: Power Window - Wiring Diagram (4 Of 8)

G08929047

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

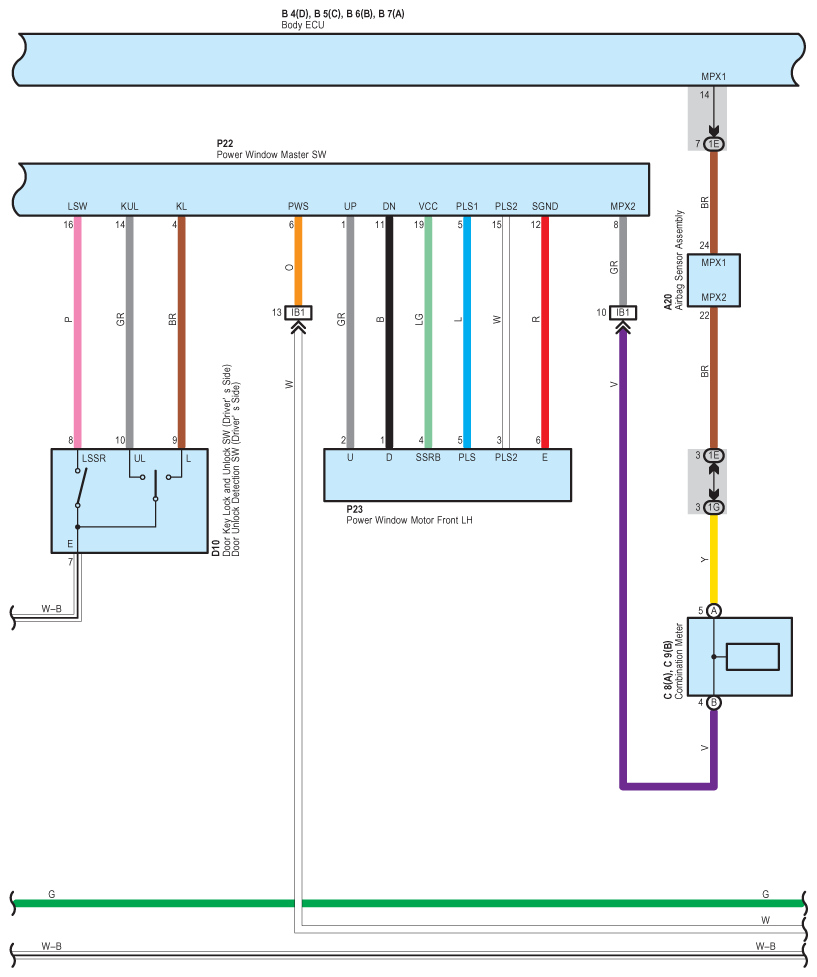

Fig 5: Power Window - Wiring Diagram (5 Of 8)

G08929048

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

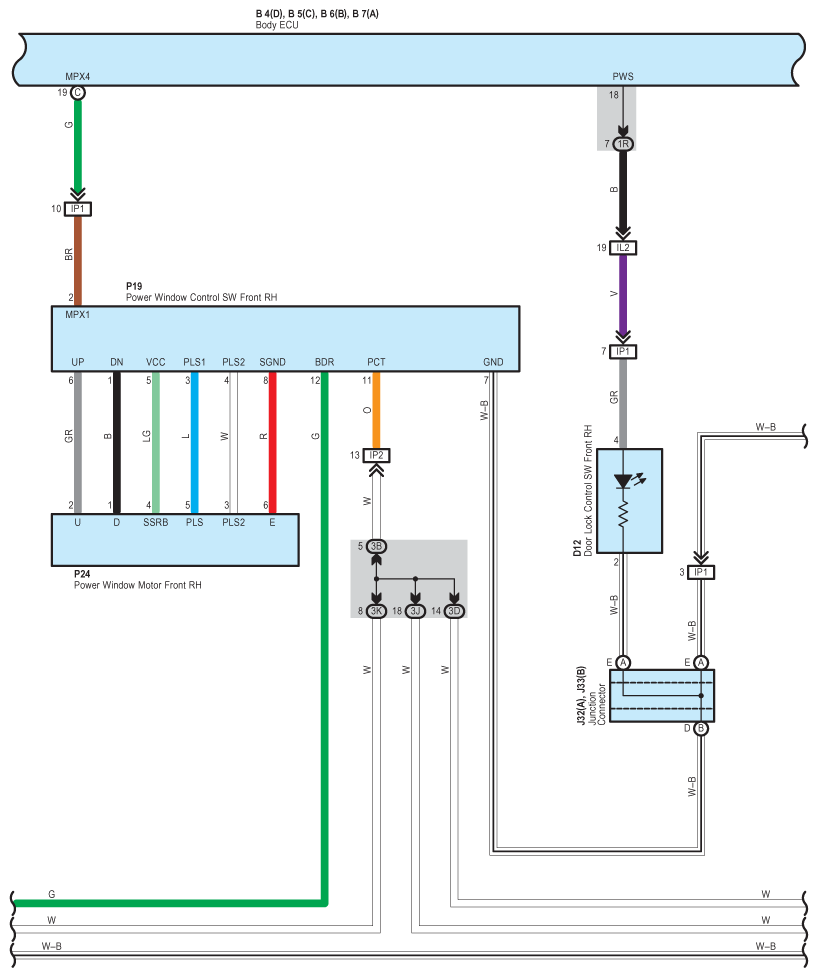

Fig 6: Power Window - Wiring Diagram (6 Of 8)

G08929049

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

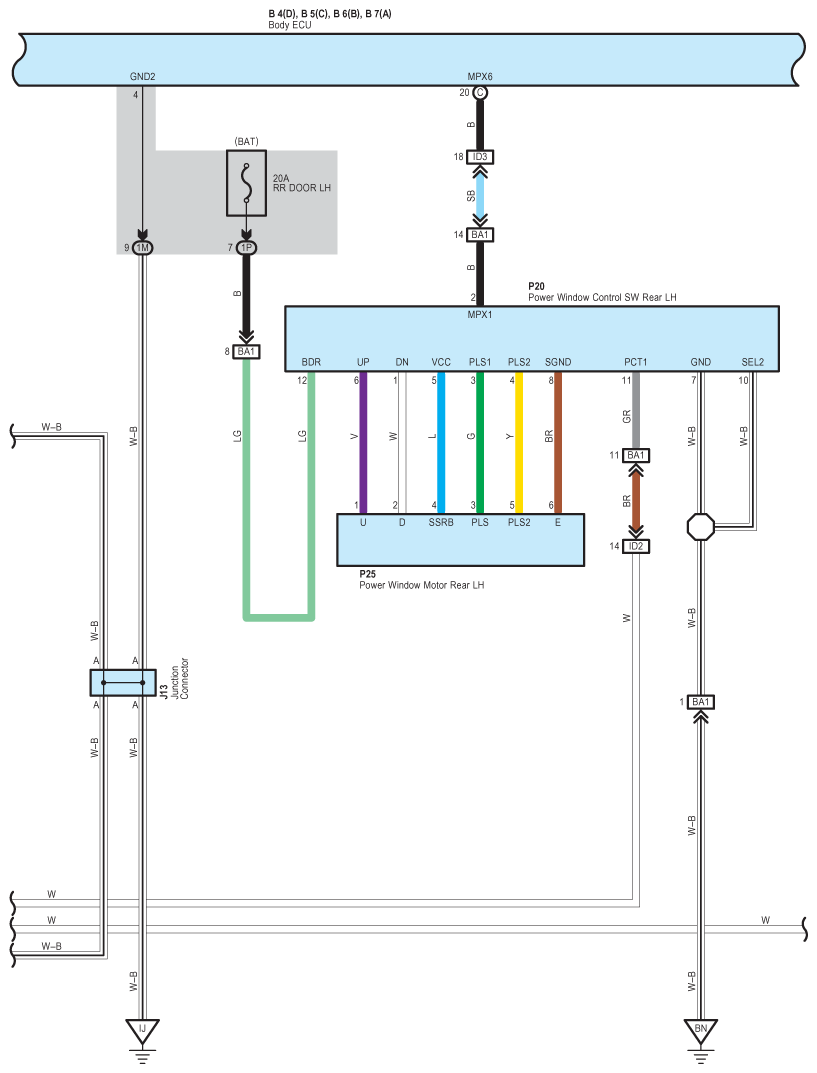

Fig 7: Power Window - Wiring Diagram (7 Of 8)

G08929050

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

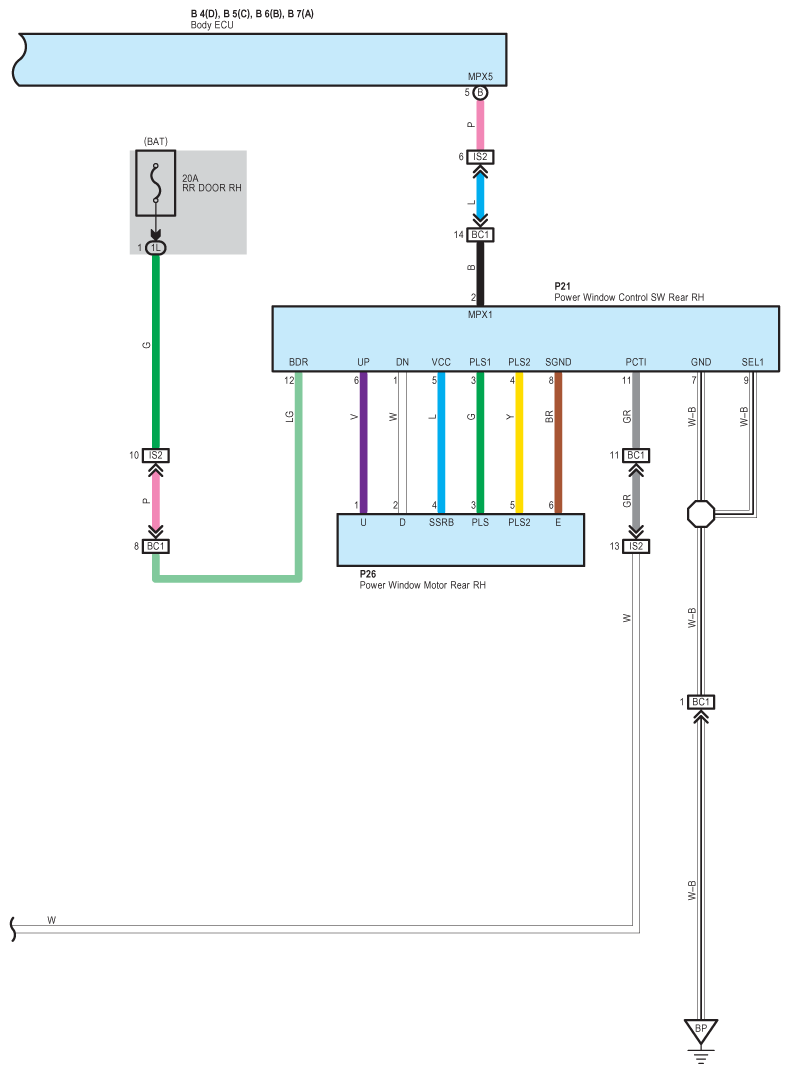

Fig 8: Power Window - Wiring Diagram (8 Of 8)

G08929051

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
