Theft Deterrent: Notes

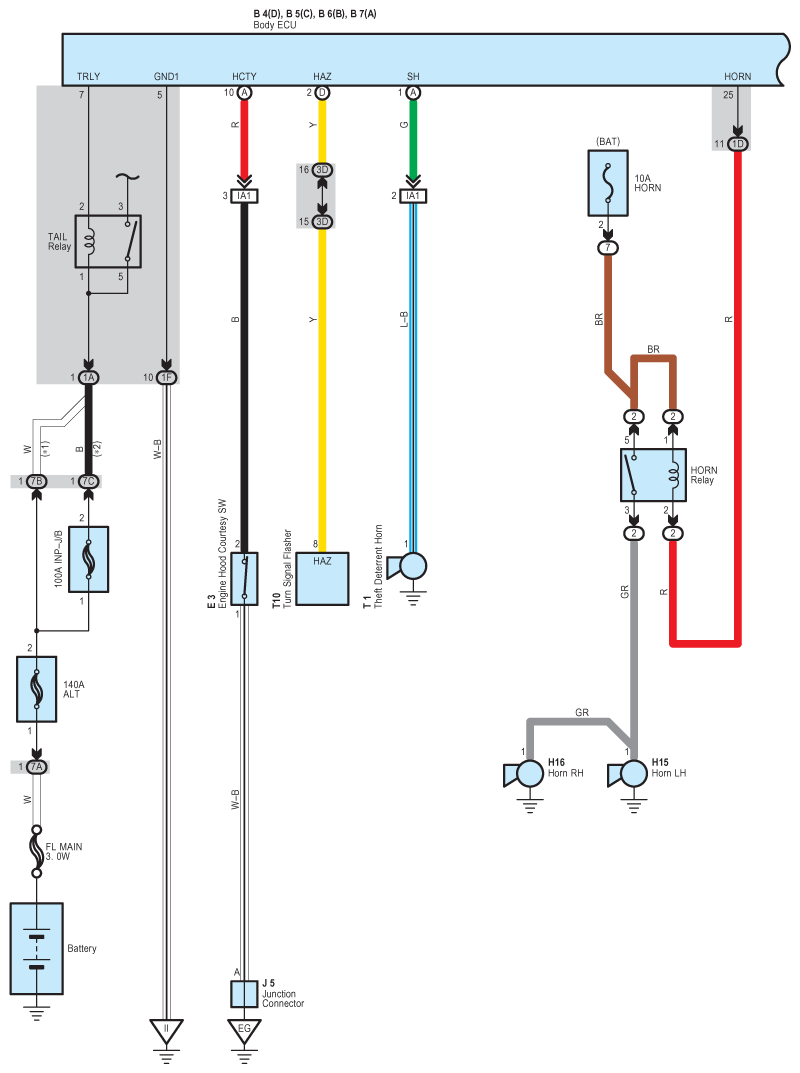

Fig 1: Theft Deterrent - Wiring Diagram (1 Of 9)

G08929089

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

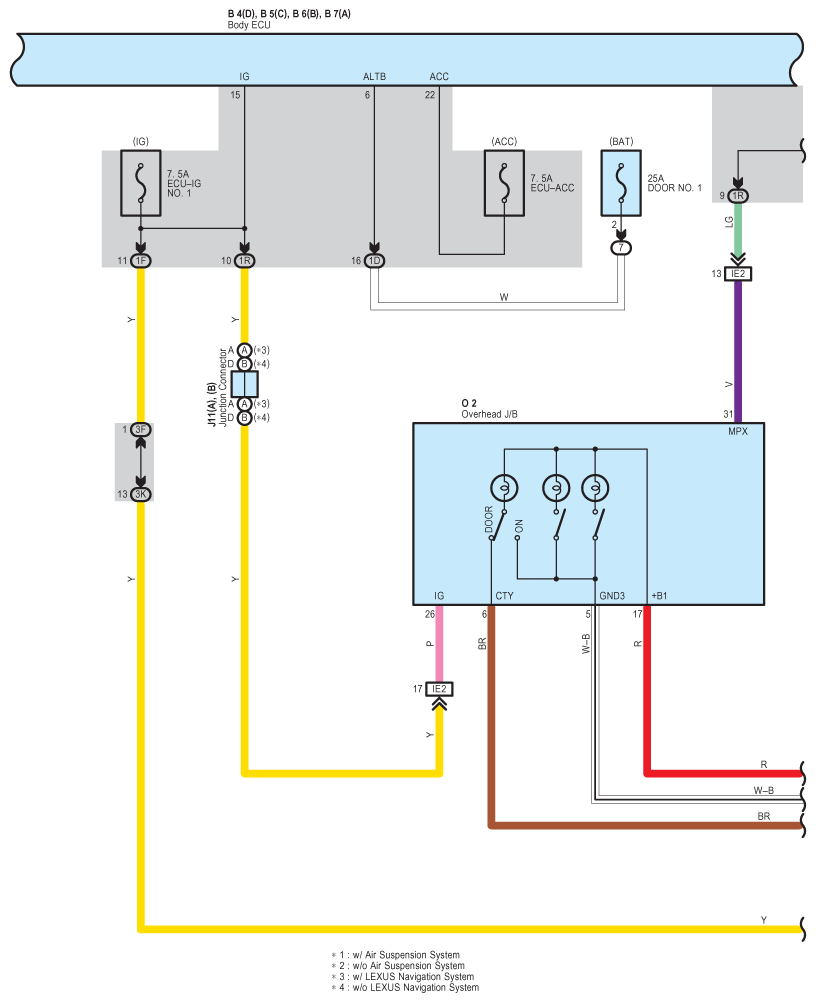

Fig 2: Theft Deterrent - Wiring Diagram (2 Of 9)

G08929090

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

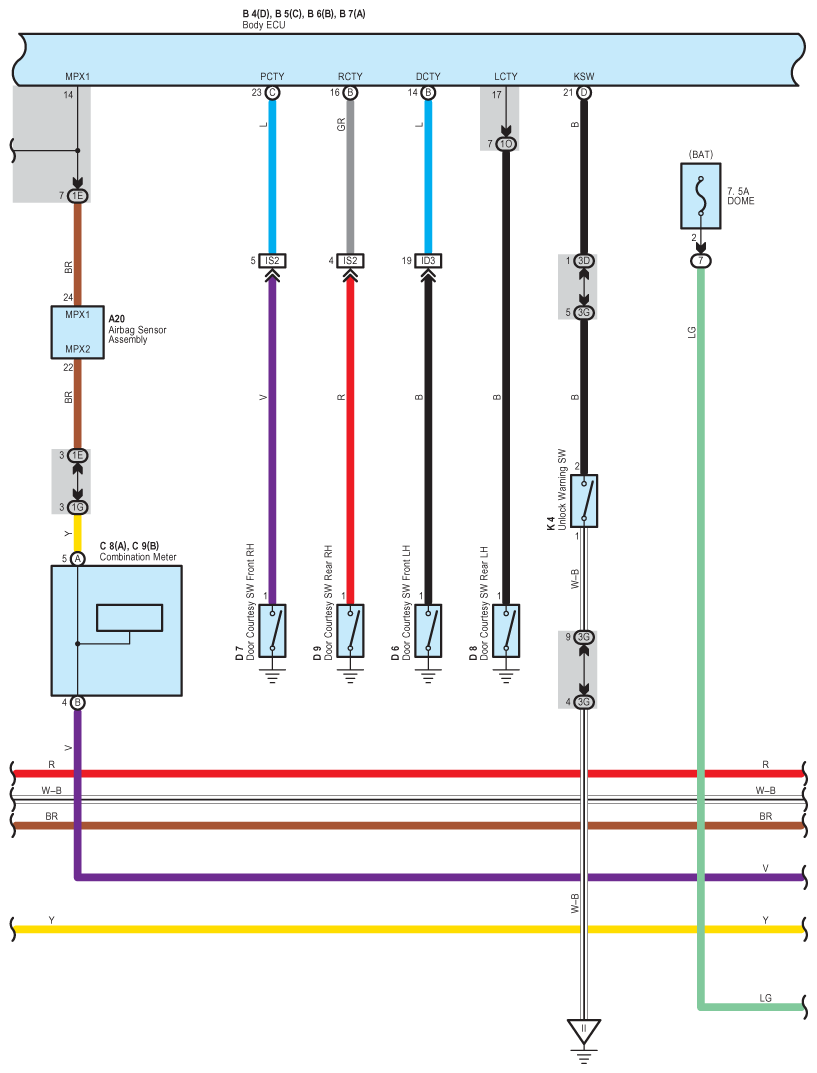

Fig 3: Theft Deterrent - Wiring Diagram (3 Of 9)

G08929091

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

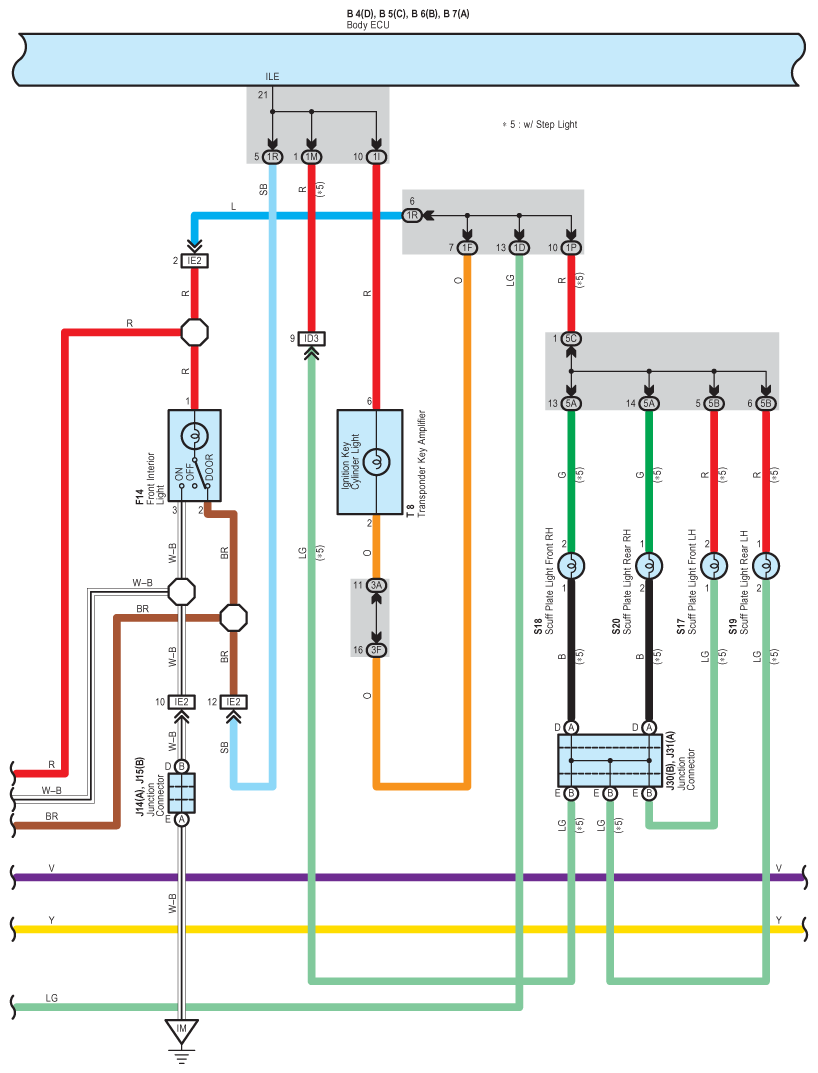

Fig 4: Theft Deterrent - Wiring Diagram (4 Of 9)

G08929092

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

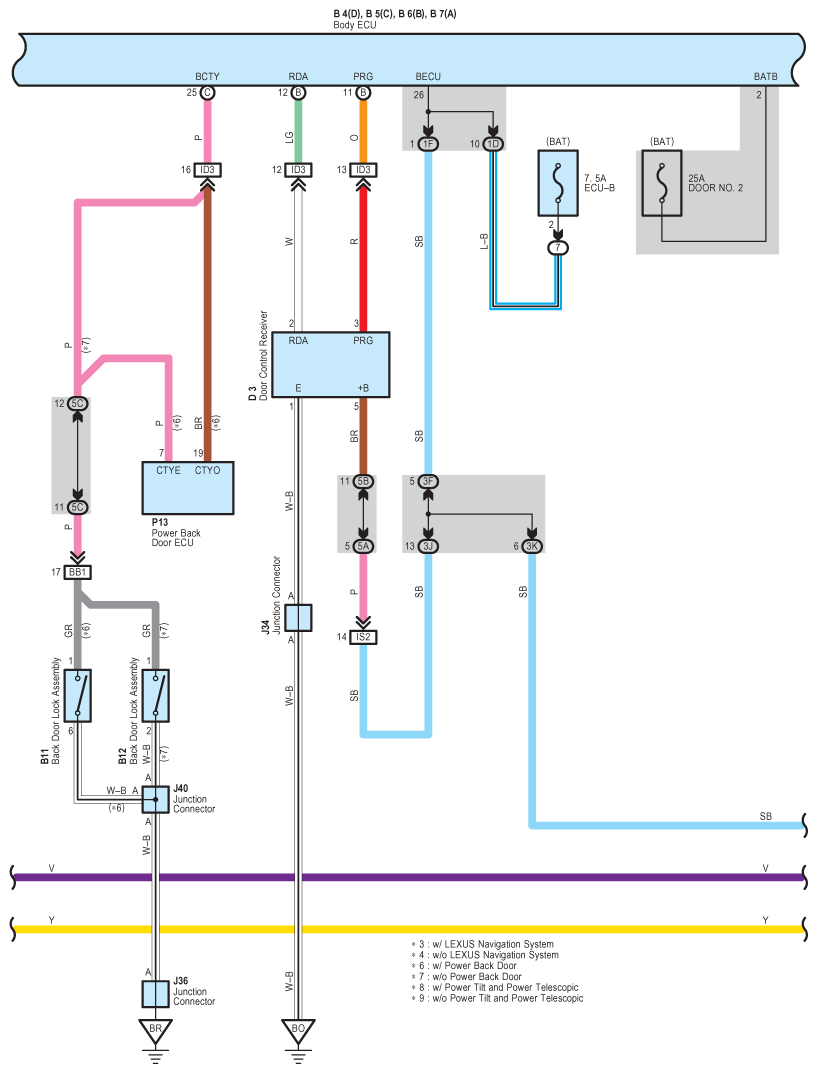

Fig 5: Theft Deterrent - Wiring Diagram (5 Of 9)

G08929093

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

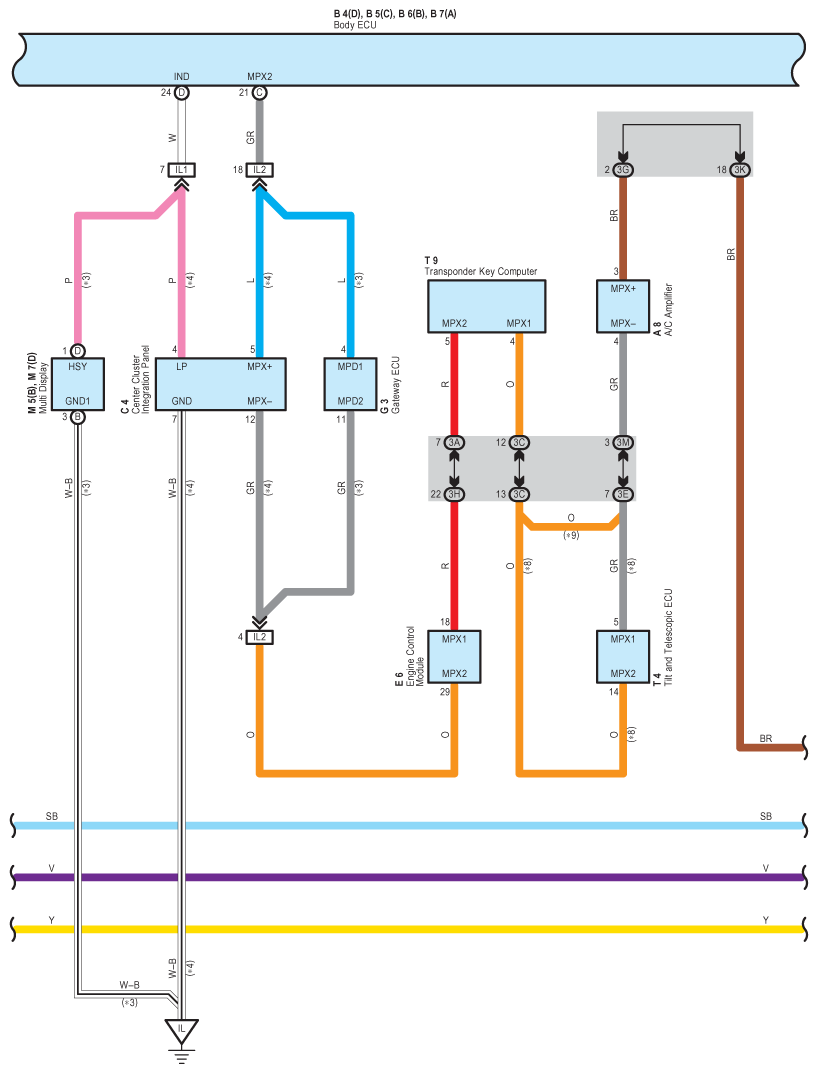

Fig 6: Theft Deterrent - Wiring Diagram (6 Of 9)

G08929094

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

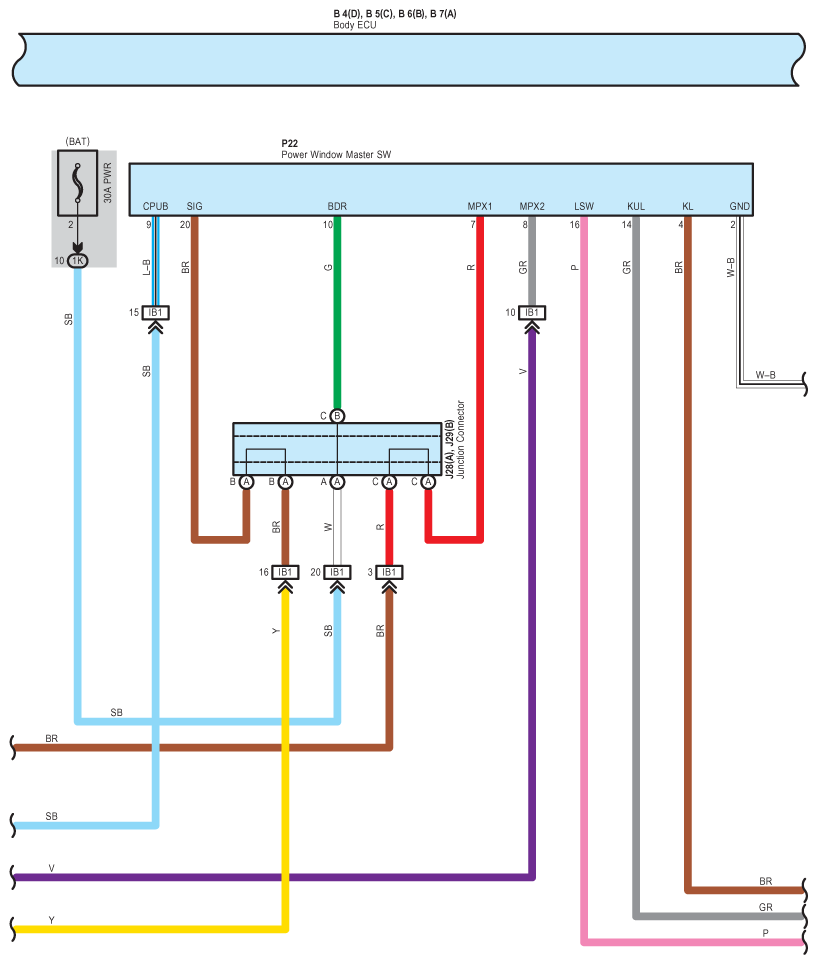

Fig 7: Theft Deterrent - Wiring Diagram (7 Of 9)

G08929095

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

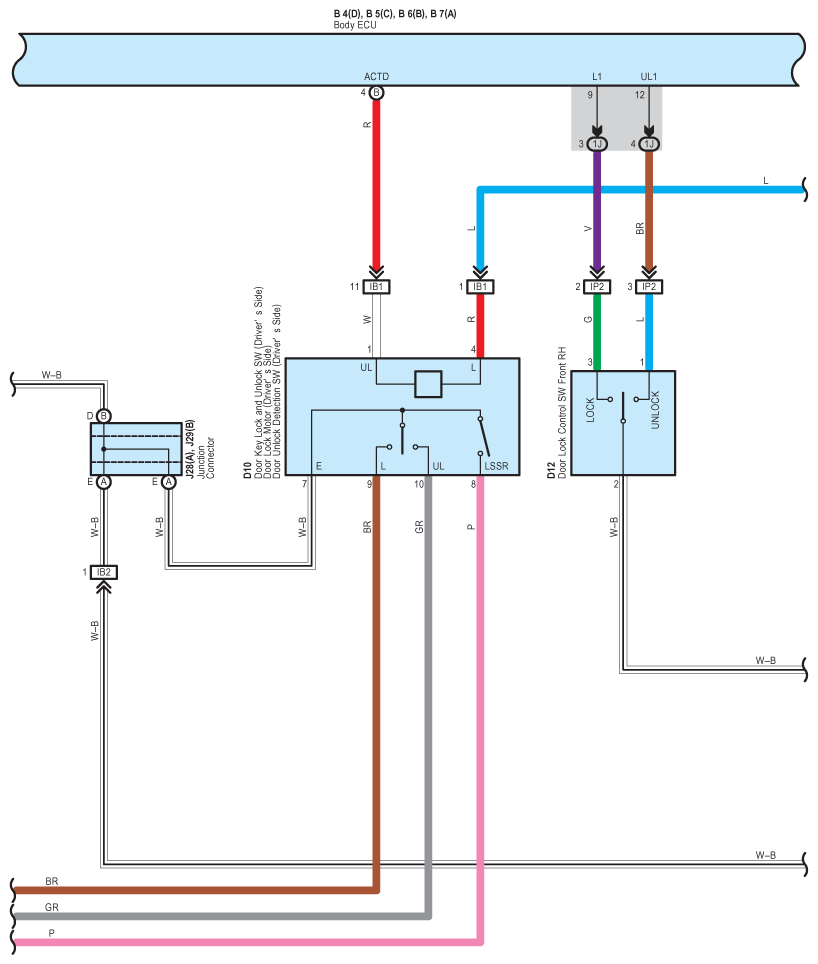

Fig 8: Theft Deterrent - Wiring Diagram (8 Of 9)

G08929096

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

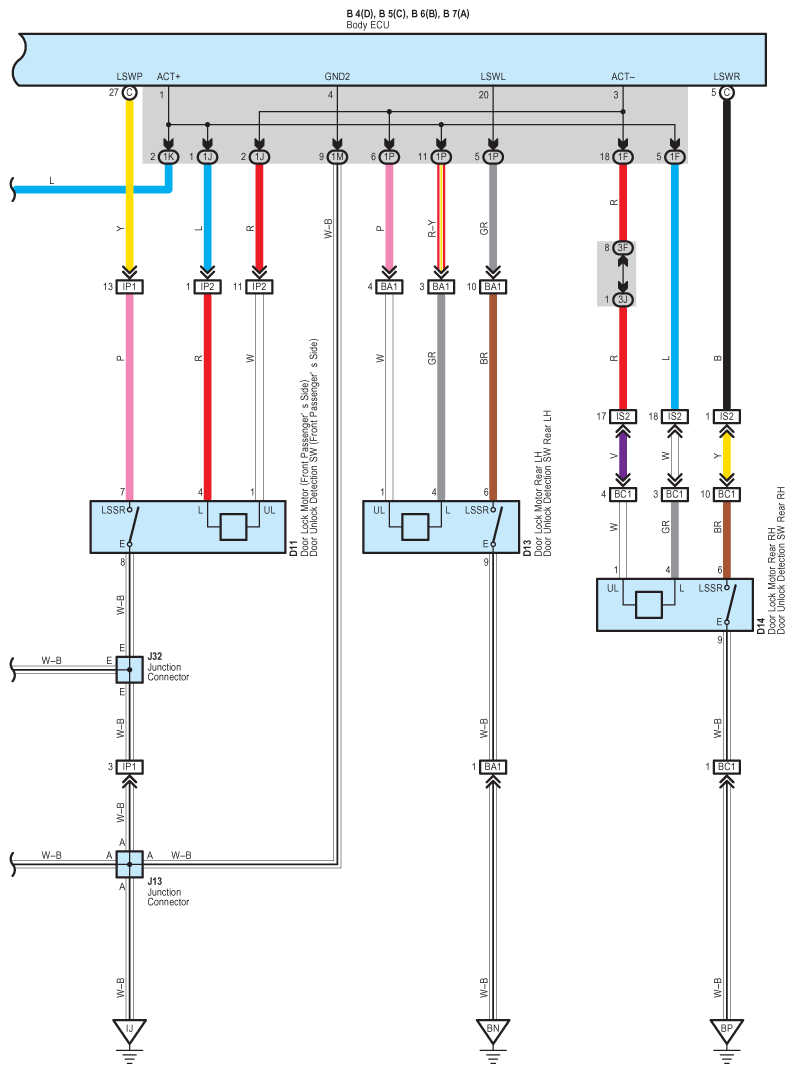

Fig 9: Theft Deterrent - Wiring Diagram (9 Of 9)

G08929097

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
