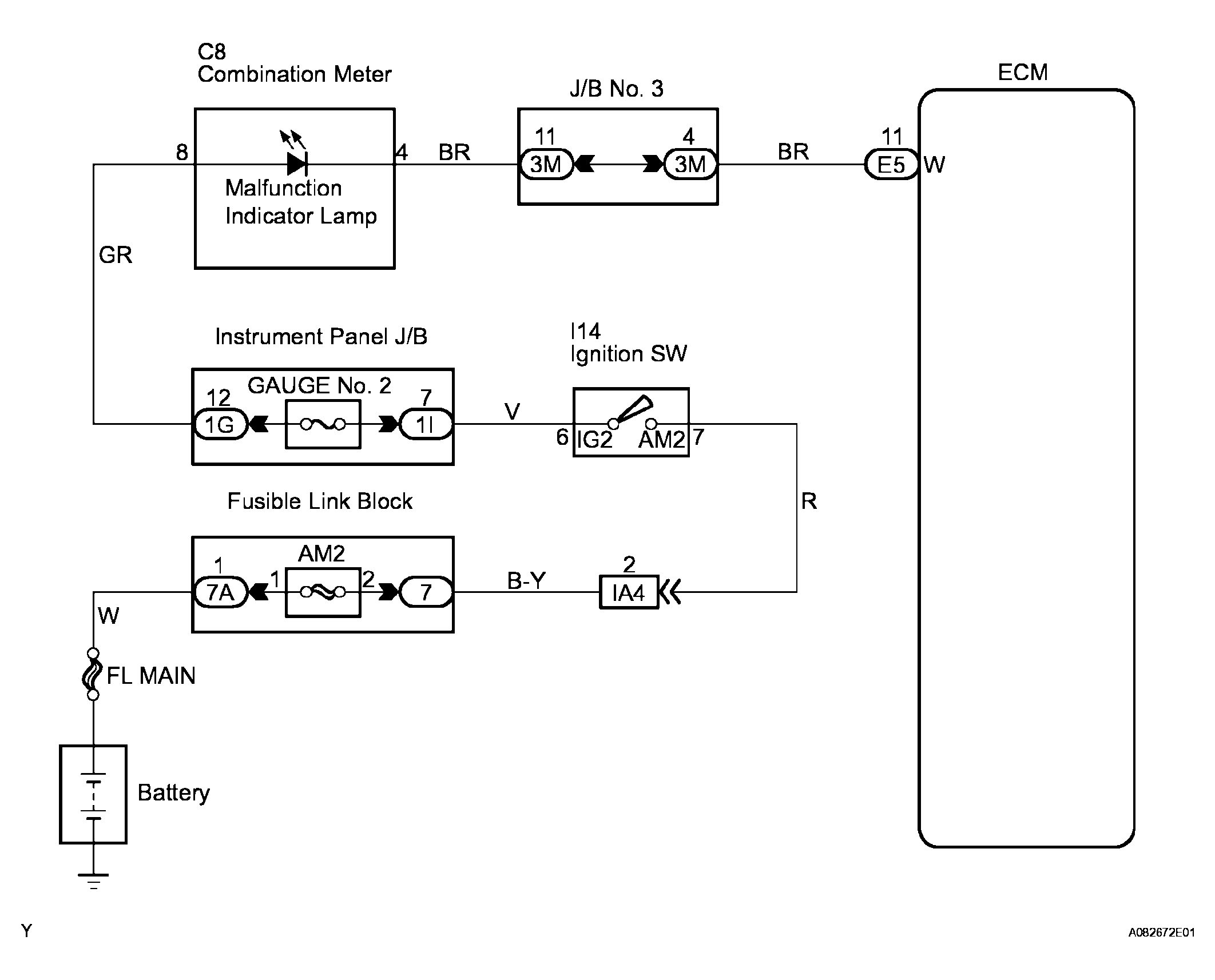

MIL Circuit: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HINT:
Troubleshoot each problem symptom in accordance with the chart below.
PROBLEM SYMPTOM CHART
| MIL remains on |
Start inspection from step 1 |
| MIL is not illuminated |
Start inspection from step 3 |
