Throttle Body: Removal

DRAIN ENGINE COOLANT (See COOLANT )
REMOVE V-BANK COVER SUB-ASSEMBLY
1. Using a socket hexagon wrench 5, remove the 3 nuts.
2. Remove the V-bank cover.
Fig 1: Removing V-Bank Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AIR CLEANER INLET NO. 2 (See REMOVAL )
REMOVE AIR CLEANER ASSEMBLY (See REMOVAL )

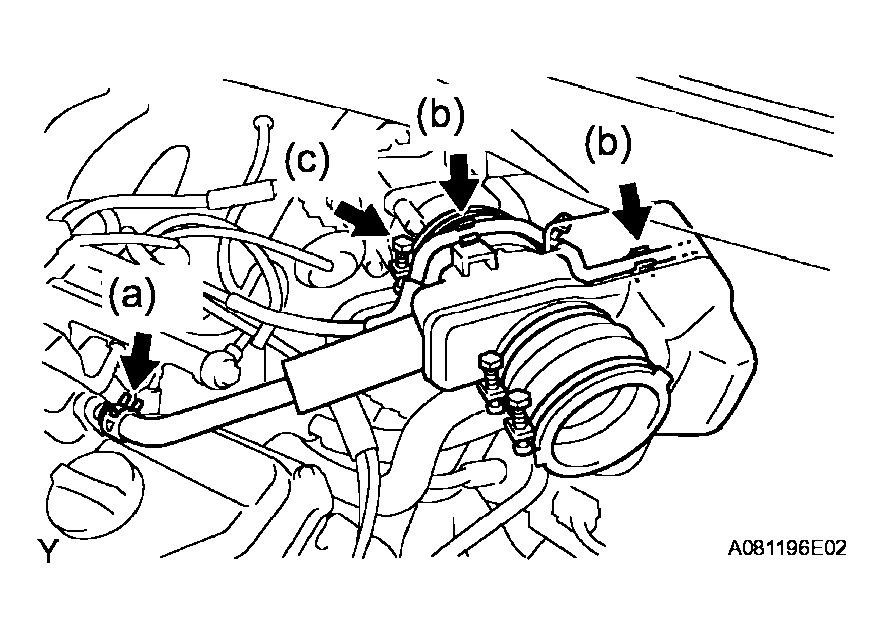

REMOVE INTAKE AIR RESONATOR
1. Remove the ventilation hose No. 2.
2. Remove the fuel vapor feed hose from the 2 hose clamps.
3. Loosen the are cleaner hose clamp bolt, and then remove the intake air resonator.
Fig 2: Removing Intake Air Resonator
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE THROTTLE BODY ASSEMBLY

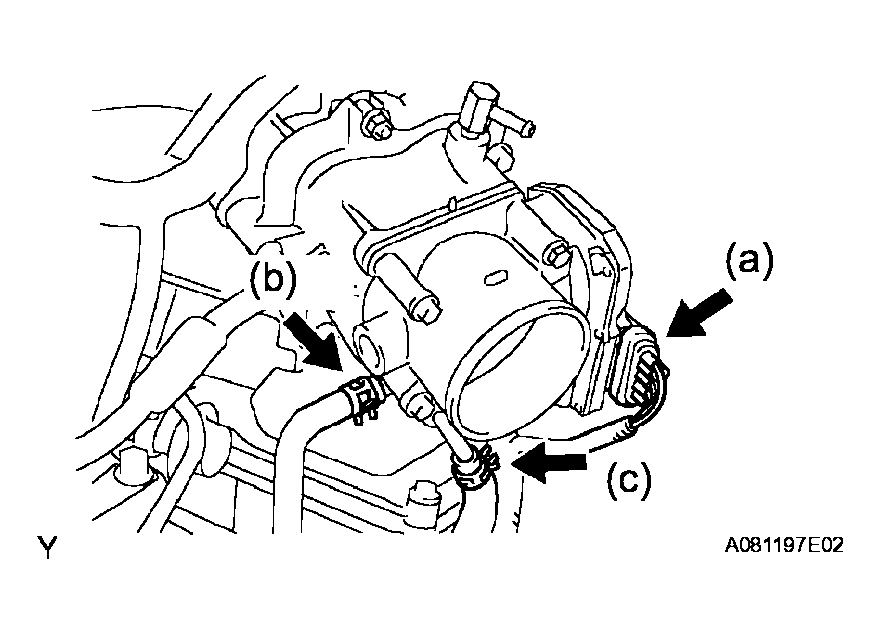

1. Disconnect the throttle motor connector.
2. Disconnect the water by-pass hose No. 2.
3. Disconnect the water by-pass hose No. 3.

  Fig 3: Removing Throttle Motor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

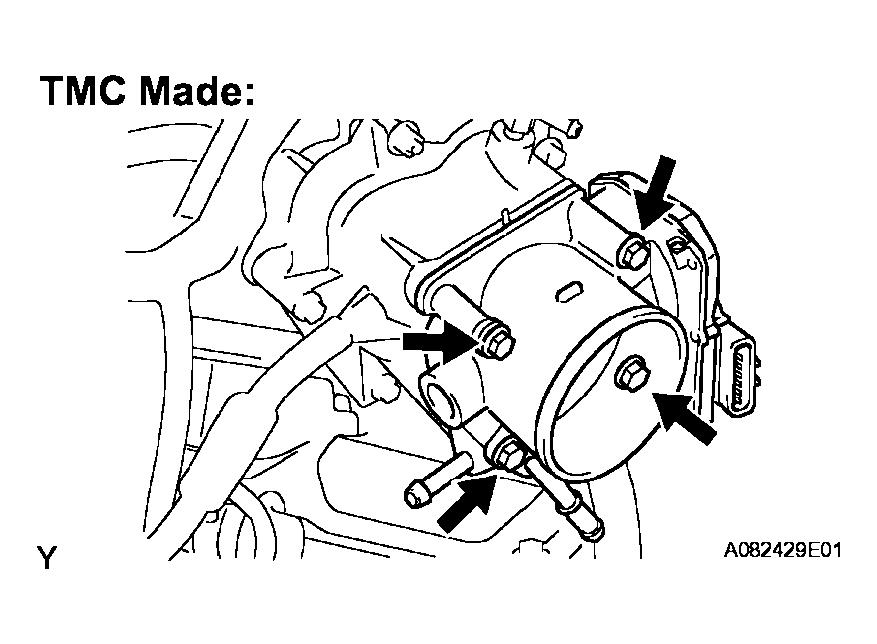

4. TMC Made
  1. Remove the 4 bolts, and then remove the throttle body.
  Fig 4: Removing Throttle Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

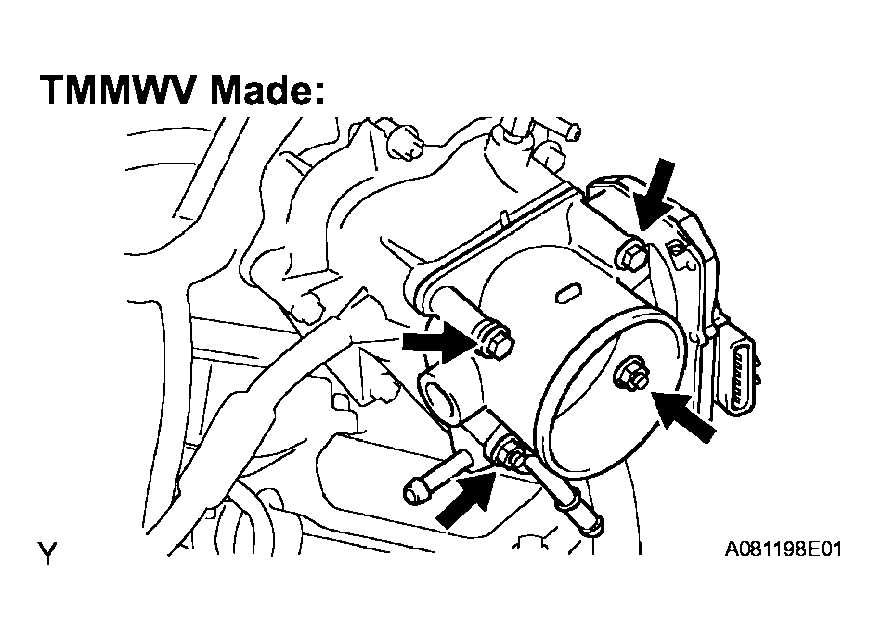

5. TMMWV Made
  1. Remove the 2 bolts and 2 nuts, and then remove the throttle body.
6. Remove the gasket from the intake air connector.
Fig 5: Removing Throttle Body - TMMWV Made
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
