Height Control Compressor: Installation

INSTALL HEIGHT CONTROL COMPRESSOR ASSEMBLY
1. Coat the O-ring with MP grease, install the height control compressor assembly.
  HINT:

  When the height control compressor assembly is replaced with new one, it doesn't require a new O-ring.
INSTALL HEIGHT CONTROL DRYER ASSEMBLY
1. Install the height control dryer assembly with a bolt onto the height control compressor assembly.

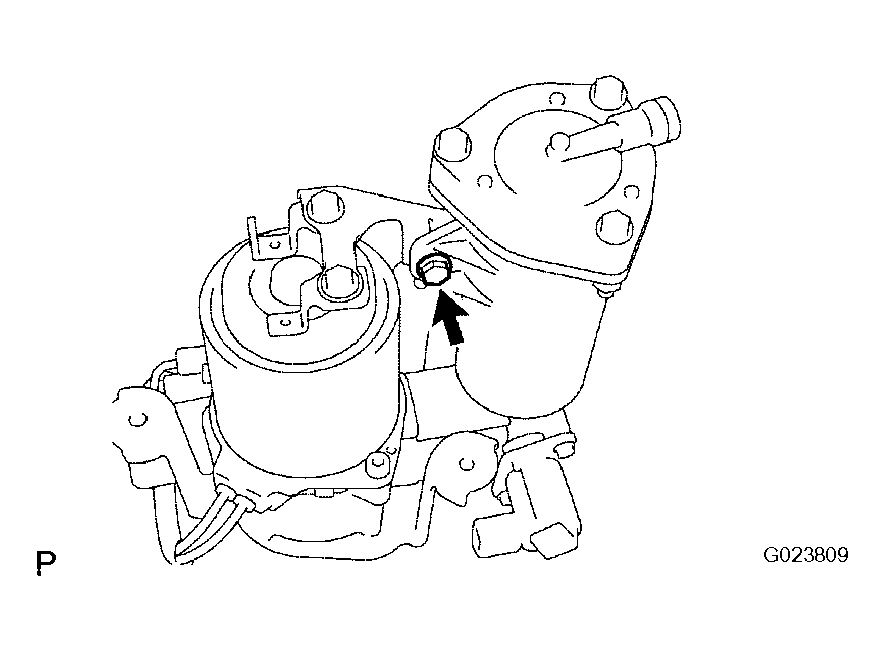

  Fig 1: Installing Height Control Dryer Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)
2. Connect the height control tube No. 2 to the height control dryer assembly.
3. Lock the clip and holder.

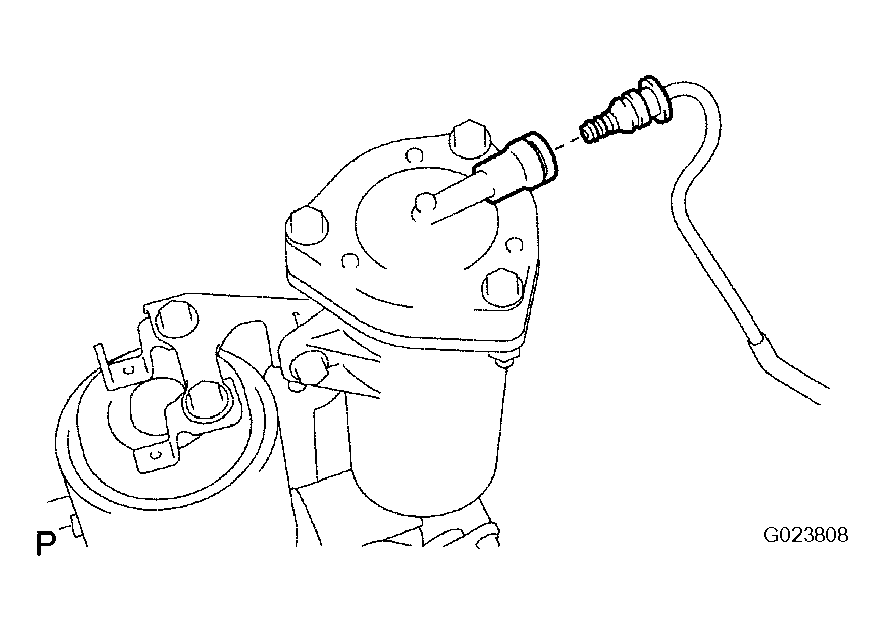

  Fig 2: Connecting Height Control Tube To Height Control Dryer Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  For the installation procedure of the (type 3) tube, refer to PRECAUTION .
INSTALL REAR HEIGHT CONTROL COMPRESSOR BRACKET
1. Install the 3 height control compressor bush No. 2 onto the rear height control compressor bracket.
2. Install the rear height control compressor bracket with the 3 bolts onto the height control compressor assembly.
  Torque: 5.9 N*m (60 kgf*cm, 52 in.*lbf)

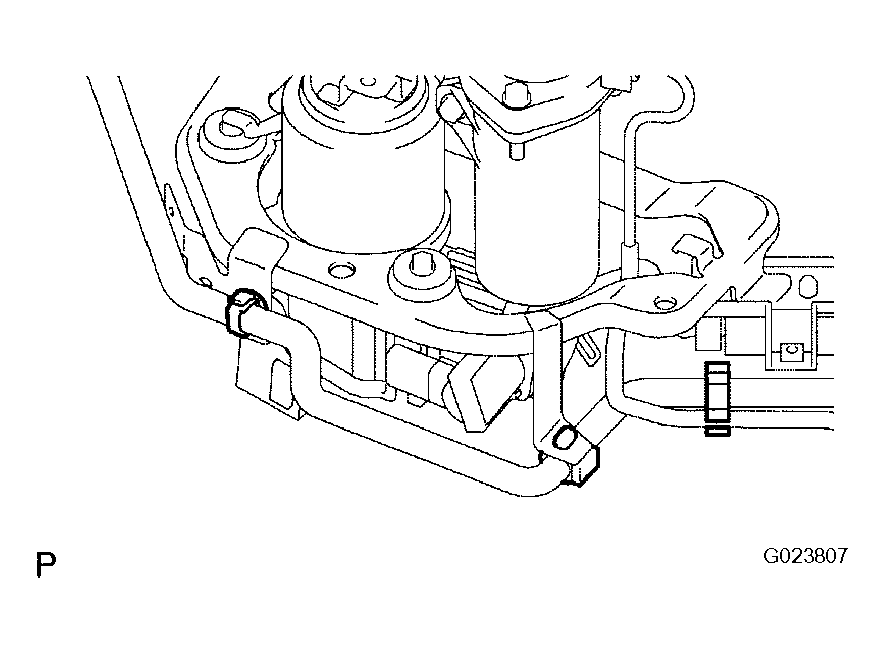

  Fig 3: Installing Rear Height Control Compressor Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 3 clamps.
INSTALL HEIGHT CONTROL FILTER
1. Install the 2 hoses and 2 clips to the height control filter.
2. Install a clamp onto the height control filter.
3. Connect the height control filter onto the rear height control compressor bracket.

  Fig 4: Installing Height Control Filter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR HEIGHT CONTROL COMPRESSOR BRACKET
1. Passing the wire harness sub-assembly between the bracket and compressor, temporarily place the bracket as shown in the illustration.

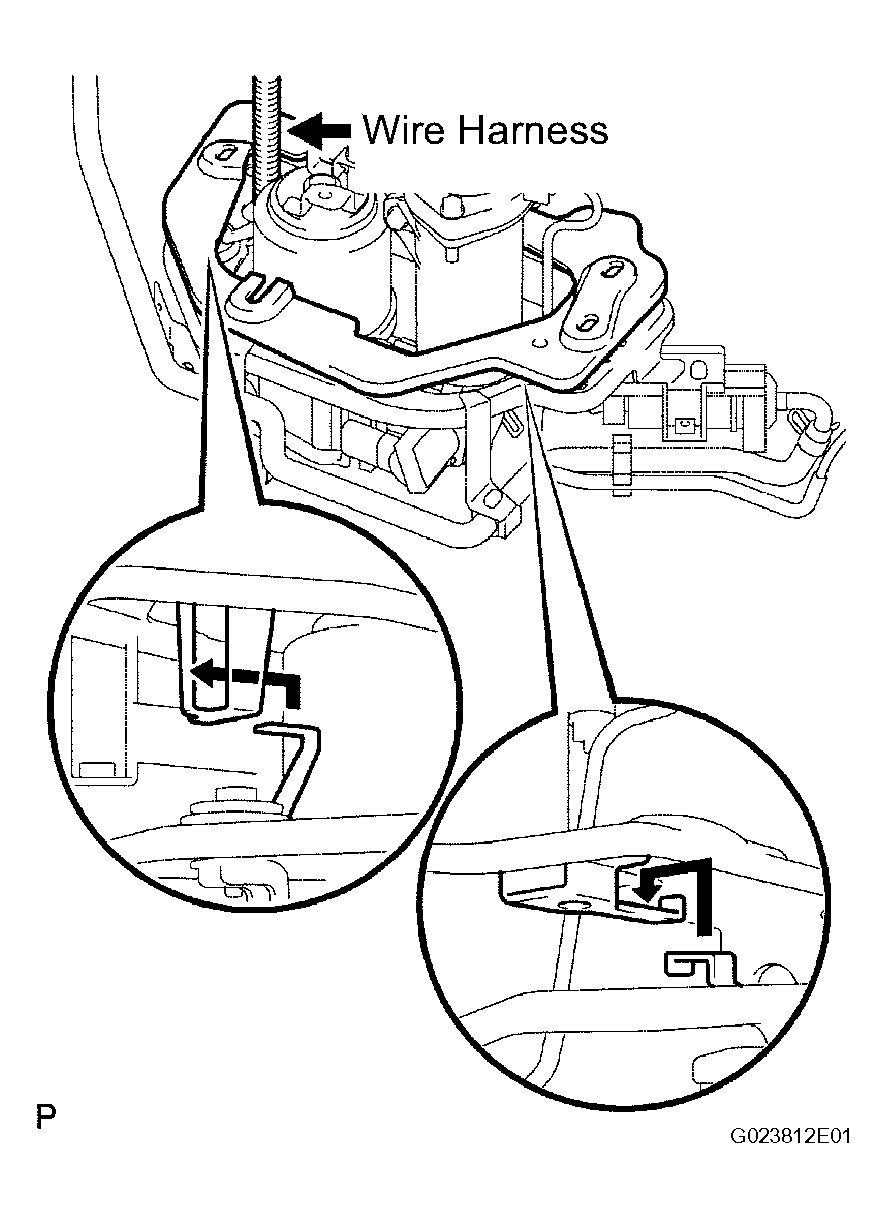

  Fig 5: Installing Rear Height Control Compressor Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the rear height control compressor bracket with the 3 bolts onto the height control compressor bracket.

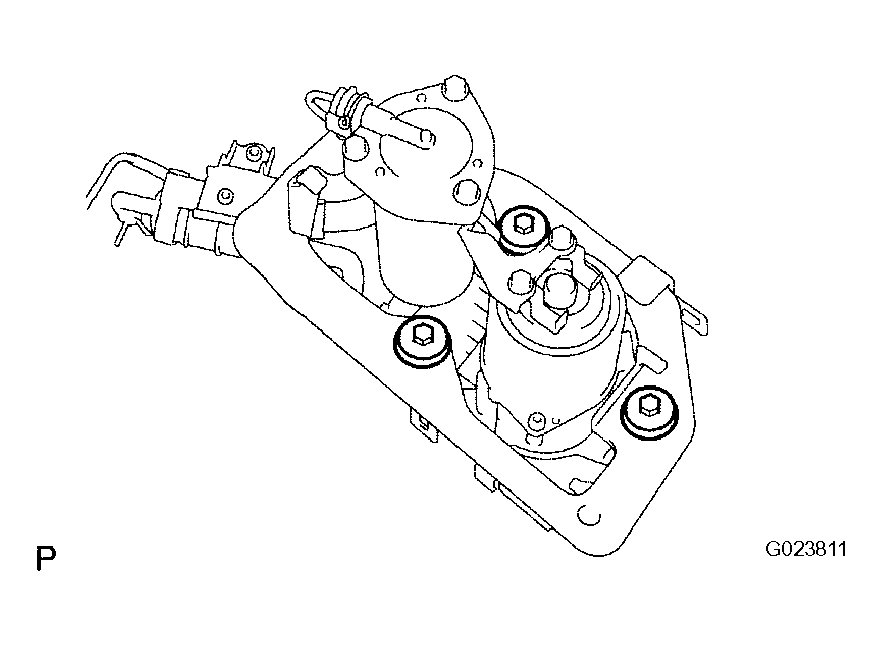

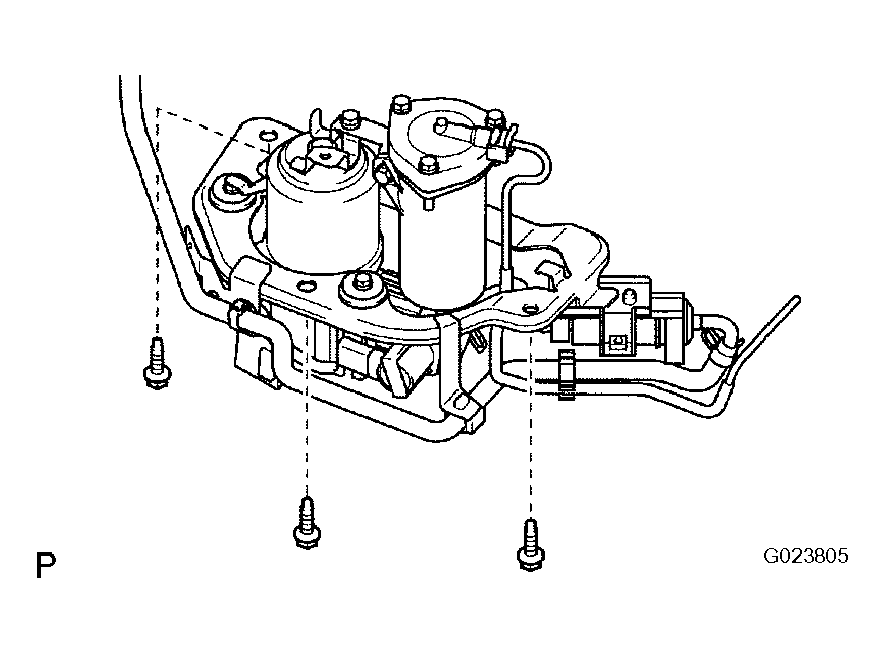

  Fig 6: Installing Rear Height Control Compressor Bracket With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)
3. Connect the hose to the cap grommet and clamp it.

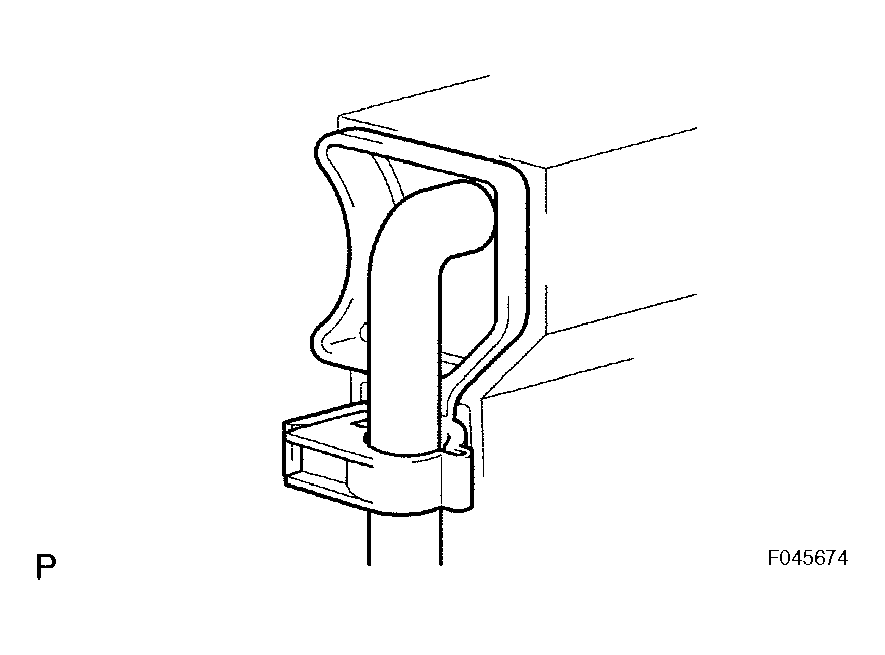

  Fig 7: Connecting Hose To Cap Grommet And Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the 3 clamps and the 2 connectors.

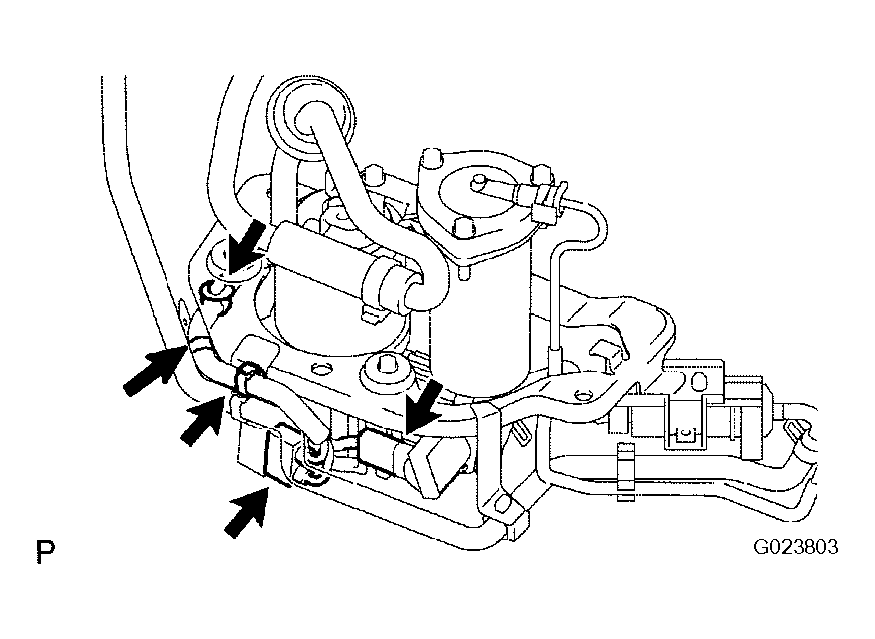

Fig 8: Installing Clamps And Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT HEIGHT CONTROL TUBE NO. 2
1. Install a new O-ring onto the height control tube No. 2.
2. Coat the O-ring with MP grease.
3. Connect the height control tube No. 2 to the 2 way cap.
4. Lock the tube with a new clip and a new holder.

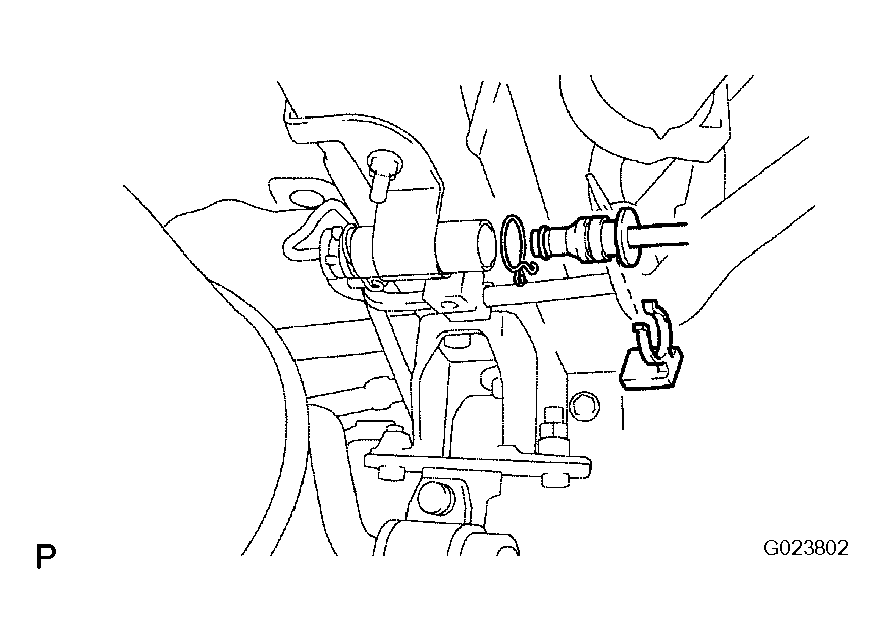

  Fig 9: Installing A New O-Ring Onto Height Control Tube
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  For the installation procedure of the (type 3) tube, refer to PRECAUTION .
INSPECT AIR LEAK
INSTALL HEIGHT CONTROL COMPRESSOR COVER
1. Install the height control compressor cover with the 2 screws, the clip and the bolt.
