Height Control Compressor: Removal

NOTE: Before disconnecting the air tube, press the height control OFF switch to stop the vehicle height control operation.

REMOVE HEIGHT CONTROL COMPRESSOR COVER
1. Remove the 2 screws, the bolt, the clip and the height control compressor cover.
DISCONNECT HEIGHT CONTROL TUBE NO.2
1. Remove the clip and holder.
2. Disconnect the height control tube No. 2 from the 2 way cap.

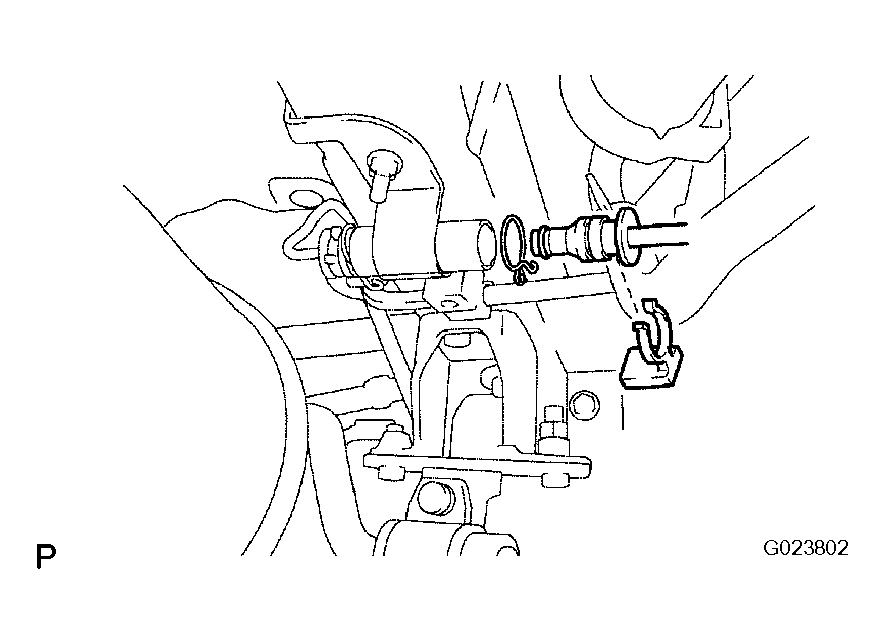

  Fig 1: Disconnecting Height Control Tube From Way Cap
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  For the disconnecting procedure of the (type 3) tube, refer to PRECAUTION ).
REMOVE REAR HEIGHT CONTROL COMPRESSOR BRACKET
1. Remove the 3 clamps and disconnect the 2 connectors and wire harness.

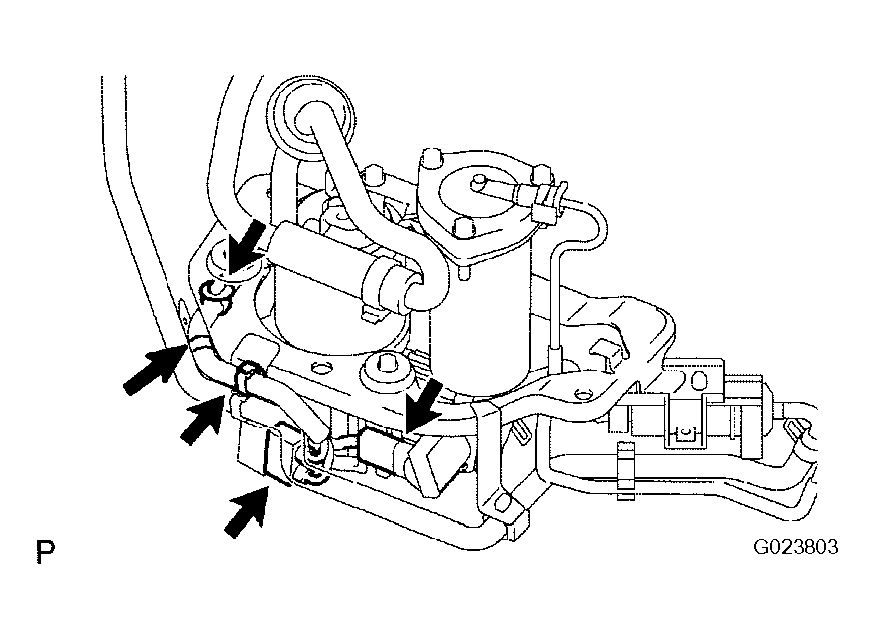

  Fig 2: Disconnecting Connectors And Wire Harness
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the clamp.
3. Disconnect the hose from the cap grommet.

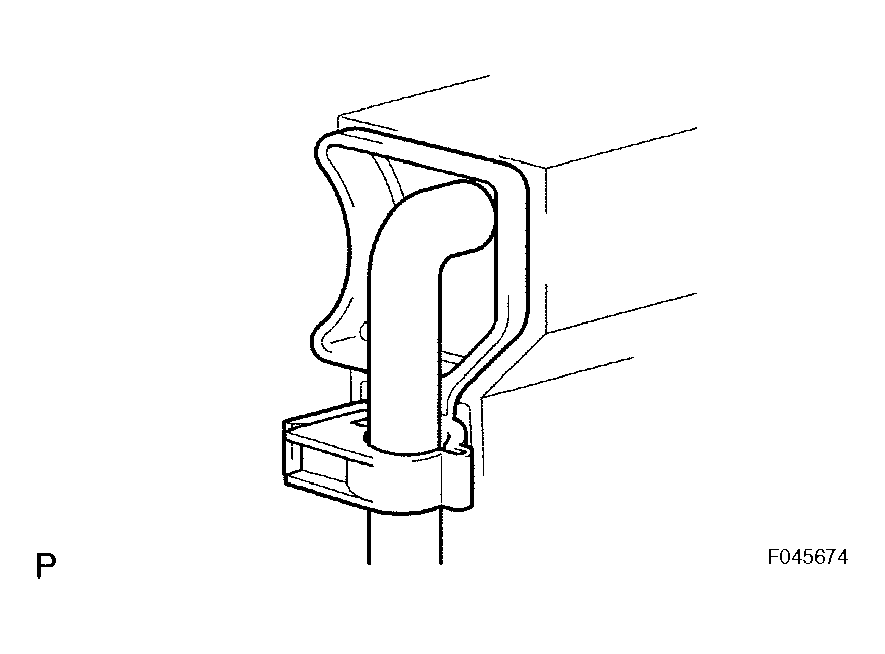

  Fig 3: Disconnecting Hose From Cap Grommet
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the 3 bolts.

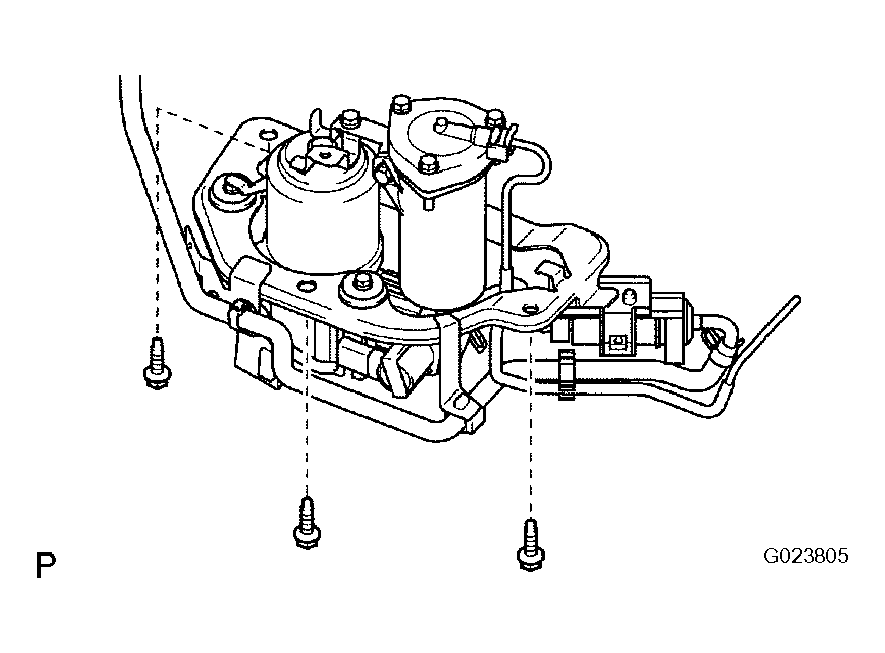

  Fig 4: Removing Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

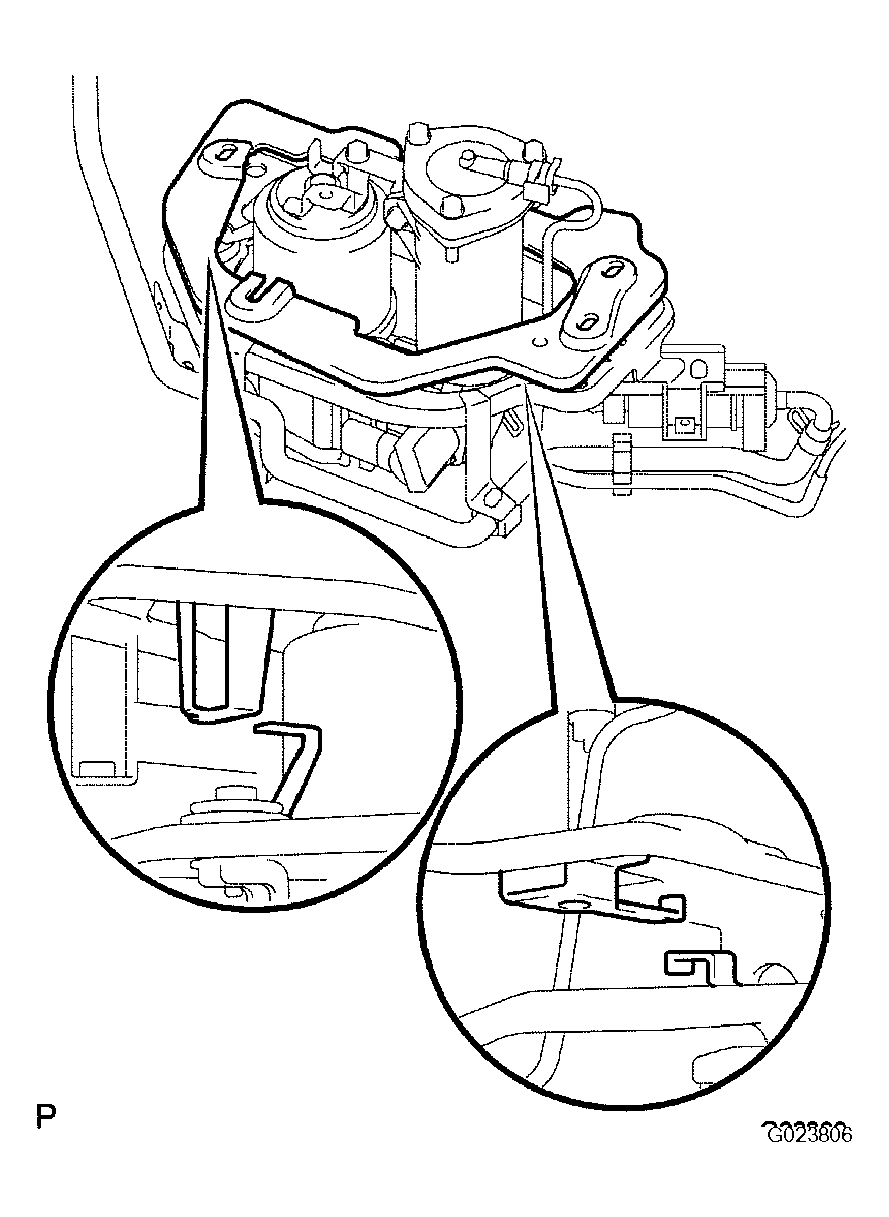

5. Slide the rear height control compressor bracket to the front of the vehicle, and release the claws A and B from the height control compressor bracket.
6. Remove the rear height control compressor w/ bracket assembly.
REMOVE HEIGHT CONTROL FILTER
1. Remove the clamp, 2 clips and 2 hoses.
2. Remove the height control filter.
Fig 5: Removing Height Control Filter
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR HEIGHT CONTROL COMPRESSOR BRACKET
1. Remove the 3 clamps.
2. Remove the 3 bolts and the 3 height control compressor bush No. 2 from the rear height control compressor bracket.

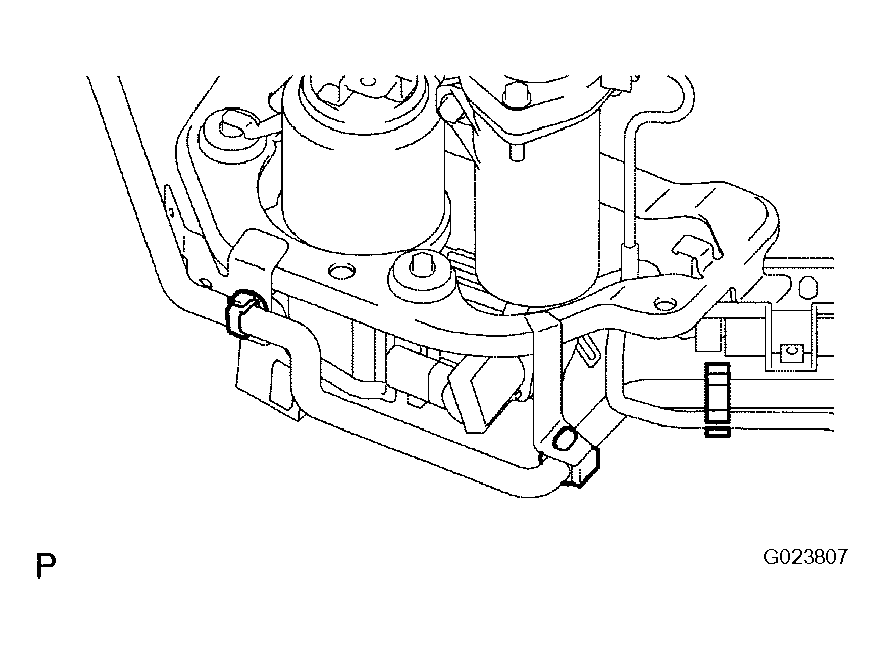

Fig 6: Removing Clamps
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HEIGHT CONTROL DRYER ASSEMBLY
1. Remove the clip and holder.
2. Remove the height control tube No. 2 from the height control dryer assembly.

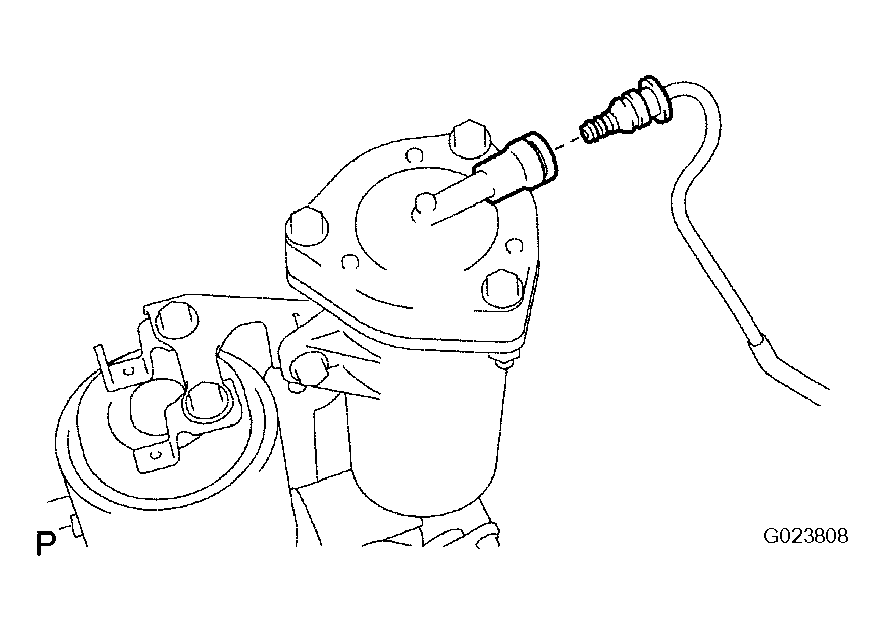

  Fig 7: Removing Height Control Tube No. 2 From Height Control Dryer Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the bolt and the height control dryer assembly from the height control compressor assembly.

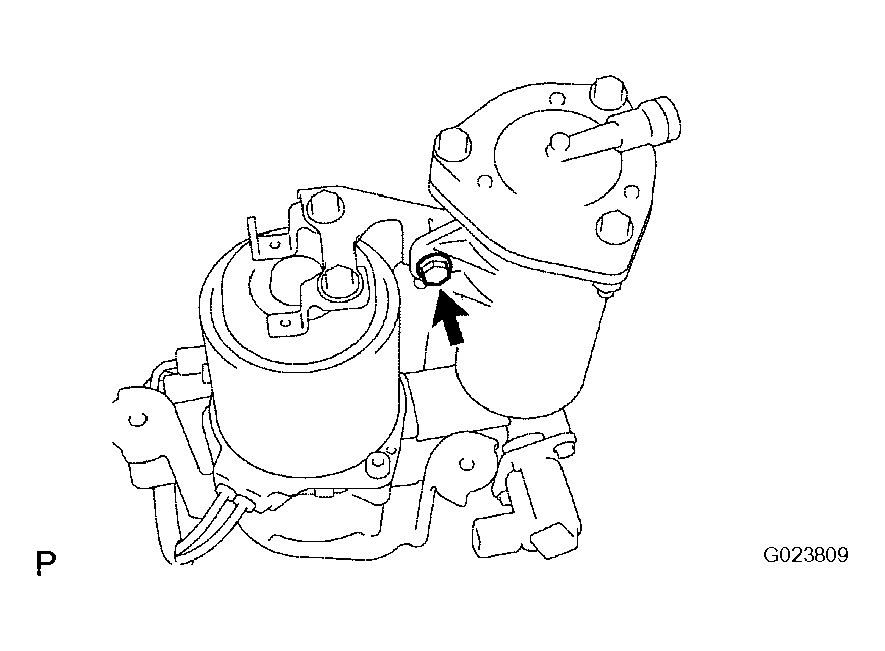

Fig 8: Removing Bolt And Height Control Dryer Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HEIGHT CONTROL COMPRESSOR ASSEMBLY
1. Remove the O-ring.

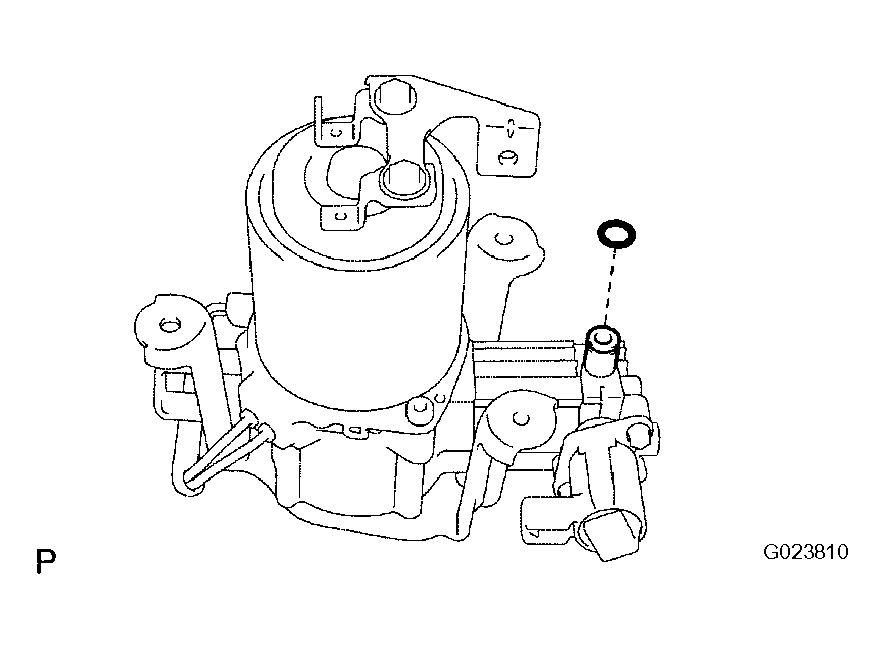

  Fig 9: Removing O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  When the height control compressor assembly is replaced with a new one, it doesn't require a new O-ring.
