Connector Views

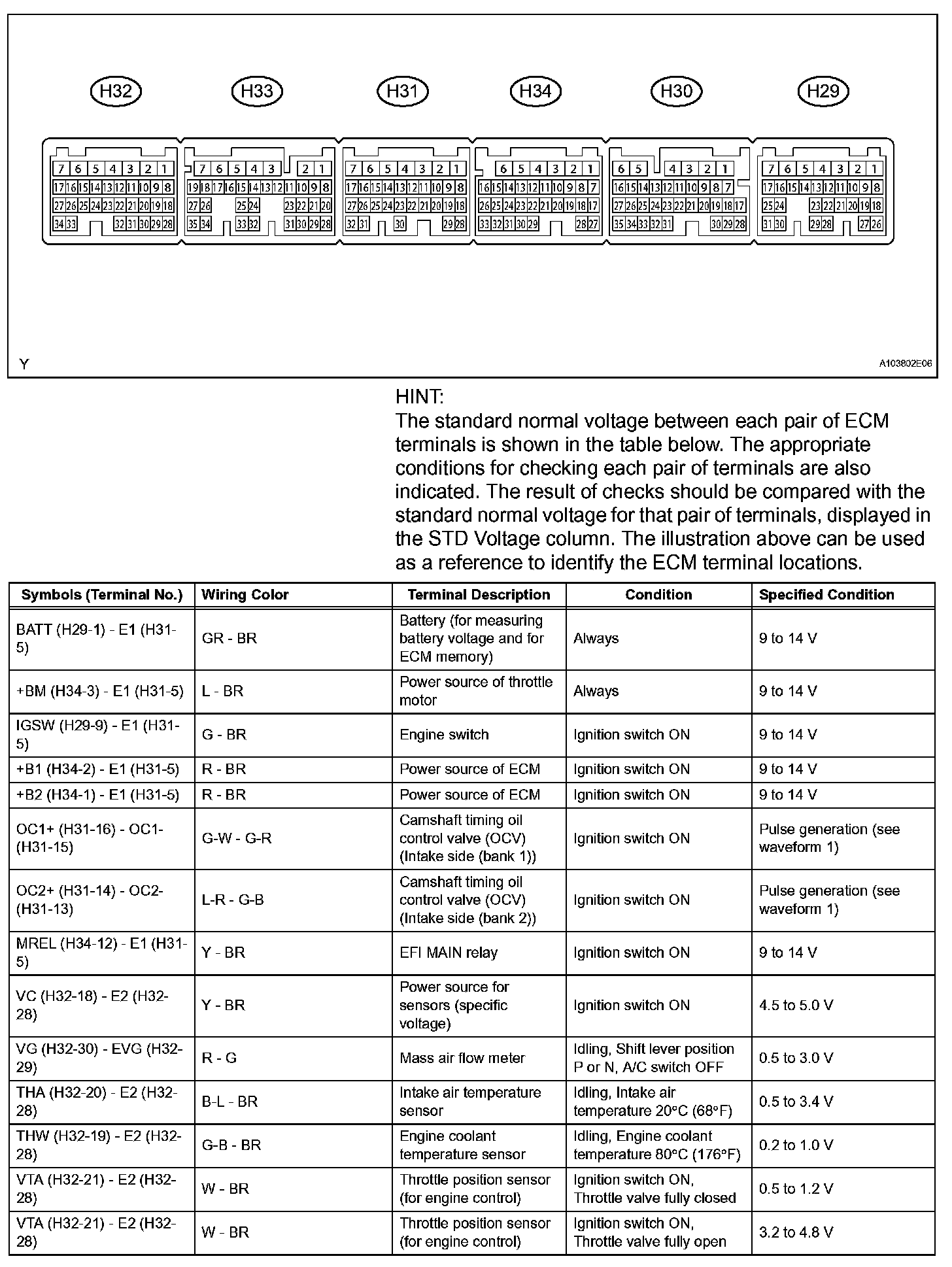

Terminals Of ECM/Pinouts (Part 1):

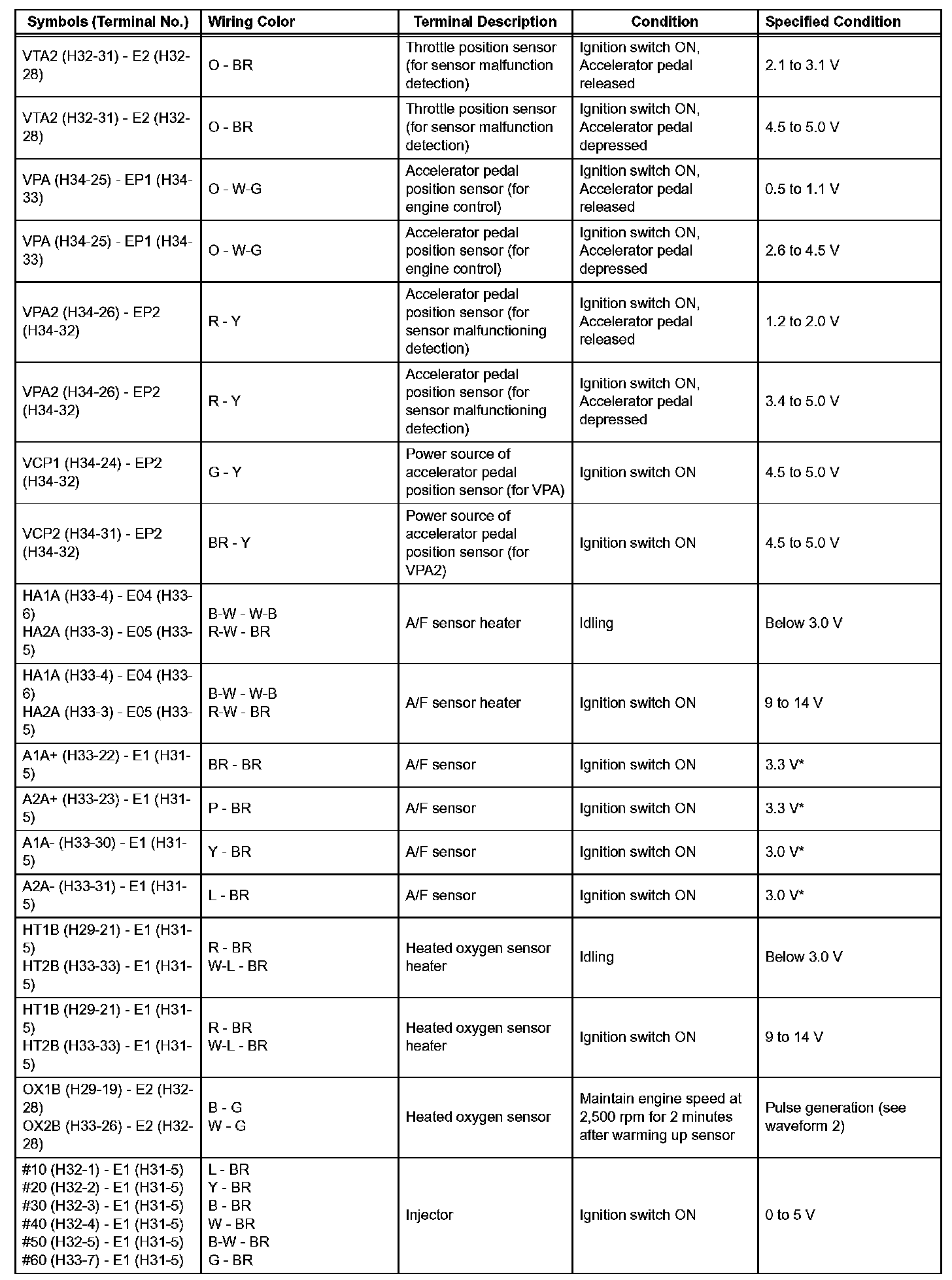

Terminals Of ECM/Pinouts (Part 2):

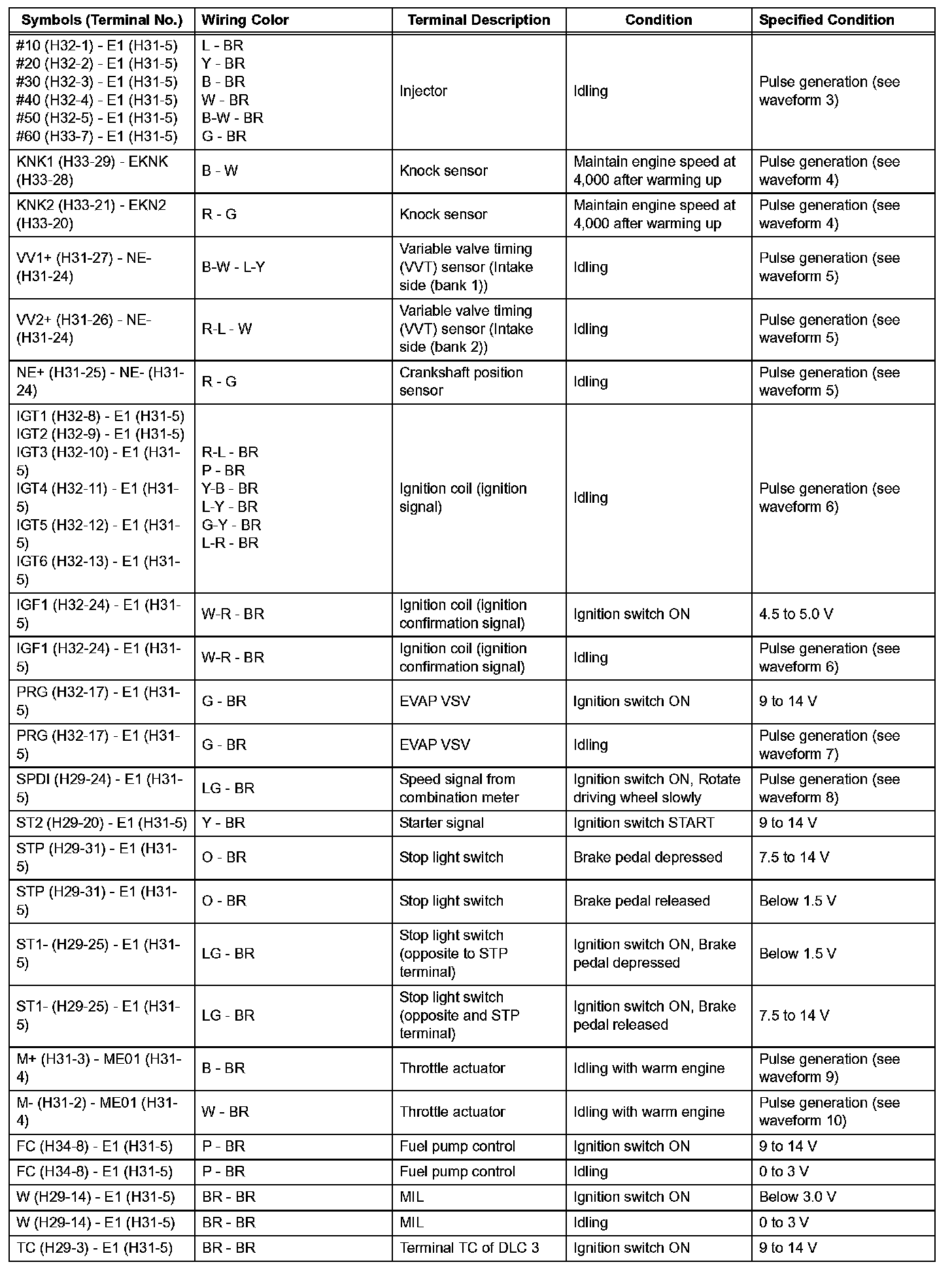

Terminals Of ECM/Pinouts (Part 3):

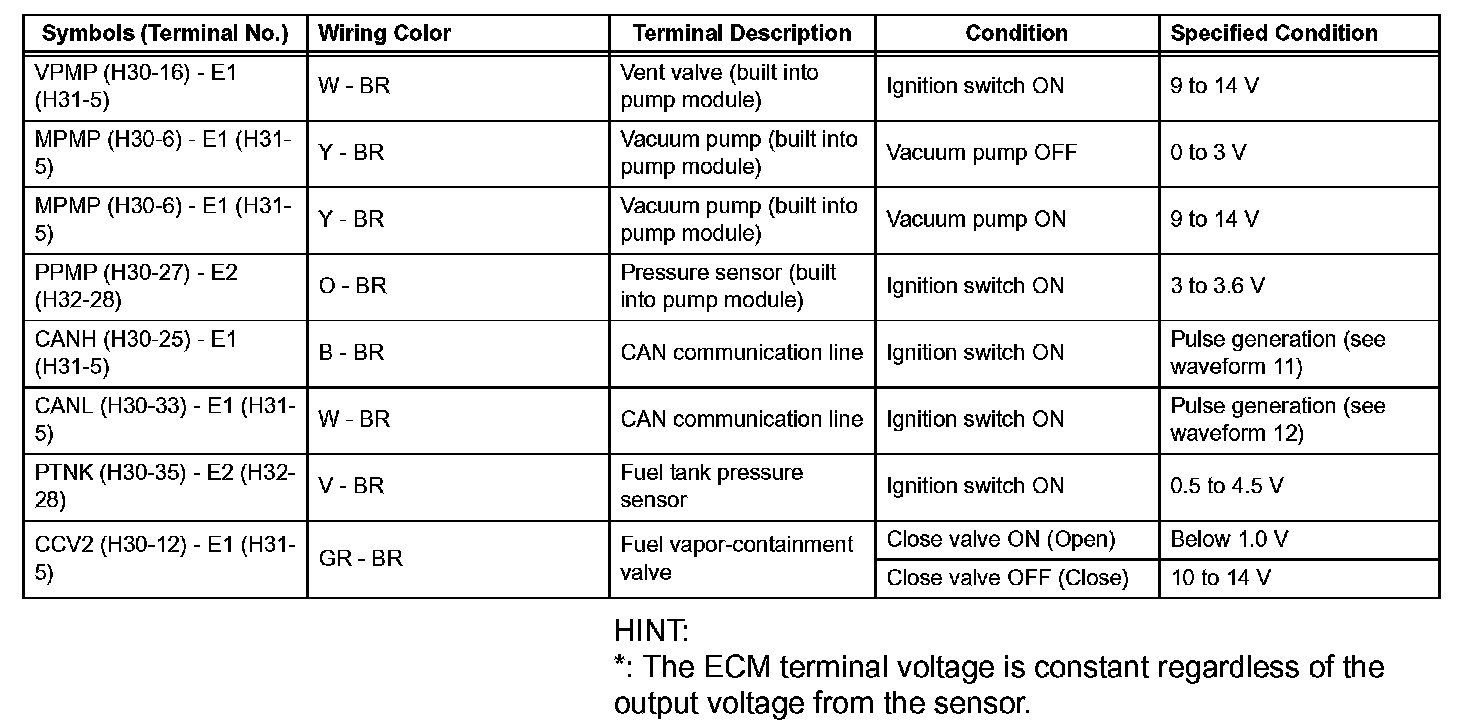

Terminals Of ECM/Pinouts (Part 4):

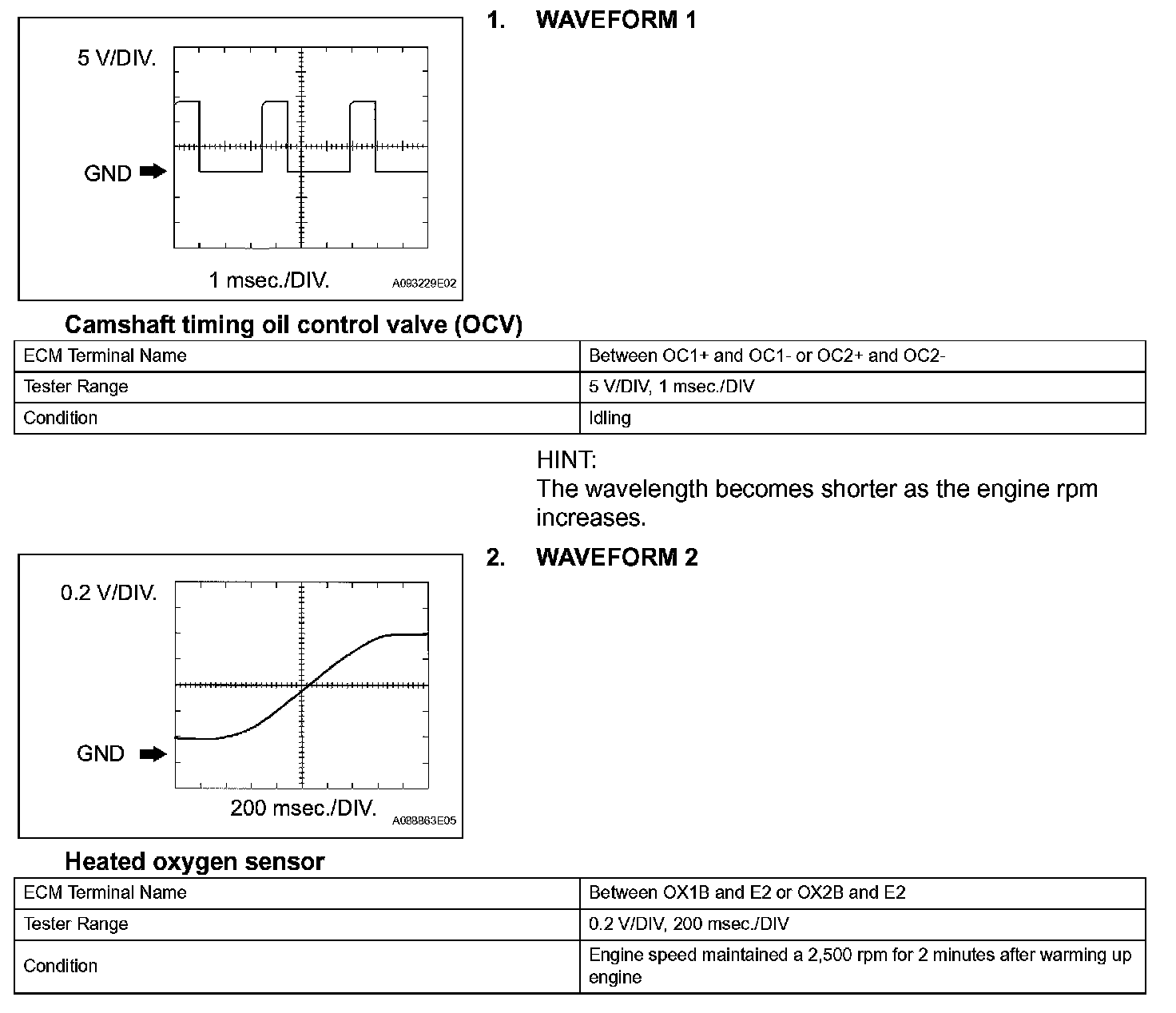

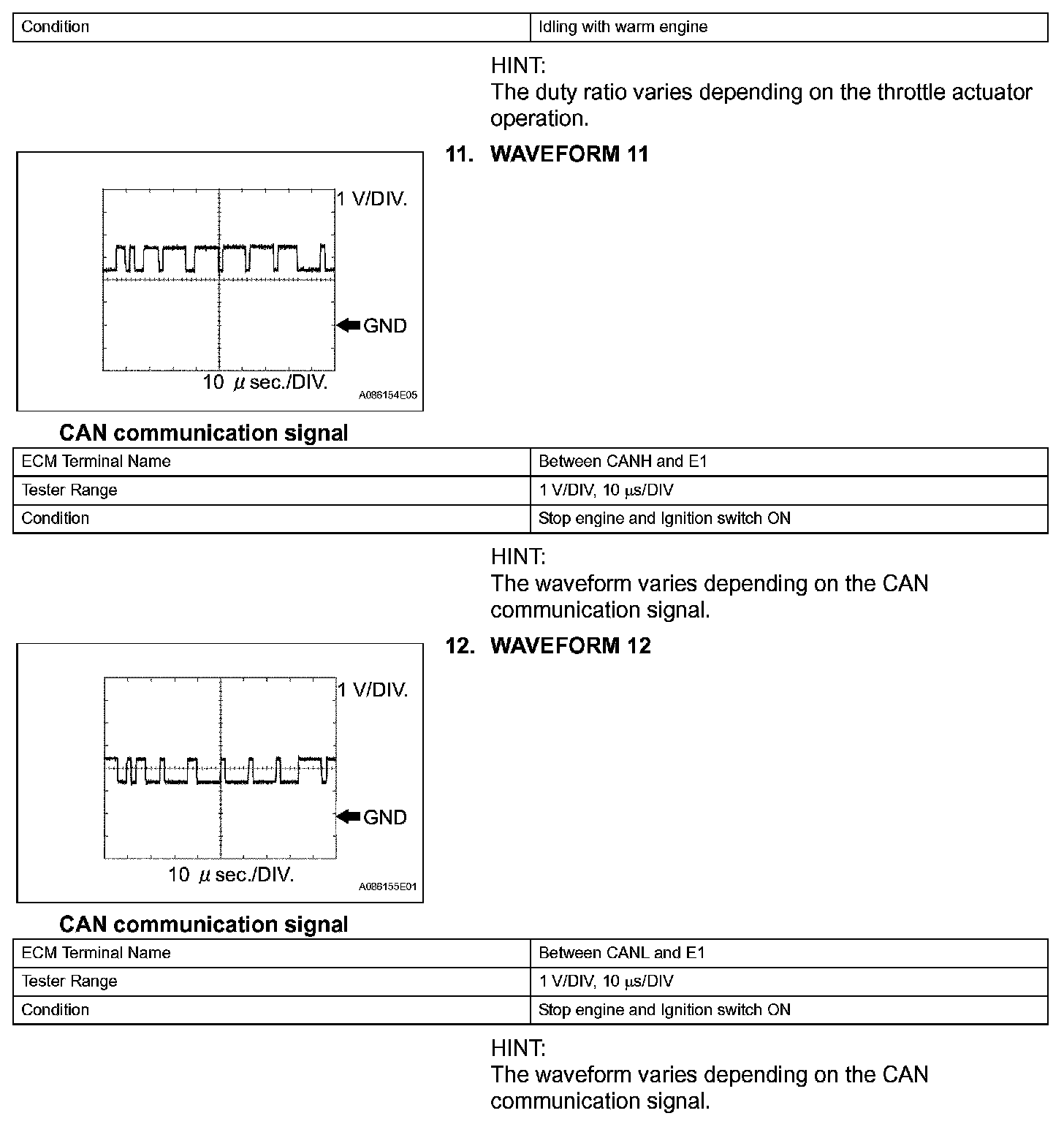

Oscilloscope Waveforms (Part 1):

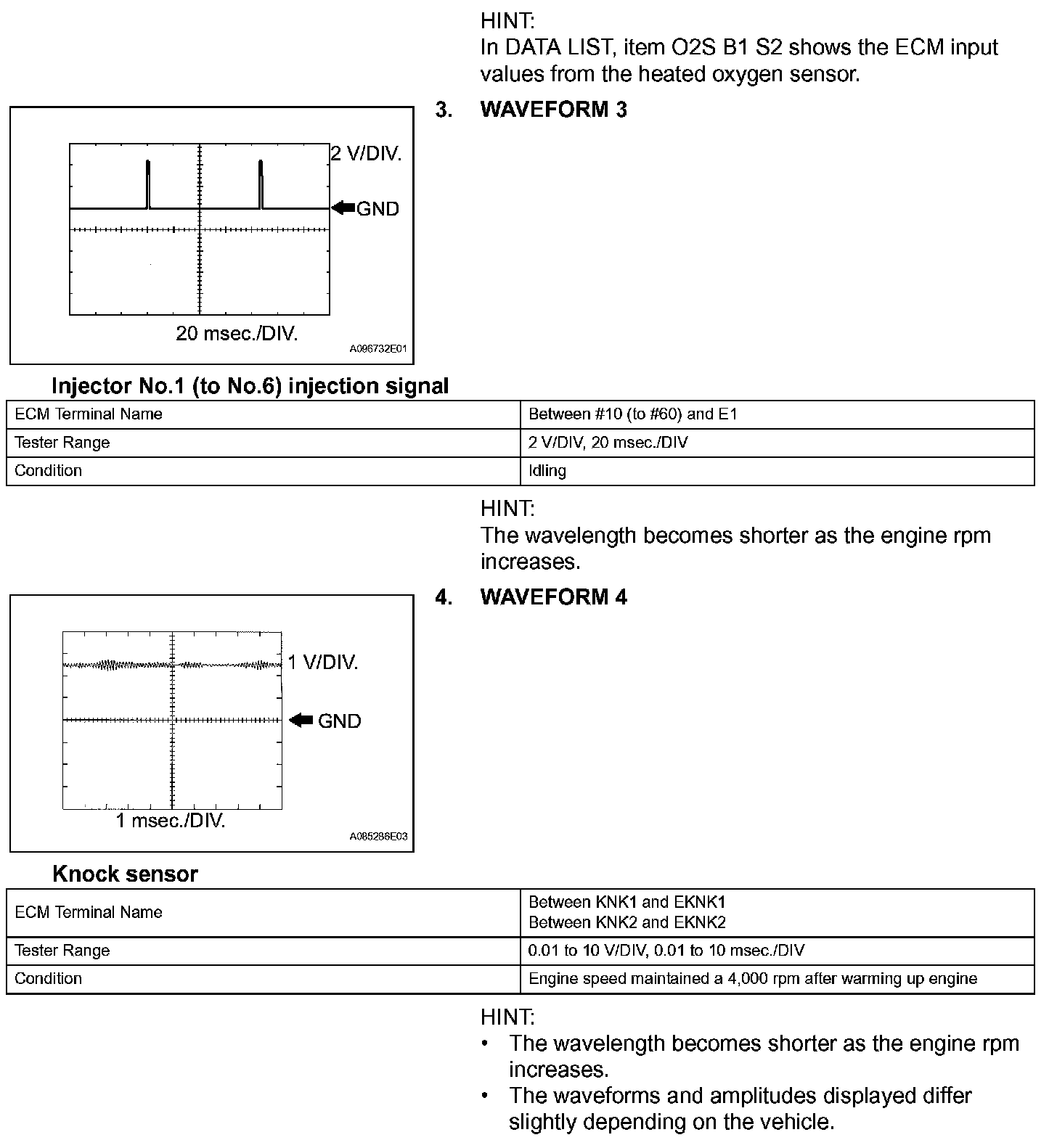

Oscilloscope Waveforms (Part 2):

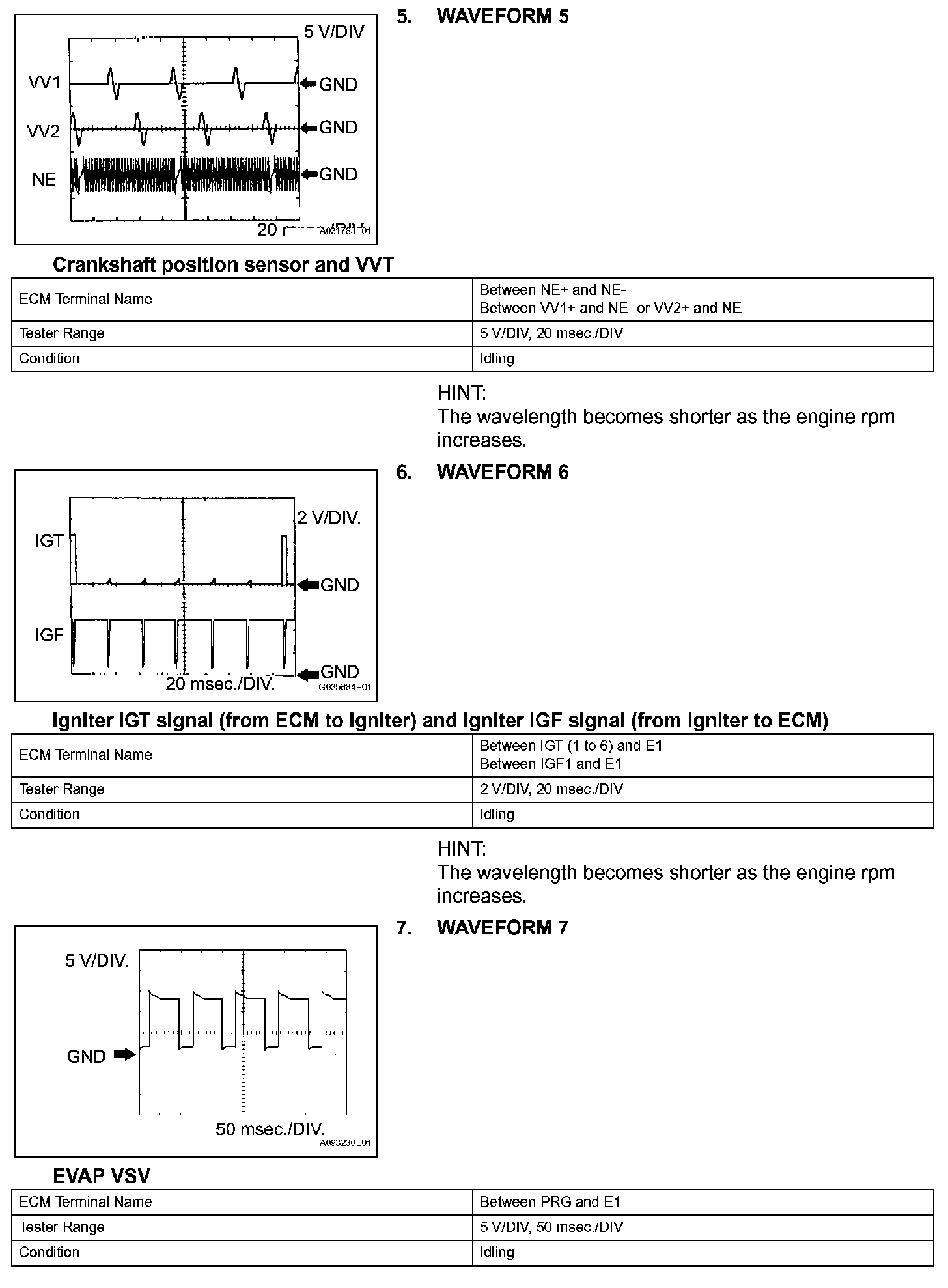

Oscilloscope Waveforms (Part 3):

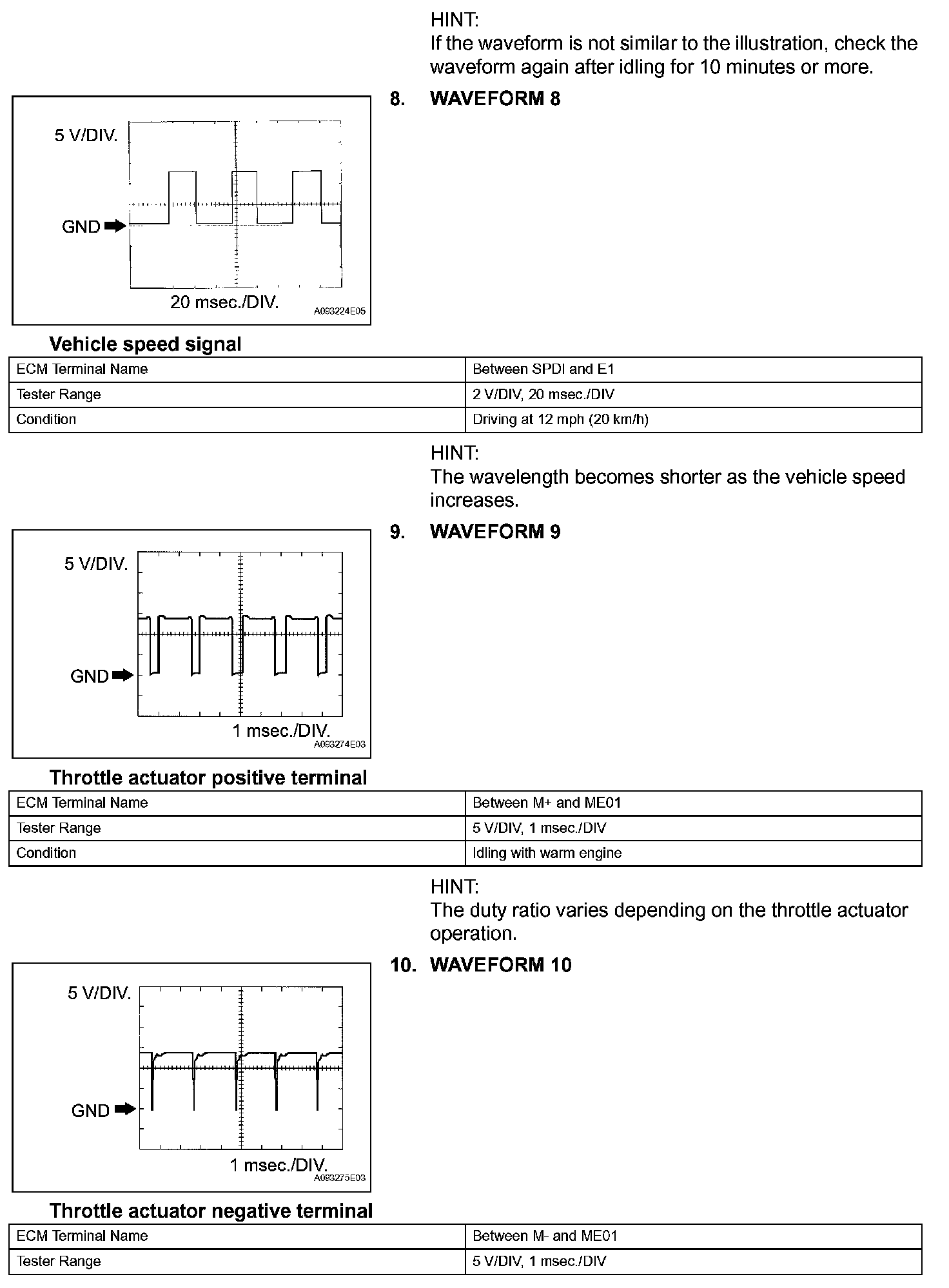

Oscilloscope Waveforms (Part 4):



Oscilloscope Waveforms (Part 5):
