Inspection Procedure

1. Disconnect the P19 connector.
2. Measure the voltage and resistance according to the value(s) in the table below.

   Standard voltage

   MULTIPLEX NETWORK SWITCH - VOLTAGE



   Tester Connection	Condition	Specified Condition
   P19-12 (BDR) - Body ground	Always	10 to 14 V

   Standard resistance

   MULTIPLEX NETWORK SWITCH - RESISTANCE



   Tester Connection	Condition	Specified Condition
   P19-7 (GND) - Body ground	Always	Below 1 Ω

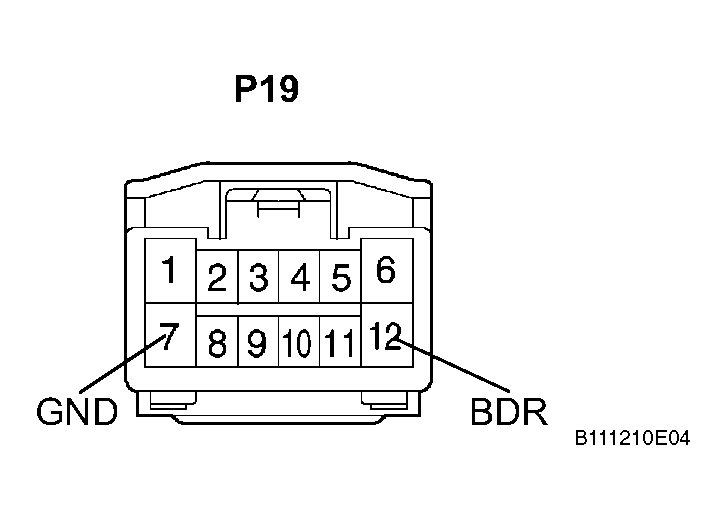

   Fig 1: Checking Wire Harness (Multiplex Network Switch)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

OK : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
