Inspection Procedure

  1. INSPECT COMMUNICATION LINE
    1. Use the intelligent tester to check for normal function of the multiplex communication system.
      1. (ECU unconnected, communication line malfunctioning) Without DTC B1214, B1215 or B 1262 outputs, proceed to A.
      2. (ECU unconnected, communication line malfunctioning) With DTC B1214, B1215 or B 1262 outputs, proceed to B.

    B : GO TO  MULTIPLEX COMMUNICATION

    A : GO TO NEXT STEP.

  2. INSPECT FUSE (HEATER, RR-DEF)
    1. Remove the HEATER fuse from the instrument panel J/B.
    2. Remove the RR-DEF fuse from the FL block.
    3. Check the resistance.

      Standard resistance: Below 1 Ω

    NG : REPLACE FUSE

    OK : GO TO NEXT STEP.

  3. PERFORM ACTIVE TEST
    1. Connect the intelligent tester (with CAN VIN) to the DLC3.
    2. Turn the ignition switch on.
    3. Perform the ACTIVE TEST according to the display on the tester.

      AIR CONDITIONER:

      AIR CONDITIONER

      Item Test Details Diagnostic Note
      DEFOGGER RLY-R Operate rear window defogger OFF/ON -

    NG : Go to step   5

    OK : GO TO NEXT STEP.

  4. CHECK AIR CONDITIONING SYSTEM OPERATE

    NG : GO TO  AIR CONDITIONING

    OK : REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY

  5. INSPECT JUNCTION BLOCK
    1. Check the voltage of the terminal of the J/B.

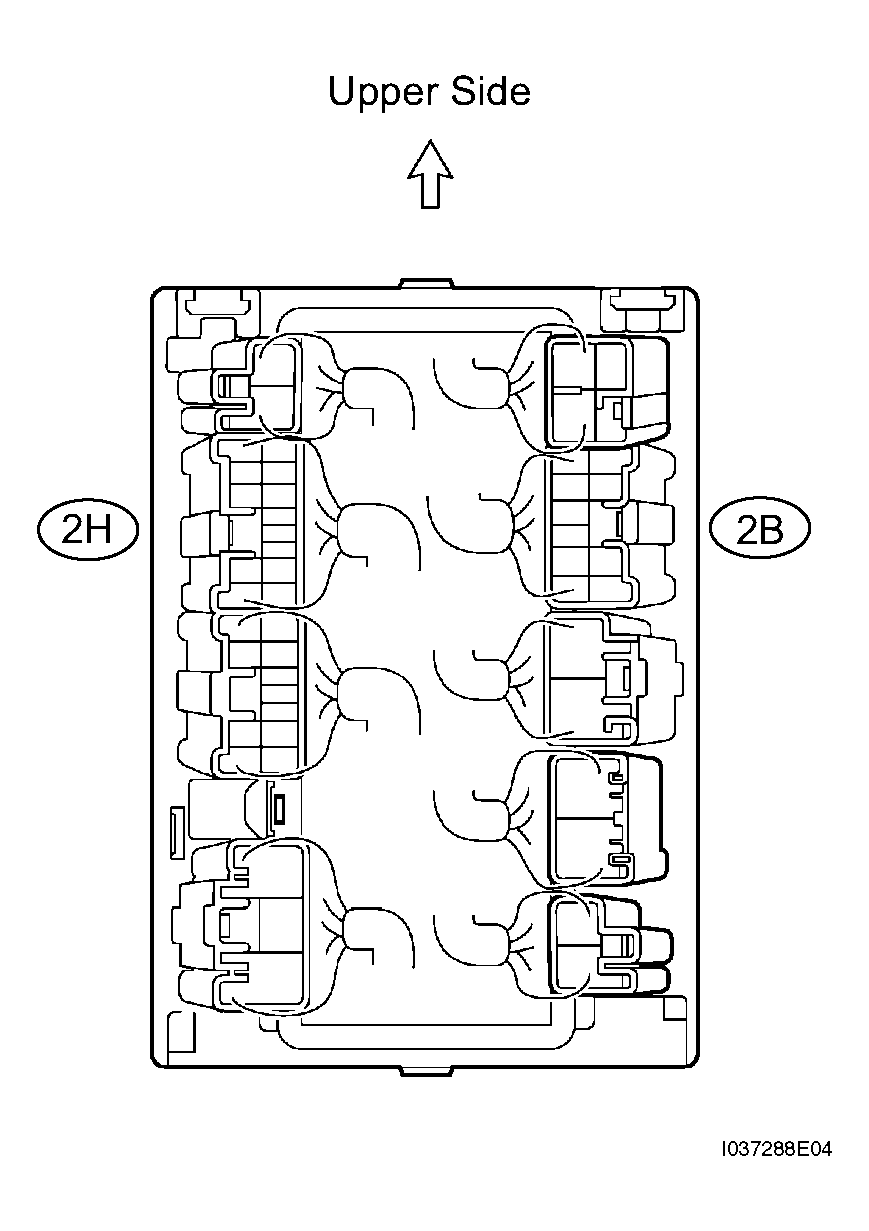

      Fig 1: Inspecting Junction Block
      G04116090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard voltage

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Switch Position Specified Condition
      2H-12 - Body Ground Ignition switch ON 10 to 14 V
      2H-12 - Body Ground Ignition switch OFF Below 1 V
      2B-8 - Body Ground Always 10 to 14 V

    NG : REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)

    OK : GO TO NEXT STEP.

  6. INSPECT JUNCTION BLOCK (MODE MONITOR TERMINAL)
    1. Check the voltage of the terminal to the following condition.
      • Engine running.
      • A/C switch is OFF.
      • Rear defogger and deicer switch is ON.

      Result

      JUNCTION BLOCK (MODE MONITOR TERMINAL)

      Result Proceed to
      More than 5 V A
      Below 2 V B
      Fig 2: Inspecting Junction Block (Mode Monitor Terminal)
      G04116091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    B : Go to step   12

    A : GO TO NEXT STEP.

  7. INSPECT JUNCTION BLOCK (RR-DEF RELAY)
    1. Remove the junction block No. 2.
    2. Connect the battery positive (+) lead to terminal 2B-8 and battery negative (-) terminal lead to terminal 2H-12, 2B-7 and 2H-11.
    3. Check the voltage of the RR-DEF relay terminals.
      Fig 3: Inspecting Junction Block (RR-DEF Relay)
      G04116092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard voltage

      JUNCTION BLOCK (RR-DEF RELAY) (1 OF 2)

      Tester Connection Condition Specified Condition
      2B-7 - 2H-13 Always Below 1 V
    4. Connect another battery positive (+) lead to the terminal 2H-12.
    5. Check the voltage of the RR-DEF relay terminals.

      Standard voltage

      JUNCTION BLOCK (RR-DEF RELAY) (2 OF 2)

      Tester Connection Condition Specified Condition
      2B-7 - 2H-13 Ignition switch ON Below 1 V
      2B-7 - 2H-13 Ignition switch OFF 10 to 14 V

    NG : REPLACE JUNCTION BLOCK

    OK : GO TO NEXT STEP.

  8. INSPECT AIR CONDITIONING AMPLIFIER ASSEMBLY
    1. Disconnect the A8 connector.
    2. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      AIR CONDITIONING AMPLIFIER ASSEMBLY

      Tester connection Condition Specified condition
      A8-19 (DFG) - Body ground Ignition switch: ON 10 to 14 V
      A8-19 (DFG) - Body ground Ignition switch: OFF Below 1 V

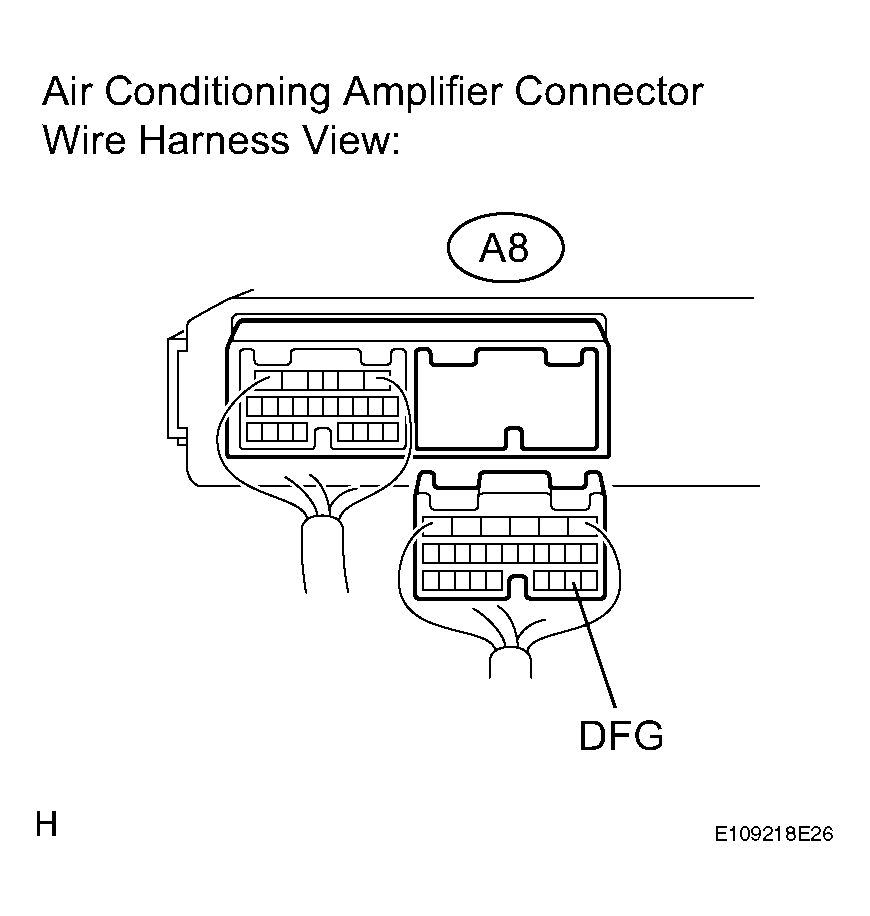

      Fig 4: Inspecting Air Conditioning Amplifier Assembly
      G04116093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK : GO TO NEXT STEP.

  9. INSPECT AIR CONDITIONING AMPLIFIER ASSEMBLY
    1. Connect the A8 connector.
    2. Connect the intelligent tester to the DLC3.
    3. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      AIR CONDITIONING AMPLIFIER ASSEMBLY

      Tester connection Intelligent tester condition Specified condition
      A8-19 (DFG) - Body ground ACTIVE TEST: ON (*1) 10 to 14 V
      A8-19 (DFG) - Body ground ACTIVE TEST: OFF (*1) Below 1 V

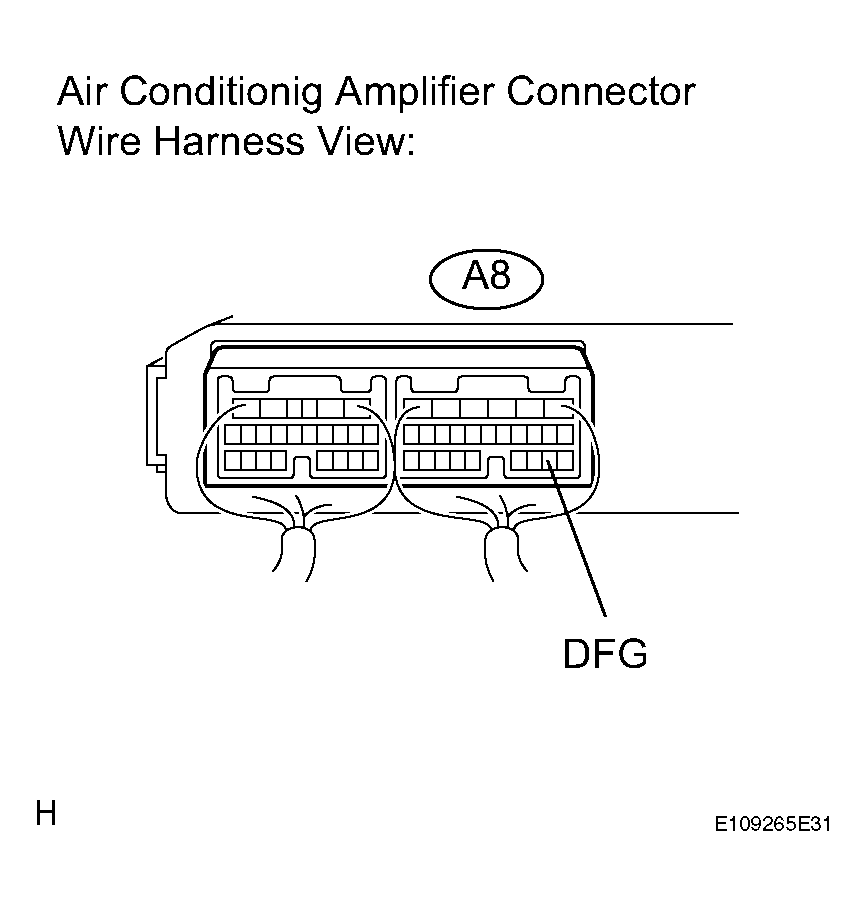

      Fig 5: Inspecting Air Condition Amplifier Assembly
      G04116094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      *1: Perform the ACTIVE TEST according to the display on the tester.

      AIR CONDITIONER:

      AIR CONDITIONER

      Item Test Details Diagnostic Note
      DEFOGGER RLY-R Operate rear window defogger OFF/ON -

    NG : REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY

    OK : GO TO NEXT STEP.

  10. INSPECT REAR WINDOW DEFOGGER WIRE
    NOTE:
    • When cleaning the glass, wipe the glass along the wire using a soft and dry cloth. Take care not to damage the wires.
    • Do not use detergents or glass cleaners that have abrasive ingredients.
    • When measuring voltage, wrap a piece of tin foil around the tip of the negative tester probe and press the foil against the wire with your finger, as shown in the illustration.

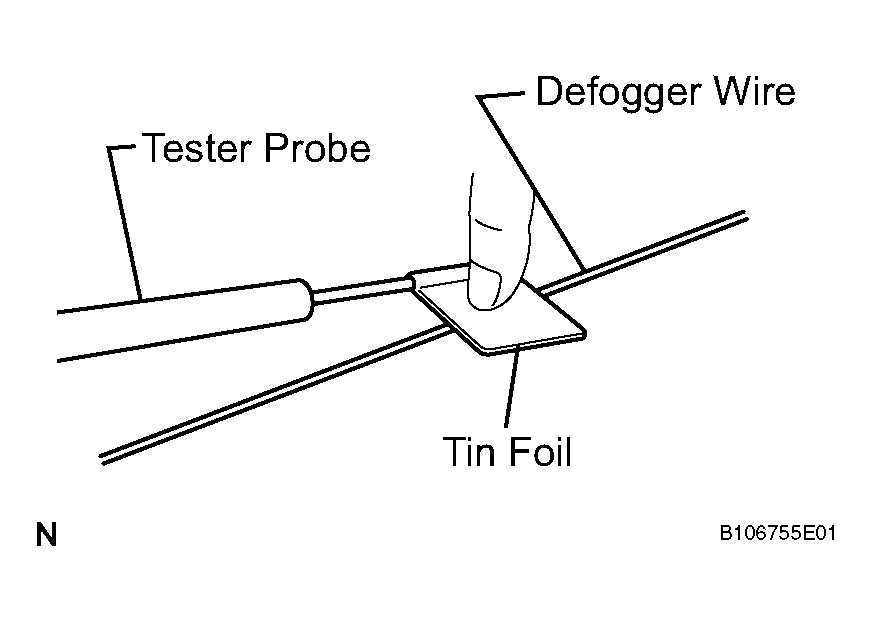

      Fig 6: Inspecting Rear Window Defogger Wire
      G04116095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Turn the ignition switch on.
    2. Turn the defogger switch ON.

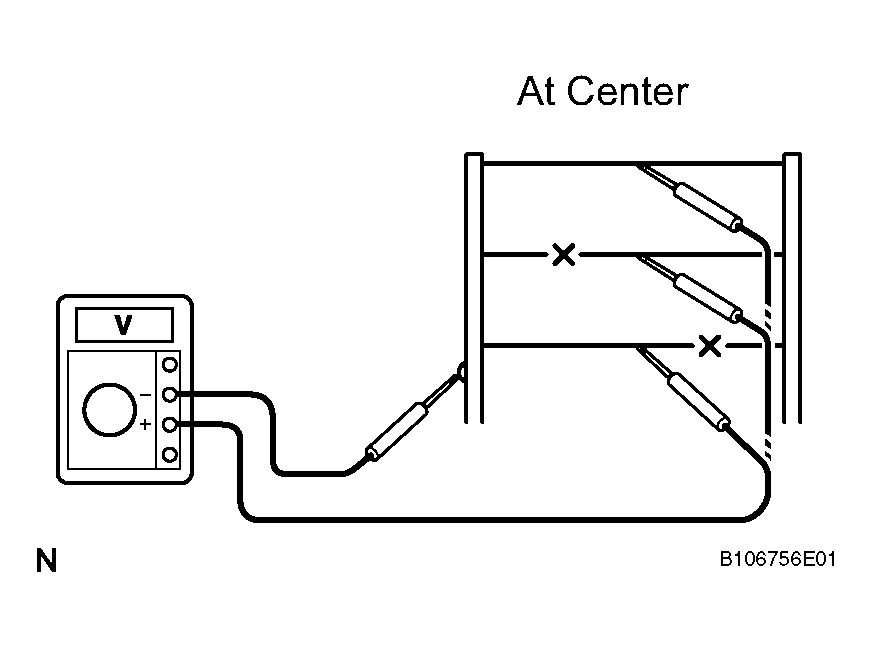

      Fig 7: Measuring Voltage
      G04116096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Check the voltage at the center of each defogger wire, as shown in the illustration.

      Standard voltage

      REAR WINDOW DEFOGGER WIRE

      Voltage Criteria
      Approx .5 V Wire is not broken
      Approx. 10 or 0 V Wire is broken

      HINT:

      If there is approximately 10 V, the wire may be broken between the center of the wire and the wire end on the battery side. If there is no voltage, the wire may be broken between the center of the wire and the end on the ground side.

    4. Place the voltmeter positive (+) lead against the defogger wire on the battery side.
    5. Place the voltmeter negative (-) lead with the foil strip against the wire on the ground side.
    6. Slide the positive (+) lead from the battery side to the ground side.
    7. The point where the voltage drops from approximately 10 V to 0 V is where the defogger wire is broken.
      Fig 8: Checking Defogger Wires For Breaks
      G04116103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      If the defogger wire is not broken, the voltmeter indicates 0 V at the positive (+) end of the defogger wire but gradually increases to approximately 12 V as the meter probe moves to the other end.

    NG : REPAIR REAR WINDOW DEFOGGER WIRE

    OK : GO TO NEXT STEP.

  11. CHECK WIRE HARNESS (REAR WINDOW DEFOGGER - JUNCTION BLOCK NO. 2)
    1. Disconnect the N4, N5 defogger and 2B J/B connectors.
    2. Check the resistance of the wire harness side connectors.

      Standard resistance

      REAR WINDOW DEFOGGER - JUNCTION BLOCK NO. 2

      Tester Connection Specified Condition
      N4-1 - 2B-7 Below 1 Ω
      N4-1 - Body ground 10 kΩ or higher
      N5-1 - Body ground Below 1 Ω
      N5-1 - 2B-7 10 kΩ or higher

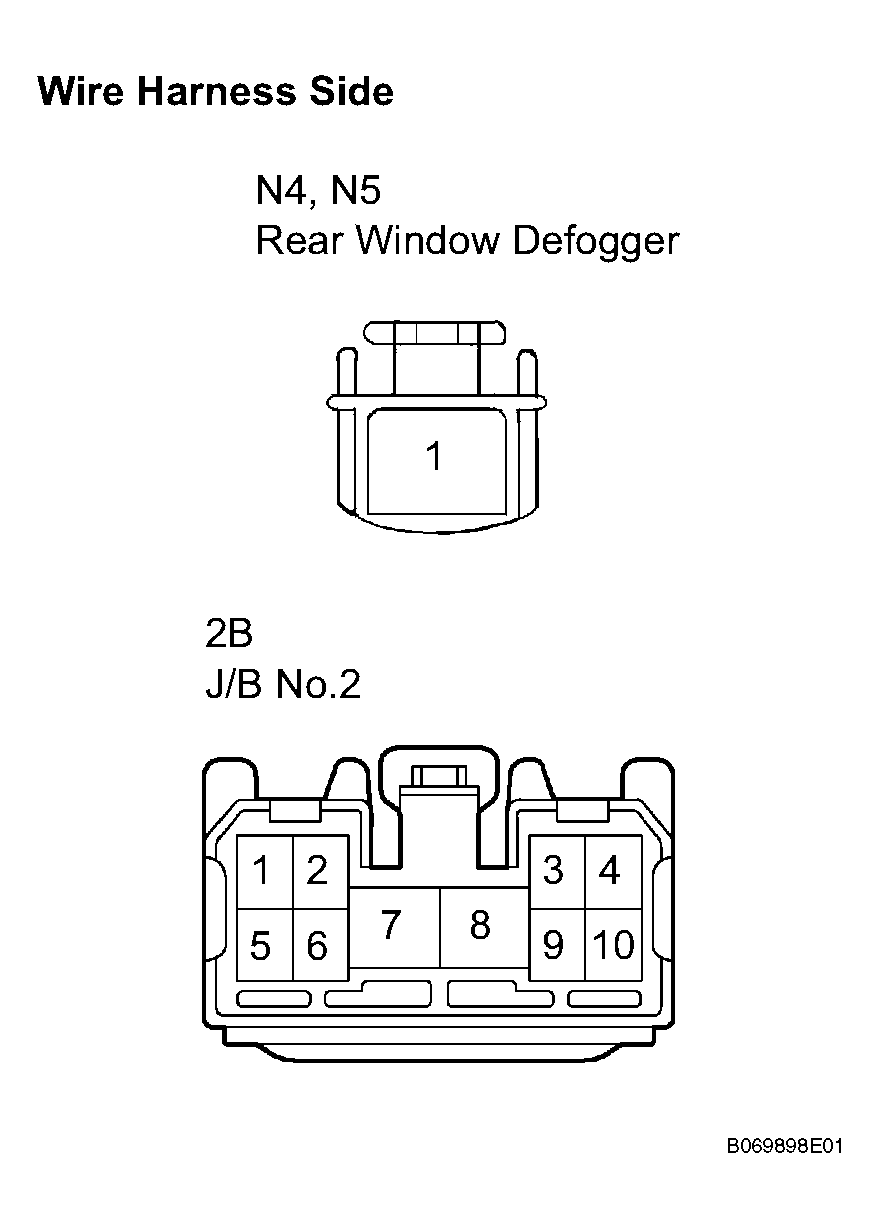

      Fig 9: Checking Wire Harness (Rear Window Defogger - Junction Block No. 2)
      G04116098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK : REPLACE NOISE FILTER

  12. CHECK WIRE HARNESS (REAR WINDOW DEFOGGER - JUNCTION BLOCK NO. 2)
    1. Disconnect the N4, N5 defogger and 2B J/B connectors.
    2. Check the resistance of the wire harness side connectors.

      Standard resistance

      REAR WINDOW DEFOGGER - JUNCTION BLOCK NO. 2

      Tester Connection Specified Condition
      N4-1 - 2B-7 Below 1 Ω
      N4-1 - Body ground 10 kΩ or higher
      N5-1 - Body ground Below 1 Ω
      N5-1 - 2B-7 10 kΩ or higher

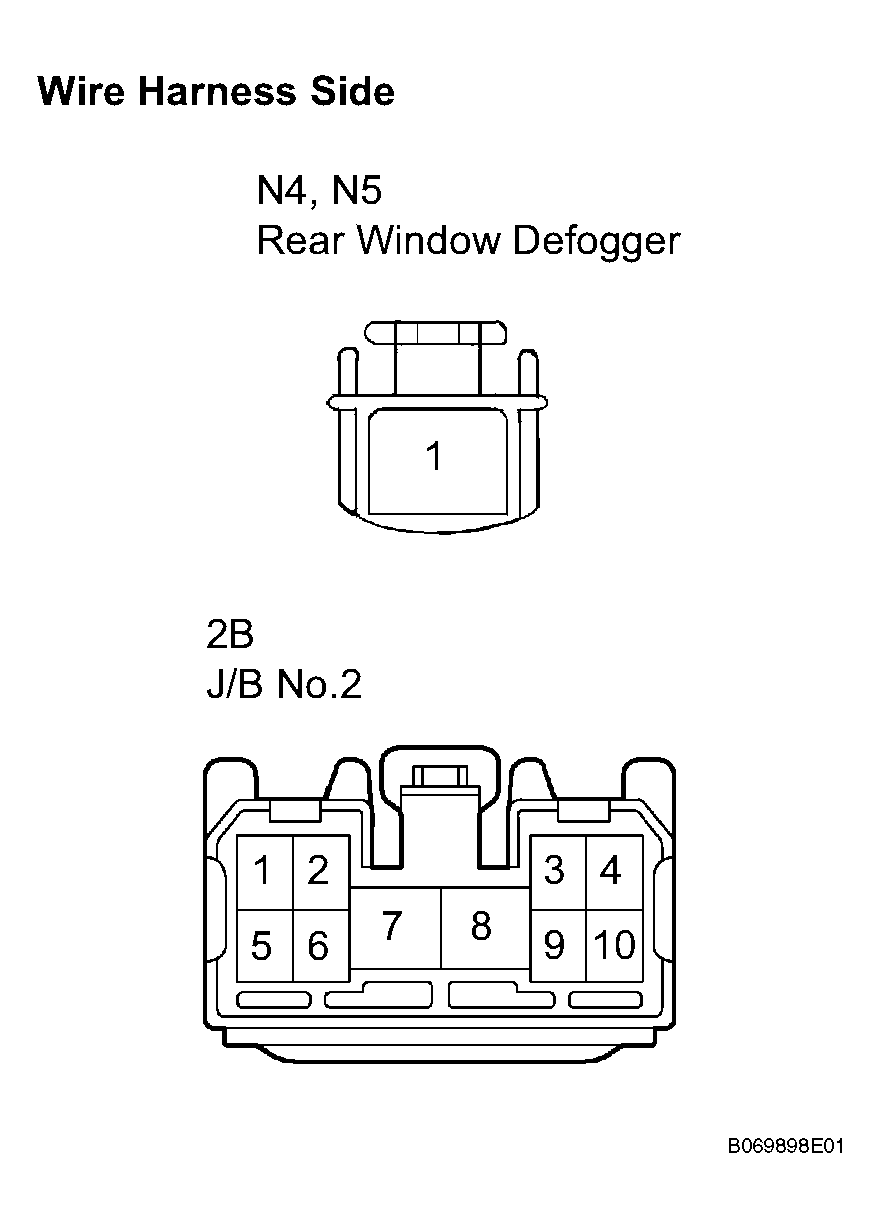

      Fig 10: Checking Wire Harness (Rear Window Defogger - Junction Block No. 2)
      G04116099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK : GO TO NEXT STEP.

  13. INSPECT JUNCTION BLOCK (RR-DEF RELAY)
    1. Remove the junction block No. 2.
    2. Connect the battery positive (+) lead to terminal 2B-8 and battery negative (-) terminal lead to terminal 2H-12, 2B-7 and 2H-11.
    3. Check the voltage of the RR-DEF relay terminals.
      Fig 11: Inspecting Junction Block (RR-DEF Relay)
      G04116100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard voltage

      JUNCTION BLOCK (RR-DEF RELAY) (1 OF 2)

      Tester Connection Condition Specified Condition
      2B-7 - 2H-12 Always Below 1 V
    4. Connect another battery positive (+) lead to the terminal 2H-12.
    5. Check the voltage of the RR-DEF relay terminals.

      Standard voltage

      JUNCTION BLOCK (RR-DEF RELAY) (2 OF 2)

      Tester Connection Condition Specified Condition
      2B-7 - 2H-12 Ignition switch ON 10 to 14 V
      2B-7 - 2H-12 Ignition switch OFF Below 1 V

    NG : REPLACE JUNCTION BLOCK

    OK : REPLACE NOISE FILTER
