Rear Window Defogger System does not Operate: Wiring Diagram

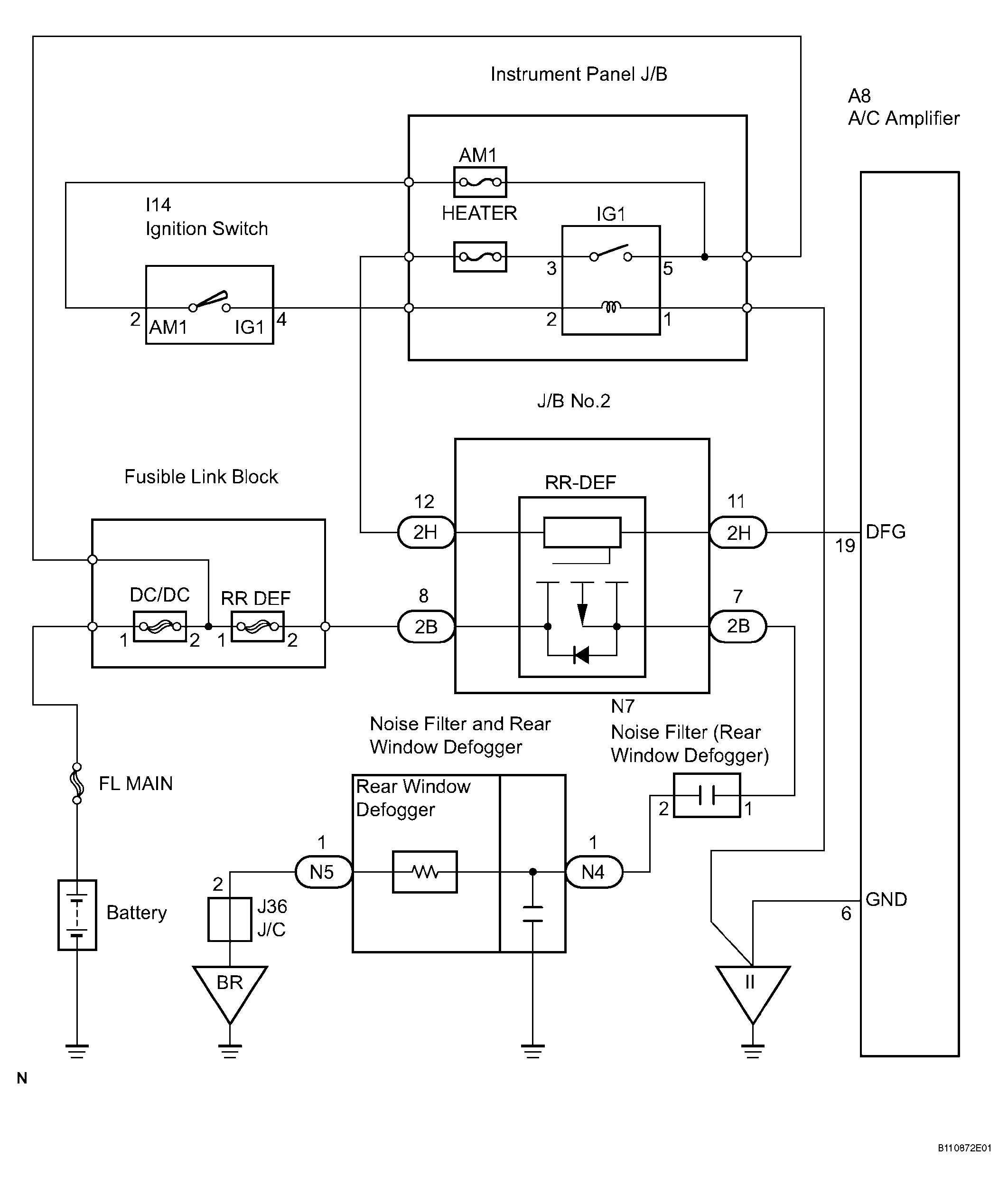

Fig 1: Rear Window Defogger System Wiring Diagram
G04116089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
