Abs Motor Relay: Inspection

INSPECT ABS MOTOR RELAY (ABS MTR1 RELAY, ABS MTR 2 RELAY)

Measure the resistance according to the value(s) in the table below.

Resistance

TESTER CONNECTION AND SPECIFIED CONDITION

Tester Connection	Connection	Specified Resistance
3 - 5	Always	10 kΩ or higher (No continuity)
3 - 5	Apply B+ between terminals 1 and 2	Below 1 Ω

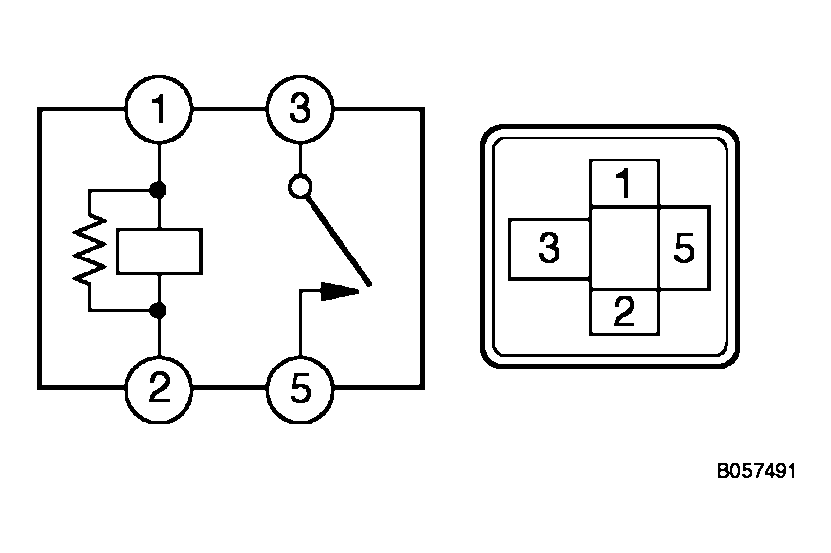

Fig 1: Inspecting ABS Motor Relay (ABS MTR1 Relay, ABS MTR 2 Relay)
