Brake Actuator: Disassembly

  1. REMOVE BRAKE ACTUATOR ASSEMBLY
    1. Remove the 2 nuts and brake actuator assembly from the actuator bracket.
    2. Remove the 2 brake actuator bolt holders.

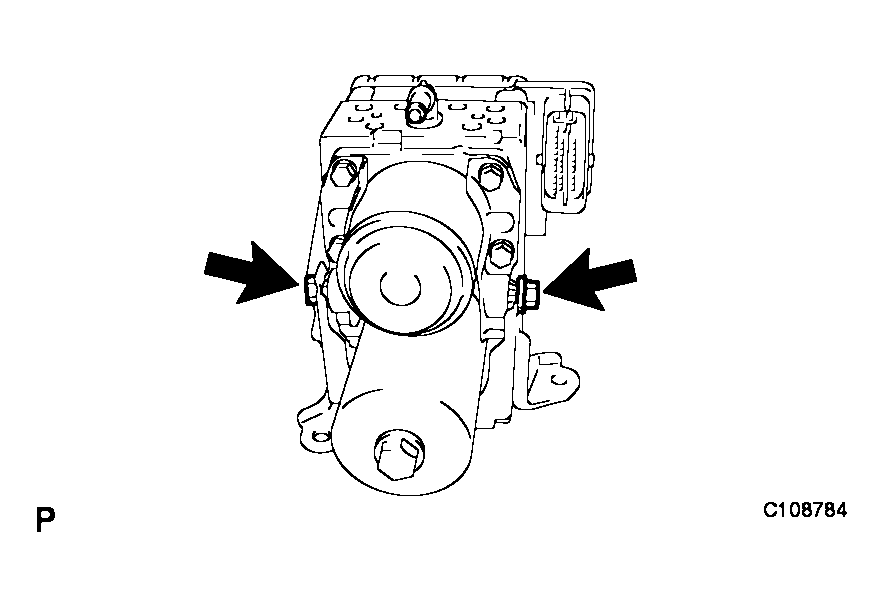

      Fig 1: Removing Brake Actuator Bolt Holders
      G04113303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
