Brake Actuator: Installation

  1. INSTALL BRAKE ACTUATOR ASSEMBLY
    1. Install the brake actuator assembly with bracket to the body with the 3 nuts.

      Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

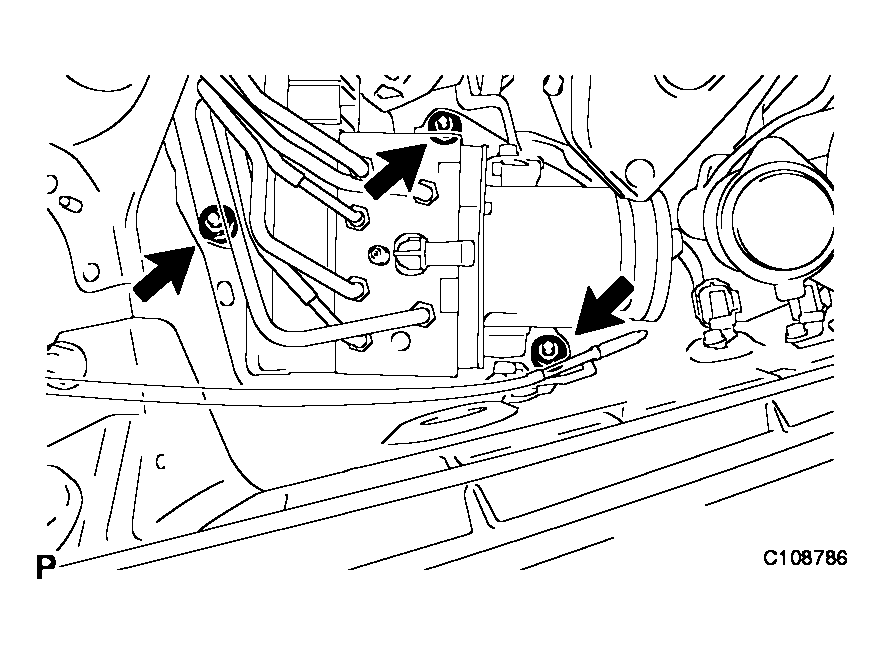

      Fig 1: Installing Brake Actuator Assembly With Bracket To Body With Nuts
      G04113306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Do not damage the brake tubes.
    2. Connect the brake actuator connector.
      NOTE: Make sure that the connector is locked securely.
    3. Install the brake tube bracket with the bolt.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

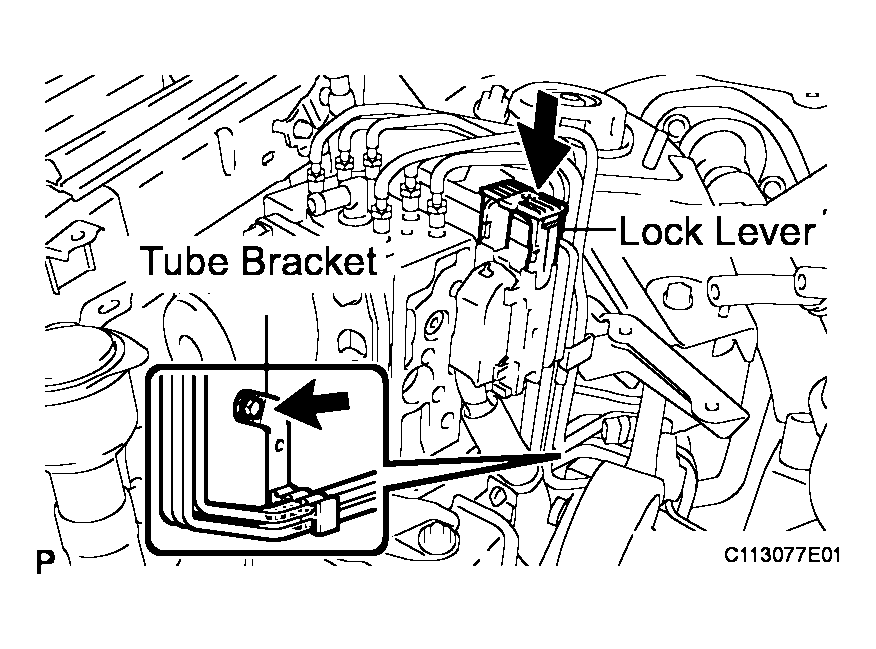

      Fig 2: Installing Brake Tube Bracket With Bolt
      G04113307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the front brake No.8 tube to the front flexible hose.

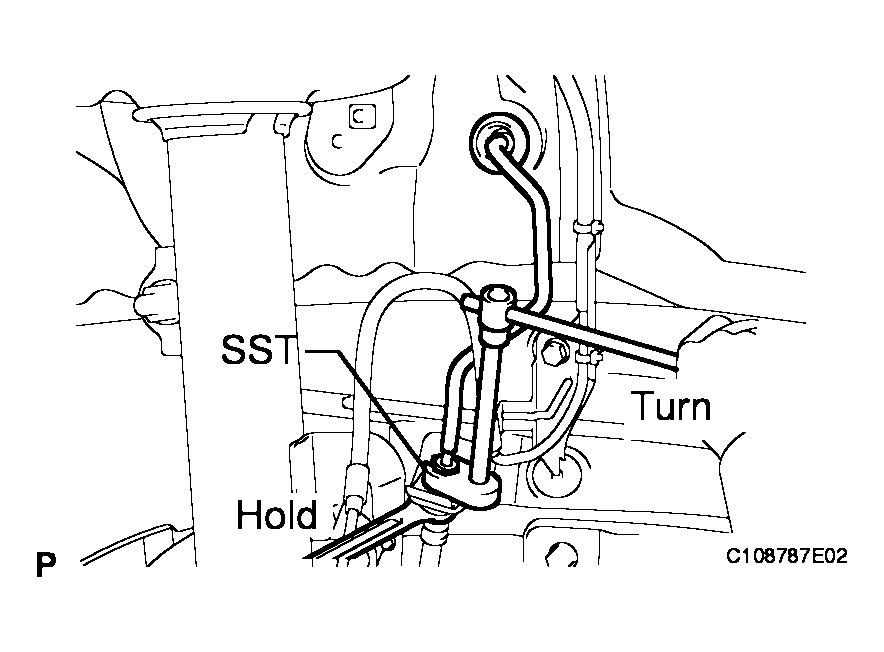

      Fig 3: Connecting Front Brake No.8 Tube To Front Flexible Hose
      G04113308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      SST 09023-00101

      Torque: 15 N*m (155 kgf*cm, 11 ft.*lbf)

    5. Using SST, connect each brake tube to the correct positions on top of the actuator assembly with bracket as shown in the illustration.

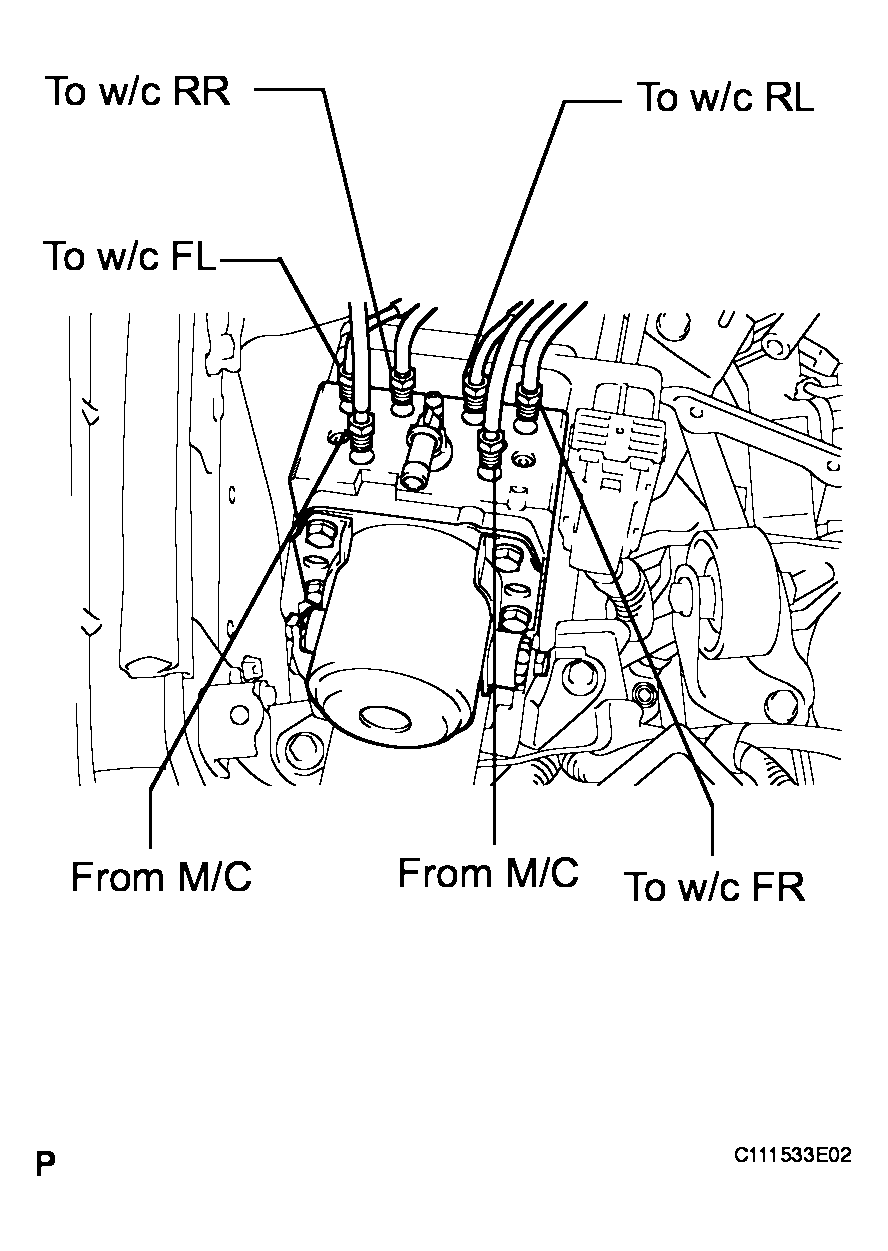

      Fig 4: Connecting Brake Tube To Top Of Actuator Assembly With Bracket
      G04113309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      SST 09023-00101

      Torque: 15 N*m (155 kgf*cm, 11 ft.*lbf)

    6. Install the brake actuator bracket No.7 with clamp with the bolt.

      Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

  2. INSTALL FRONT WHEEL RH

    Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)

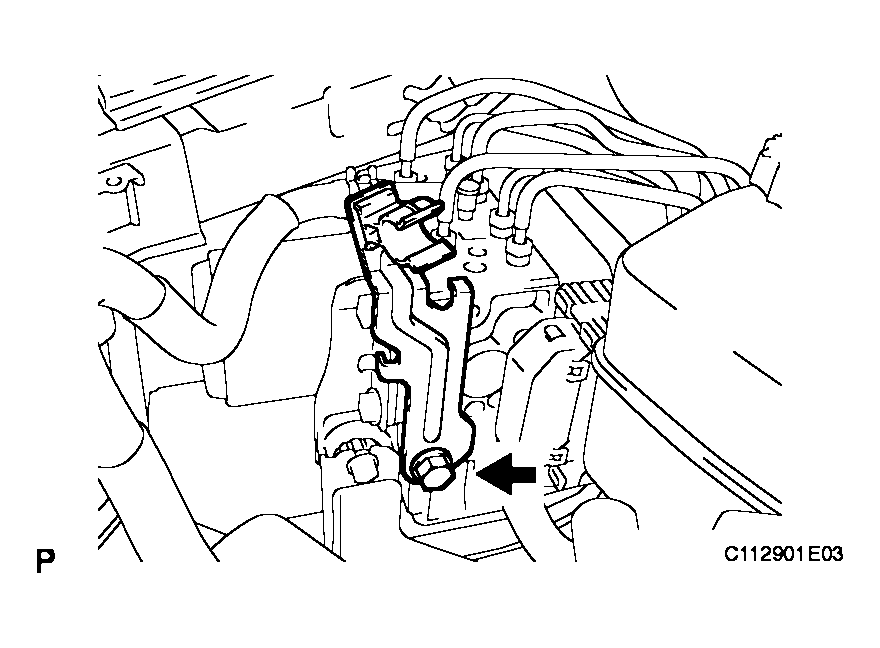

    Fig 5: Installing Brake Actuator Bracket No.7 With Clamp With Bolt
    G04113310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY
    1. Install the brake master cylinder reservoir assembly with the 2 bolts.

      Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

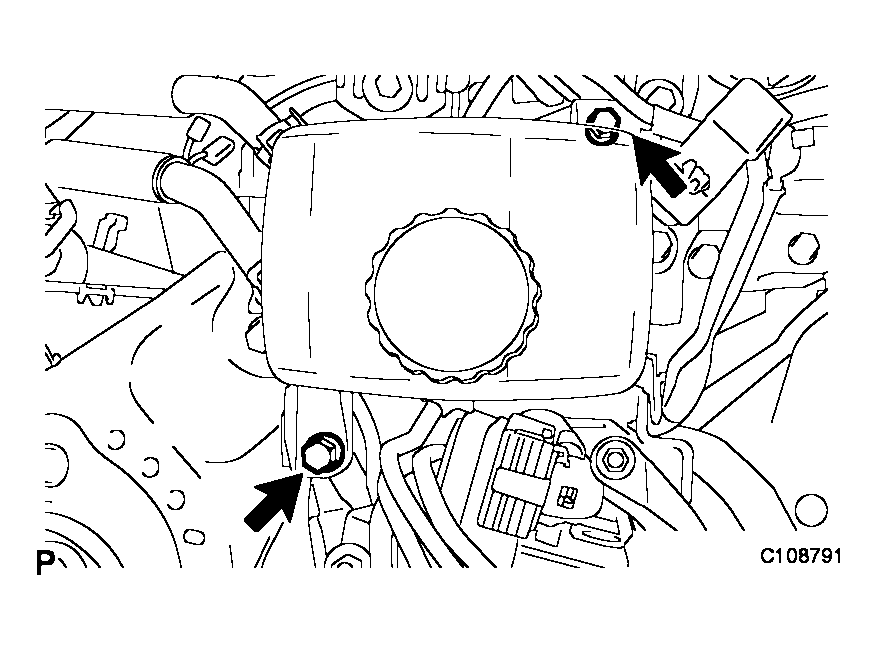

      Fig 6: Installing Brake Master Cylinder Reservoir Assembly With Bolts
      G04113311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 reservoir tubes with the 2 clips.

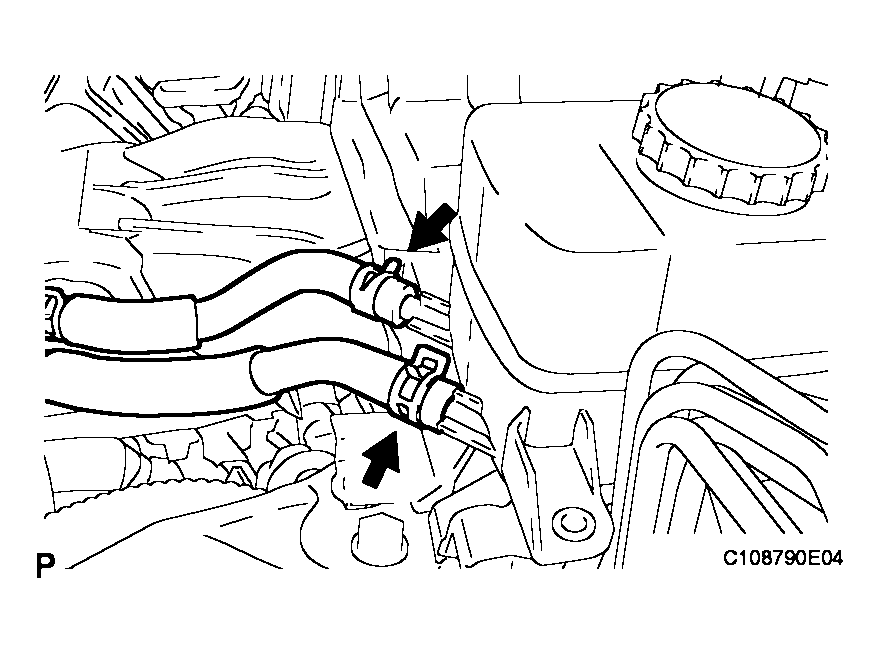

      Fig 7: Installing Reservoir Tubes With Clips
      G04113312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the brake actuator hose with the 2 clips.
    4. Install the brake actuator hose to the clamp.
      NOTE: Install the brake actuator hose with the edges of the protector and clamp aligned.
    5. Connect the warning switch connector.
  4. INSTALL COWL PANEL SUB-ASSEMBLY (See  INSTALLATION  )
  5. INSTALL WIND SHIELD WIPER MOTOR ASSEMBLY (See  INSTALLATION  )
  6. INSTALL COWL TOP VENTILATOR LOUVER SUBASSEMBLY
  7. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH (See  INSTALLATION  )
  8. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH (See  INSTALLATION  )
  9. INSTALL FRONT FENDER TO COWL SIDE SEAL LH
  10. INSTALL FRONT FENDER TO COWL SIDE SEAL RH
  11. FILL RESERVOIR WITH BRAKE FLUID (See  BLEEDING  )

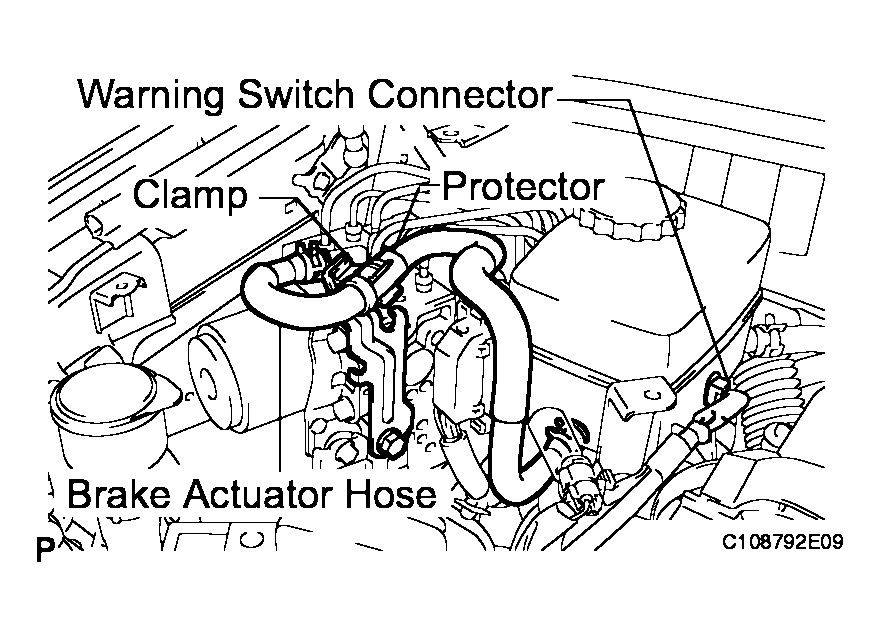

    Fig 8: Connecting Warning Switch Connector
    G04113313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. BLEED BRAKE ACTUATOR HOSE (See  BLEEDING  )
  13. BLEED FRONT BRAKE SYSTEM (See  BLEEDING  )
  14. INSTALL ABS MOTOR RELAY
    1. Install the 2 ABS motor relays.
  15. CLEAR DTC (See  BLEEDING  )
  16. BLEED REAR BRAKE SYSTEM (See  BLEEDING  )
  17. PERFORM ACCUMULATOR ZERO DOWN (See  ON-VEHICLE INSPECTION  )
  18. CHECK BRAKE FLUID LEVEL (See  BLEEDING  )
  19. CLEAR DTC (See  BLEEDING  )
  20. PERFORM LINEAR VALVE OFFSET LEARNING (See  BLEEDING  )
  21. CHECK BRAKE FLUID LEAKAGE
  22. PERFORM INITIALIZATION

    Some systems need initialization after reconnecting the cable to the negative battery terminal. (See INITIALIZATION )

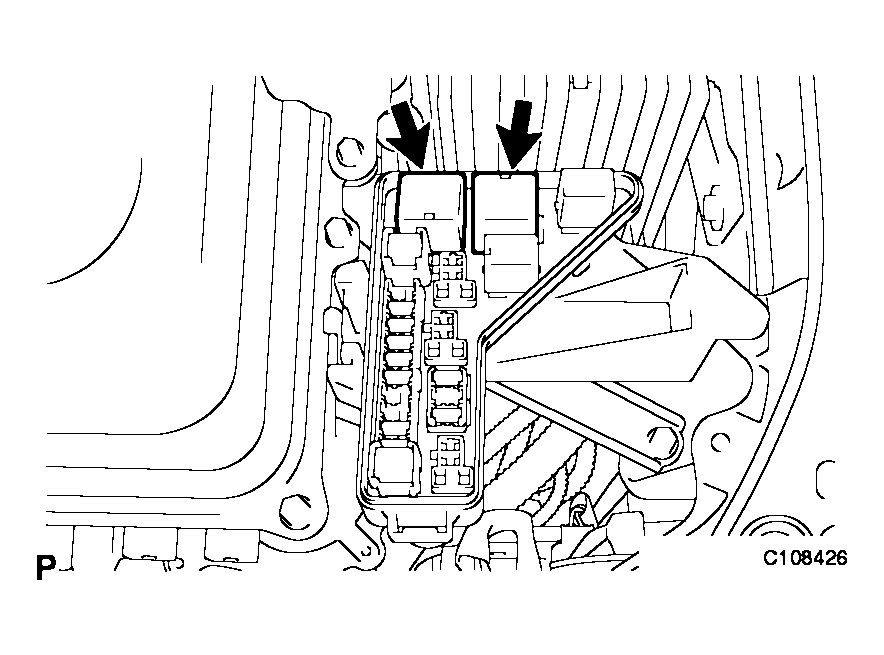

    Fig 9: Installing ABS Motor Relays
    G04113314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
