Brake Control Power Supply: Removal

REMOVE DECK BOARD SUB-ASSEMBLY (See REMOVAL )
REMOVE DECK FLOOR BOX FRONT (See REMOVAL )
REMOVE DECK FLOOR BOX REAR (See REMOVAL )
REMOVE DECK NO.2 BOARD SUB-ASSEMBLY (See REMOVAL )
REMOVE DECK NO.3 BOARD SUB-ASSEMBLY (See REMOVAL )
REMOVE REAR FLOOR FINISH PLATE (See REMOVAL )
REMOVE DECK SIDE TRIM BOX RH
REMOVE DECK SIDE TRIM BOX LH (See REMOVAL )
REMOVE DECK BOARD NO.1 CHECK
1. Remove the 4 nuts and deck board No.1 check.
REMOVE BRAKE CONTROL POWER SUPPLY ASSEMBLY

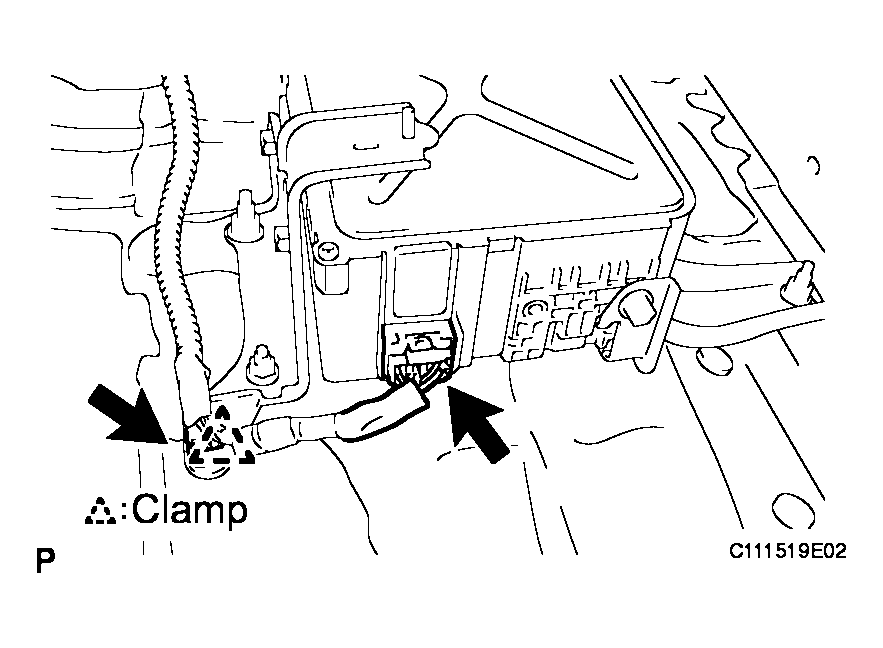

1. Disconnect the brake control power supply assembly connector and separate the clamp.

  Fig 1: Disconnecting Brake Control Power Supply Assembly Connector And Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

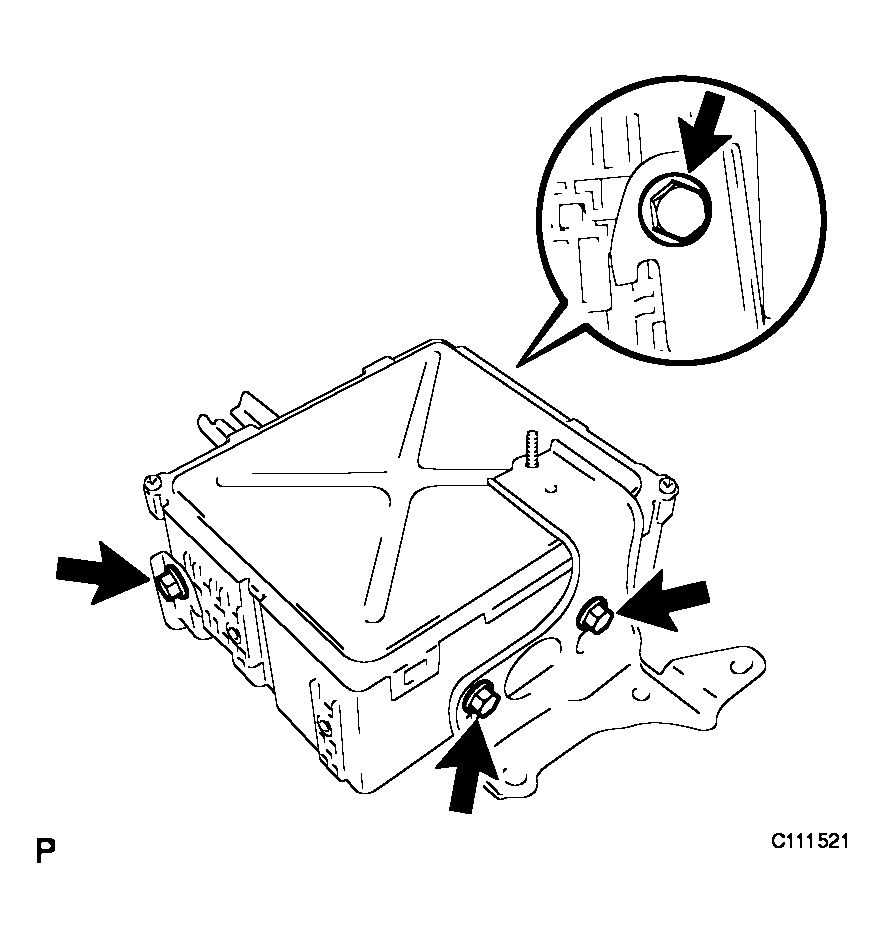

2. Remove the 3 nuts and the brake control power supply assembly.

  Fig 2: Removing Nuts And Brake Control Power Supply Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

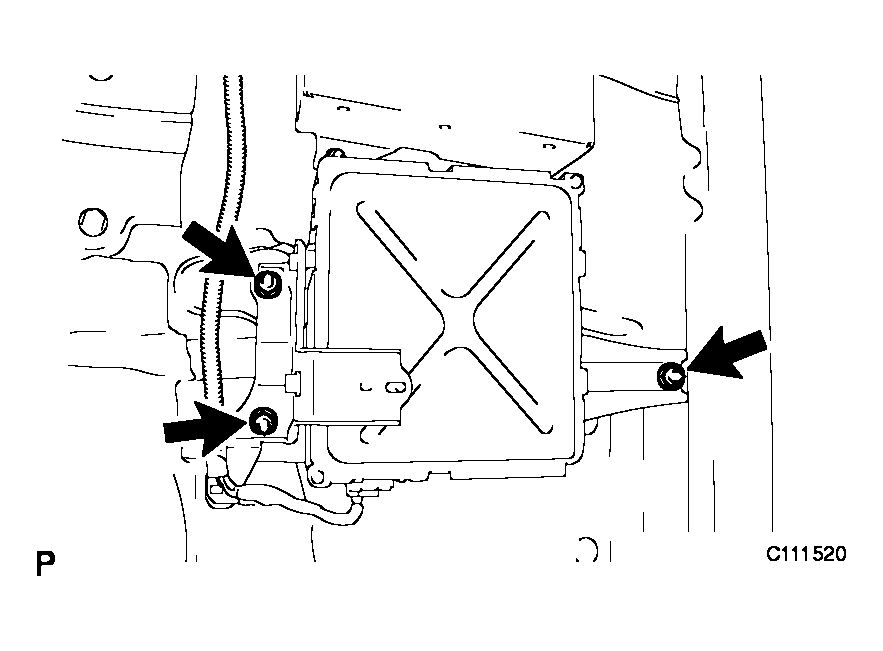

3. Remove the 4 bolts and 2 brackets.

  Fig 3: Removing Bolts And Brackets
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
