Brake Pedal Stroke Sensor: Inspection

INSPECT BRAKE PEDAL STROKE SENSOR ASSEMBLY

Inspect the brake pedal stroke sensor assembly. If any of the following occurs, replace with a new brake pedal stroke sensor assembly:
- The surface of the brake pedal stroke sensor assembly is cracked, dented, or chipped off.
- The connector is scratched, cracked, or damaged.
- The brake pedal stroke sensor assembly has been dropped.

Measure the resistance according to the value(s) in the table below.

Resistance

TESTER CONNECTION AND SPECIFIED CONDITION

Tester Connection	Specified Condition
1 (BSR) - 2 (BCSS)	21.45 to 23.15 Ω

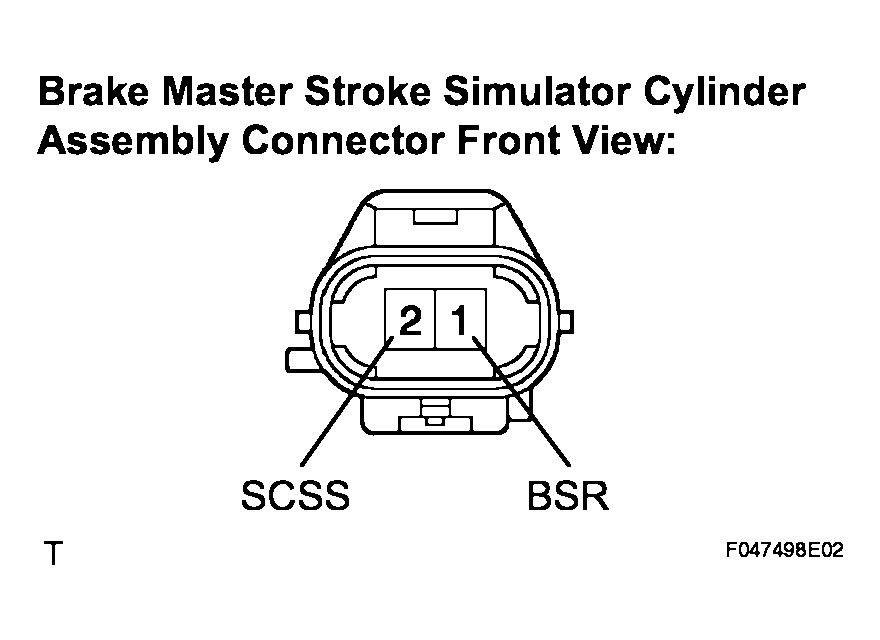

Fig 1: Identifying Break Master Stroke Simulator Assembly Connector Terminal
