Front Speed Sensor: Inspection

  1. INSPECT FRONT SPEED SENSOR
    1. Inspect the front speed sensor. If any of the following occurs, replace the front speed sensor with a new one:
      • The surface of the front speed sensor is cracked, dented, or chipped off.
      • The connector or wire harness is scratched, cracked, or damaged.
      • The front speed sensor has been dropped.
    2. Measure the resistance according to the value(s) in the table below.

      Resistance

      LH

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Specified Condition
      2 (FL+) - 1 (FL-) 1.4 to 1.8 kΩ

      RH

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Specified Condition
      2 (FR+) - 1 (FR-) 1.4 to 1.8 kΩ
    3. Measure the resistance according to the value(s) in the table below.

      Resistance

      LH

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Specified Condition
      1 (FL-) - Body ground 10 kΩ or higher
      2 (FL+) - Body ground 10 kΩ or higher

      RH

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Specified Condition
      1 (FR-) - Body ground 10 kΩ or higher
      2 (FR+) - Body ground 10 kΩ or higher

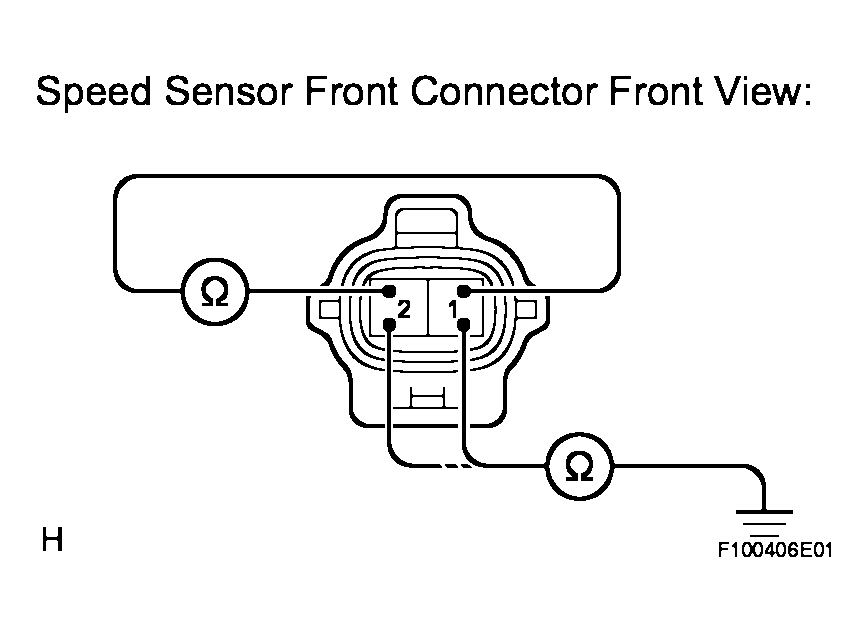

      Fig 1: Inspecting Front Speed Sensor Connector
      G04113319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
