Front Speed Sensor: Installation

1. Install the front speed sensor with the bolt.

   Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

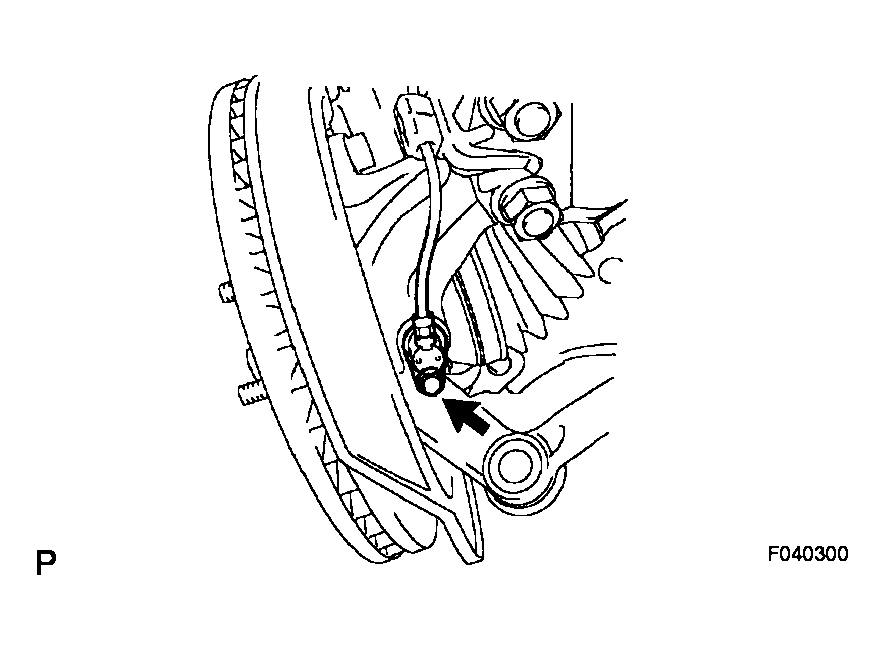

   Fig 1: Installing Front Speed Sensor With Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: Prevent foreign matter from attaching to the sensor tip.

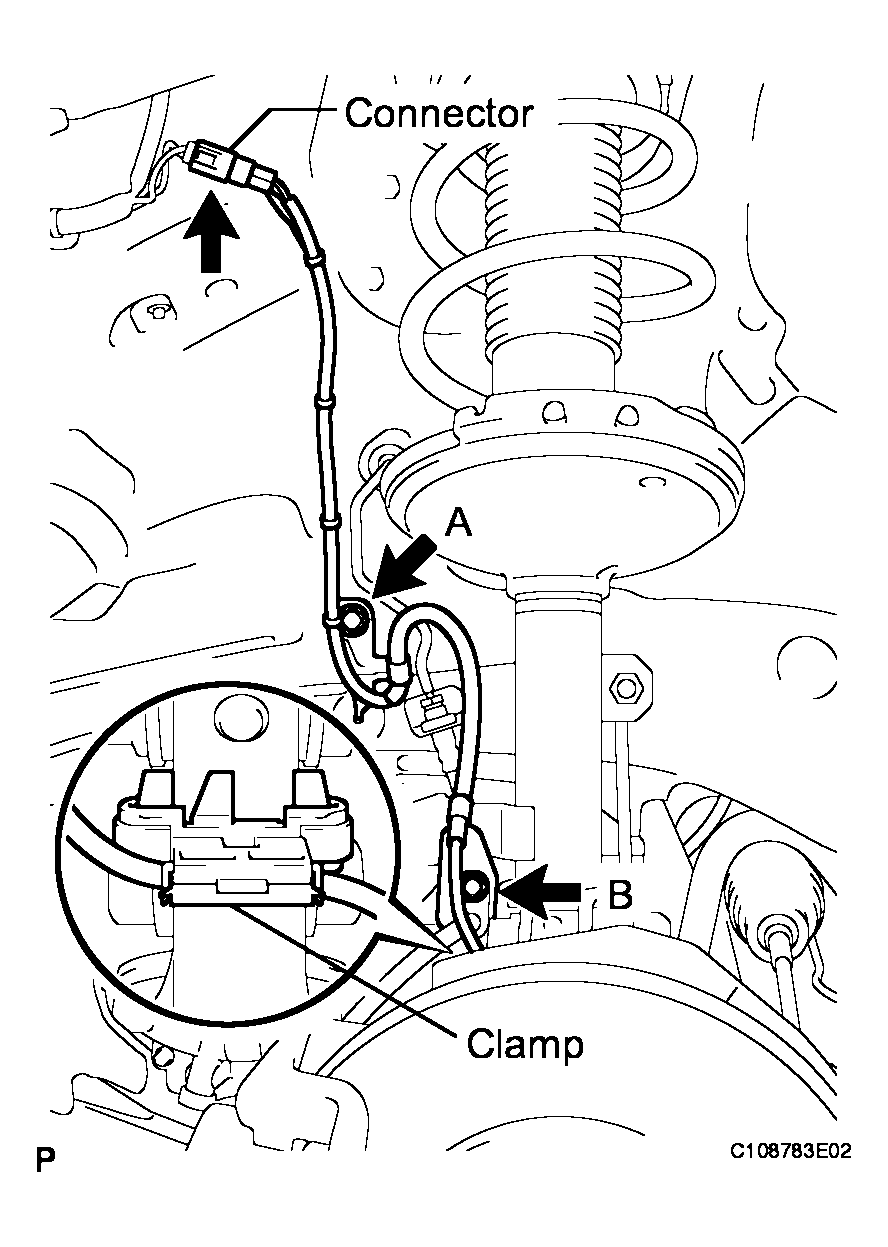

2. Install the front speed sensor with the 2 bolts and the clamp.

   Torque: Bolt A

   5.0 N*m (51 kgf*cm, 44 in.*lbf)

   Bolt B

   19 N*m (194 kgf*cm, 14 ft.*lbf)

   NOTE: Do not twist the wire harness for the front speed sensor when installing the speed sensor.
3. Connect the front speed sensor connector.

1. Install the front fender splash shield sub-assembly with the bolts, screws, and clips.

Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)

(See DIAGNOSIS SYSTEM  )

Fig 2: Connecting Front Speed Sensor Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
