Front Speed Sensor: Removal

REMOVE FRONT WHEEL
REMOVE FRONT FENDER SPLASH SHIELD SUBASSEMBLY
1. Remove the bolts, screws, clips and front fender splash shield sub-assembly.
REMOVE FRONT SPEED SENSOR
1. Disconnect the front speed sensor connector.
2. Remove the 2 bolts from the body and the shock absorber assembly.
3. Remove the clamp from the steering knuckle.

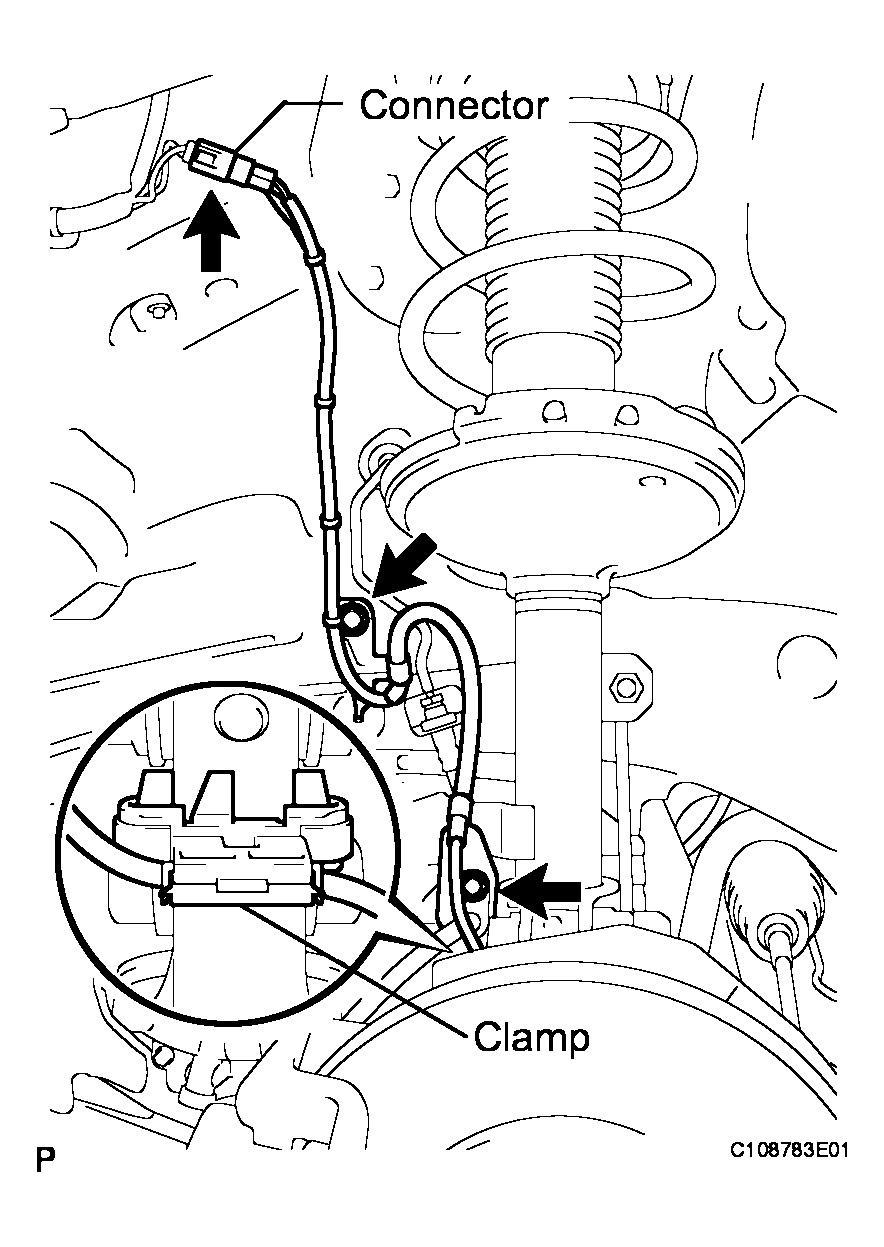

  Fig 1: Removing Clamp From Steering Knuckle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the bolt and the front speed sensor.

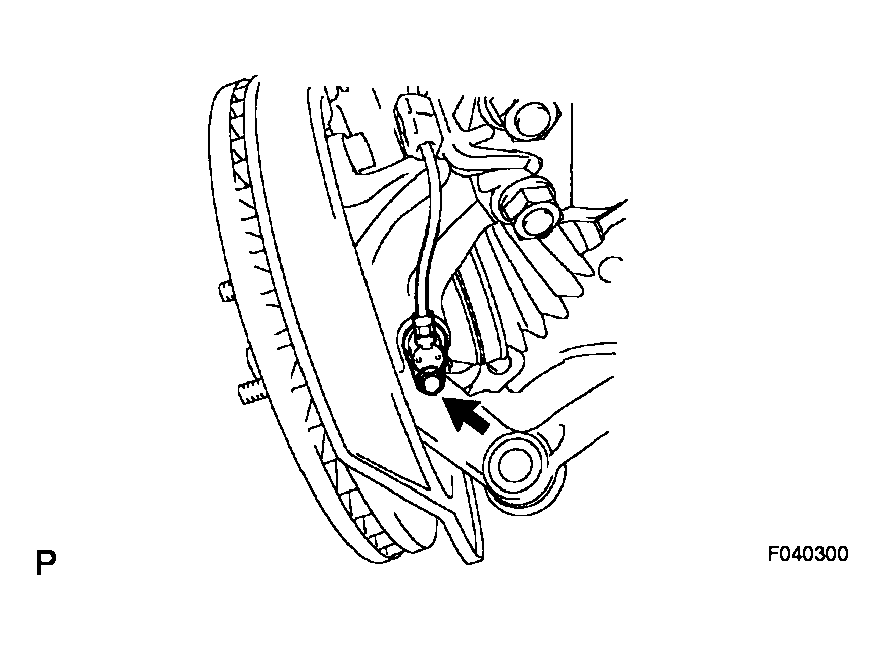

  Fig 2: Removing Bolt And Front Speed Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Prevent foreign matter from attaching to the sensor tip.
  - Clean the installation hole and the surface for the speed sensor every time the speed sensor is removed.
