Steering Sensor: Removal

  1. PRECAUTION

    (See AIRBAG SYSTEM )

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    (See AIRBAG SYSTEM )

  3. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  4. REMOVE STEERING WHEEL NO.2 COVER LOWER (See  ON-VEHICLE INSPECTION  )
  5. REMOVE STEERING WHEEL NO.3 COVER LOWER (See  ON-VEHICLE INSPECTION  )
  6. REMOVE STEERING PAD (See  REMOVAL  )
  7. REMOVE STEERING WHEEL ASSEMBLY (See  REMOVAL  )
  8. REMOVE STEERING COLUMN COVER (for Manual Tilt) (See  REMOVAL  )
  9. REMOVE STEERING COLUMN COVER (for Power Tilt and Power Telescopic) (See  REMOVAL  )
  10. REMOVE SPIRAL CABLE SUB-ASSEMBLY WITH STEERING ANGLE SENSOR (See  REMOVAL  )
  11. REMOVE STEERING ANGLE SENSOR
    1. Disengage the 6 claws and remove the steering angle sensor from the spiral cable sub-assembly.

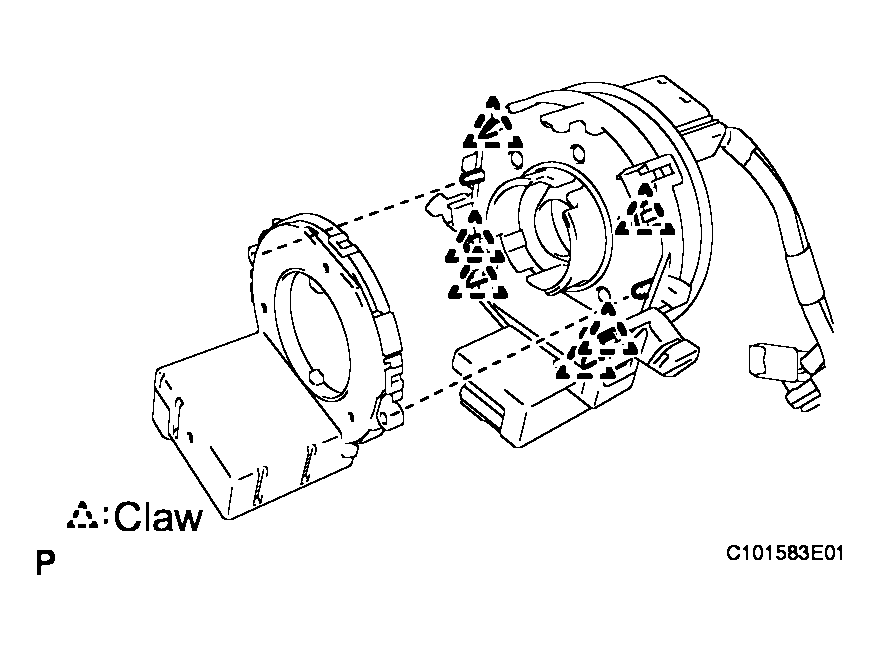

      Fig 1: Removing Steering Angle Sensor From Spiral Cable Sub-Assembly
      G04113342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
