Yaw Rate Sensor: Removal

HINT:

• Do not use a dropped or damaged yaw rate sensor.
• Prevent foreign matter from attaching between the yaw rate sensor bracket and body.
• Confirm that the sensor direction is correct.

1. REMOVE SEAT TRACK BRACKET COVER OUTER FRONT LH (See  REMOVAL  )
2. REMOVE SEAT TRACK BRACKET COVER INNER FRONT LH (See  REMOVAL  )
3. REMOVE SEAT TRACK COVER RH (See  REMOVAL  )
4. REMOVE SEAT TRACK COVER LH (See  REMOVAL  )
5. REMOVE FRONT SEAT ASSEMBLY RH (See  REMOVAL  )
6. REMOVE SHIFT LEVER KNOB (See  REMOVAL  )
7. REMOVE CONSOLE PANEL UPPER FRONT (See  REMOVAL  )
8. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER (See  REMOVAL  )
9. REMOVE FRONT DOOR SCUFF PLATE RH (See  REMOVAL  )
10. REMOVE FRONT DOOR SCUFF PLATE LH (See  REMOVAL  )
11. REMOVE REAR DOOR SCUFF PLATE RH
12. REMOVE CENTER PILLAR GARNISH LOWER RH
13. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH (See  REMOVAL  )
14. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH (See  REMOVAL  )
15. REMOVE INSTRUMENT PANEL FINISH PANEL SUBASSEMBLY LOWER (See  REMOVAL  )
16. REMOVE INSTRUMENT PANEL NO.2 UNDER COVER SUB-ASSEMBLY (See  REMOVAL  )
17. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY (See  REMOVAL  )
18. REMOVE FLOOR CARPET COVER CENTER LH (See  REMOVAL  )
19. REMOVE FLOOR CARPET COVER CENTER RH (See  REMOVAL  )
20. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (See  REMOVAL  )
21. REMOVE CONSOLE BOX HOLE COVER (See  REMOVAL  )
22. REMOVE CONSOLE BOX HOLE NO.2 COVER (See  REMOVAL  )
23. REMOVE CONSOLE BOX ASSEMBLY (See  REMOVAL  )
24. REMOVE CONSOLE COVER LOWER (See  REMOVAL  )
25. REMOVE YAW RATE SENSOR ASSEMBLY
    1. Turn back the floor carpet, and remove the bolt, nut, clamp and yaw rate sensor assembly.
    2. Disconnect the yaw rate sensor assembly connector.
       NOTE: Do not remove the yaw rate sensor assembly from the yaw rate sensor bracket.

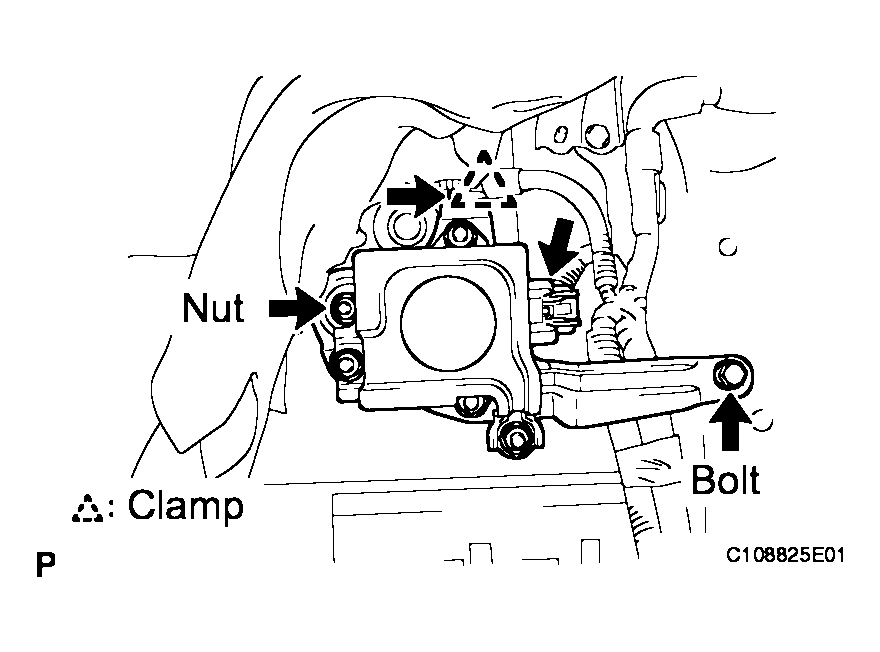

       Fig 1: Removing Bolt, Nut, Clamp And Yaw Rate Sensor Assembly

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
