Audio System for MARK LEVINSON: Notes

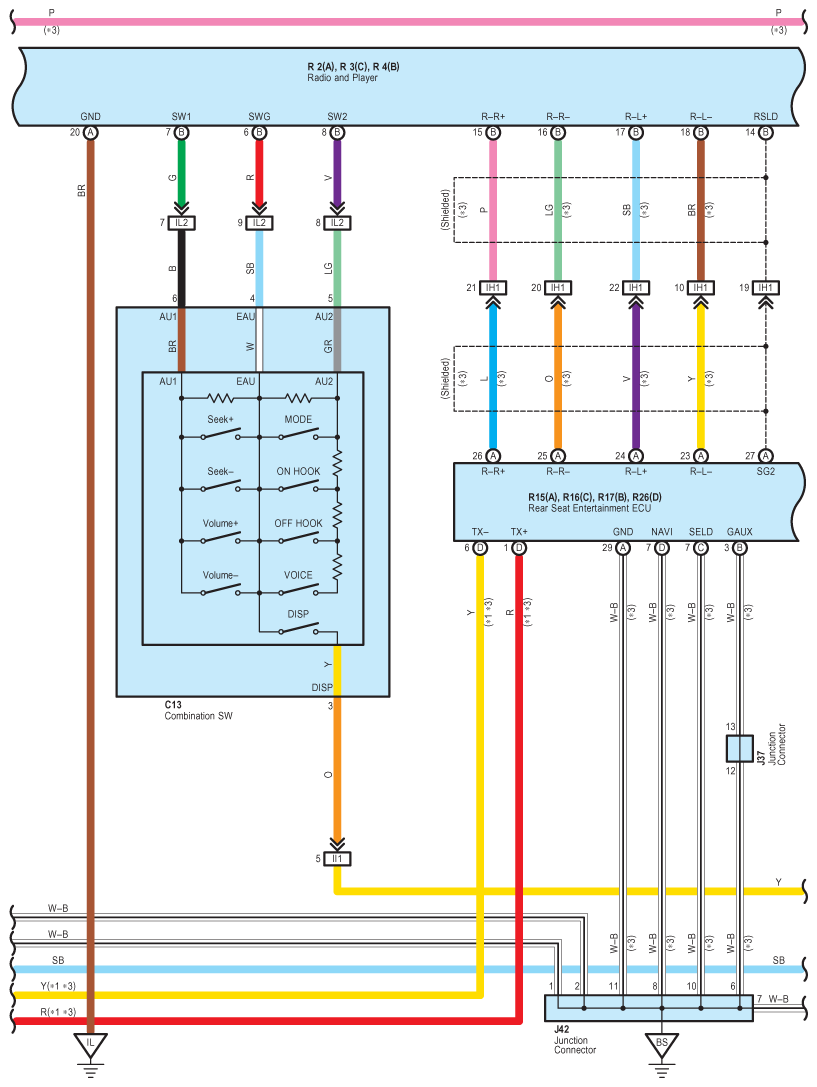

Fig 1: Audio System For Mark Levinson Wiring Diagram (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

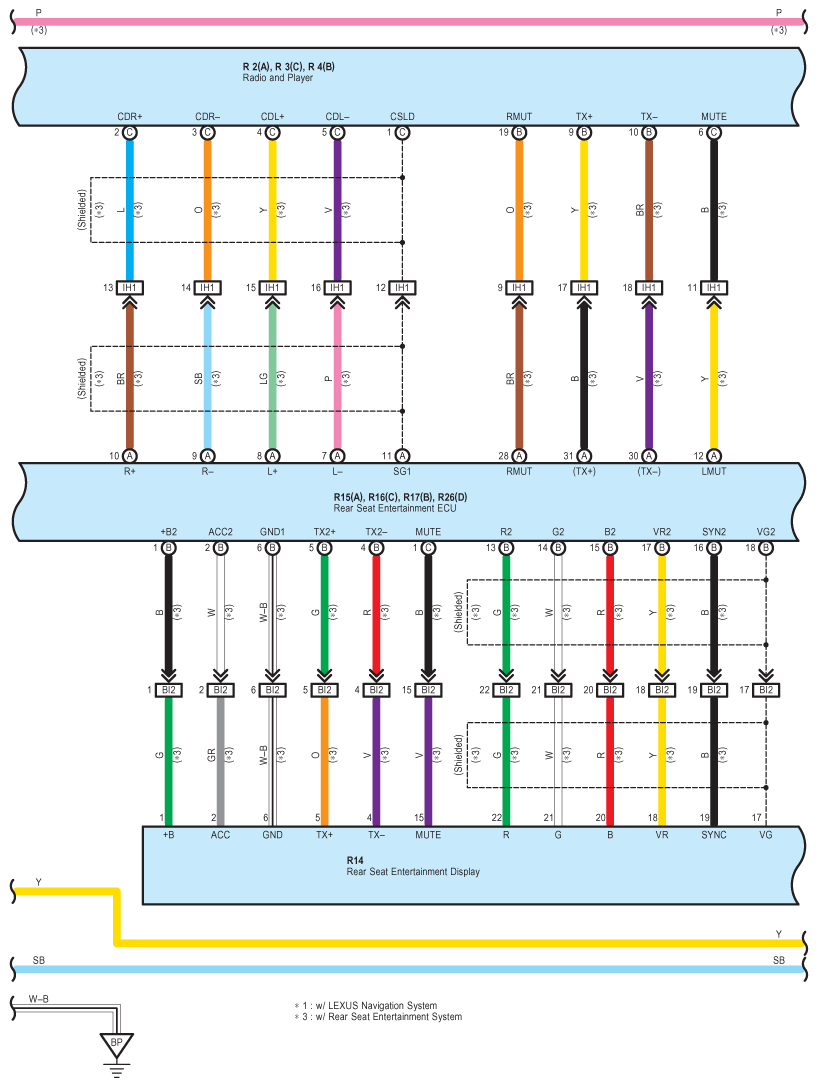

Fig 2: Audio System For Mark Levinson Wiring Diagram (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Audio System For Mark Levinson Wiring Diagram (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

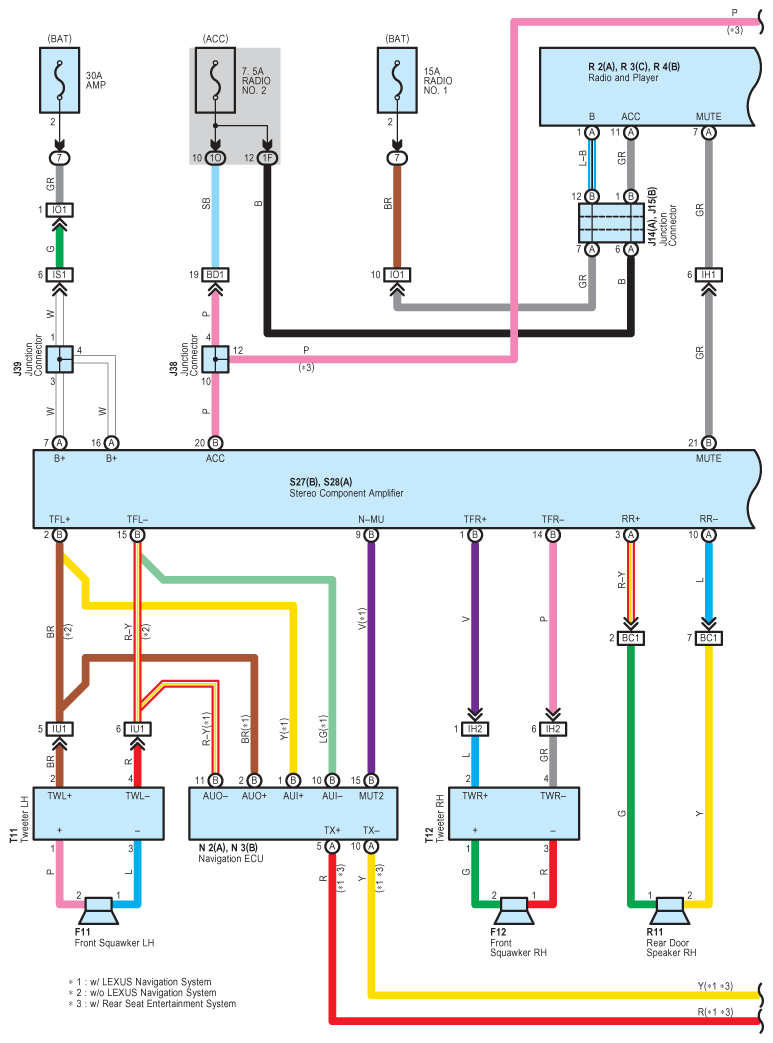

Fig 4: Audio System For Mark Levinson Wiring Diagram (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

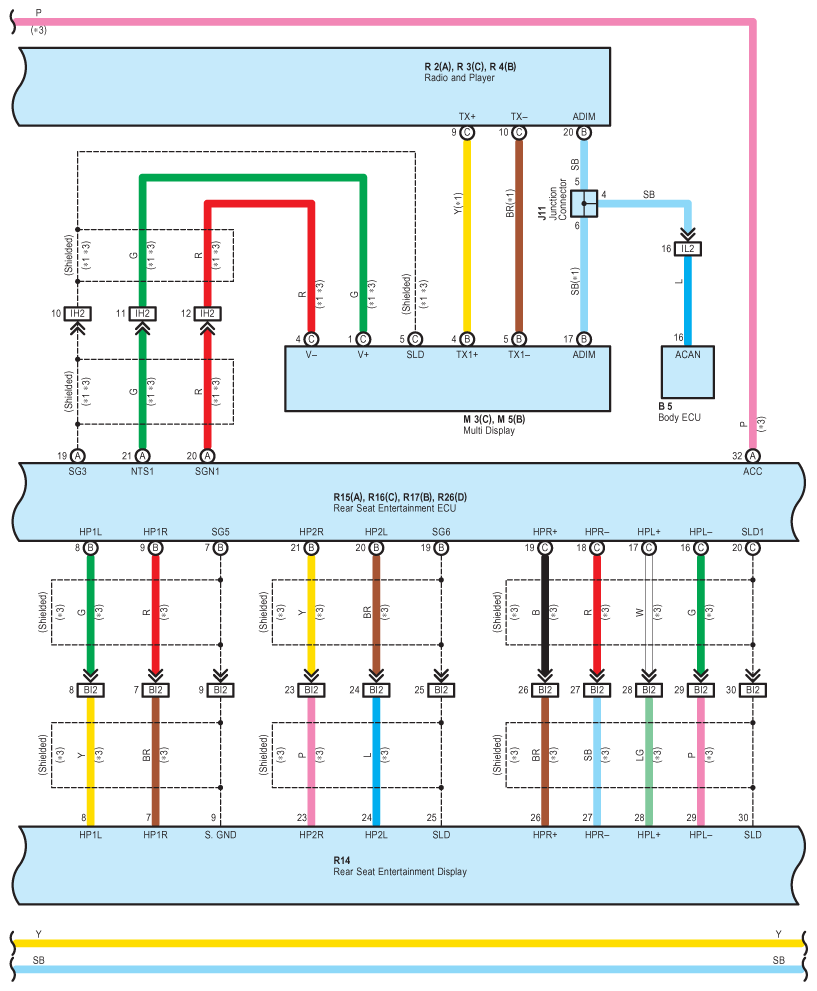

Fig 5: Audio System For Mark Levinson Wiring Diagram (5 Of 7)

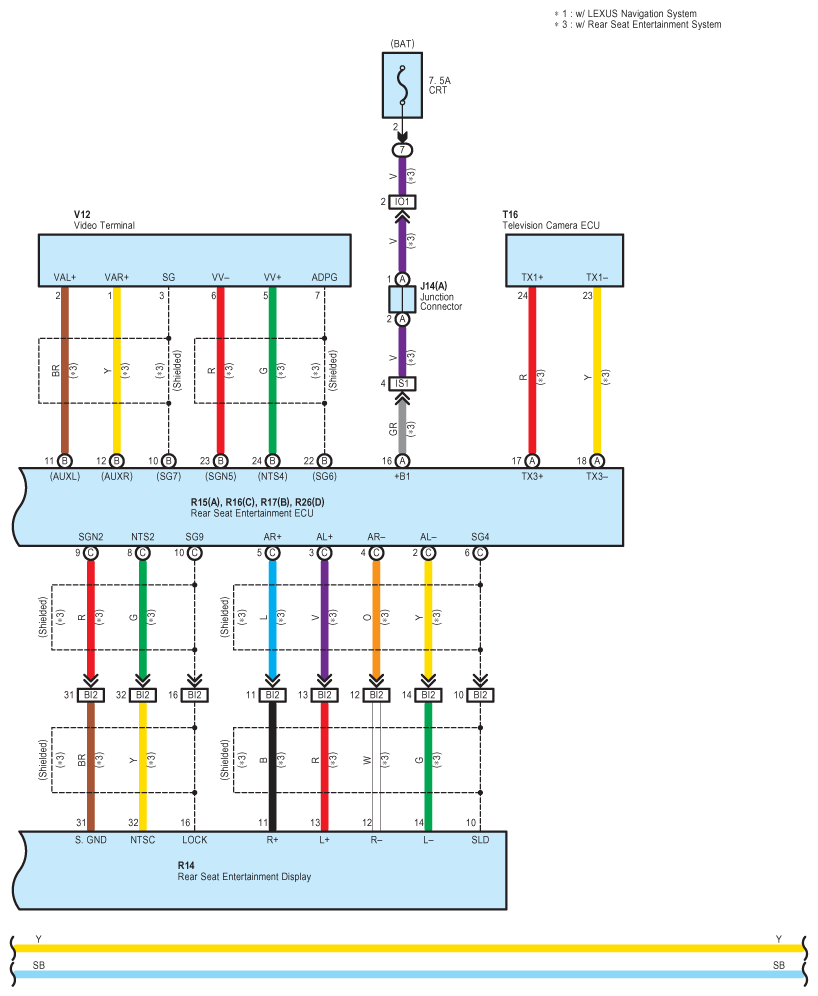

Fig 6: Audio System For Mark Levinson Wiring Diagram (6 Of 7)

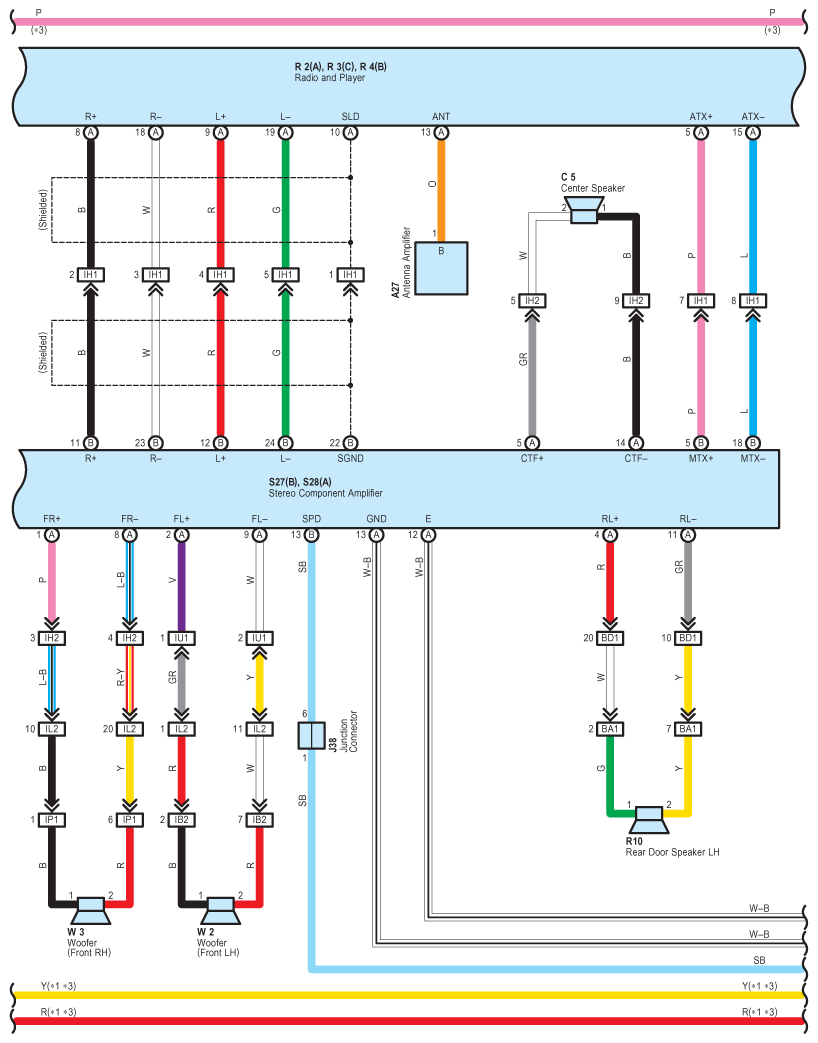

Fig 7: Audio System For Mark Levinson Wiring Diagram (7 Of 7)
