Combination Meter: Notes

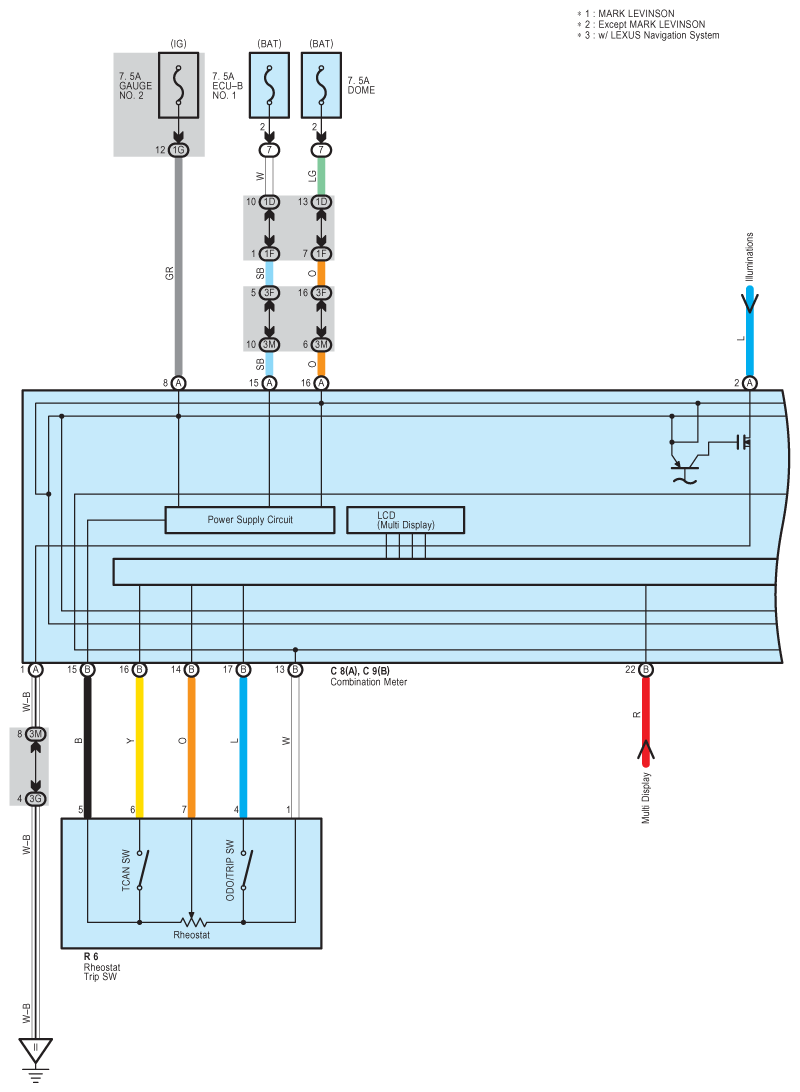

Fig 1: Combination Meter Wiring Diagram (1 Of 6)

G08914909

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

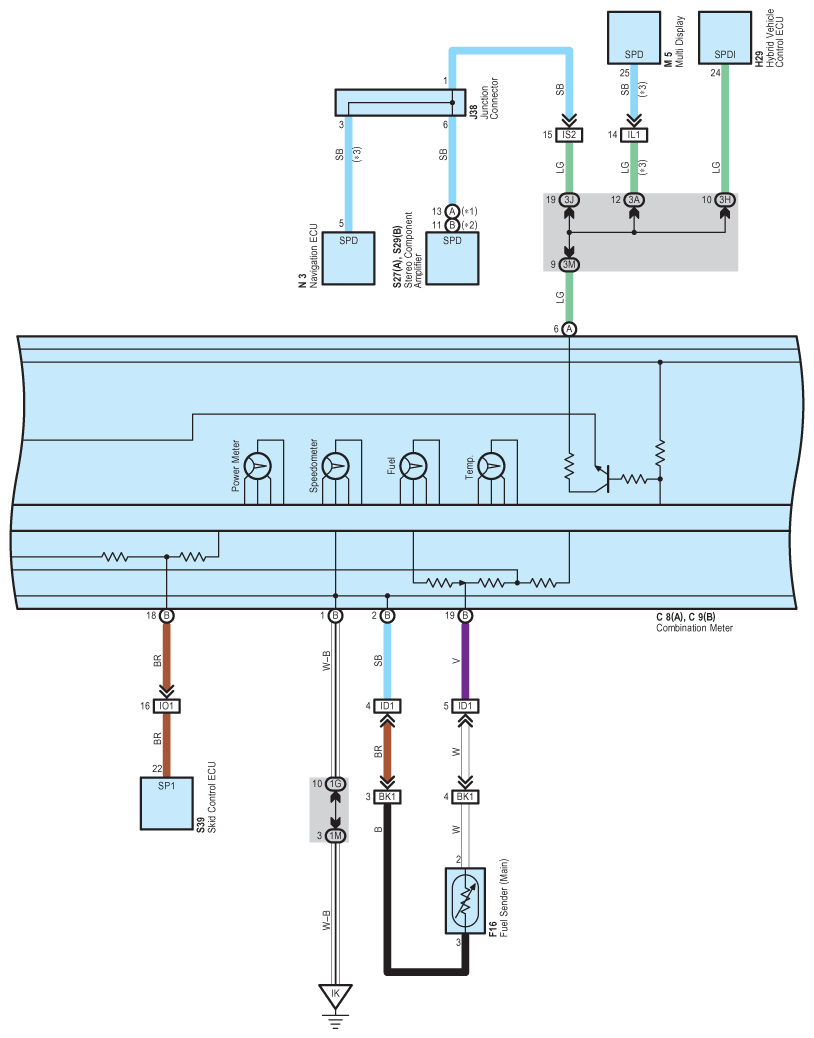

Fig 2: Combination Meter Wiring Diagram (2 Of 6)

G08914910

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

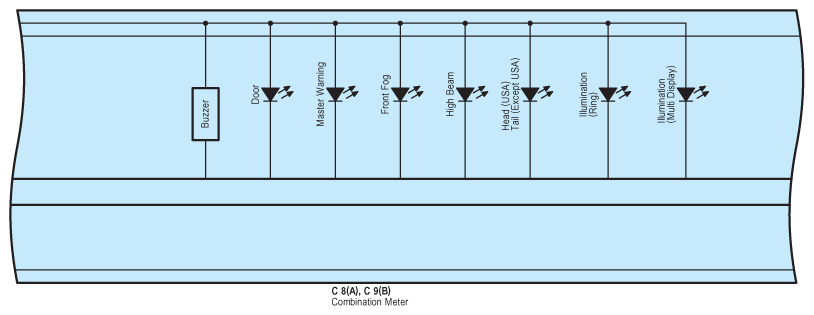

Fig 3: Combination Meter Wiring Diagram (3 Of 6)

G08914911

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

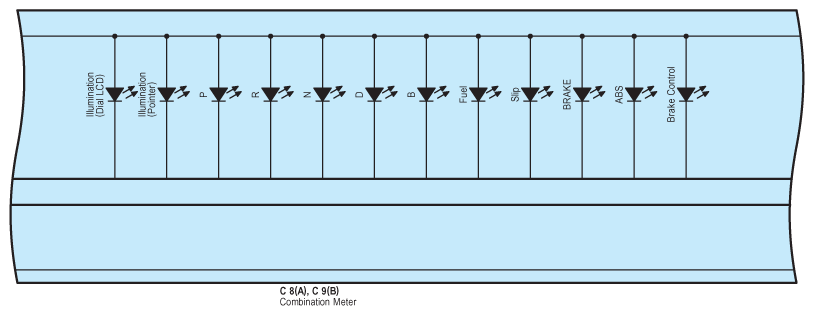

Fig 4: Combination Meter Wiring Diagram (4 Of 6)

G08914912

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

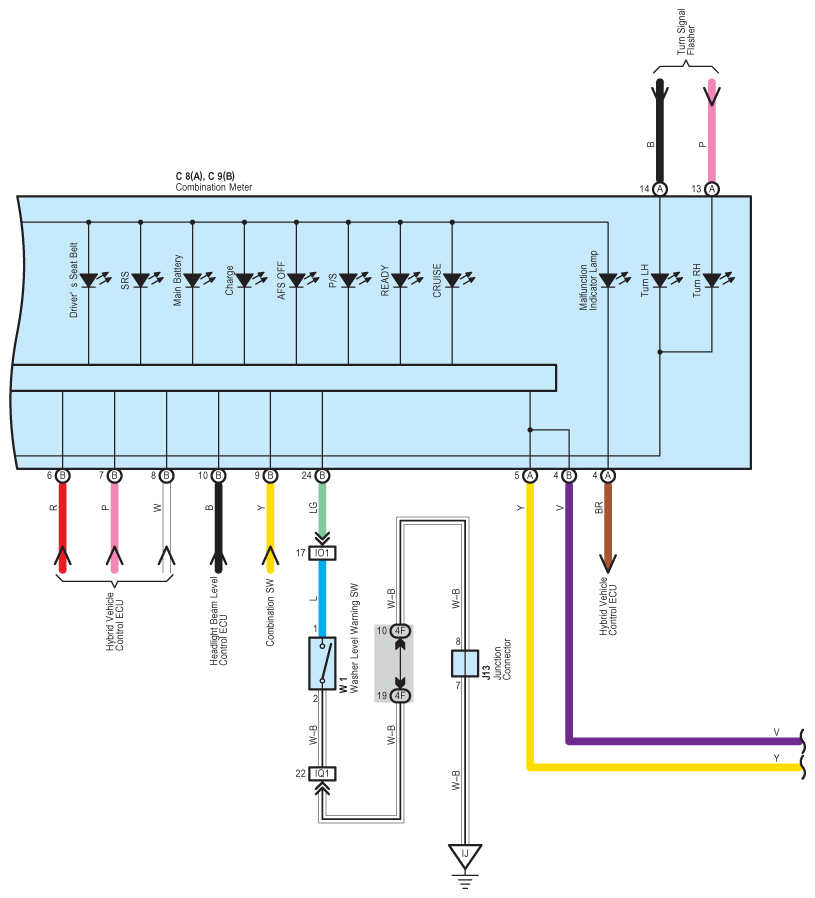

Fig 5: Combination Meter Wiring Diagram (5 Of 6)

G08914913

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

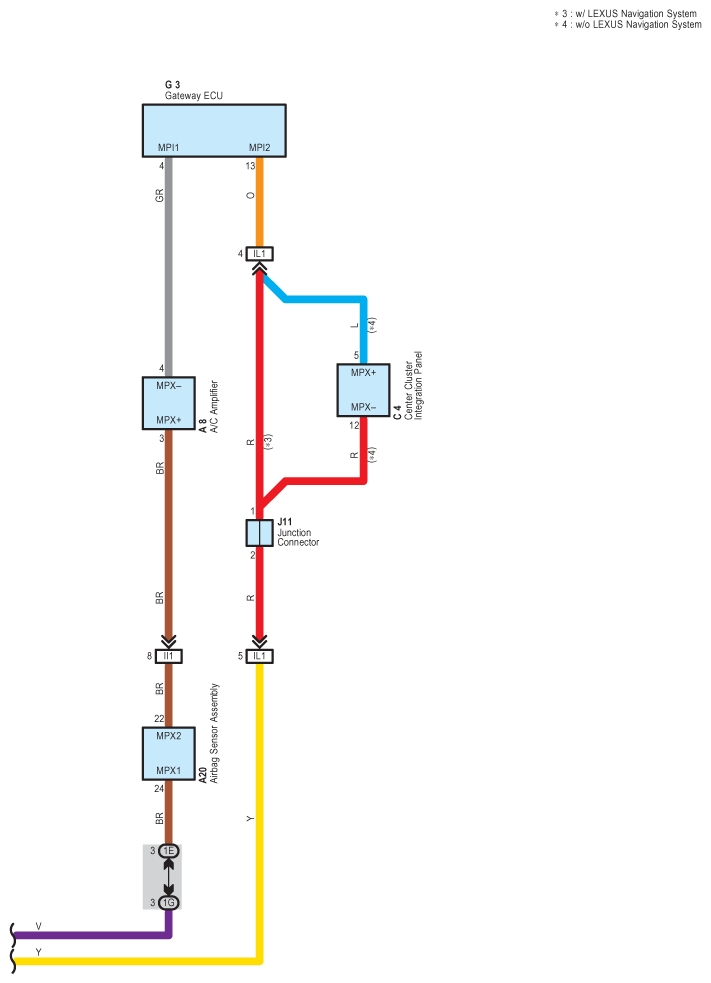

Fig 6: Combination Meter Wiring Diagram (6 Of 6)

G08914914

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
