Door Lock Control: Notes

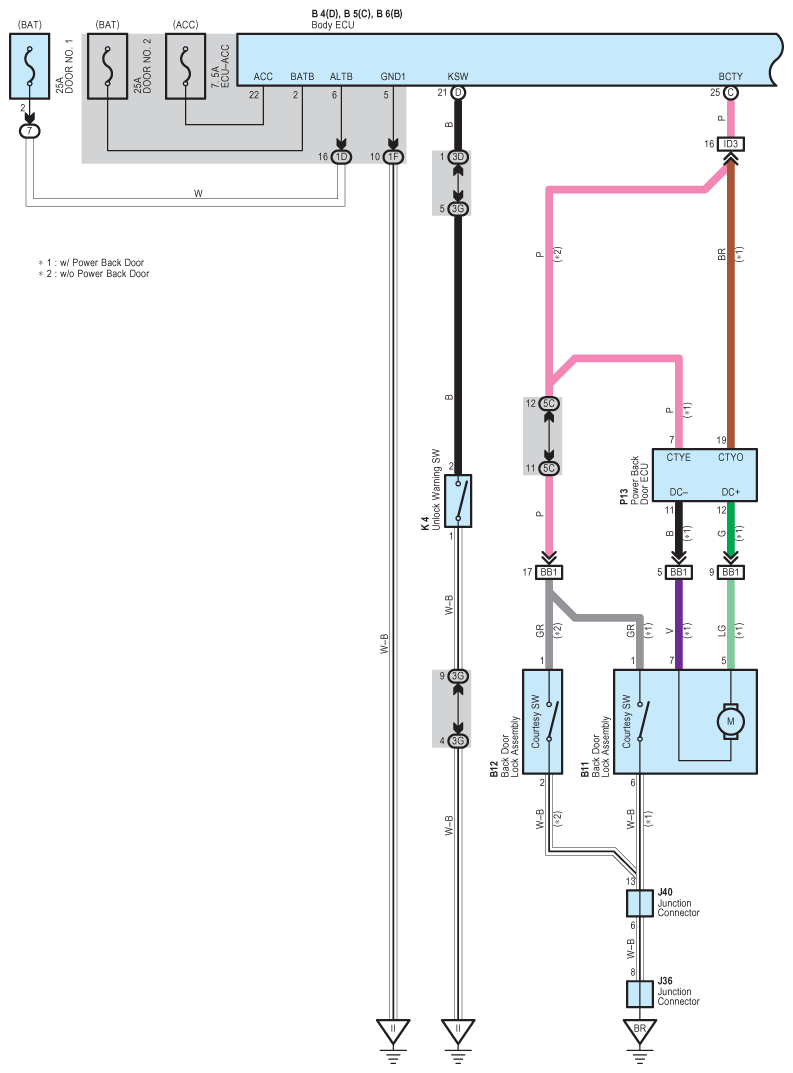

Fig 1: Door Lock Control Wiring Diagram (1 Of 8)

G08914814

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

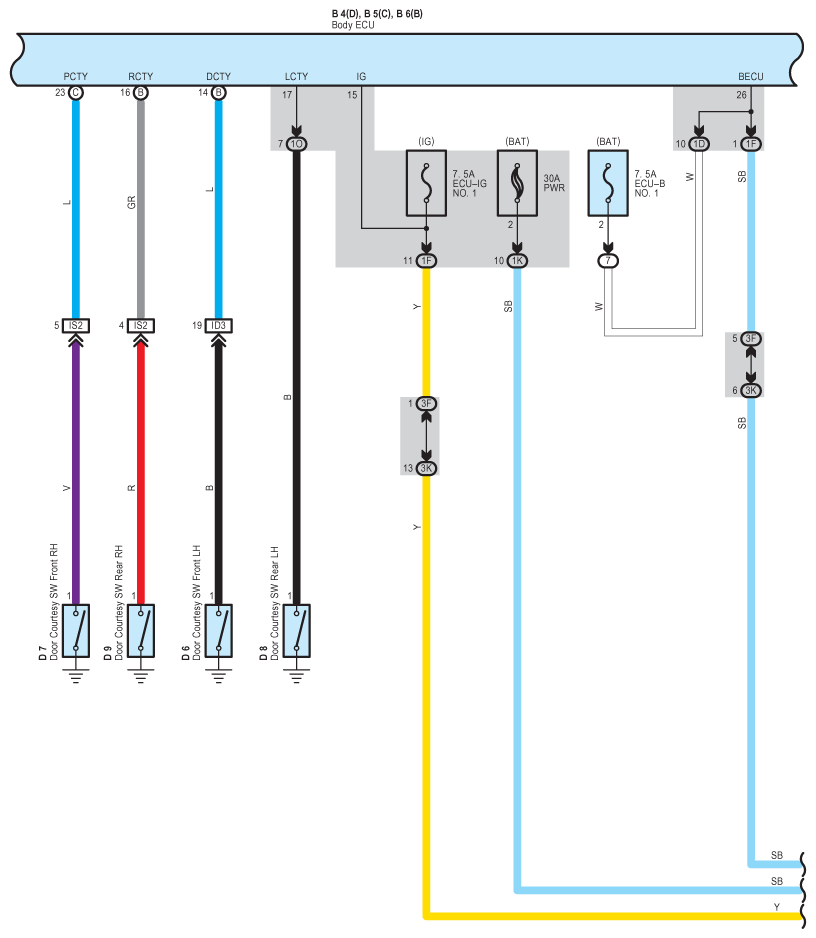

Fig 2: Door Lock Control Wiring Diagram (2 Of 8)

G08914815

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

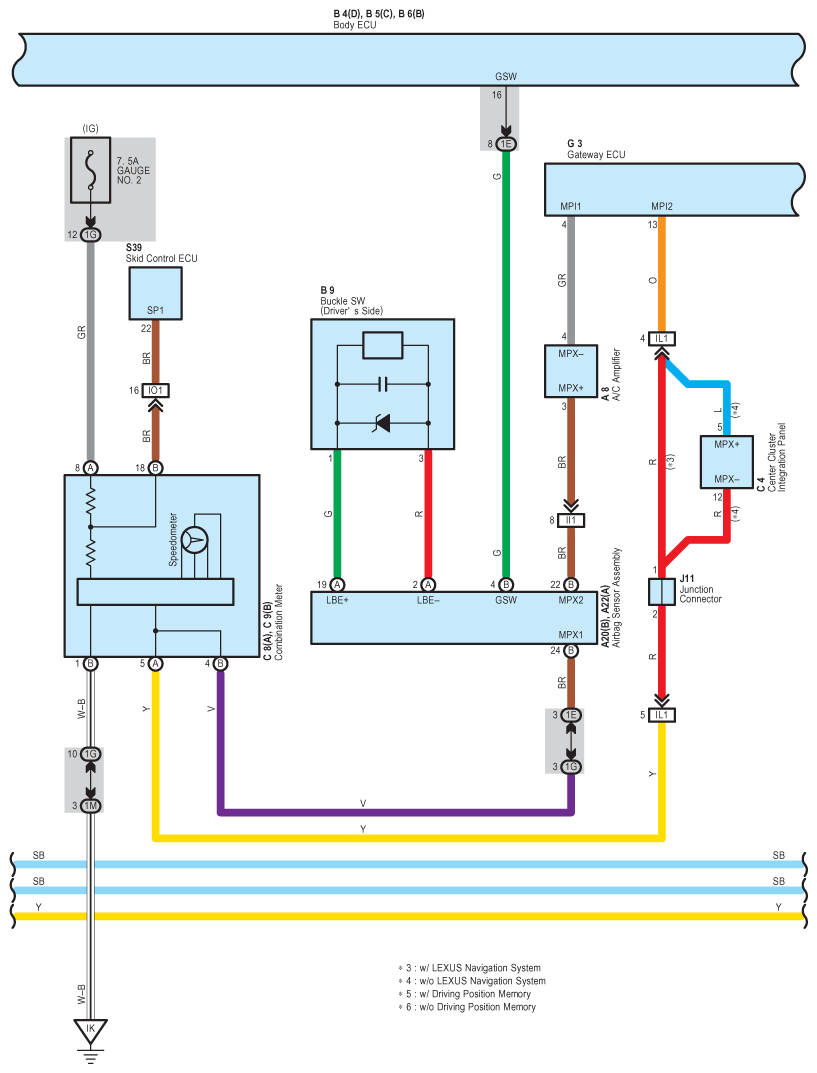

Fig 3: Door Lock Control Wiring Diagram (3 Of 8)

G08914816

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

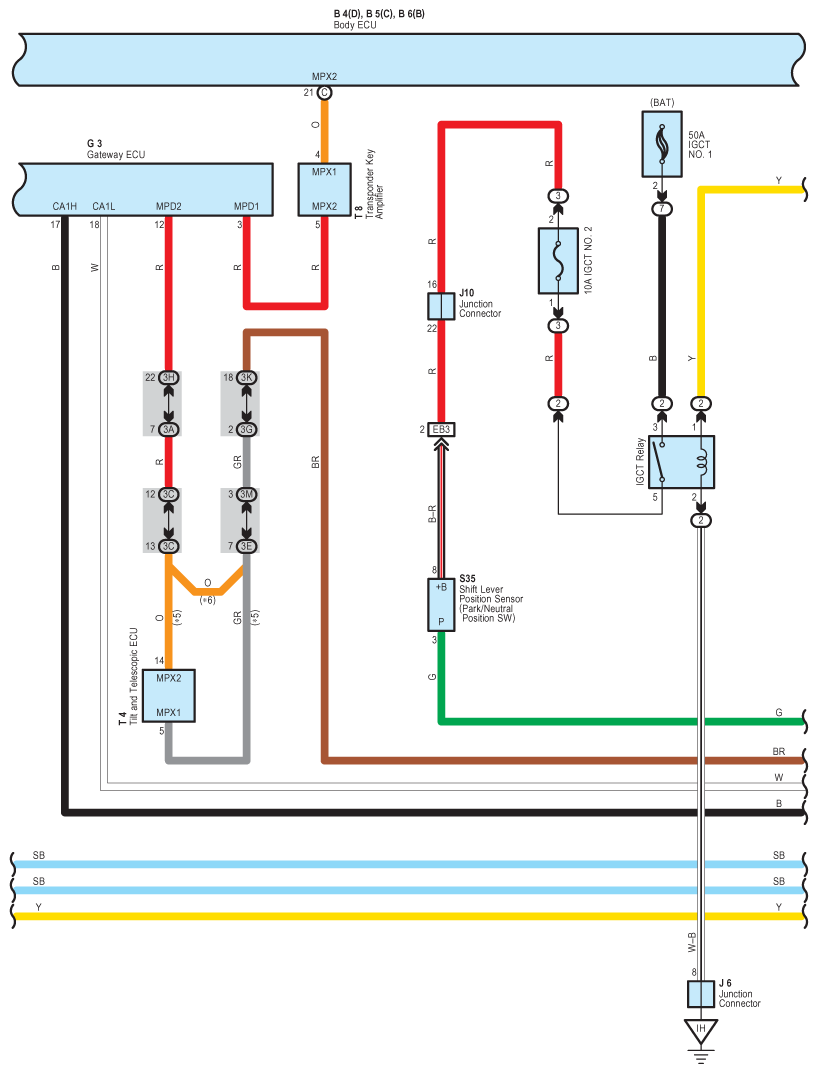

Fig 4: Door Lock Control Wiring Diagram (4 Of 8)

G08914817

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

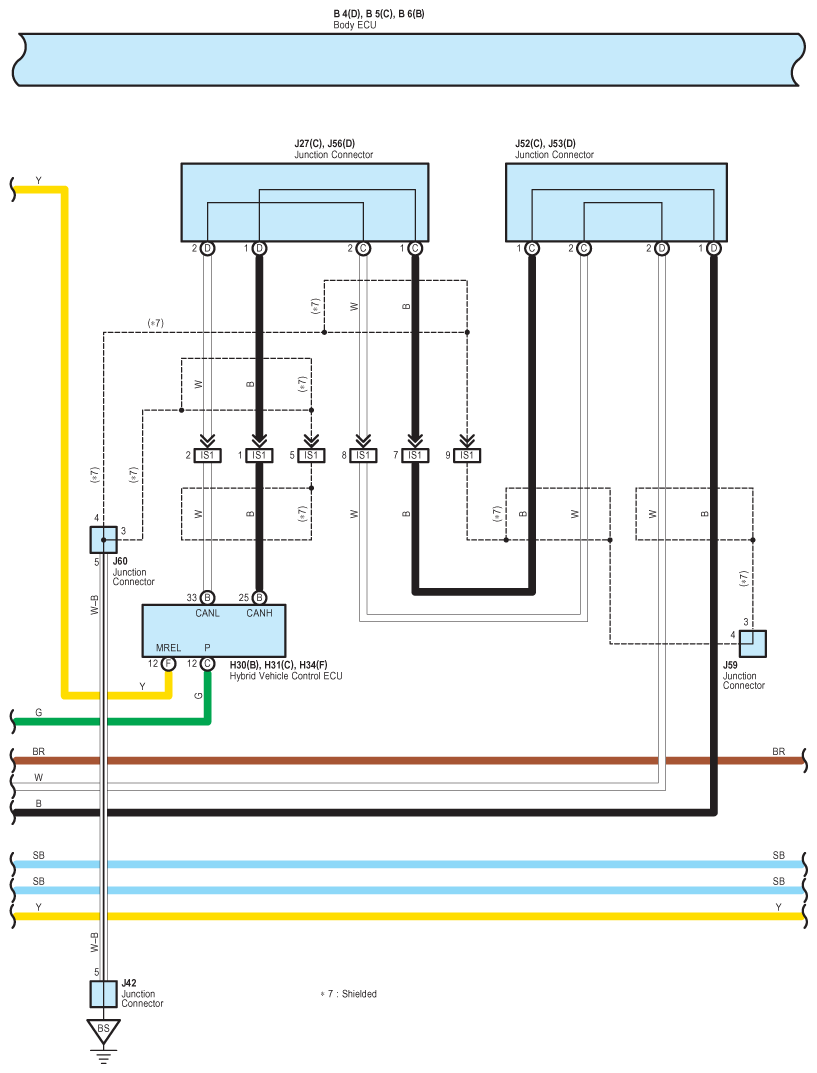

Fig 5: Door Lock Control Wiring Diagram (5 Of 8)

G08914818

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

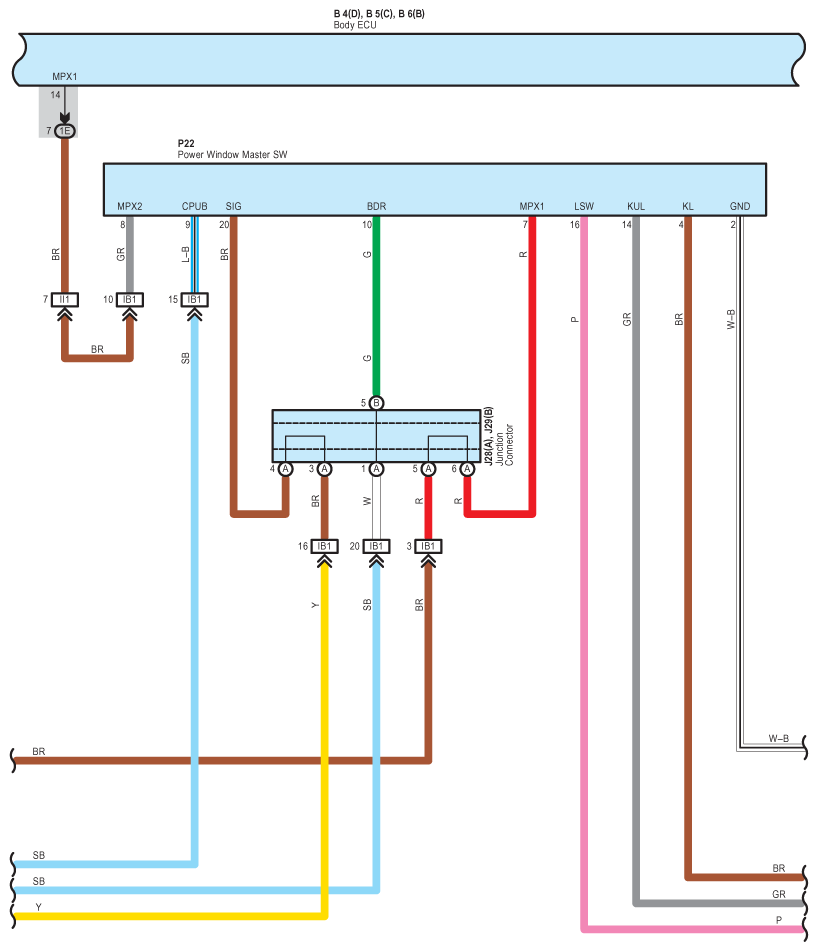

Fig 6: Door Lock Control Wiring Diagram (6 Of 8)

G08914819

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

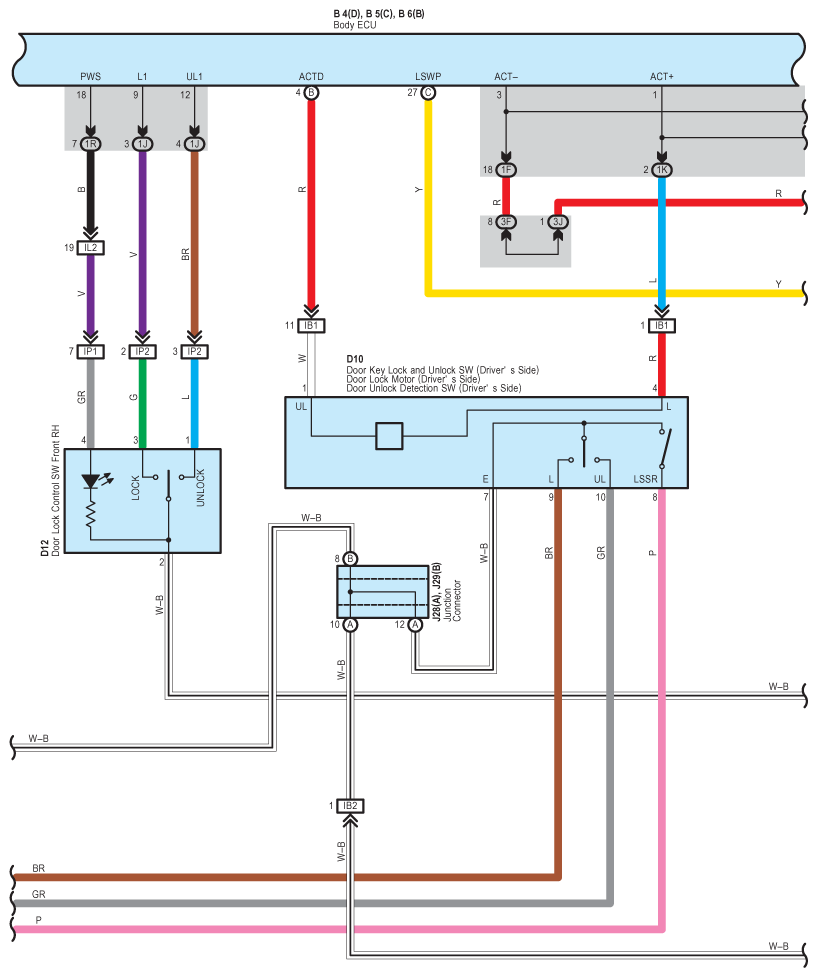

Fig 7: Door Lock Control Wiring Diagram (7 Of 8)

G08914820

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

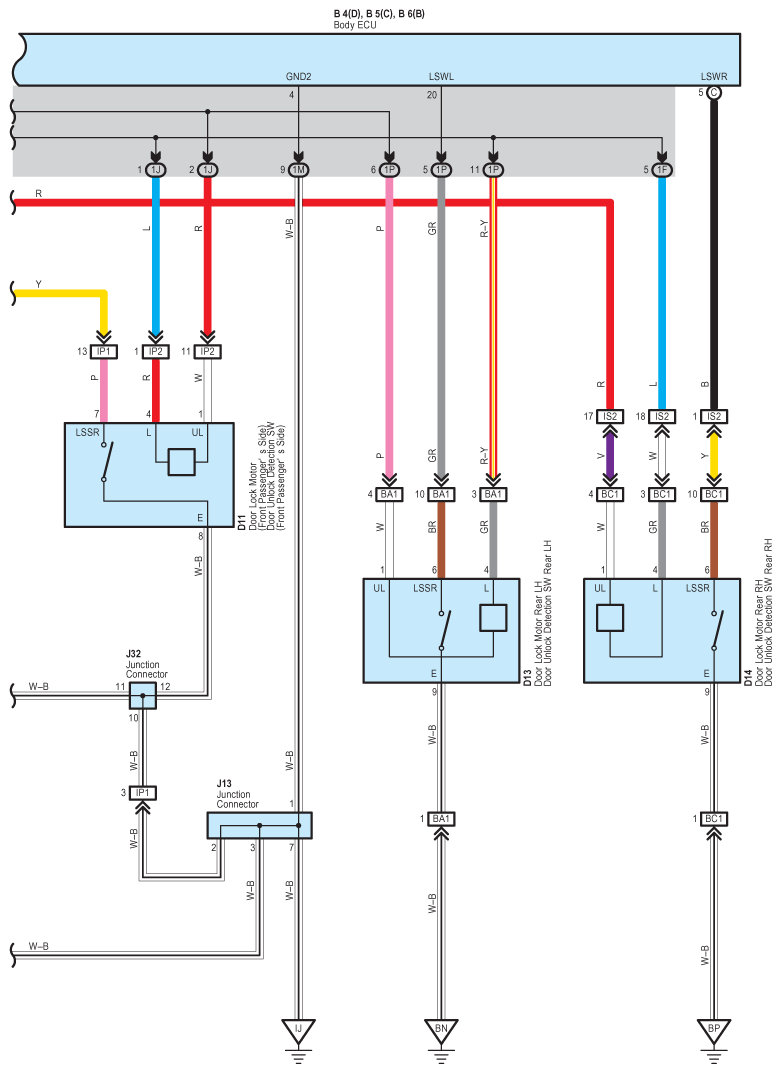

Fig 8: Door Lock Control Wiring Diagram (8 Of 8)

G08914821

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
