Crankshaft Position Sensor: Installation

INSTALL CRANKSHAFT POSITION SENSOR
1. Apply a light coat of engine oil to the O-ring on the crankshaft position sensor.
2. Install the crankshaft position sensor with the bolt.
  Torque: 8.0 N*m (80 kgf*cm, 71 in.*lbf)
3. Connect the crankshaft position sensor connector.

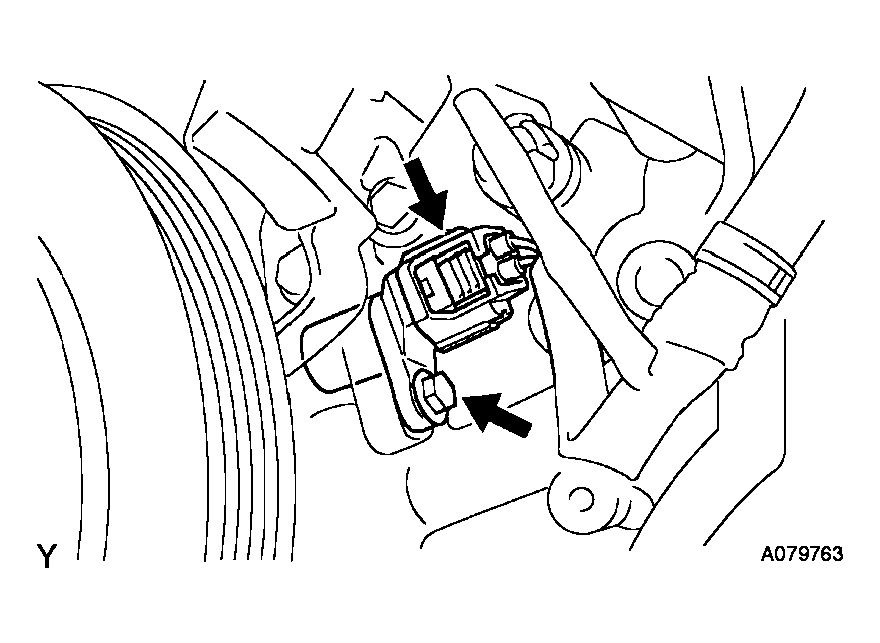

  Fig 1: Identifying Crankshaft Position Sensor With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT FENDER APRON SEAL RH
1. Install the front fender apron seal RH with the clip and 2 bolts.

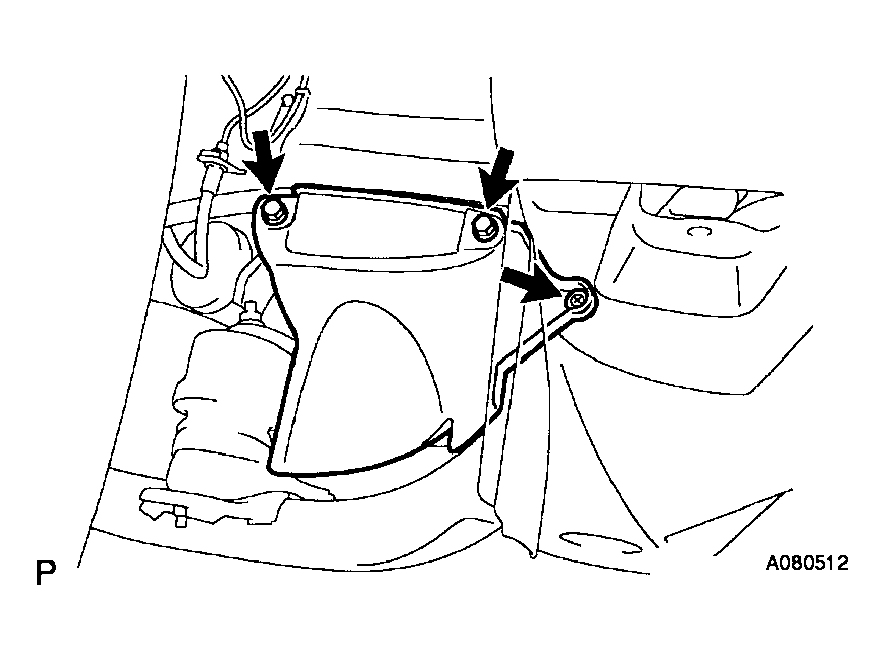

  Fig 2: Identifying Front Fender Apron Seal RH With Clip And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT FENDER SPLASH SHIELD SUBASSEMBLY RH
1. Install the front fender splash shield sub-assembly RH with the screw.

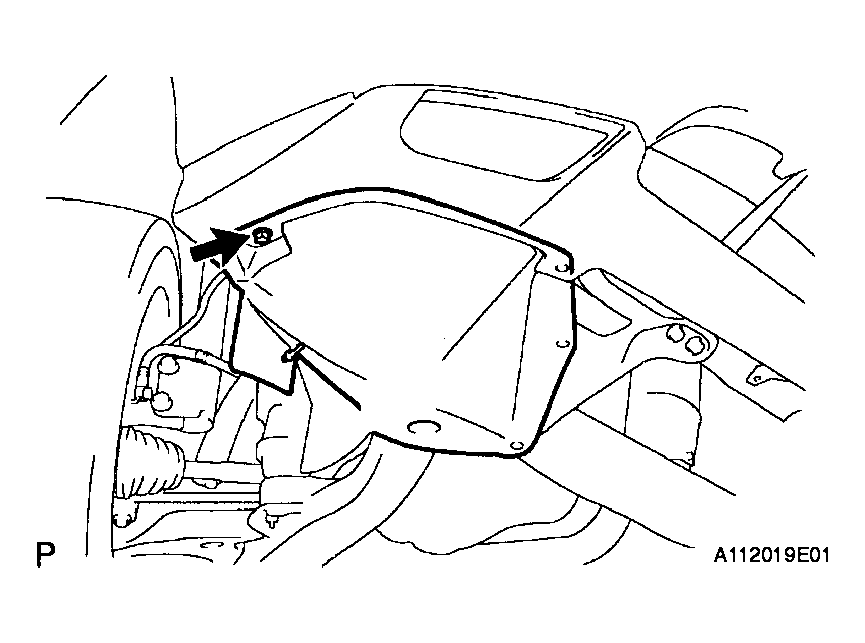

  Fig 3: Identifying Front Fender Splash Shield Sub-Assembly RH With Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ENGINE UNDER COVER NO.1 (See INSTALLATION )
