Purge flow monitor

If EVAP system pressure change is less than 7.5 mmHg (1 kPa) when the engine is running and the EVAP VSV is turned ON (closed), the ECM determines that the purge flow is insufficient.

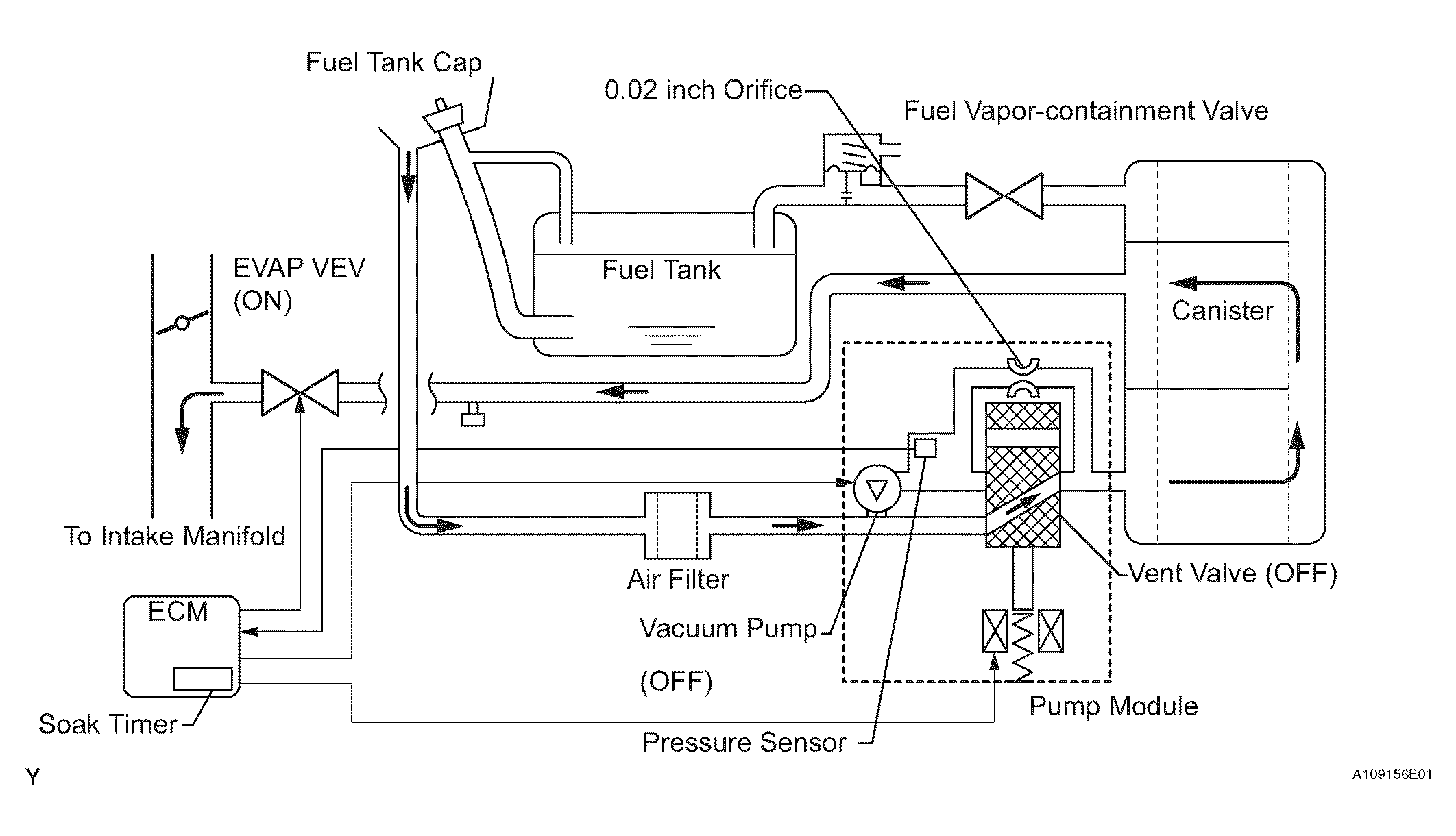

Fig 1: Fuel System Diagram
G04110803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
