Throttle Body: Inspection

  1. INSPECT THROTTLE BODY ASSEMBLY
    1. Using an ohmmeter, measure the resistance between the terminals.

      Resistance

      SYMBOLS (TERMINAL NO.) AND RESISTANCE REFERENCE

      Symbols (terminal No.) Resistance Temperature
      M+ (2) - M- (1) 0.3 to 100 Ω 20°C (68°F)

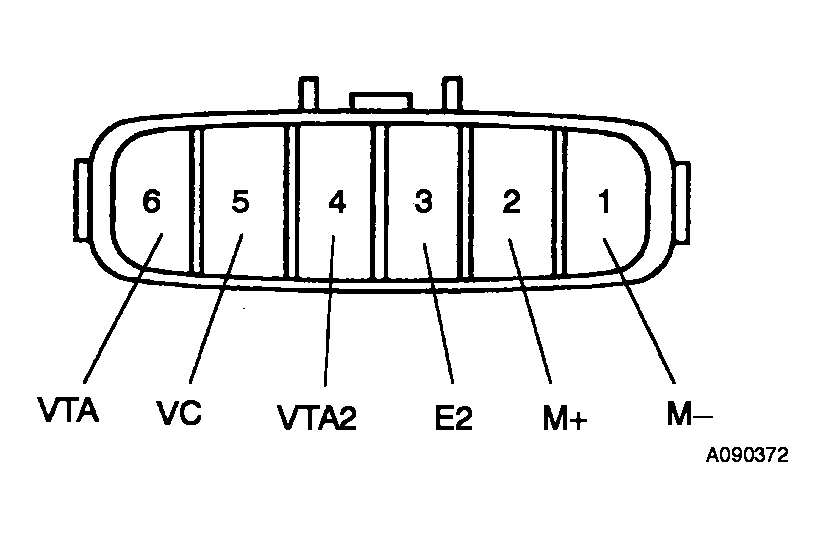

      Fig 1: Measuring Resistance Between Terminals Using Ohmmeter
      G04110876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the result is not as specified, replace the throttle body assembly.
