Throttle Body: Installation

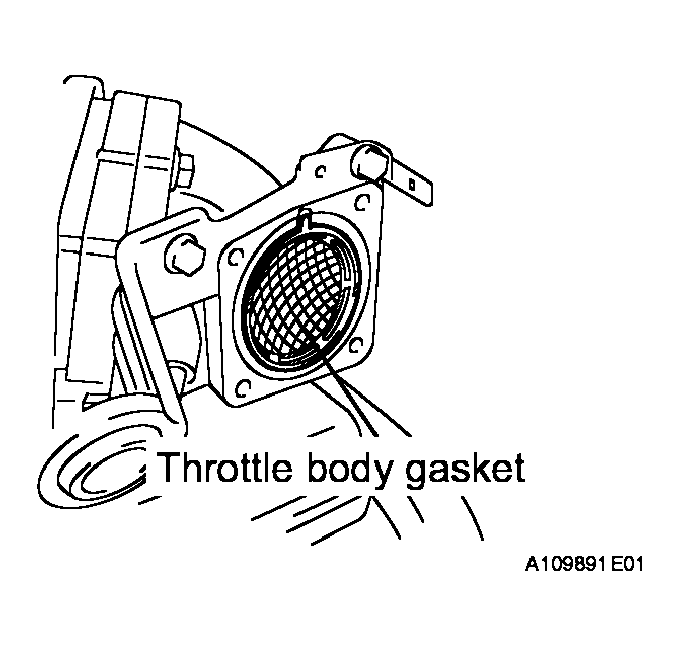

1. Install a new throttle body gasket to the intake air connector.
   Fig 1: Identifying Throttle Body Gasket To Intake Air Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

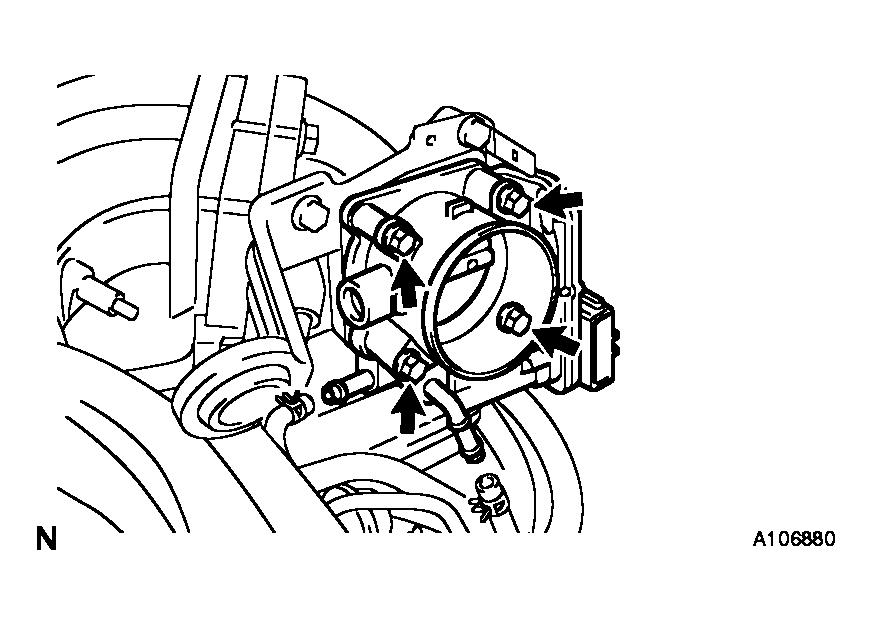

2. Install the throttle body assembly with the 4 bolts.

   Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

   Fig 2: Identifying Throttle Body Assembly With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

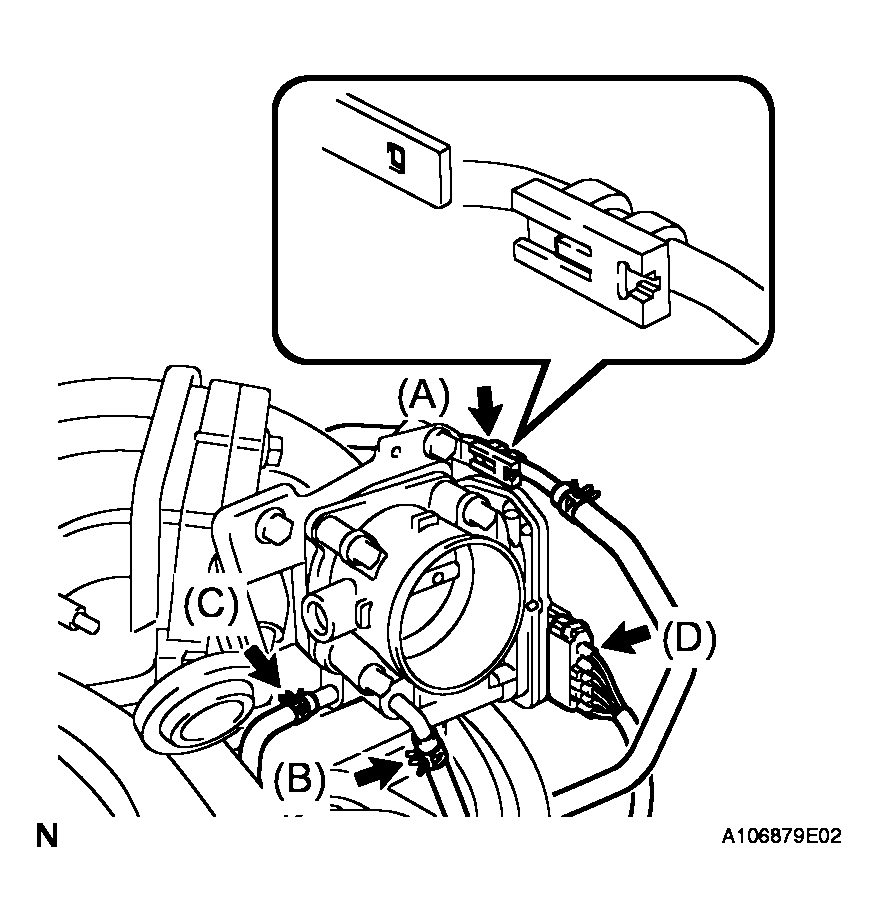

3. Connect the fuel vapor feed hose (A).
4. Connect the water bypass hose No.3 (B).
5. Connect the water bypass hose No.2 (C).
6. Connect the throttle motor connector (D).
   Fig 3: Identifying Fuel Vapor Feed Hose

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

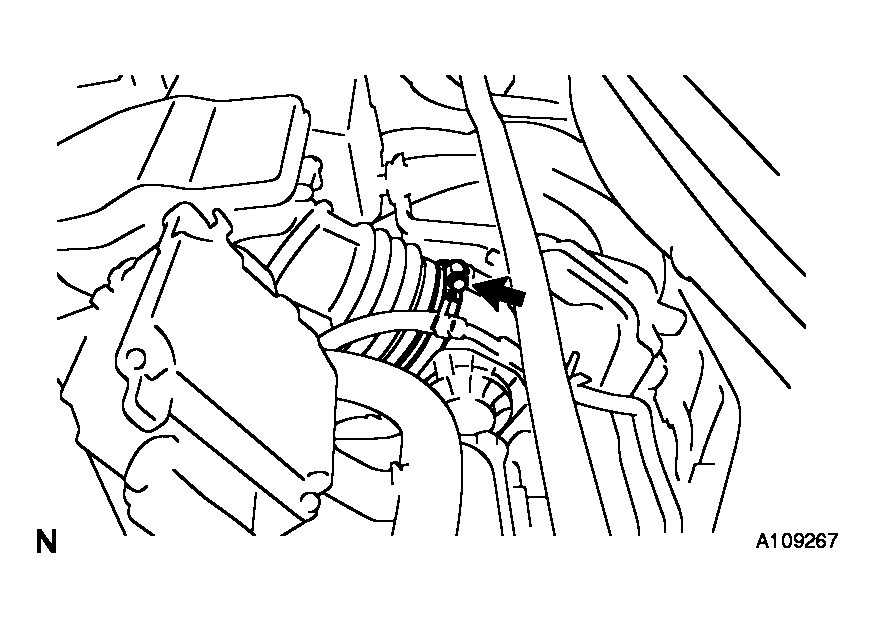

1. Install the air cleaner hose No.1 to the throttle body assembly with the hose clamp.
   Fig 4: Identifying Air Cleaner Hose No.1 To Throttle Body Assembly With Hose Clamp

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

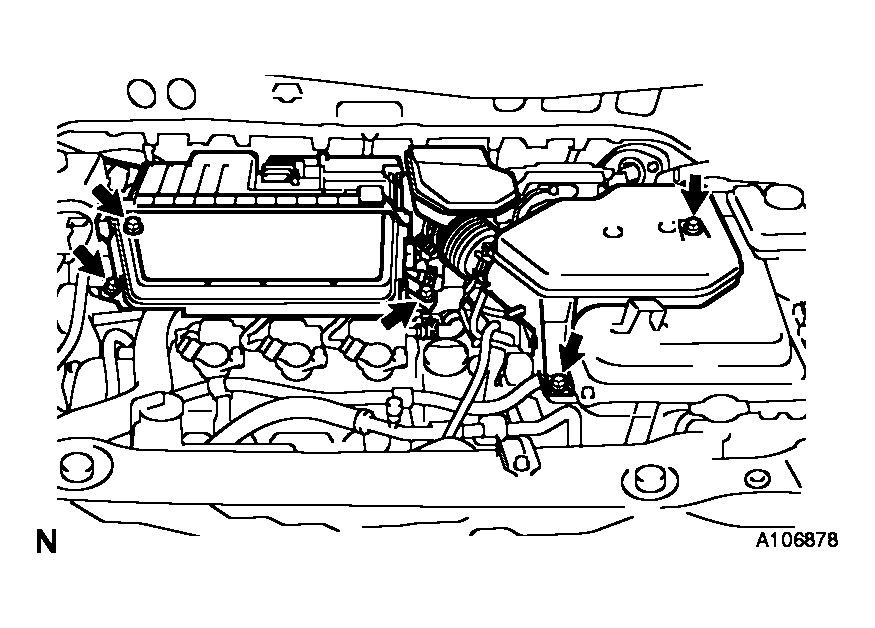

2. Install the air cleaner case w/ resonator with the 5 bolts.

   Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

   Fig 5: Identifying Air Cleaner Case W/ Resonator With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

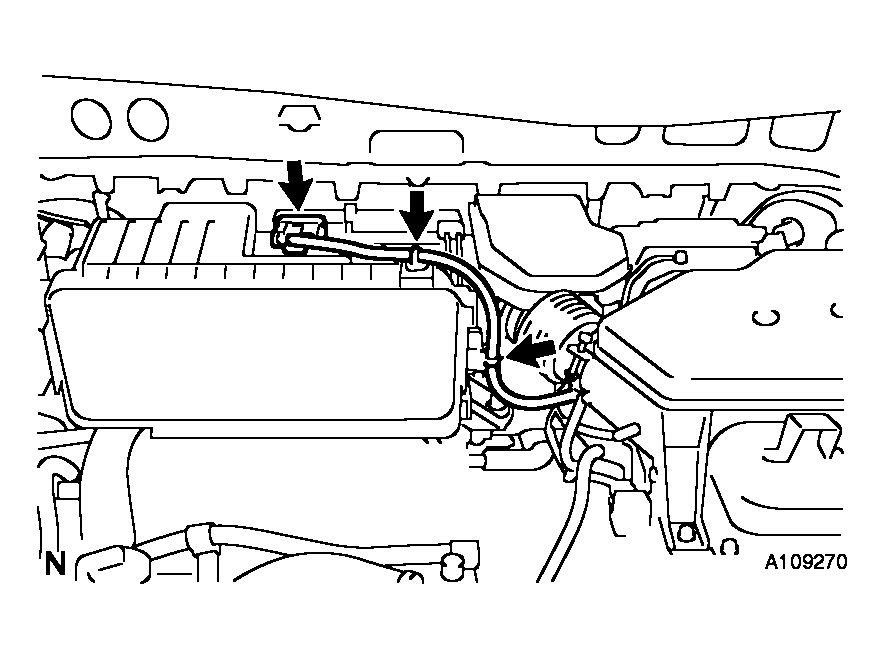

3. Connect the MAF meter connector.
4. Connect the 2 wire harness clamps to the air cleaner.
   Fig 6: Identifying Wire Harness Clamps To Air Cleaner

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

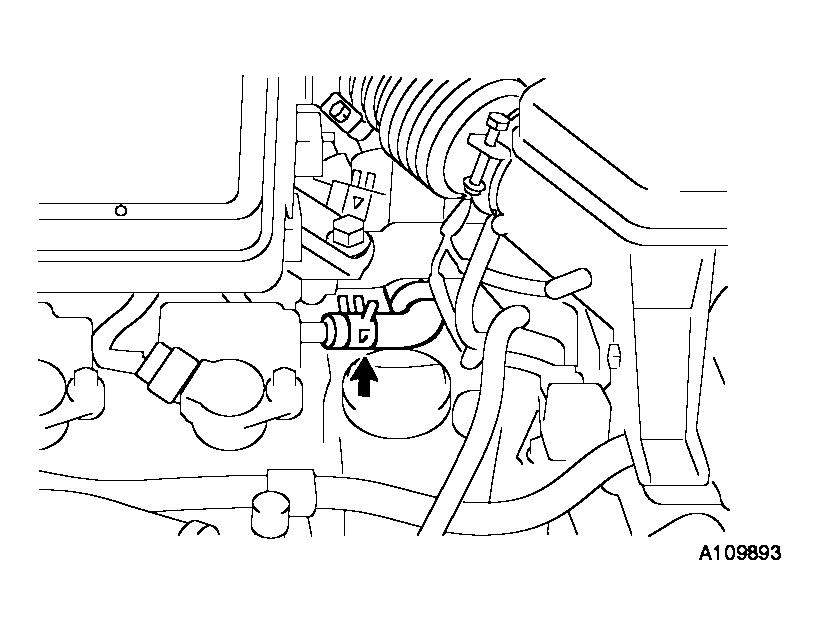

5. Connect the ventilation hose No.2.
   Fig 7: Identifying Ventilation Hose No.2

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install a new air cleaner element to the air cleaner case.

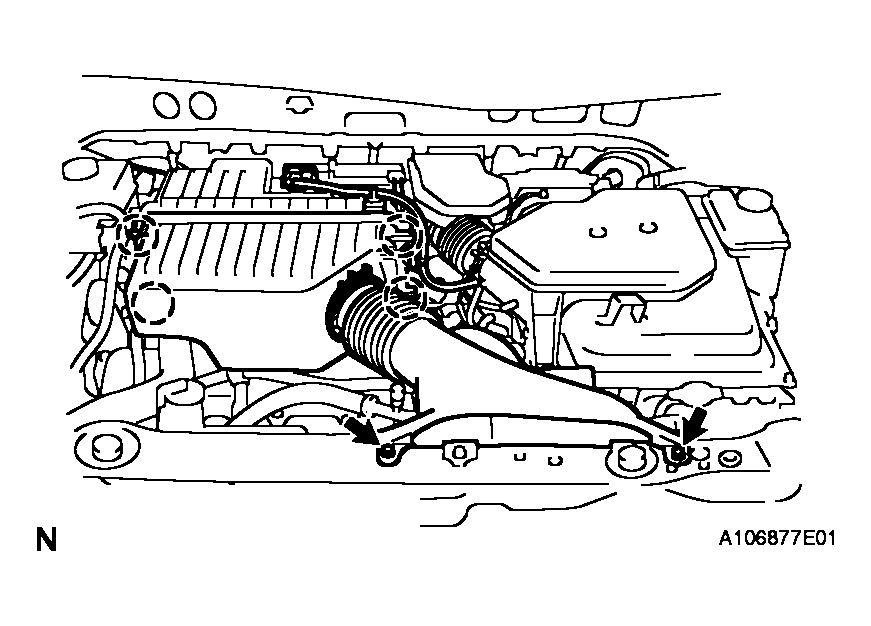

2. Install the air cleaner cap w/ inlet with the 4 clamps.
3. Install the air cleaner cap w/ inlet with the 2 bolts.

   Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

   Fig 8: Identifying Air Cleaner Cap W/ Inlet With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Some system need initialization when reconnecting the battery cable. (See INITIALIZATION )
