VVT Sensor: Inspection

1. Using an ohmmeter, measure the resistance according to the value(s) in the table below.

   Standard resistance

   VVT SENSOR



   Condition	Specified Condition
   Cold	835 to 1,400 Ω
   Hot	1,060 to 1,645 Ω

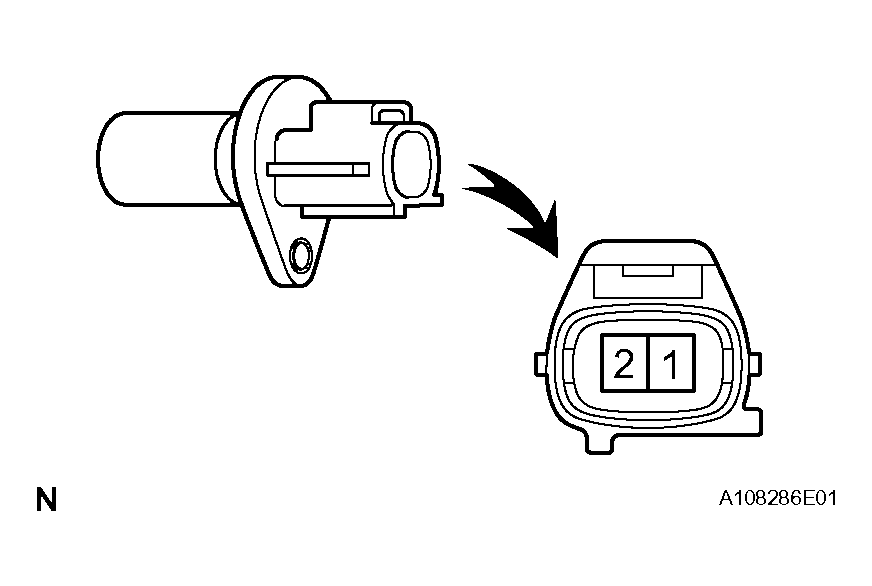

   Fig 1: Measuring Resistance Between VVT Sensor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   • "Cold" and "Hot" mean the temperature of the coils themselves.
   • "Cold" is from -10°C (14°F) to 50°C (122°F) and "Hot" is from 50°C (122°F) to 100°C (212°F).

If the resistance is not as specified, replace the sensor.
