VVT Sensor: Removal

REMOVE COOL AIR INTAKE DUCT SEAL (See step 24 in REMOVAL )
REMOVE AIR CLEANER CAP W/ INLET (See step 25 in REMOVAL )
REMOVE VVT SENSOR (for Bank 1)
1. Disconnect the VVT sensor (Bank 1) connector.
2. Remove the bolt, and then remove the VVT sensor (Bank 1).

  Fig 1: Identifying VVT Sensor (Bank 1)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE VVT SENSOR (for Bank 2)
1. Disconnect the heated oxygen sensor connector (Bank 2) from the wire harness bracket.

  Fig 2: Identifying Heated Oxygen Sensor Connector (Bank 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the VVT sensor (Bank 2) connector.
3. Remove the bolt, and then remove the VVT sensor (Bank 2).

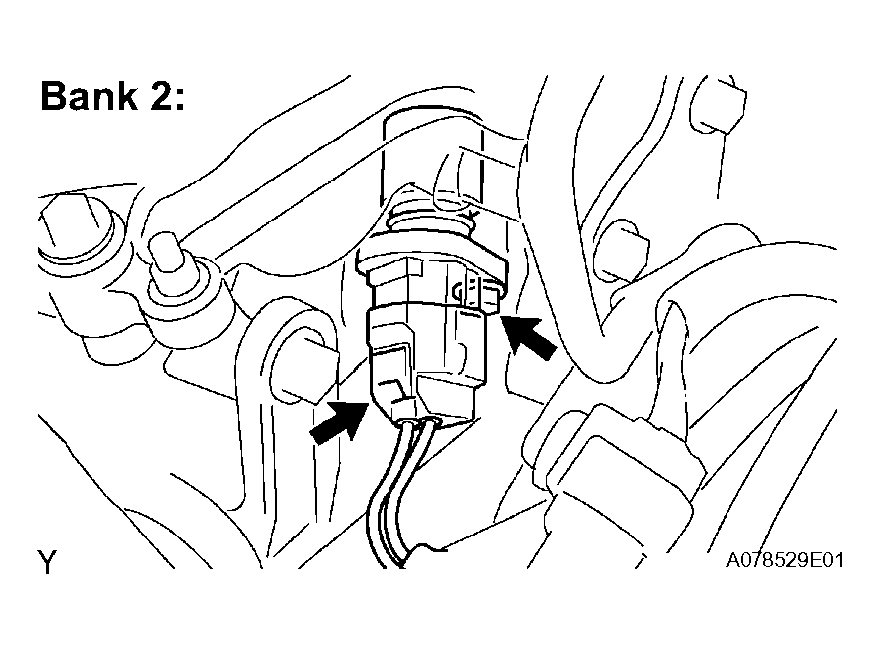

  Fig 3: Identifying VVT Sensor (Bank 2) Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
