Abs Main Relay: Inspection

  1. INSPECT ABS MAIN RELAY (ABS NO.1 RELAY, ABS NO.2 RELAY)
    1. Measure the resistance according to the value(s) in the table below.

      Resistance

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Specified Condition
      Terminal 1 - Terminal 2 100 Ω
      Terminal 3 - Terminal 5 10 kΩ or higher (No Continuity)
    2. Apply battery voltage between terminals 1 and 2.
    3. Measure the resistance according to the value(s) in the table below.

      Resistance

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Specified Condition
      Terminal 3 - Terminal 5 Below 1 Ω

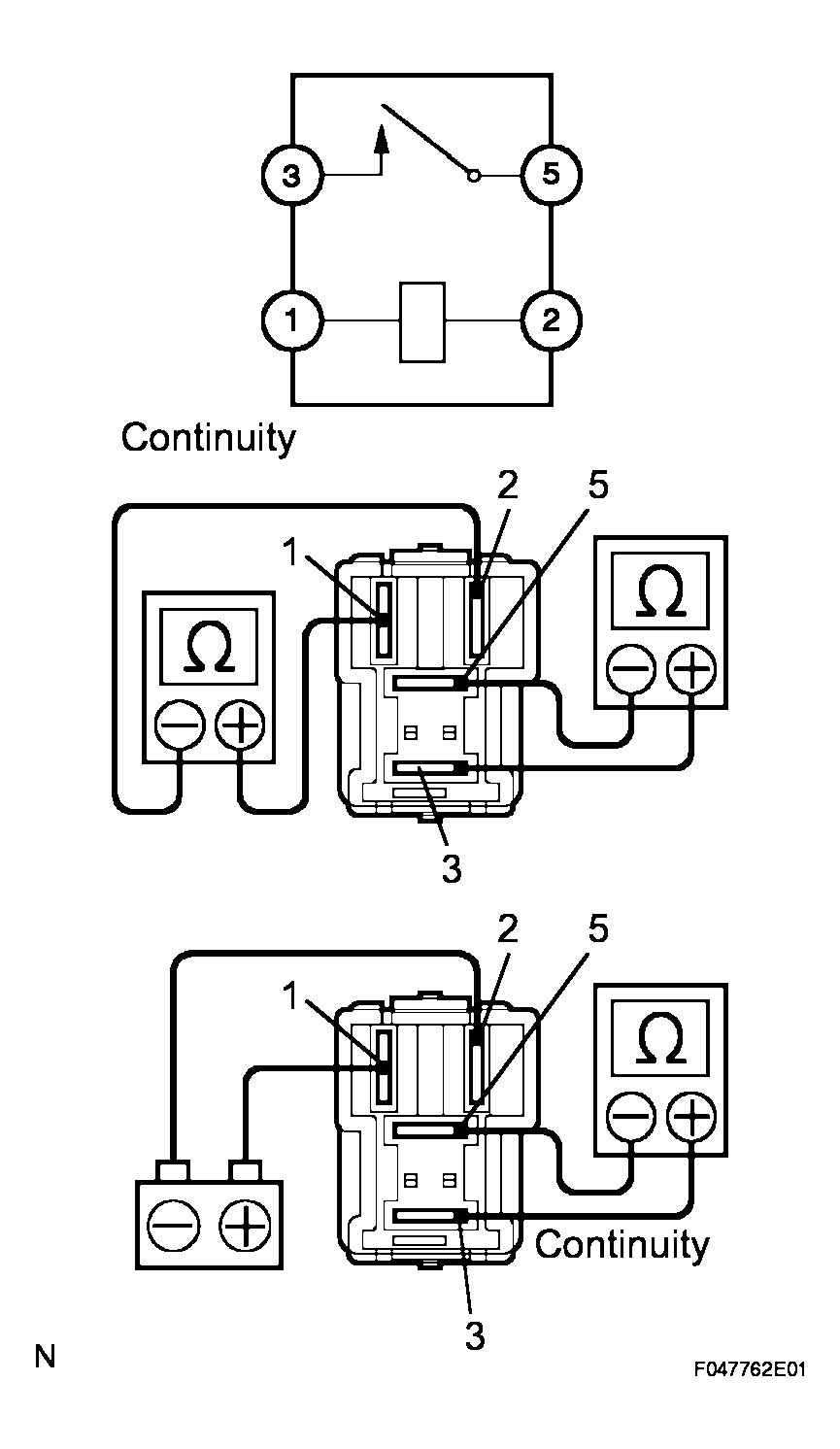

      Fig 1: Inspecting ABS Main Relay (ABS No.1 Relay, ABS No.2 Relay)
      G04113363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
