Dynamic Laser Cruise Control: Notes

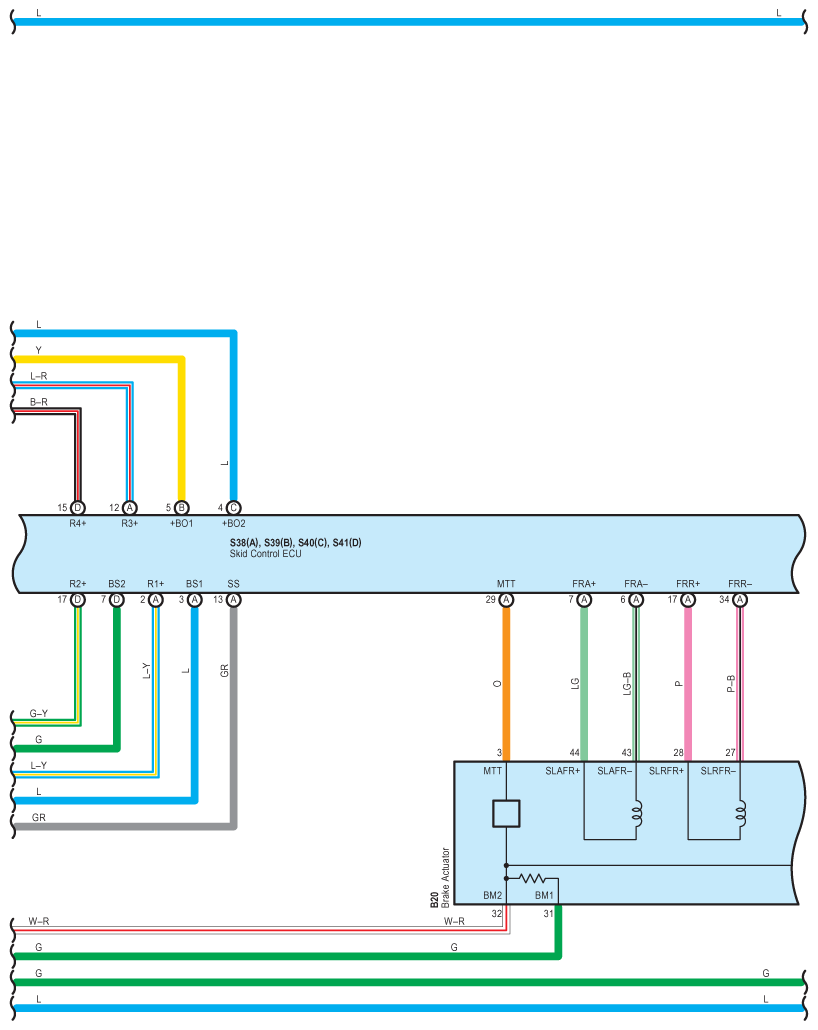

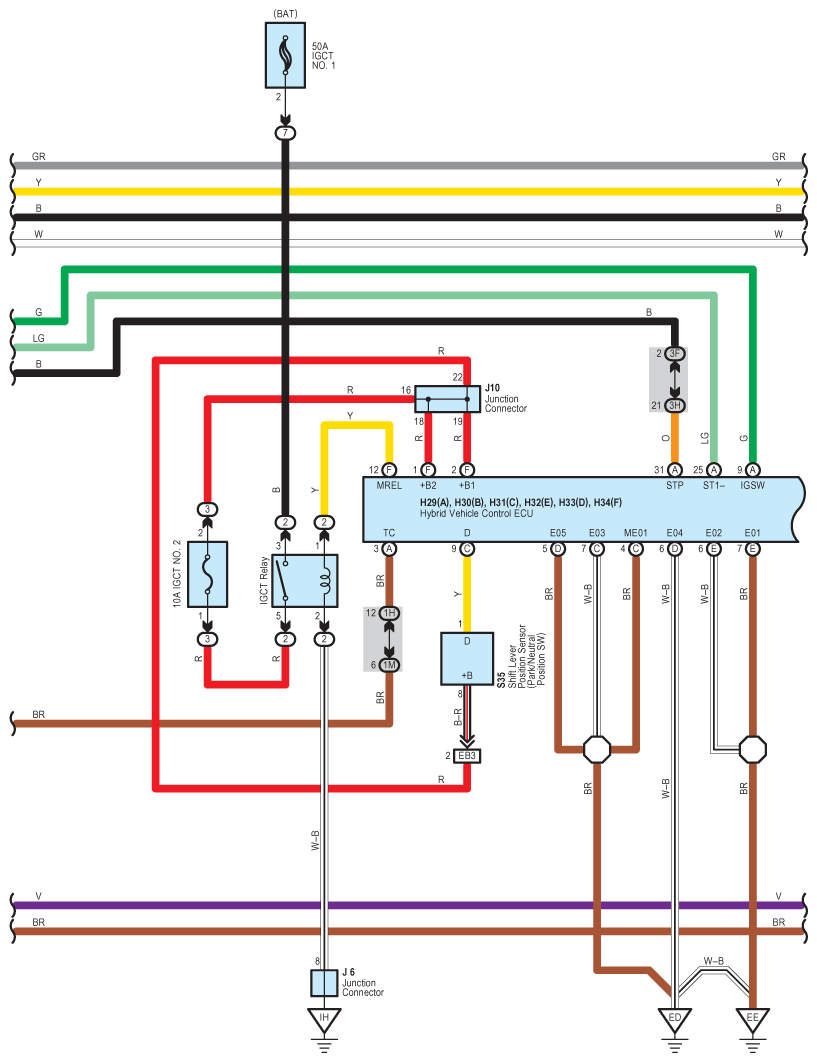

Fig 1: Dynamic Laser Cruise Control Wiring Diagram (1 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

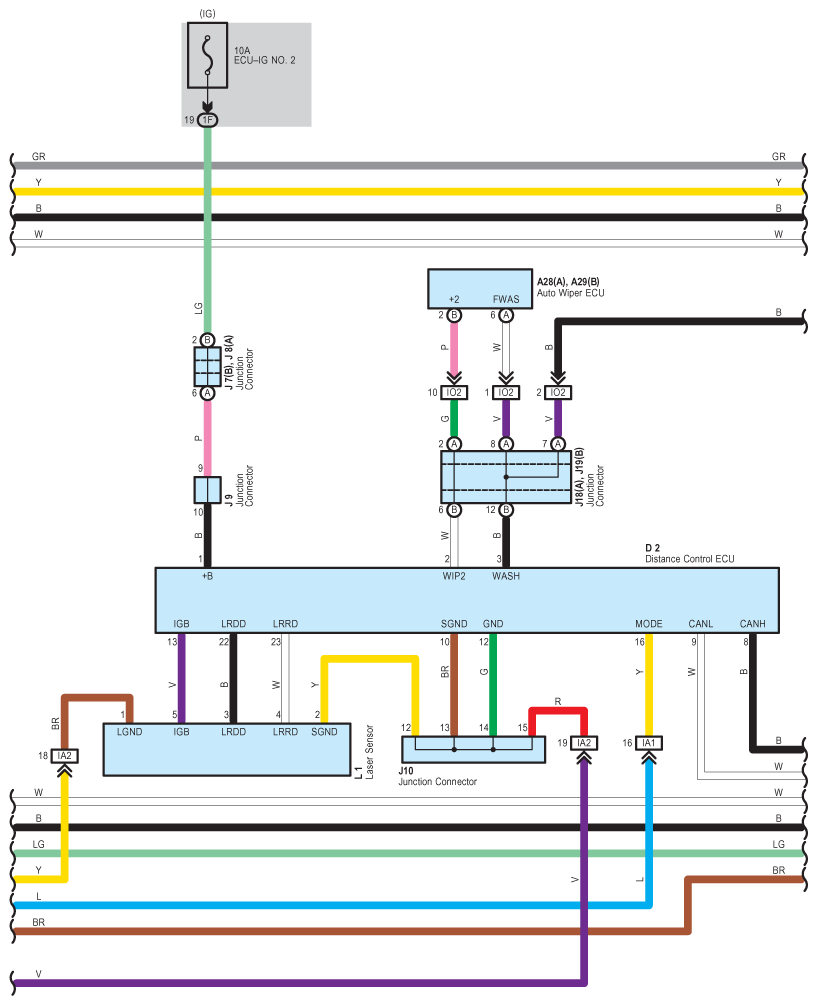

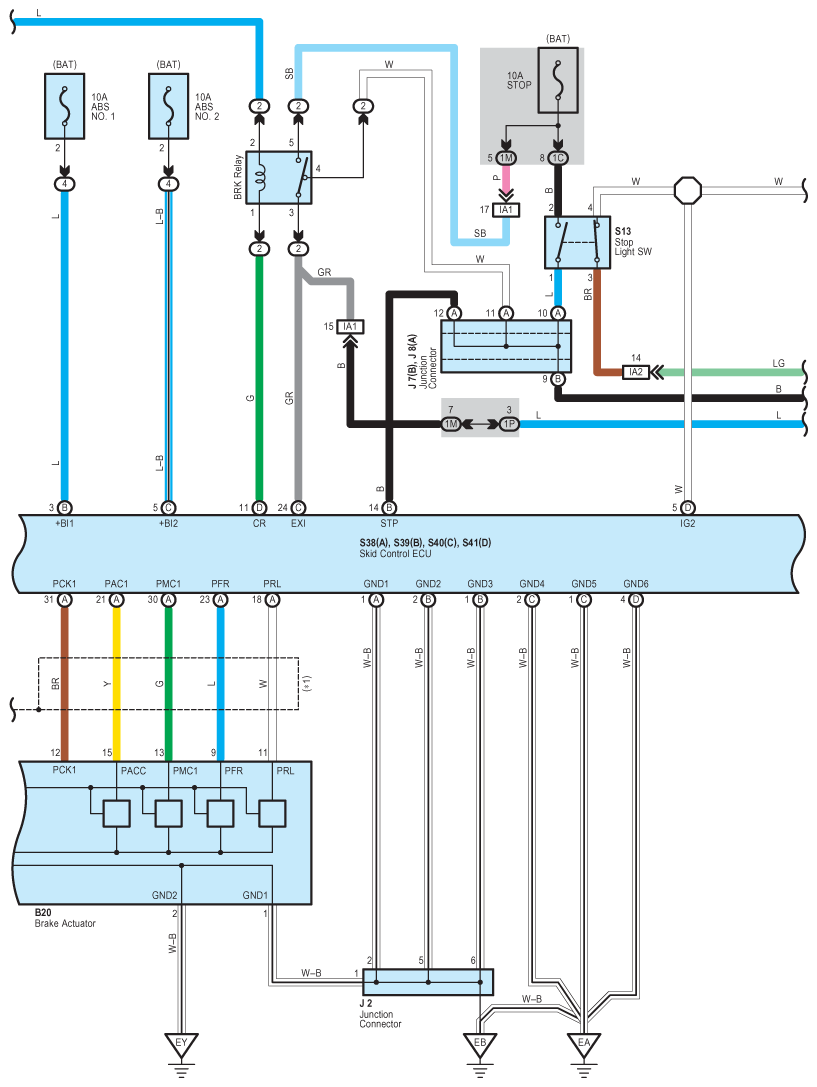

Fig 2: Dynamic Laser Cruise Control Wiring Diagram (2 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

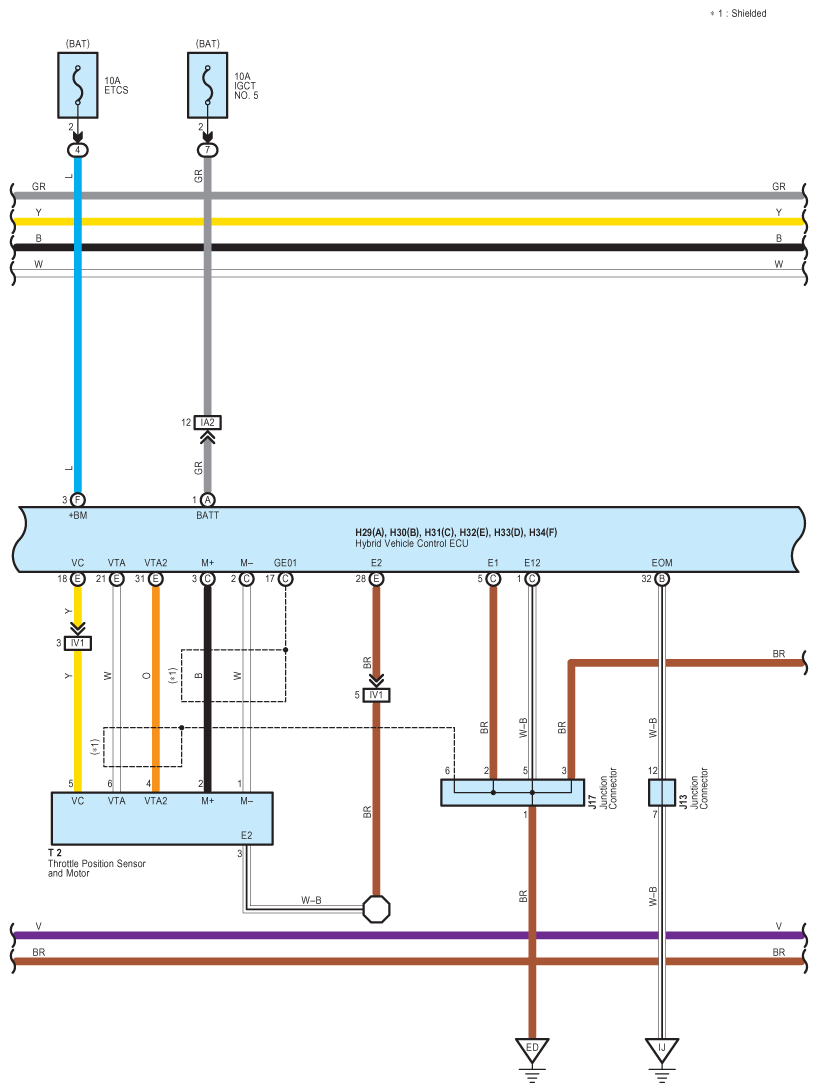

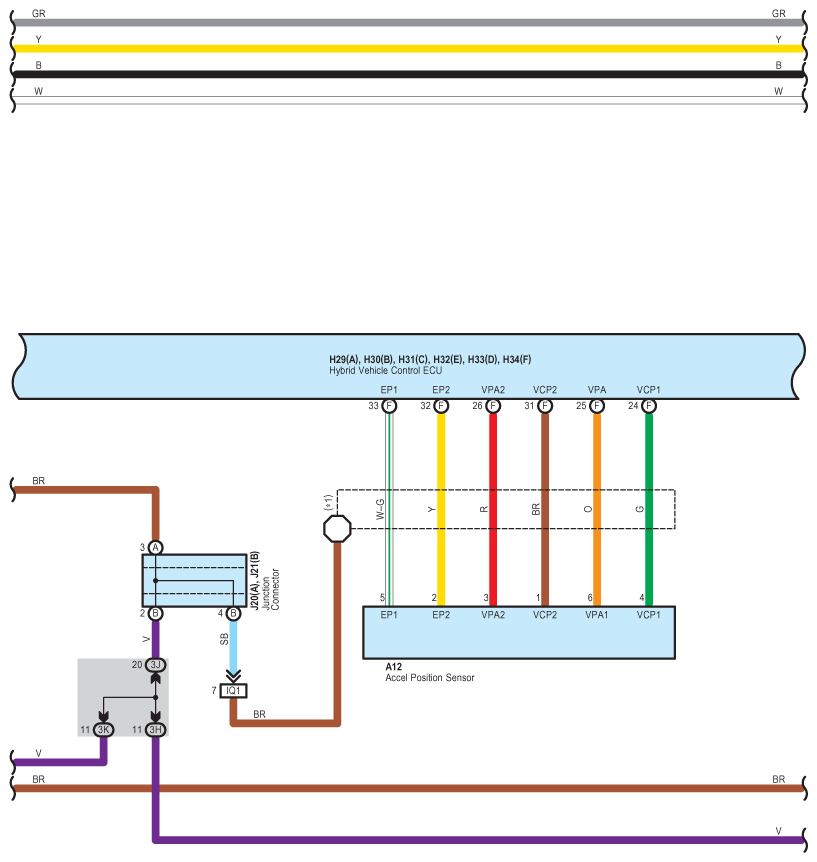

Fig 3: Dynamic Laser Cruise Control Wiring Diagram (3 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

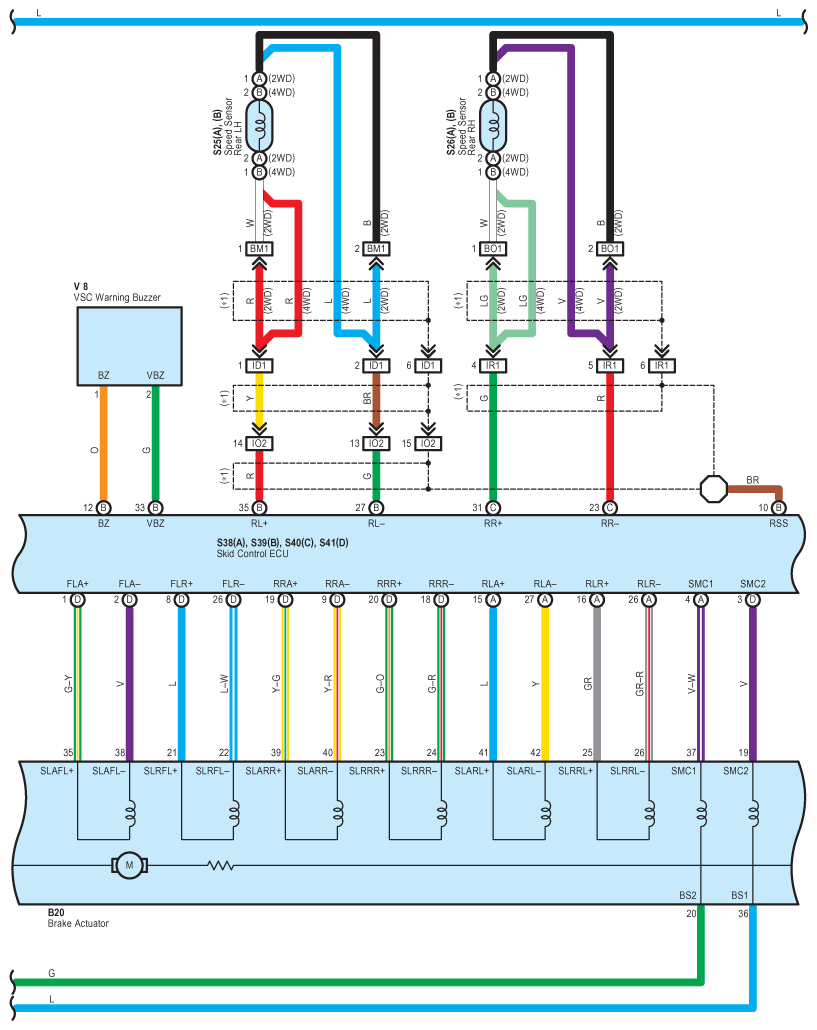

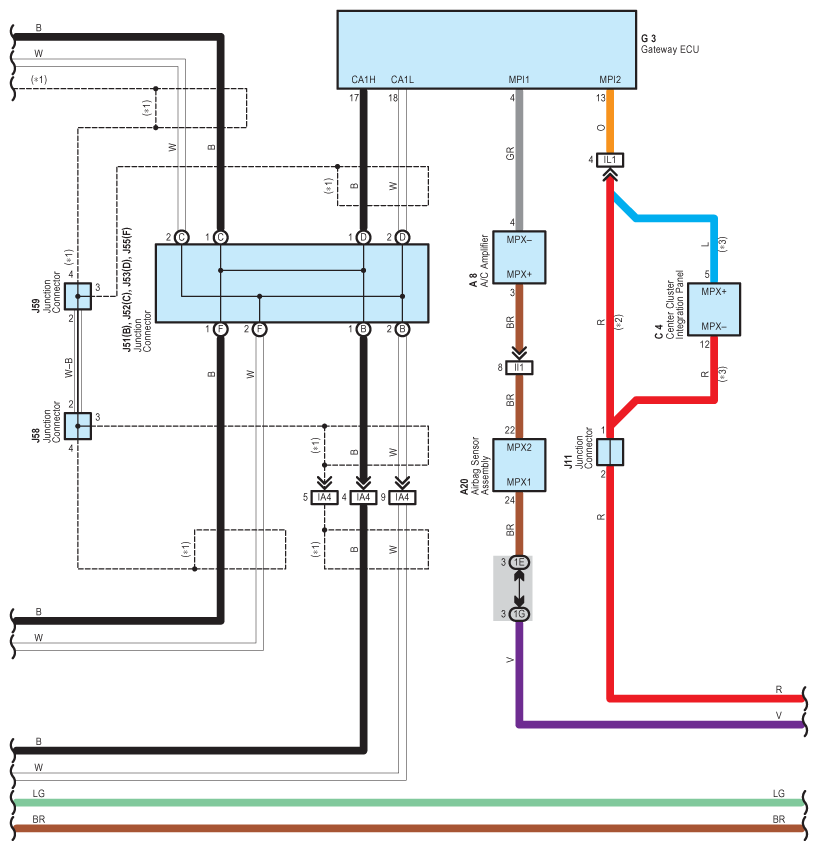

Fig 4: Dynamic Laser Cruise Control Wiring Diagram (4 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

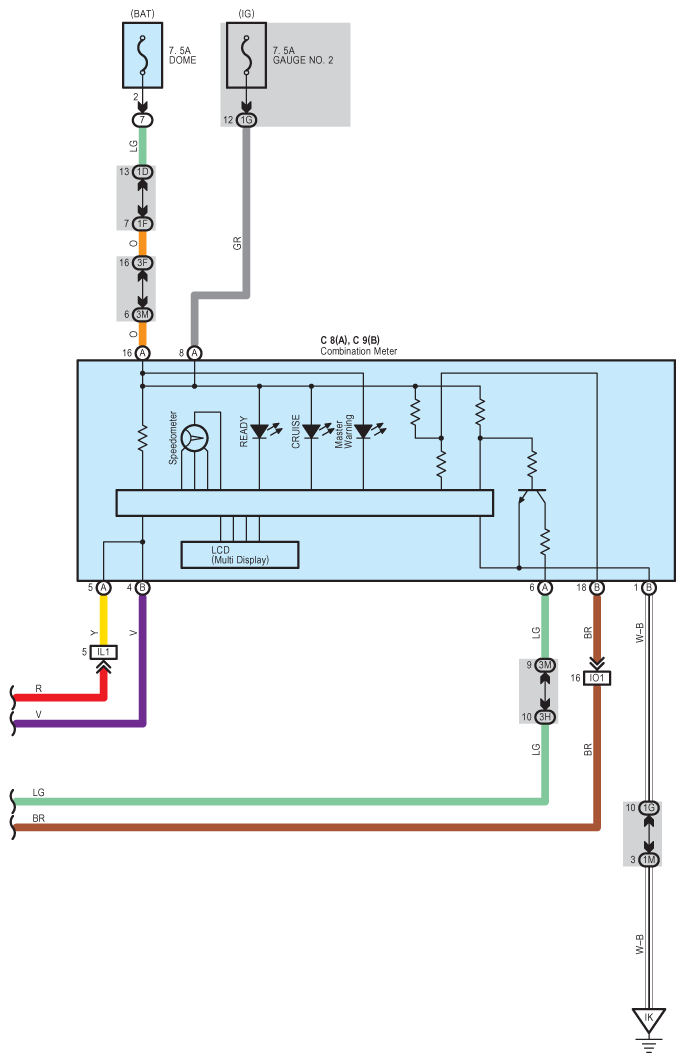

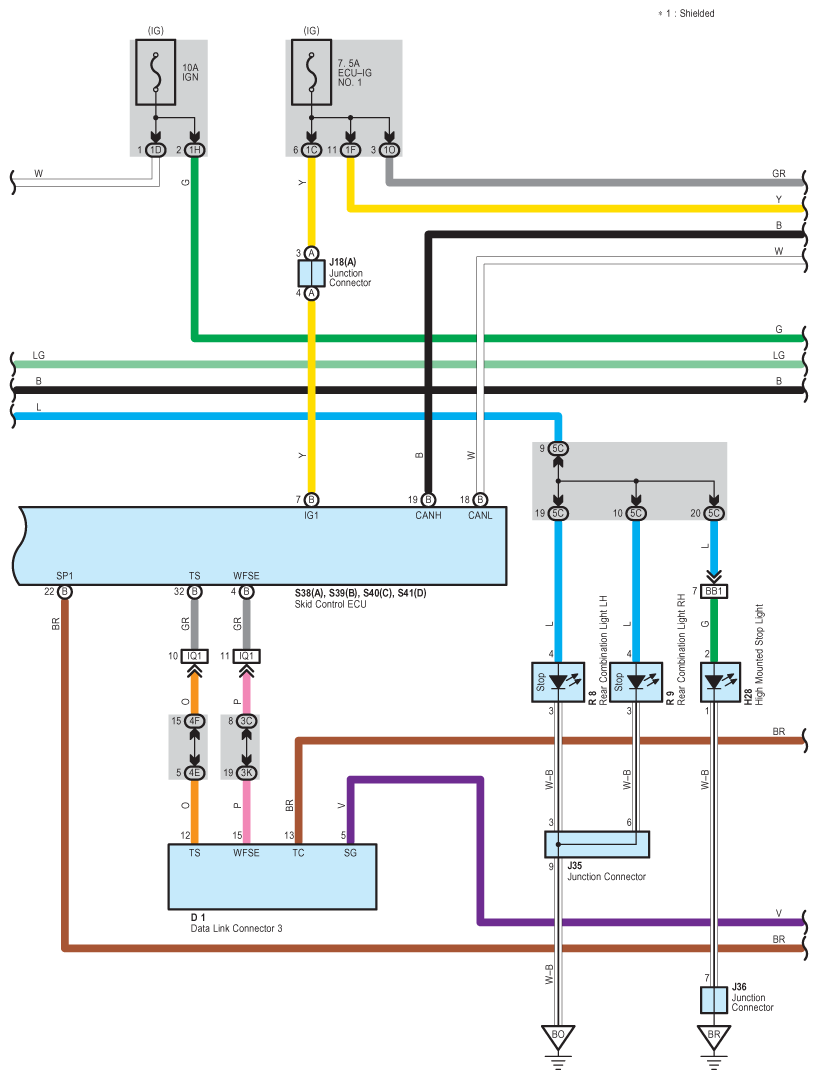

Fig 5: Dynamic Laser Cruise Control Wiring Diagram (5 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

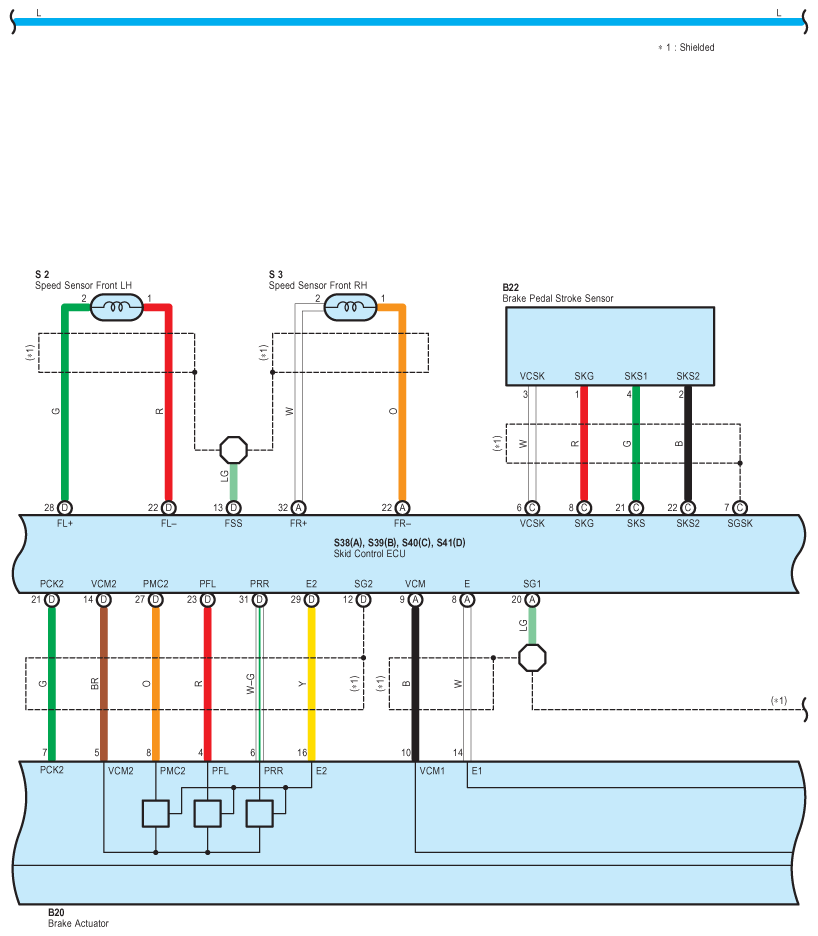

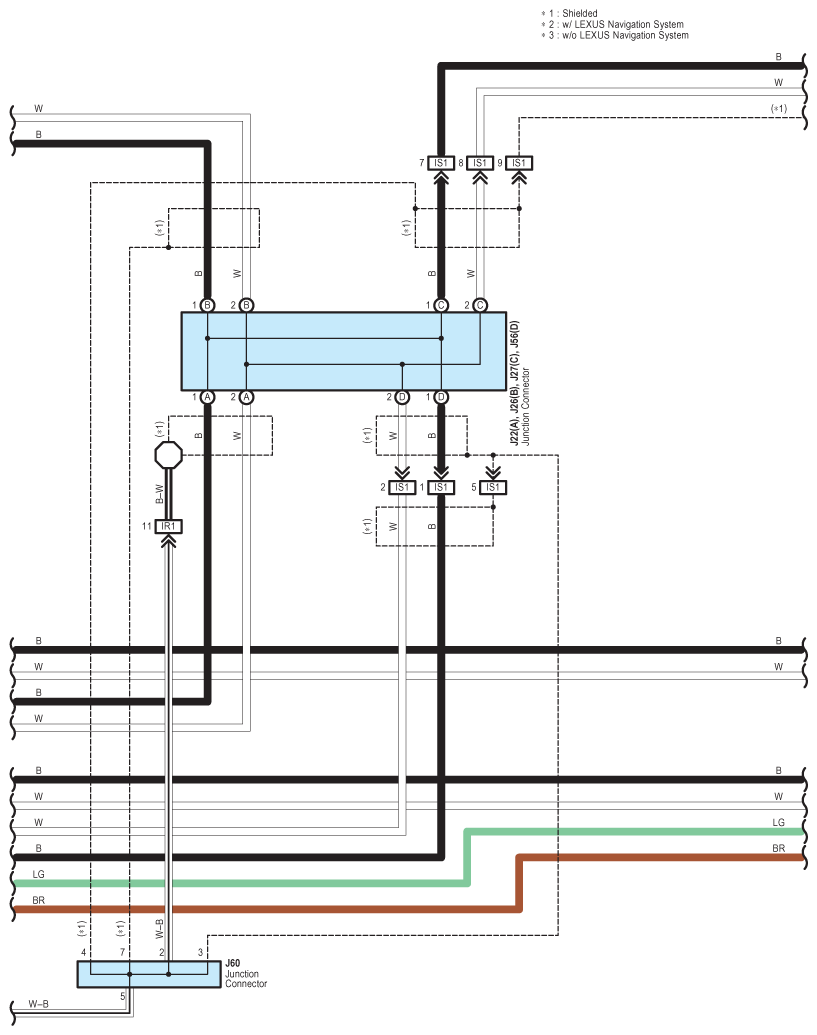

Fig 6: Dynamic Laser Cruise Control Wiring Diagram (6 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

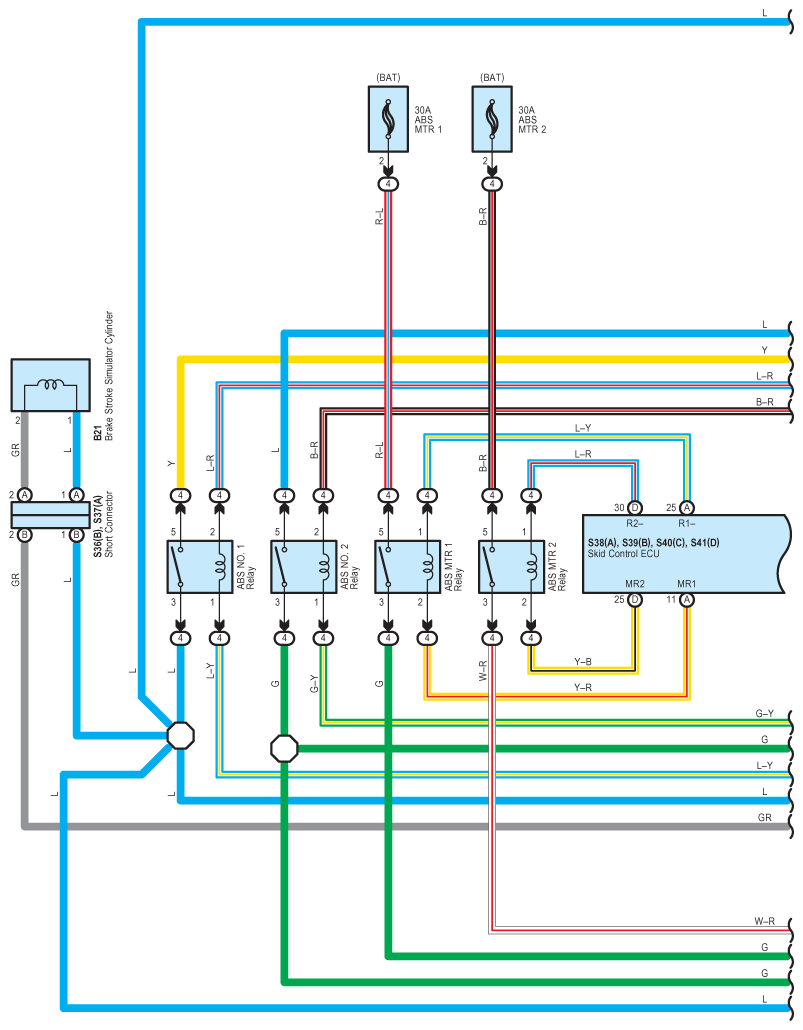

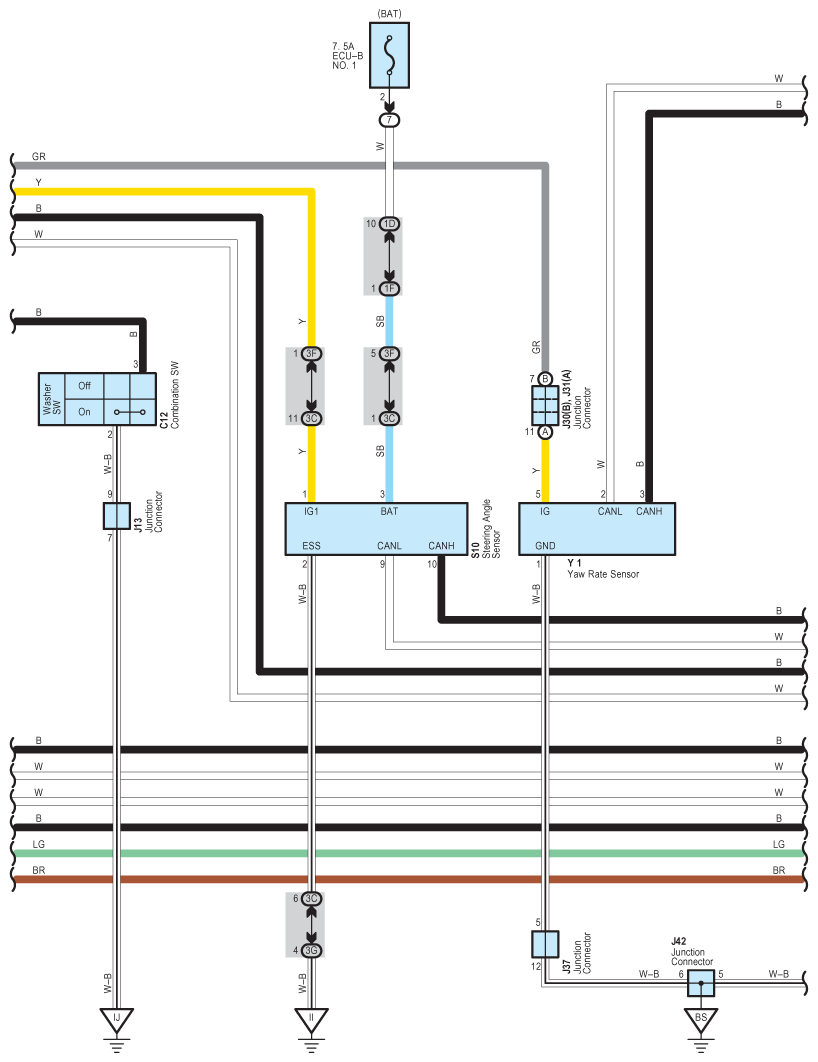

Fig 7: Dynamic Laser Cruise Control Wiring Diagram (7 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

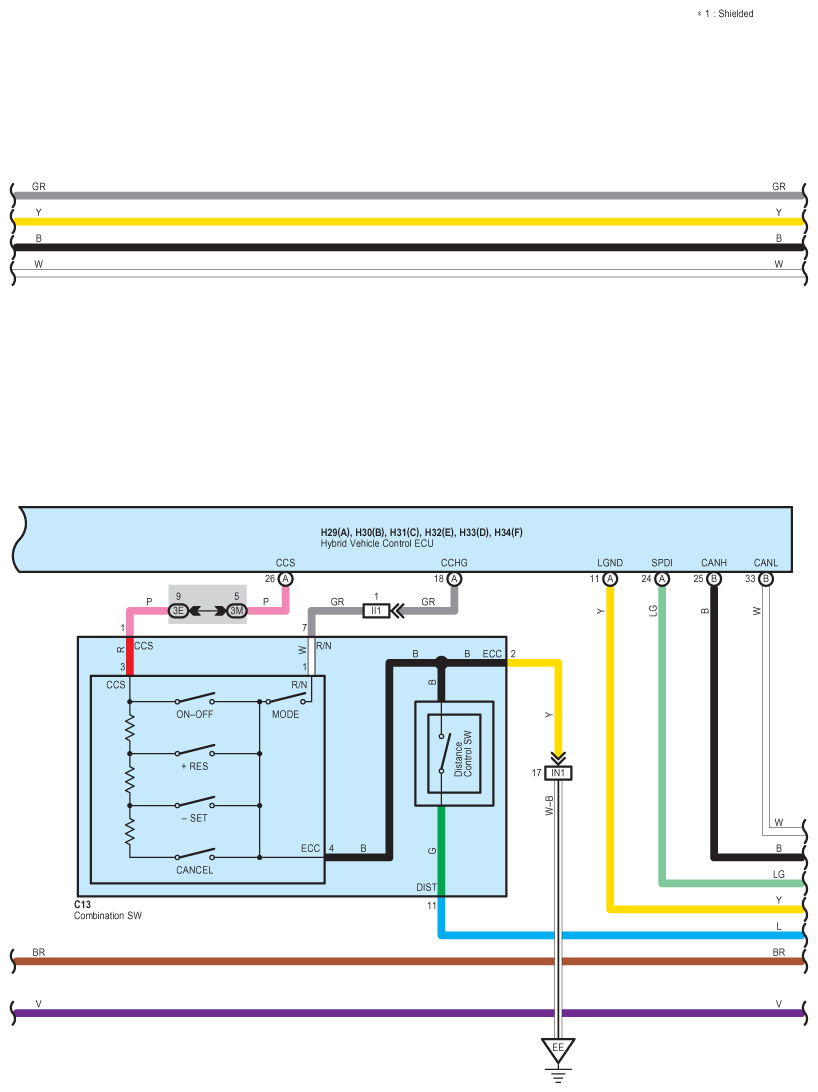

Fig 8: Dynamic Laser Cruise Control Wiring Diagram (8 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Dynamic Laser Cruise Control Wiring Diagram (9 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Dynamic Laser Cruise Control Wiring Diagram (10 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Dynamic Laser Cruise Control Wiring Diagram (11 Of 15)

Fig 12: Dynamic Laser Cruise Control Wiring Diagram (12 Of 15)

Fig 13: Dynamic Laser Cruise Control Wiring Diagram (13 Of 15)

Fig 14: Dynamic Laser Cruise Control Wiring Diagram (14 Of 15)

Fig 15: Dynamic Laser Cruise Control Wiring Diagram (15 Of 15)
