Multiplex Communication System - CAN: Notes

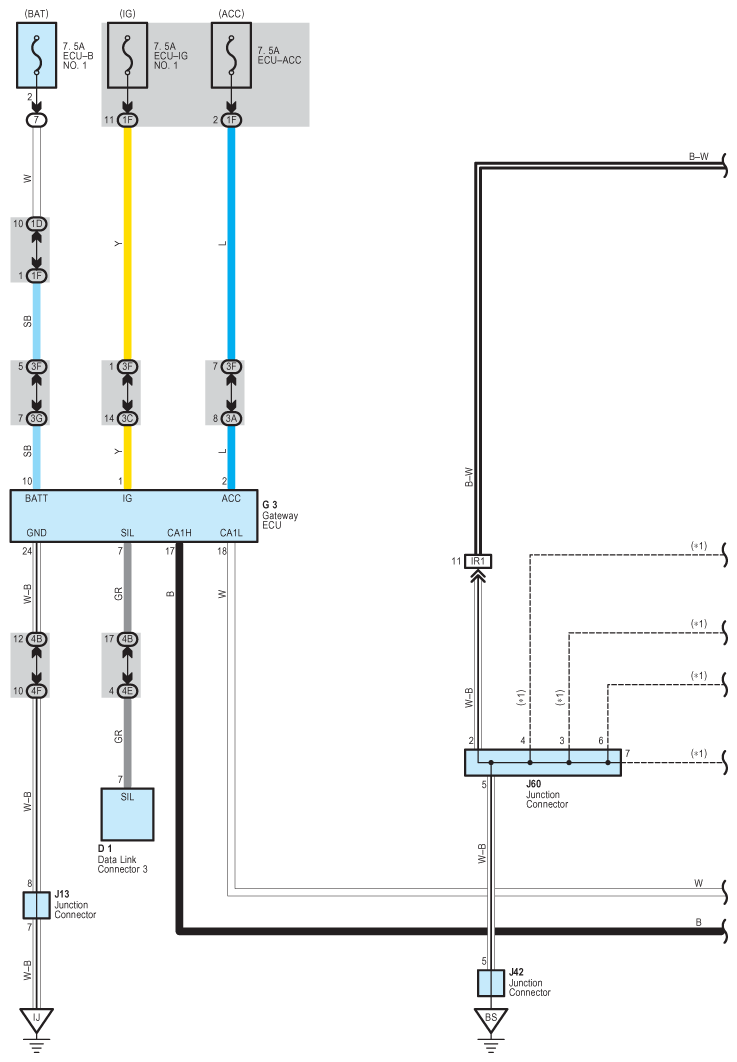

Fig 1: Multiplex Communication System - CAN Wiring Diagram (1 Of 3)
G08914745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

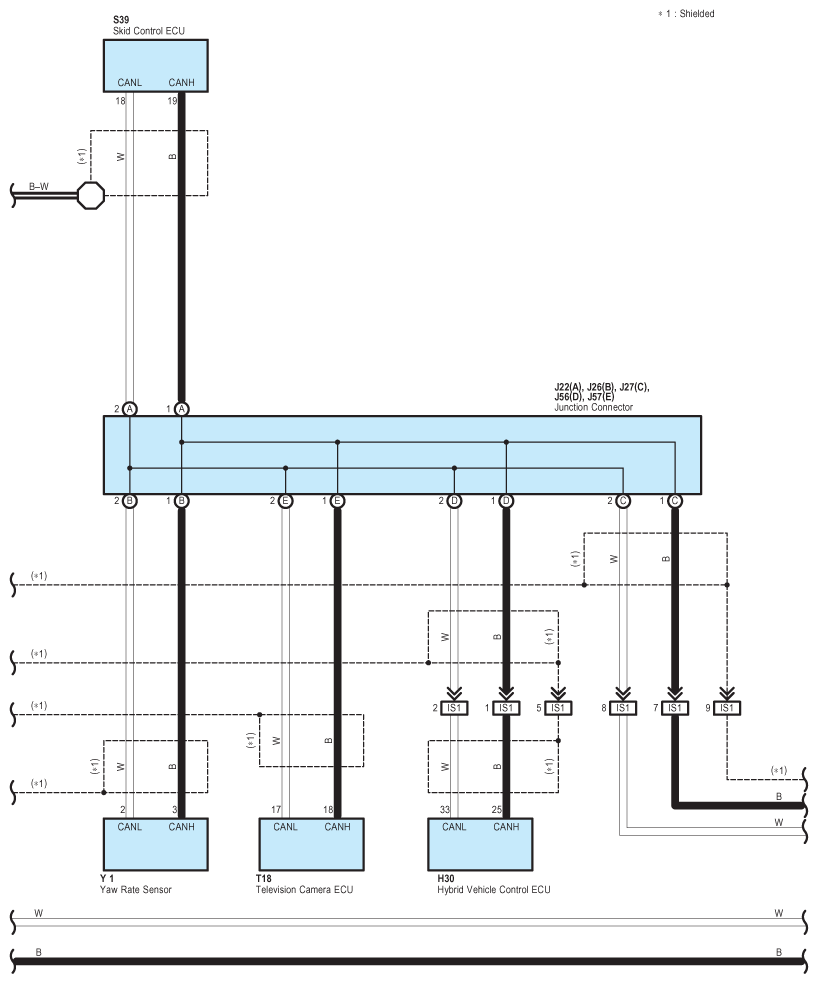

Fig 2: Multiplex Communication System - CAN Wiring Diagram (2 Of 3)
G08914746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

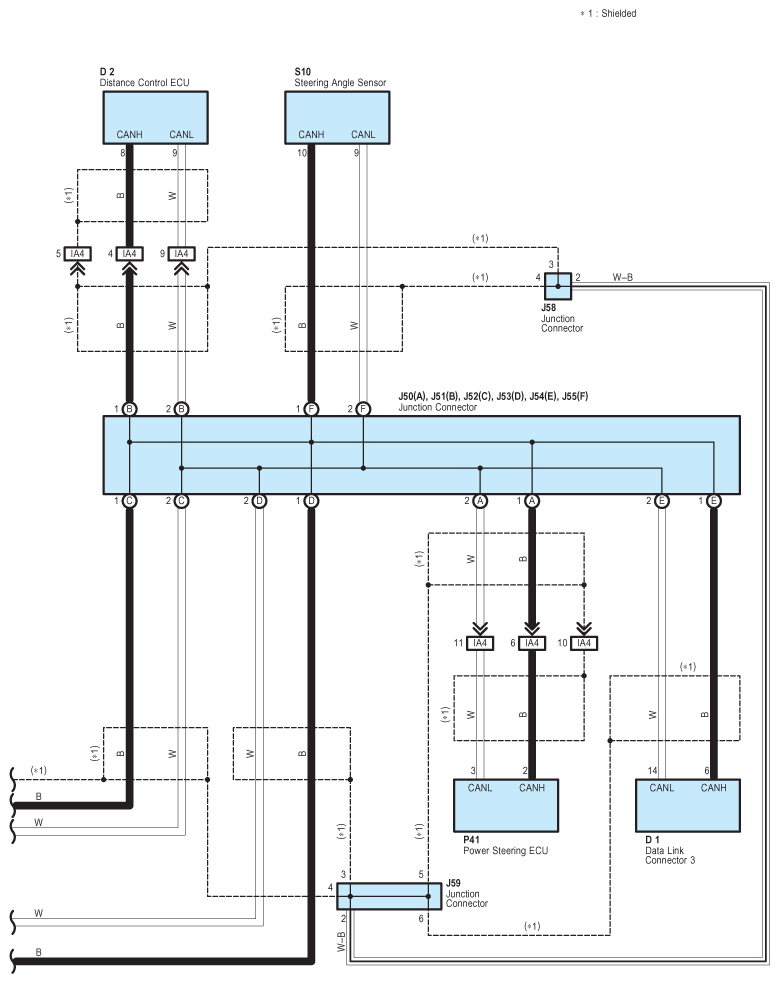

Fig 3: Multiplex Communication System - CAN Wiring Diagram (3 Of 3)
G08914747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
