Fuse Block

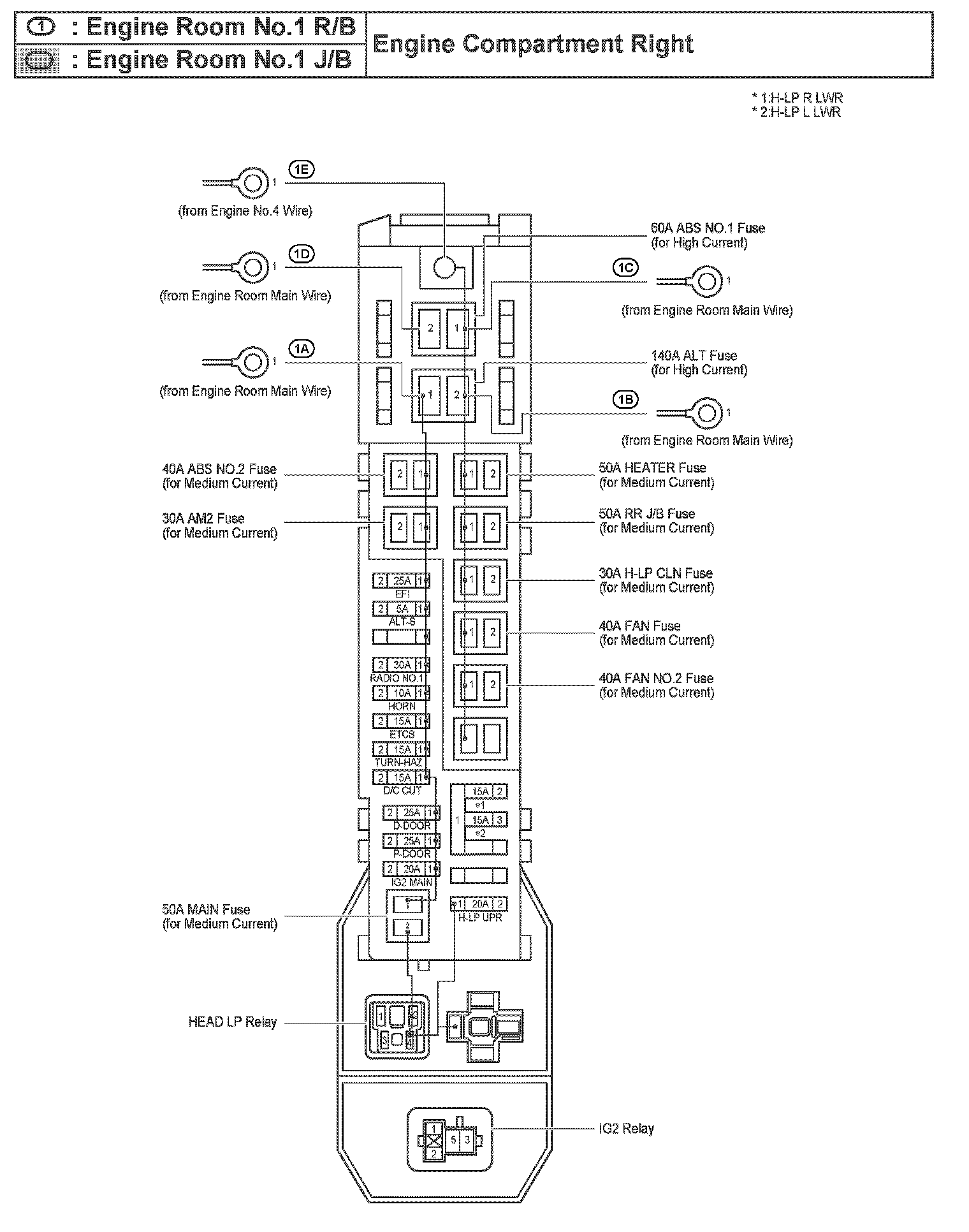

Engine Room No.1 R/B, Engine Room No.1 J/B - Engine Compartment Right:

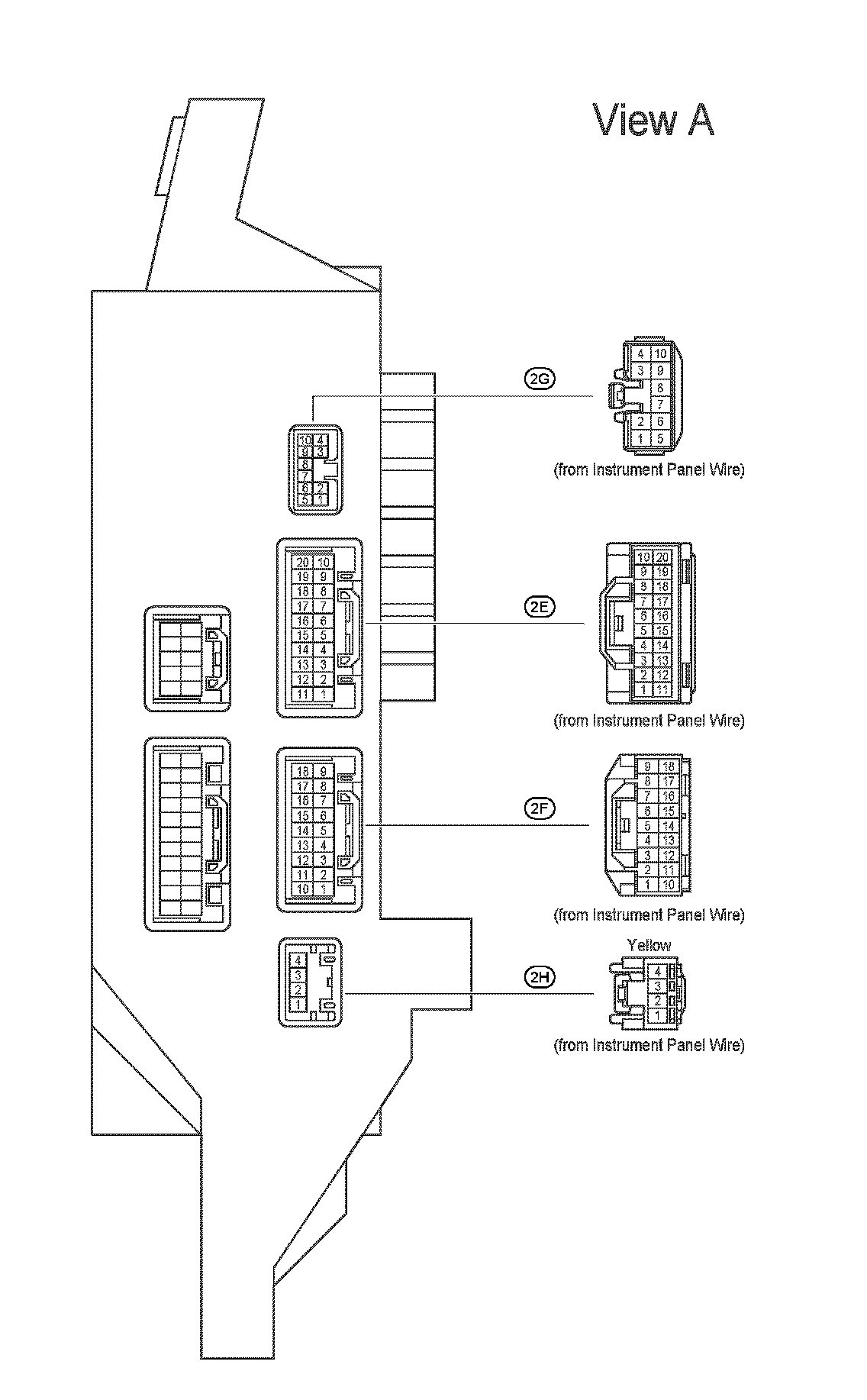

Driver Side J/B - Left Kick Panel:

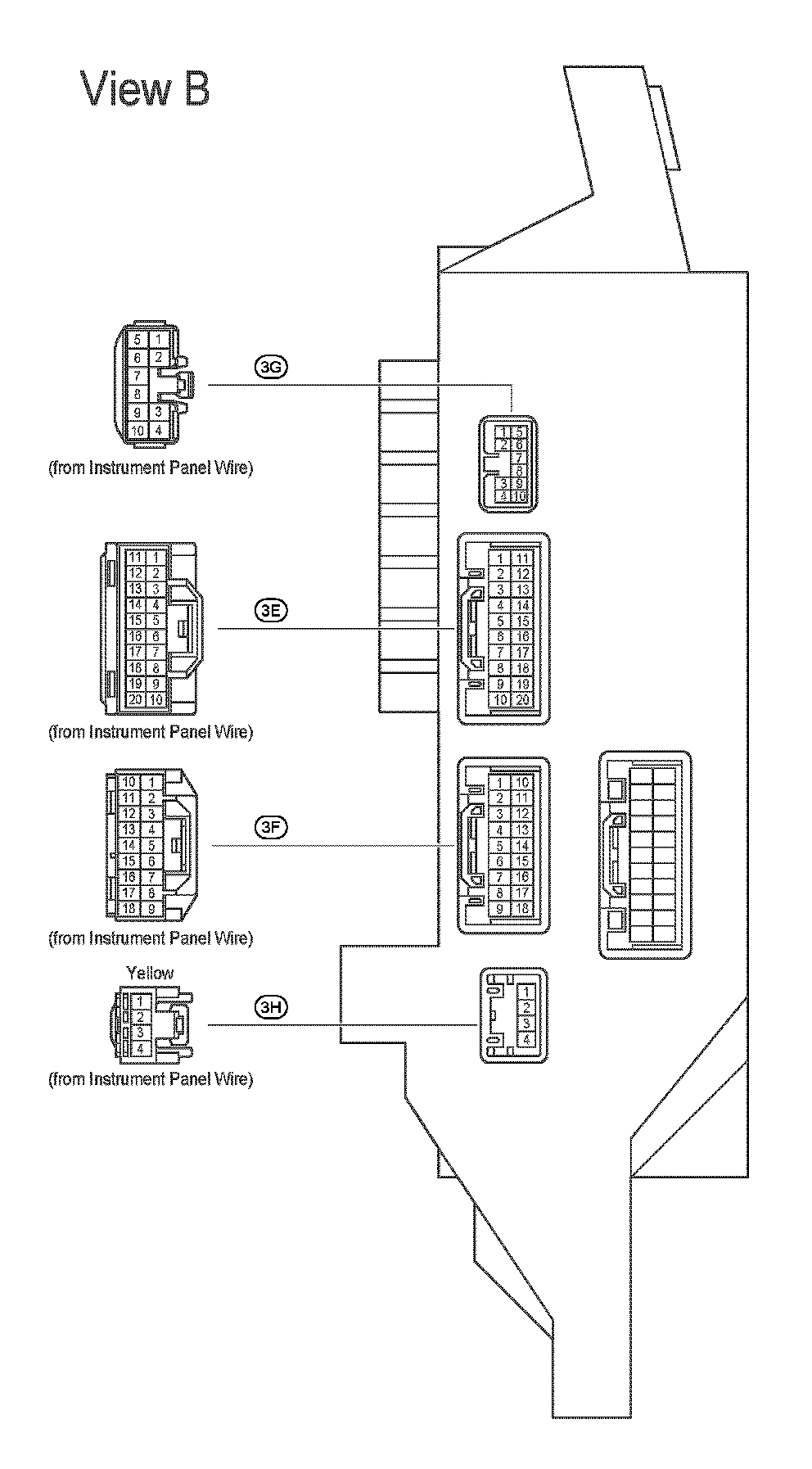

Driver Side J/B - Left Kick Panel:

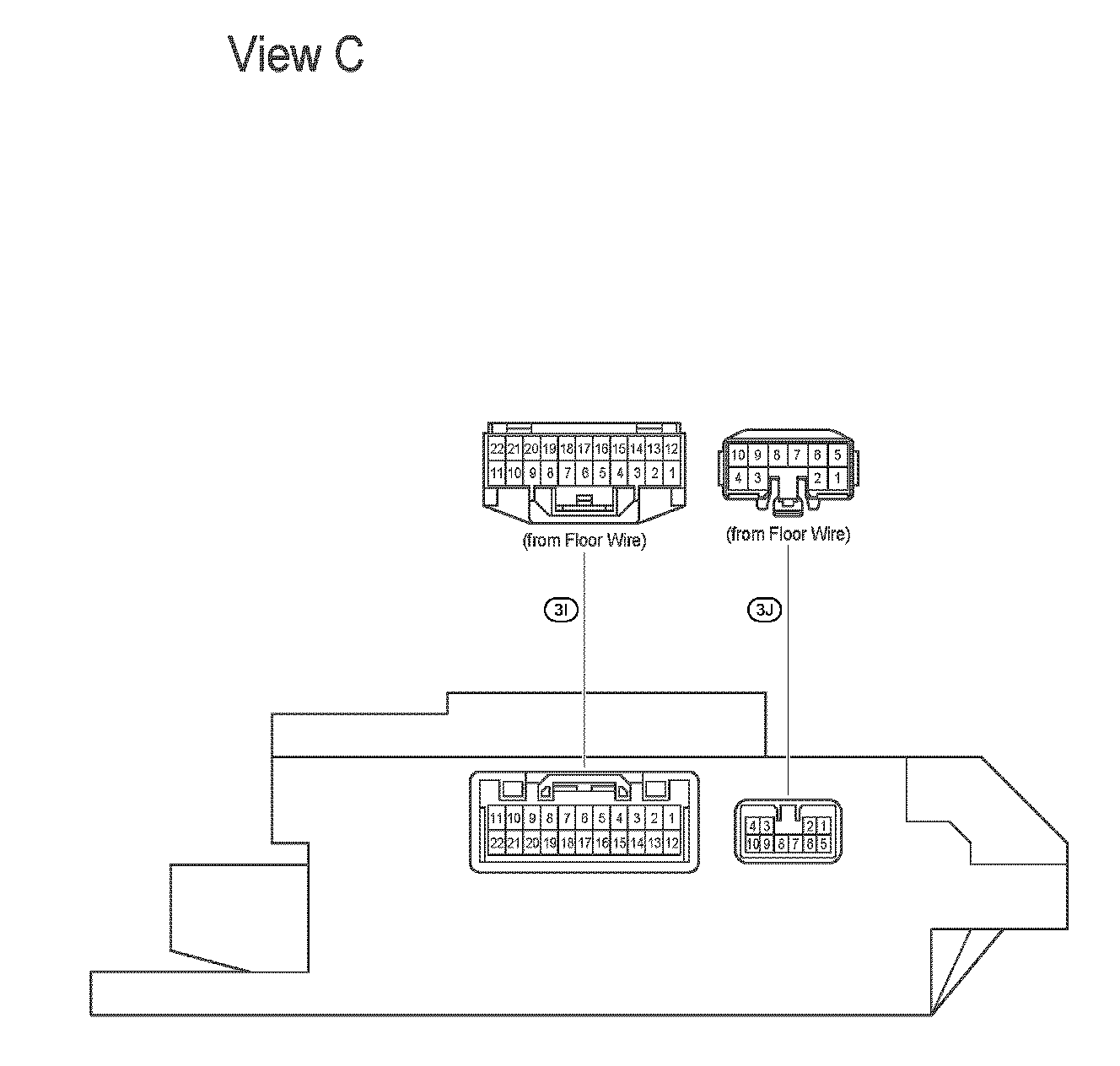

Driver Side J/B - Left Kick Panel:

Passenger Side J/B - Right Kick Panel:

Passenger Side J/B - Right Kick Panel:

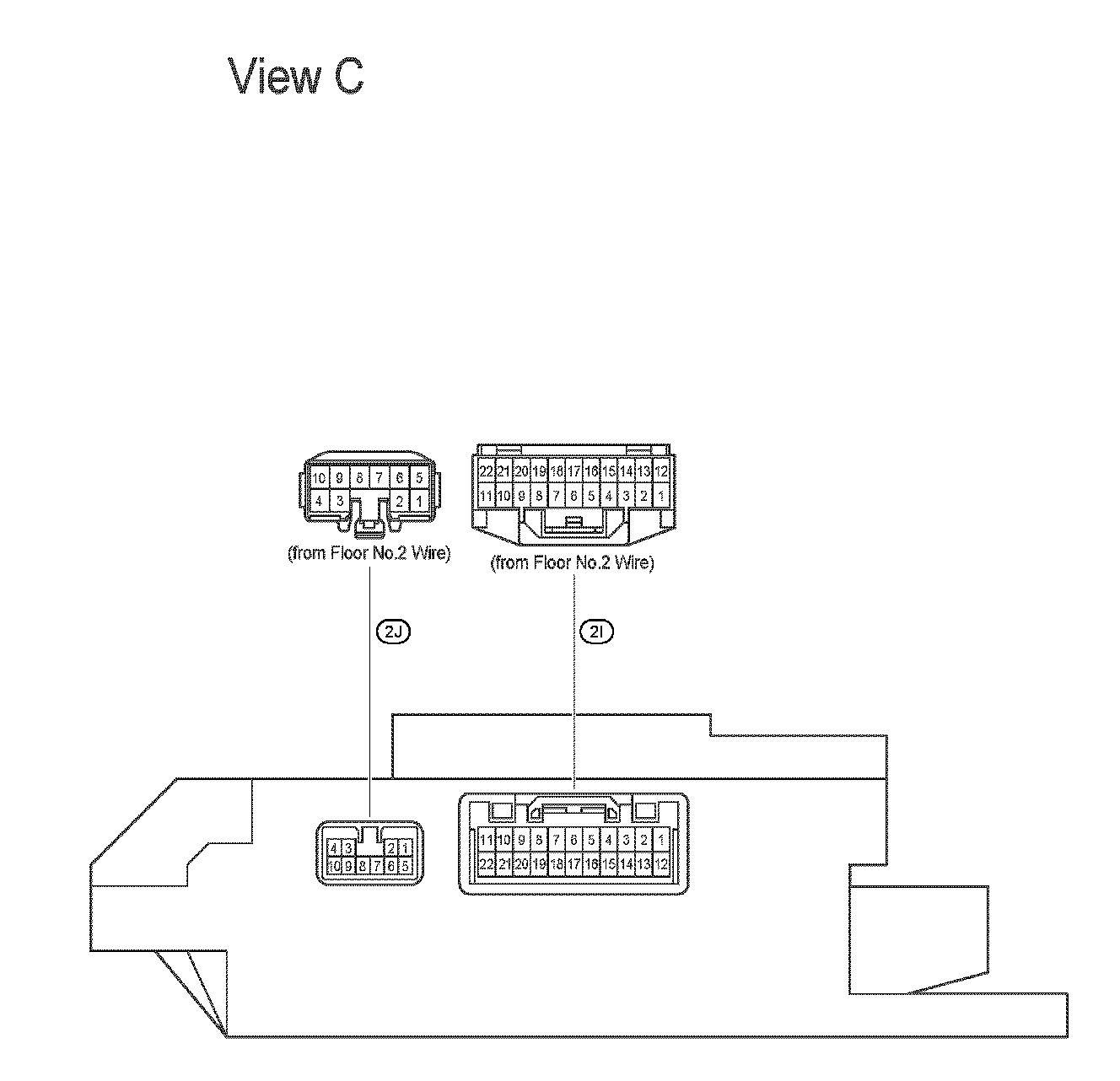

Passenger Side J/B - Right Kick Panel:

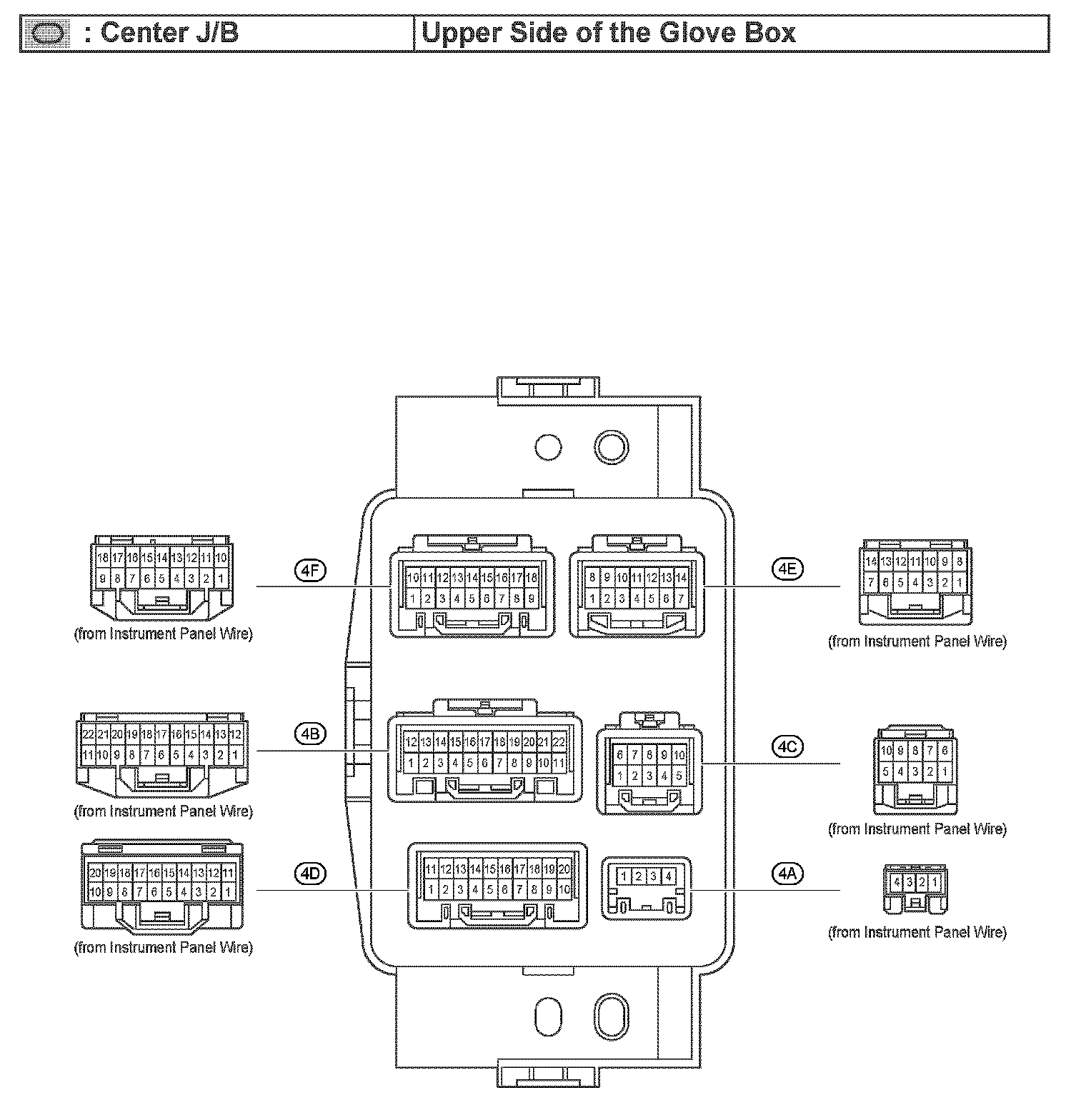

Center J/B - Upper Side Of The Glove Box:

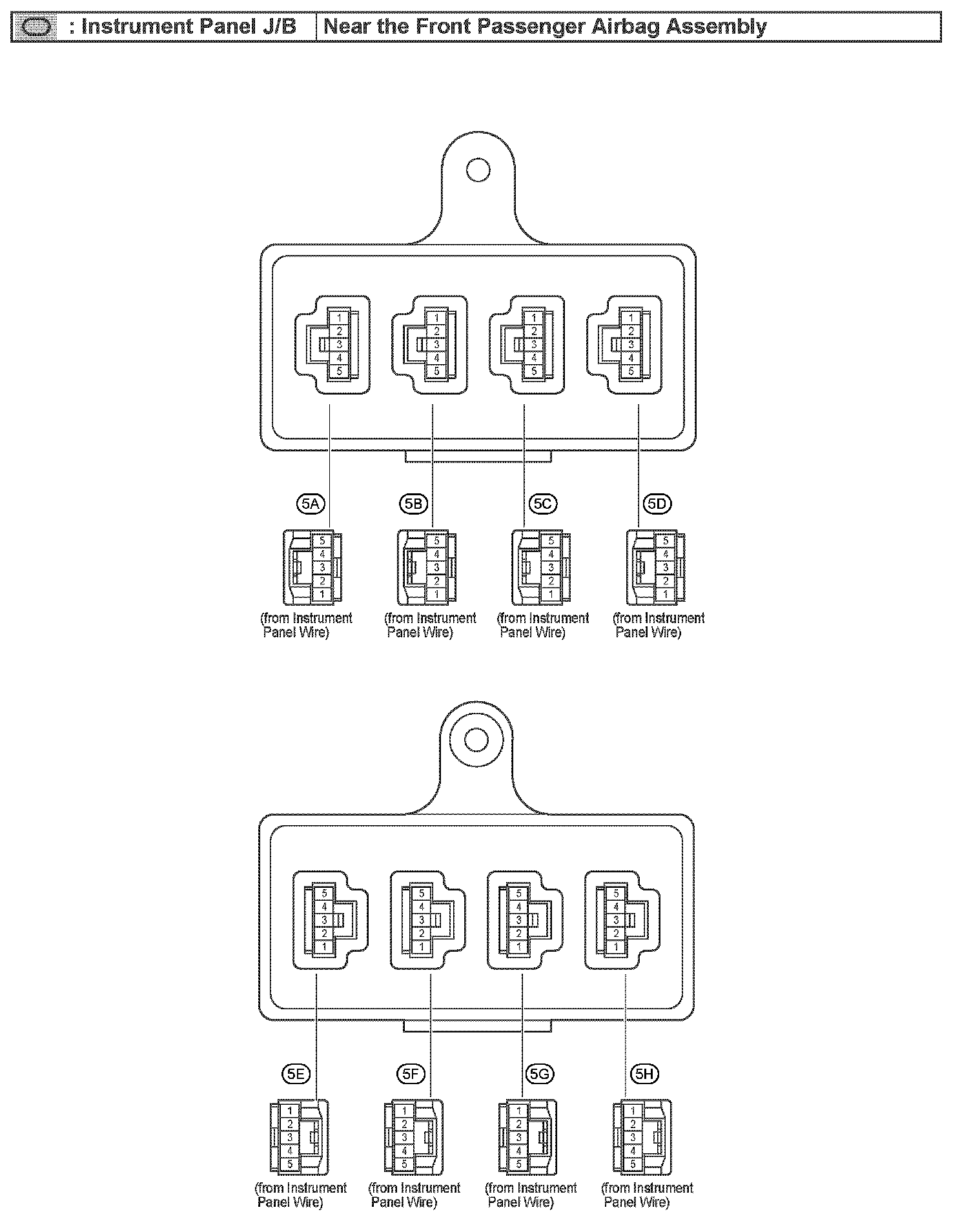

Instrument Panel J/B - Near The Front Passenger Airbag Assembly:

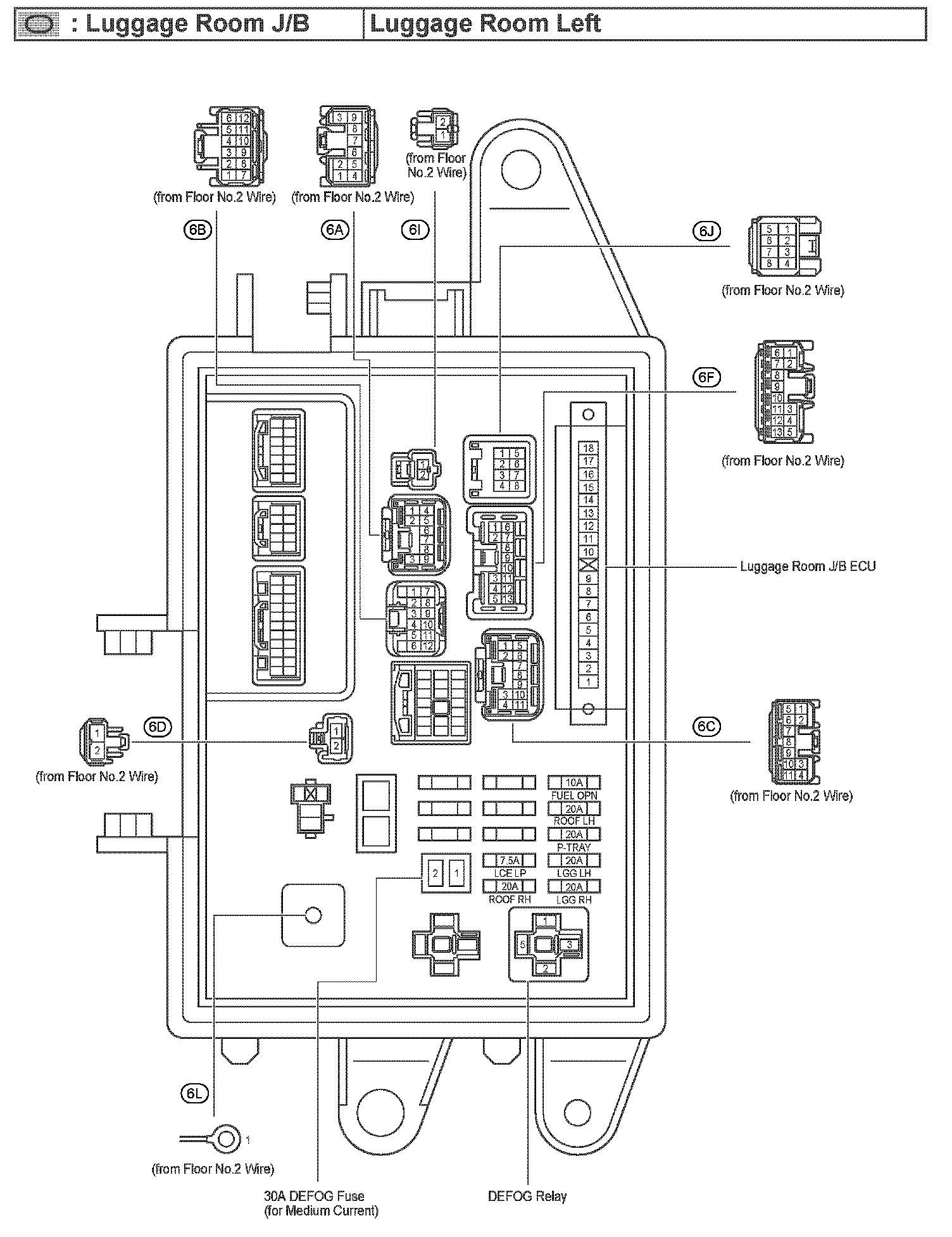

Luggage Room J/B - Luggage Room Left:
