Compressor Speed Sensor: Testing and Inspection

INSPECT MAGNET CLUTCH ASSY (LOCK SENSOR)

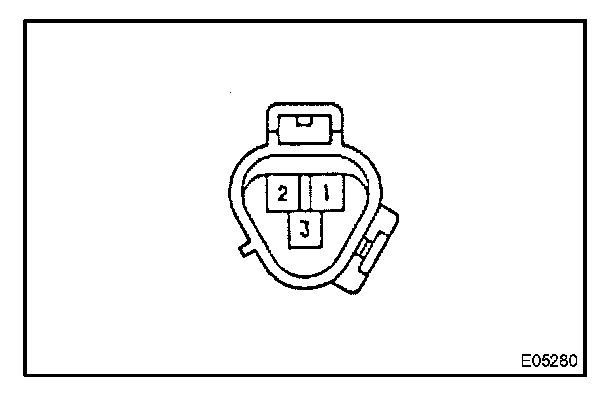

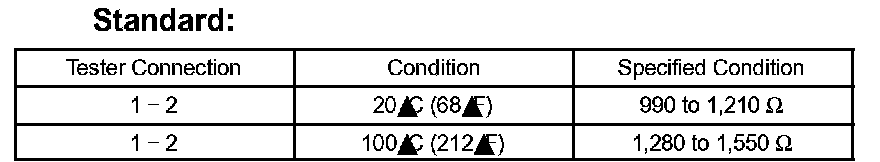

a. Measure the resistance of the clutch. If the result is not as specified, replace the clutch assy.

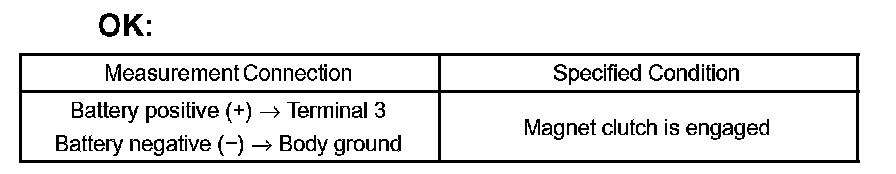

b. Apply battery voltage to the clutch and check operation of the clutch. If the result is not as specified, replace the clutch assy.
