Service Data

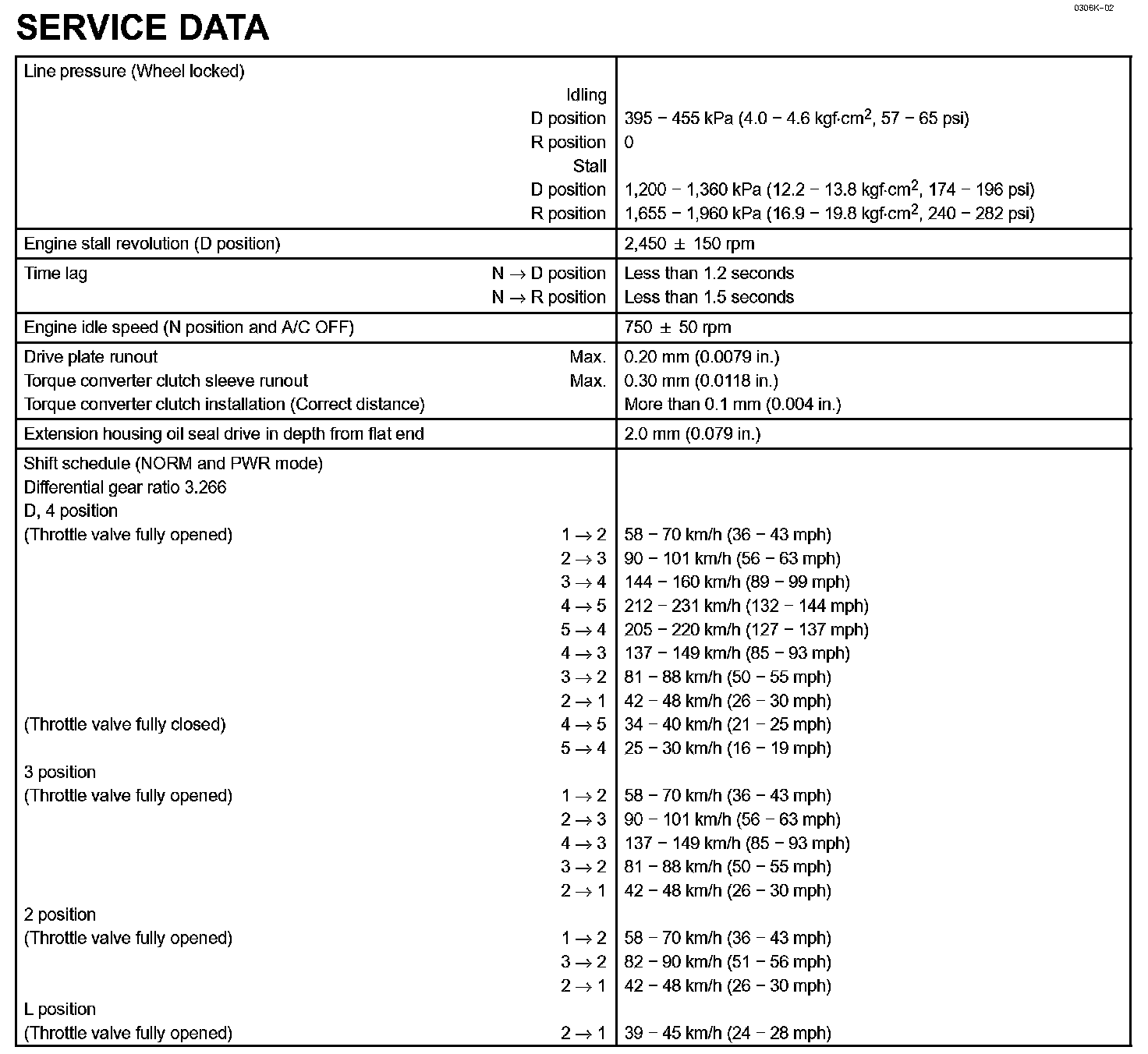

Automatic Transmission / Transaxle-Service Data (Part 1):

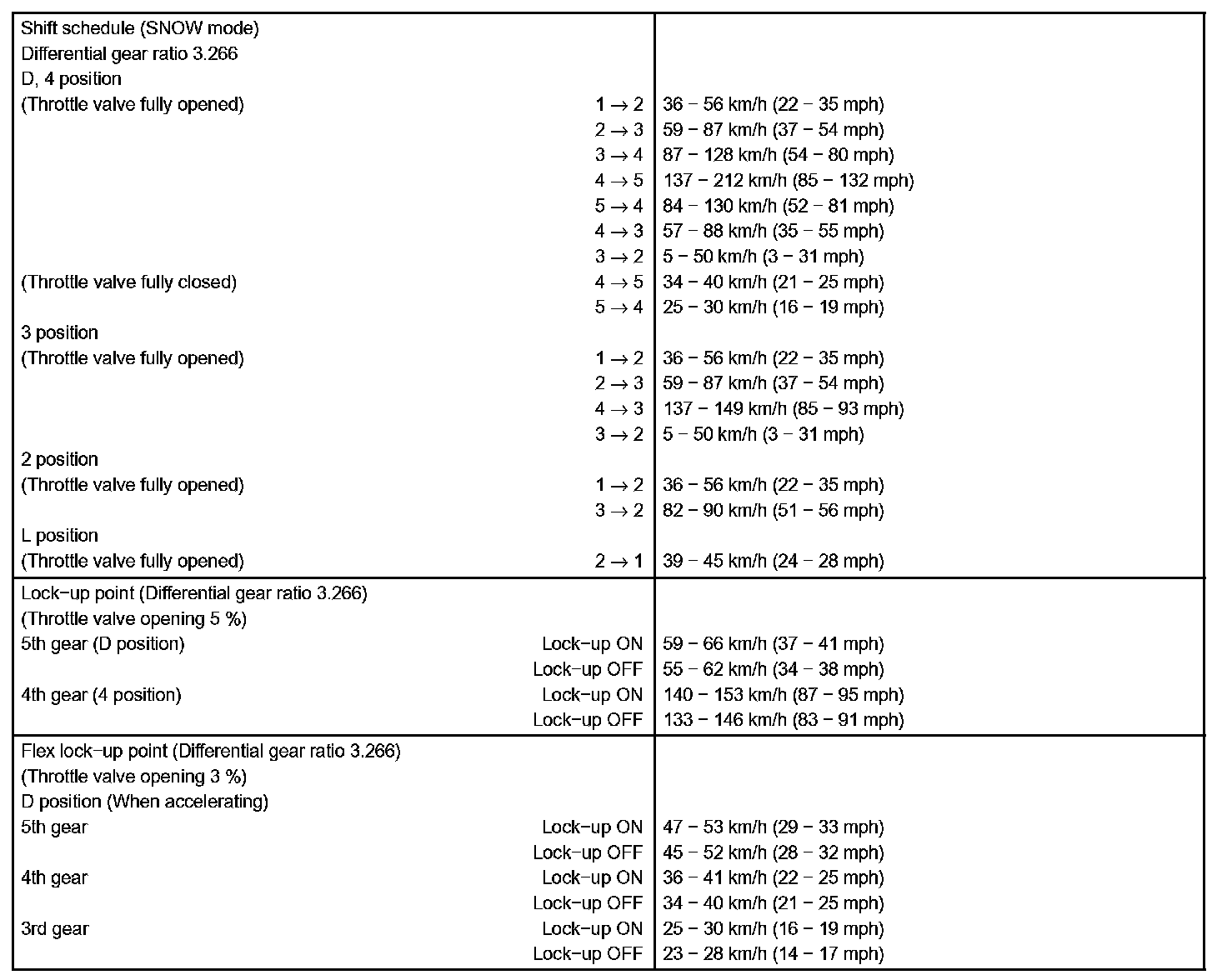

Automatic Transmission / Transaxle-Service Data (Part 2):
