Intake Manifold

RH





Install the intake manifold assembly with the 6 bolts and 4 nuts.
Torque 18 Nm (184 kgf-cm, 13 ft. lbs.)

LH





Install the intake manifold with the 6 bolts and 4 nuts.
Torque 18 Nm (184 kgf-cm, 13 ft. lbs.)

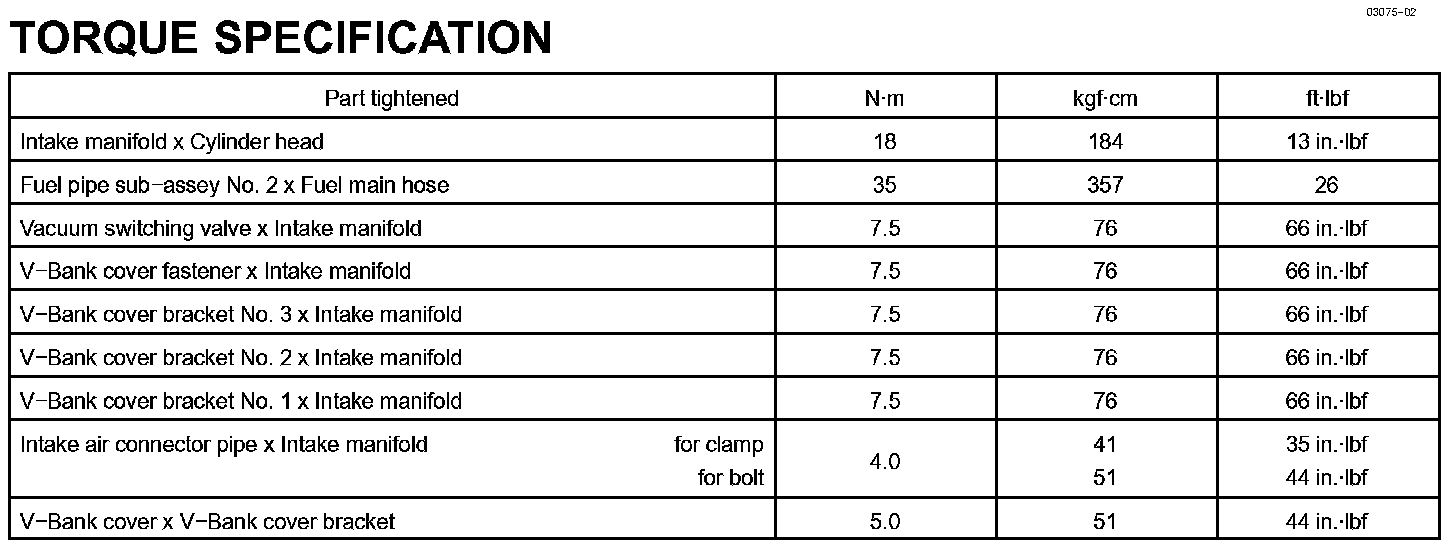

Intake-Torque Specification:
