Problem Symptoms Table: Notes

HINT:

Use Fig 1 to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.

1. AUDIO FUNCTION

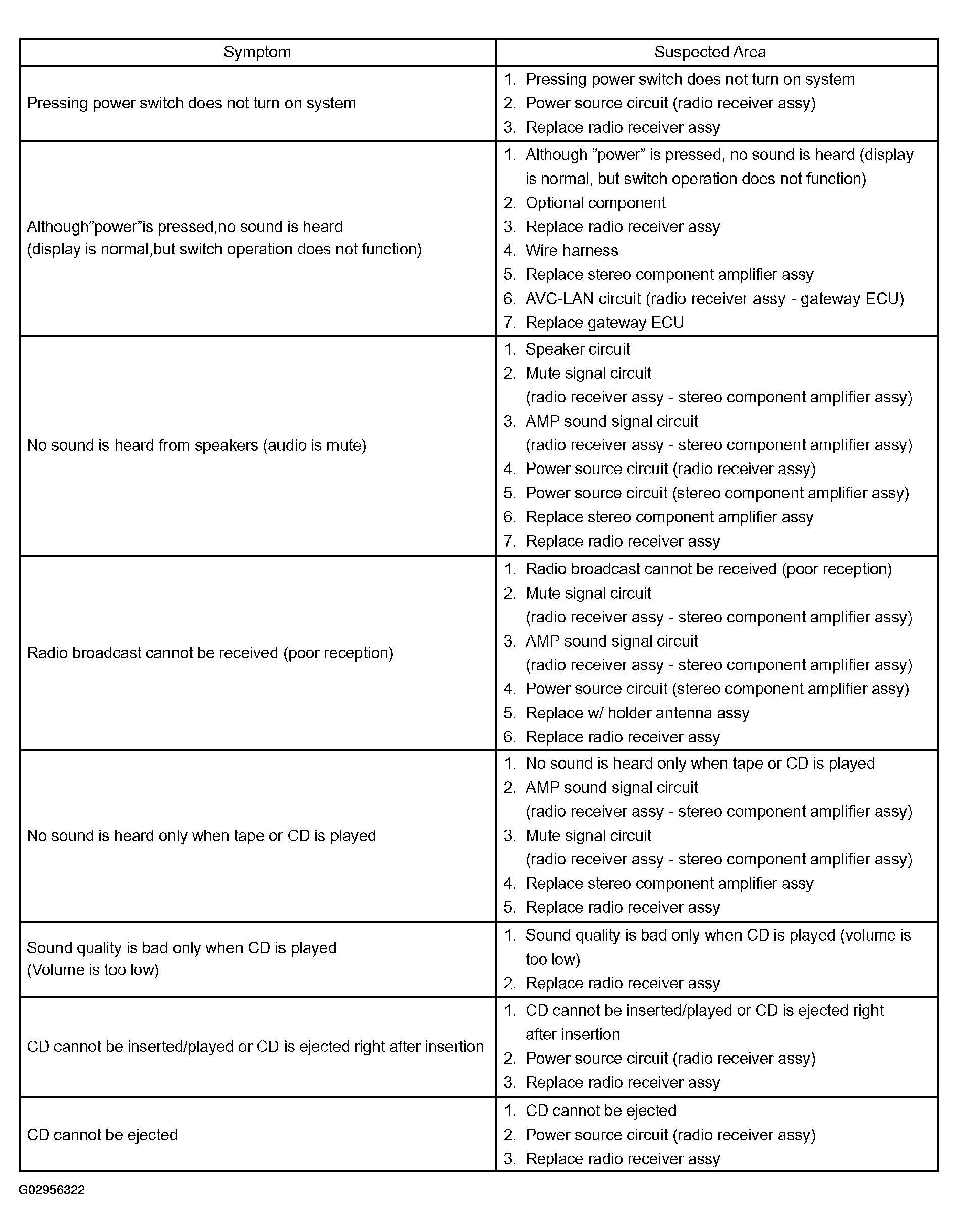

   Fig 1: Problem Symptoms Table (1 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

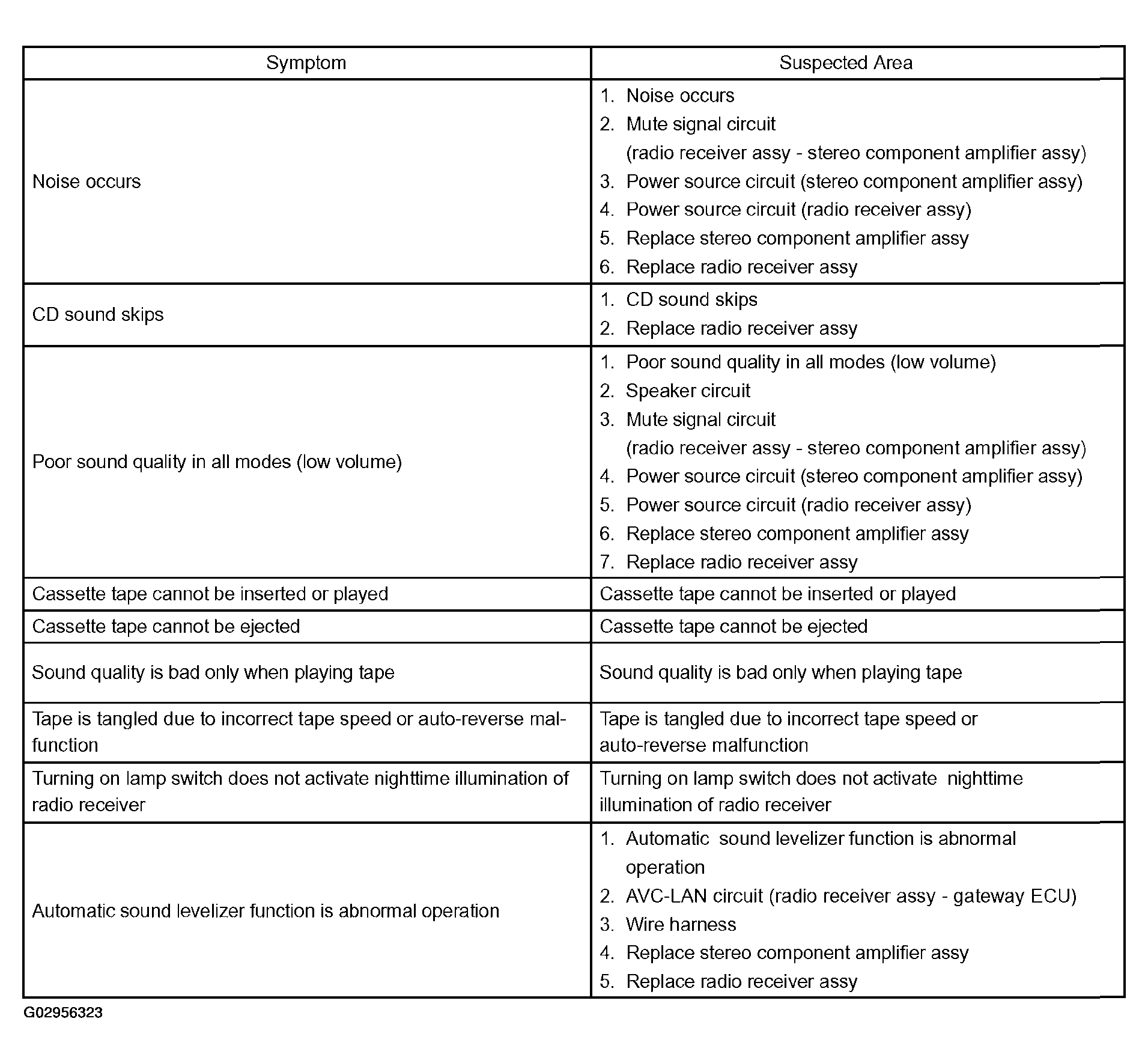

   Fig 2: Problem Symptoms Table (2 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
