Inspection Procedure

  1. PERFORM ACTIVE TEST (POWER MIRROR CONTROL FUNCTION)
    1. Select the ACTIVE TEST, use the hand-held tester to generate a control command, and then check the power mirror control function.

      Multiplex network door ECU front LH, RH (driver, passenger door ECU):

      MULTIPLEX NETWORK DOOR ECU FRONT LH, RH (DRIVER, PASSENGER DOOR ECU)

      Item Test Details Diagnostic Note
      MIR UP/DOWN Mirror vertical operation UP/DOWN -
      MIR RIGHT/LEFT Mirror horizontal operation RIGHT/LEFT -

      Result:

      RESULT

      Result Proceed to
      Outer rear view mirror LH does not operate normally A
      Outer rear view mirror RH does not operate normally A
      Outer rear view mirror LH operates normally B
      Outer rear view mirror RH operates normally C
    1. B: REPLACE MULTIPLEX NETWORK DOOR ECU FRONT LH (DRIVER DOOR ECU)
    2. C: REPLACE MULTIPLEX NETWORK DOOR ECU FRONT RH (PASSENGER DOOR ECU)
    3. A: Go to next step.
  2. INSPECT OUTER REAR VIEW MIRROR LH OR RH (LEFT/RIGHT MOTOR, UP/ DOWN MOTOR)
    1. Disconnect the R14 or R15 mirror connectors.
    2. Apply battery voltage and check the operation of the mirror.

      OK:

      OUTER REAR VIEW MIRROR LH OR RH (LEFT/RIGHT MOTOR, UP/ DOWN MOTOR)

      Measurement Condition Specified Condition
      Battery positive (+) -> Terminal 1
      Battery negative (-) -> Terminal 10      		 Turns upward (A)
      Battery positive (+) -> Terminal 10
      Battery negative (-) -> Terminal 1      		 Turns downward (B)
      Battery positive (+) -> Terminal 9
      Battery negative (-) -> Terminal 10      		 Turns left (C)
      Battery positive (+) -> Terminal 10
      Battery negative (-) -> Terminal 9      		 Turns right (D)

      Result:

      RESULT

      Result Proceed to
      Driver side is as specified A
      Passenger side is as specified A
      Driver side is not as specified B
      Passenger side is not as specified C

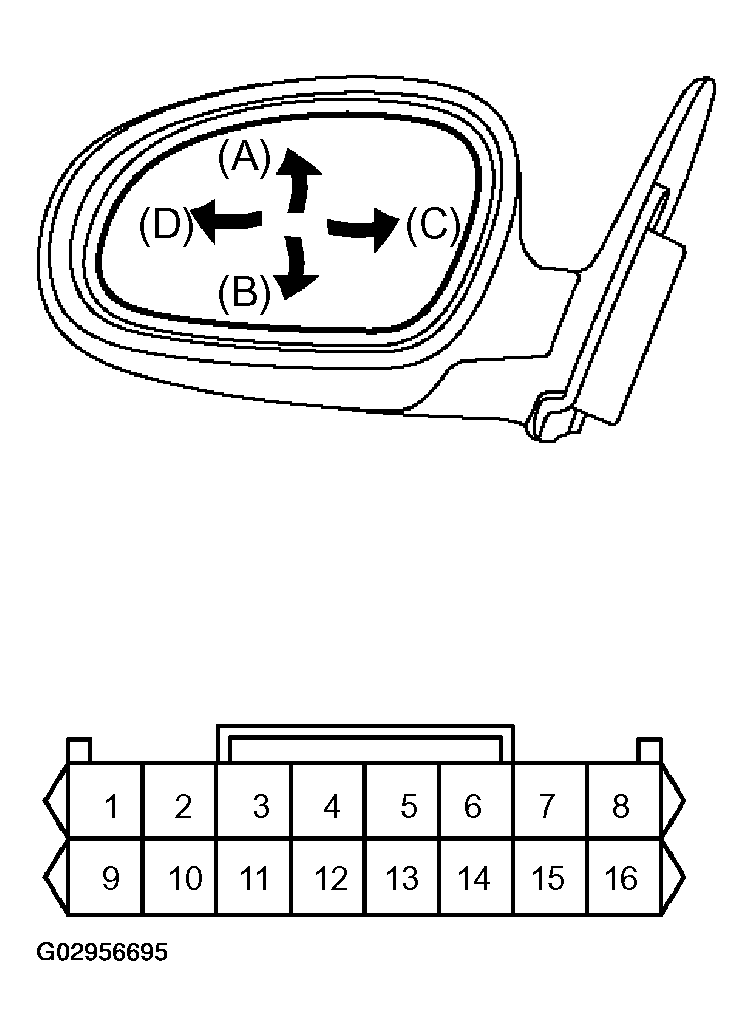

      Fig 1: Inspecting Outer Rear View Mirror LH Or RH (Left/Right Motor, Up/Down Motor)
      G02956695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. B: REPLACE OUTER REAR VIEW MIRROR ASSY LH
    2. C: REPLACE OUTER REAR VIEW MIRROR ASSY RH
    3. A: Go to next step.
  3. CHECK WIRE HARNESS (OUTER REAR VIEW MIRROR ASSY LH OR RH - MULTIPLEX NETWORK DOOR ECU FRONT LH, RH)
    1. Disconnect the R14 or R15 mirror connectors.
    2. Disconnect the D19 or P11 ECU connectors.
    3. Measure the resistance of the wire harness side connectors.

      Standard:

      Driver side

      OUTER REAR VIEW MIRROR ASSY LH OR RH - MULTIPLEX NETWORK DOOR ECU FRONT LH, RH (DRIVER SIDE)

      Tester Connection Specified Condition
      R14-9 - D19-19 (DMHR) Below 1 ohms
      R14-10 - D19-20 (DM+R) Below 1 ohms
      R14-1 - D19-8 (DMVR) Below 1 ohms

      Passenger side

      OUTER REAR VIEW MIRROR ASSY LH OR RH - MULTIPLEX NETWORK DOOR ECU FRONT LH, RH (PASSENGER SIDE)

      Tester Connection Specified Condition
      R15-9 - P11-19 (PMHR) Below 1 ohms
      R15-10 - P11-20 (PM+R) Below 1 ohms
      R15-1 - P11-8 (PMVR) Below 1 ohms

      Result:

      RESULT

      Result Proceed to
      Driver side is not as specified A
      Passenger side is not as specified A
      Driver side is as specified B
      Passenger side is as specified C

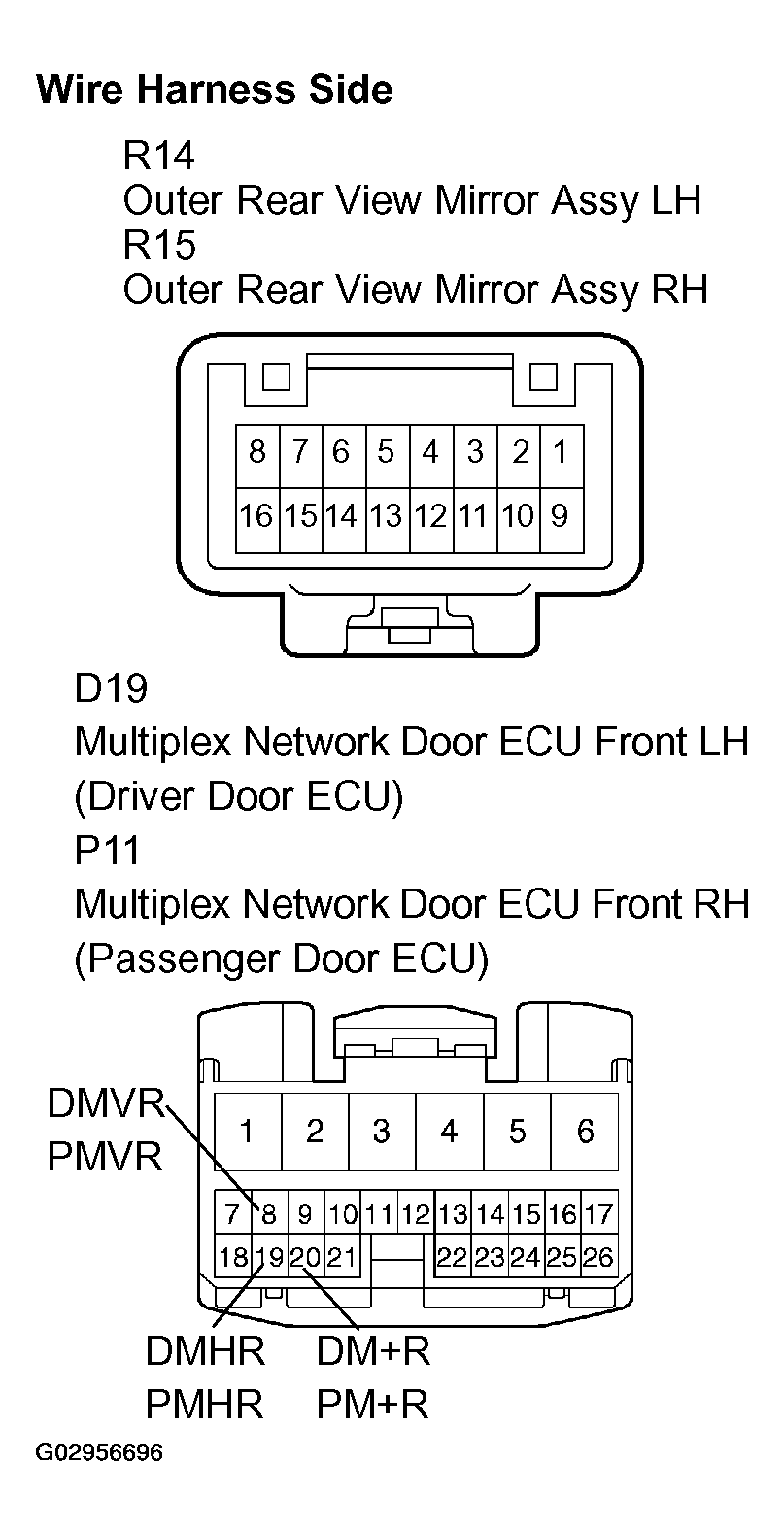

      Fig 2: Checking Wire Harness (Outer Rear View Mirror Assy LH Or RH - Multiplex Network Door ECU Front LH, RH)
      G02956696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. B: REPLACE MULTIPLEX NETWORK DOOR ECU FRONT LH (DRIVER DOOR ECU)
    2. C: REPLACE MULTIPLEX NETWORK DOOR ECU FRONT RH (PASSENGER DOOR ECU)
    3. A: REPAIR OR REPLACE HARNESS AND CONNECTOR
