Diagnostic Trouble Code Table

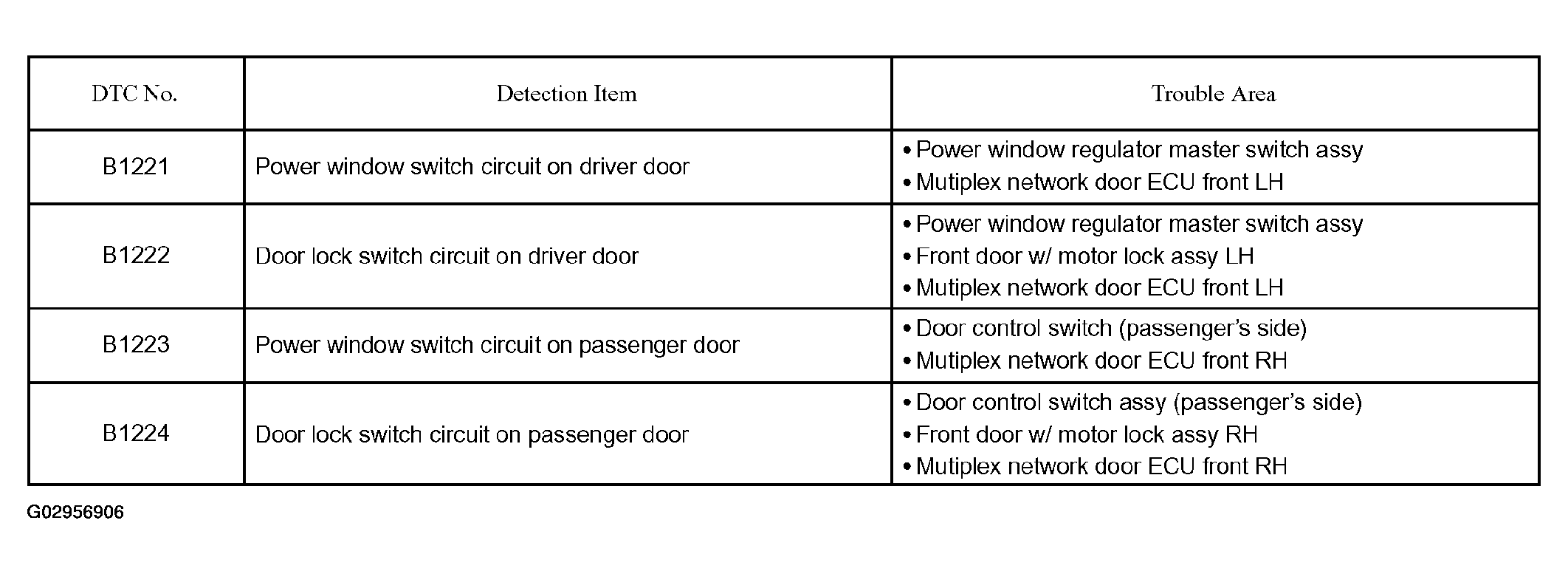

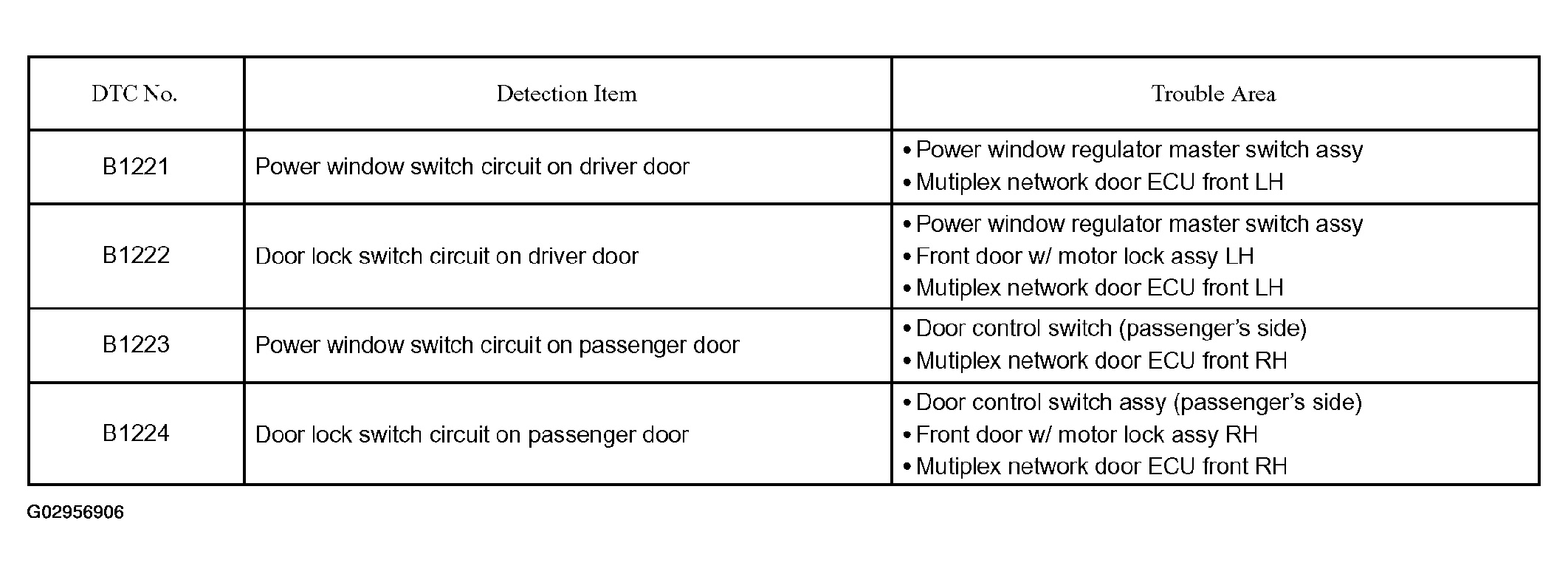

If a malfunction code is displayed during the DTC check, check the circuit listed for that code in Fig 1.
DIAGNOSTIC TROUBLE CODE TABLE
| DTC |
Description |
| DTC B1222 |
DOOR LOCK SWITCH CIRCUIT ON DRIVER DOOR |
| DTC B1224 |
DOOR LOCK SWITCH CIRCUIT ON PASSENGER DOOR |
