Driver Door Ecu Power Source Circuit: Wiring Diagram

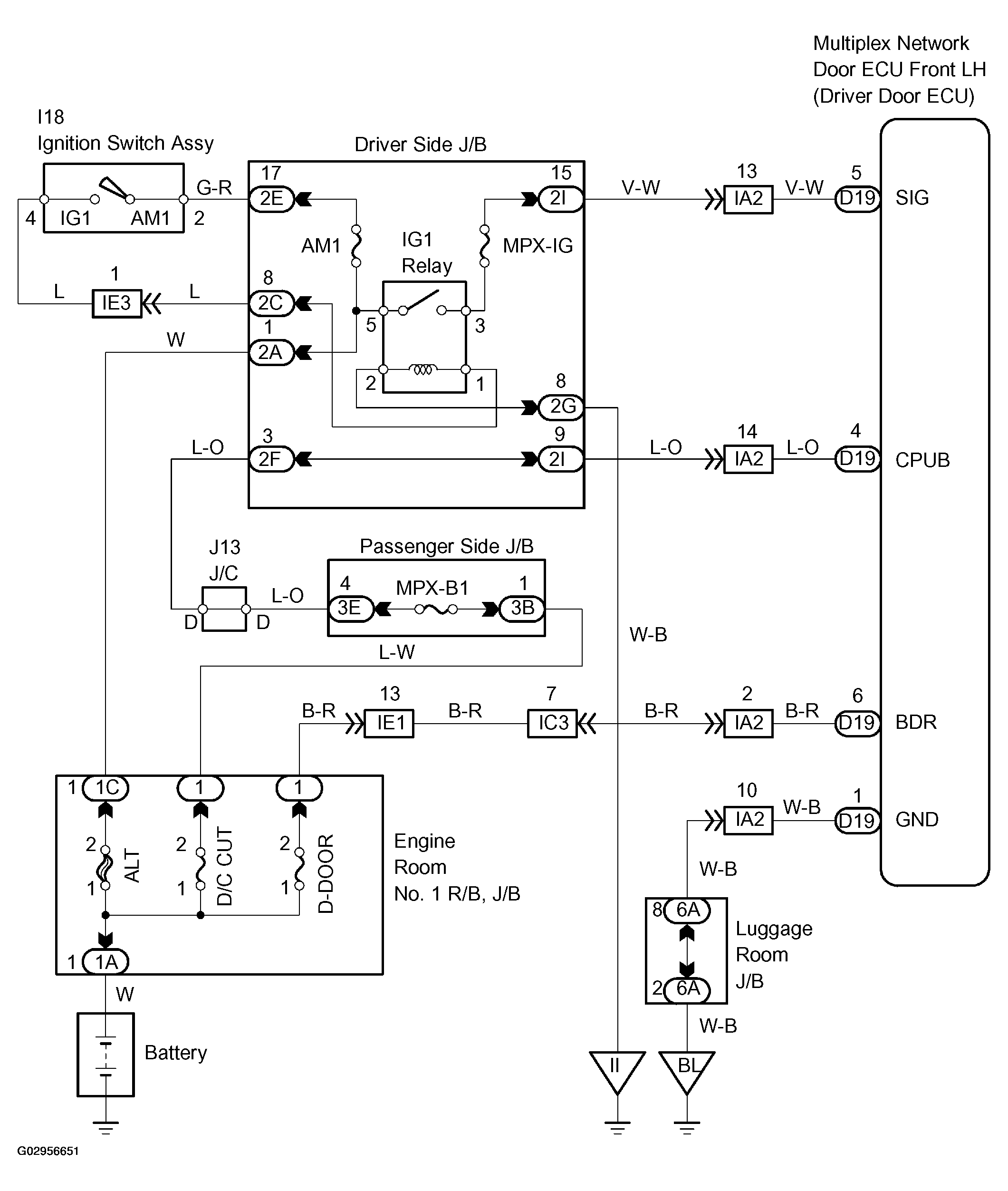

Fig 1: Driver Door ECU Power Source Wiring Diagram
G02956651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
