Power Window Does Not Operate On Driver Side: Wiring Diagram

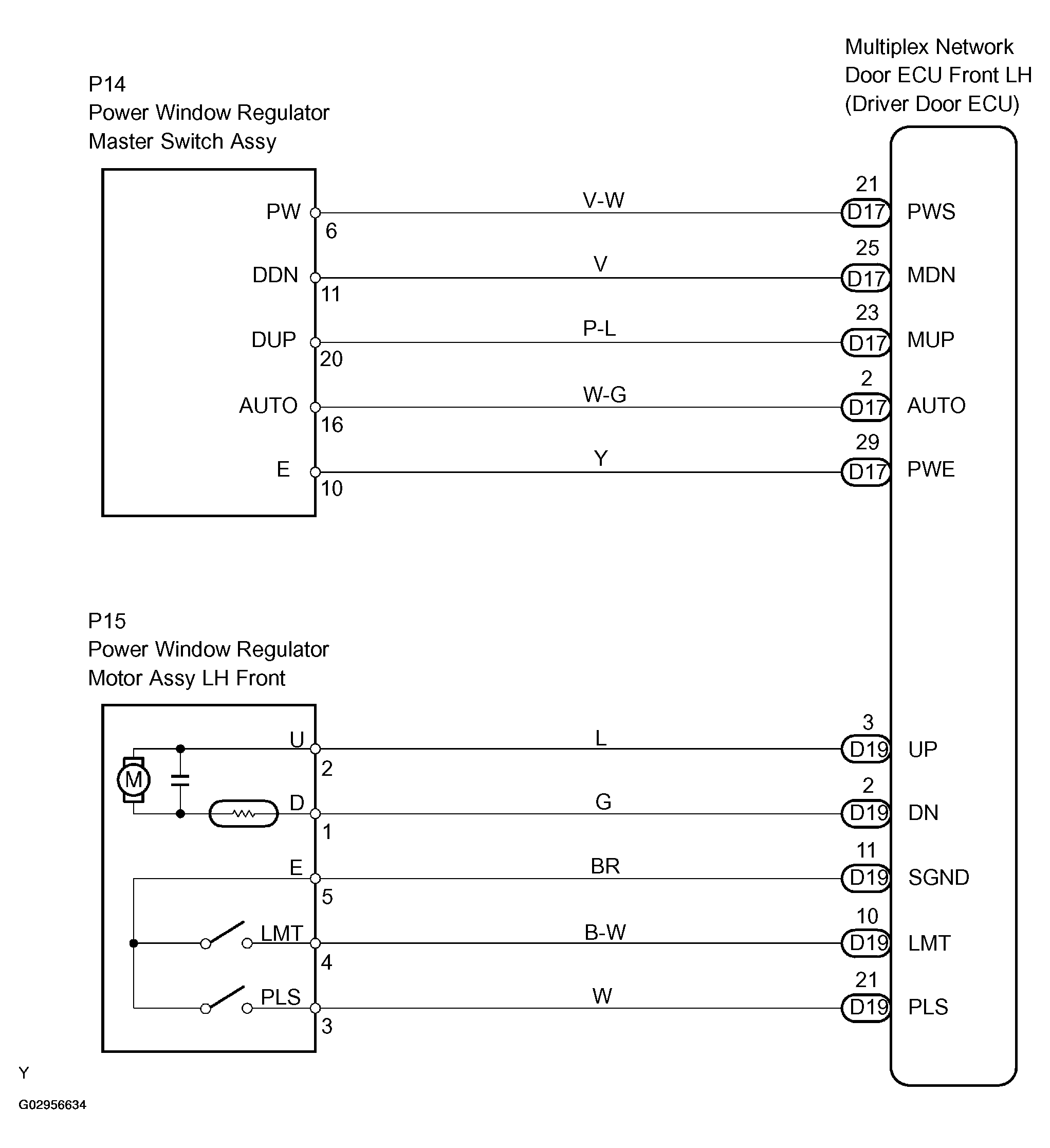

Fig 1: Power Window Does Not Operate On Driver Side Wiring Diagram
G02956634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
