Automatic Glare-Resistant EC Mirror: Inspection
- INSPECT INNER REAR VIEW MIRROR ASSY
- Check operation of the mirror.
HINT:
This inspection should be performed indoors.

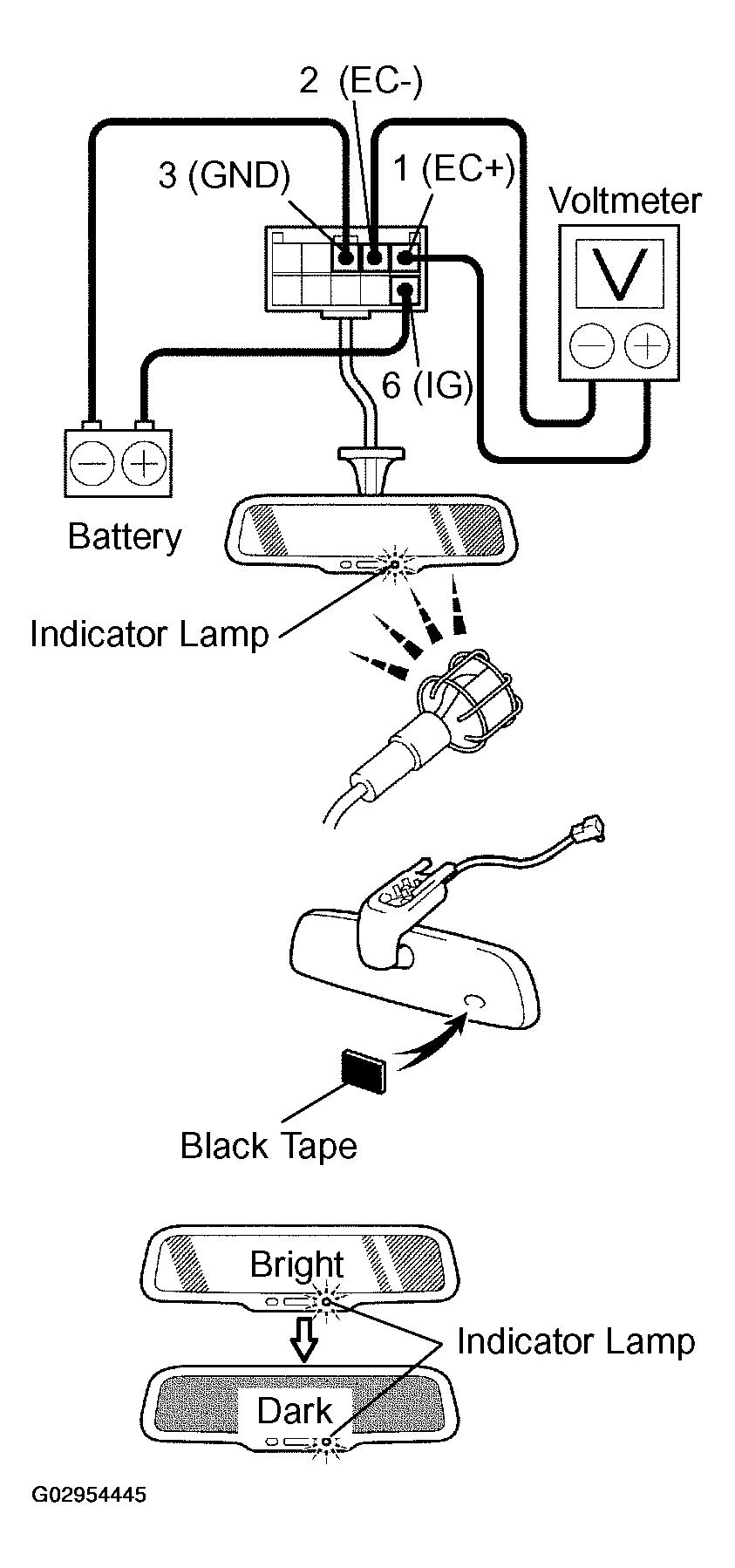

- Connect the battery's positive (+) lead to terminal 6 (IG) and the negative (-) lead to terminal 3 (GND).
- Connect the battery's positive (+) lead to terminal 1 (EC+) and the negative (-) lead to terminal 2 (EC-).
- Attach black tape to the forward sensor.
- Press the AUTO switch, and check that the indicator lamp illuminates.
- Shine a flashlight on the mirror, and check that the mirror surface changes from bright to dark.
If the result is not as specified, replace the mirror assy.
- Check operation of the mirror.
- INSPECT OUTER REAR VIEW MIRROR ASSY LH
- Apply battery voltage and check operation of the mirror.
OK:

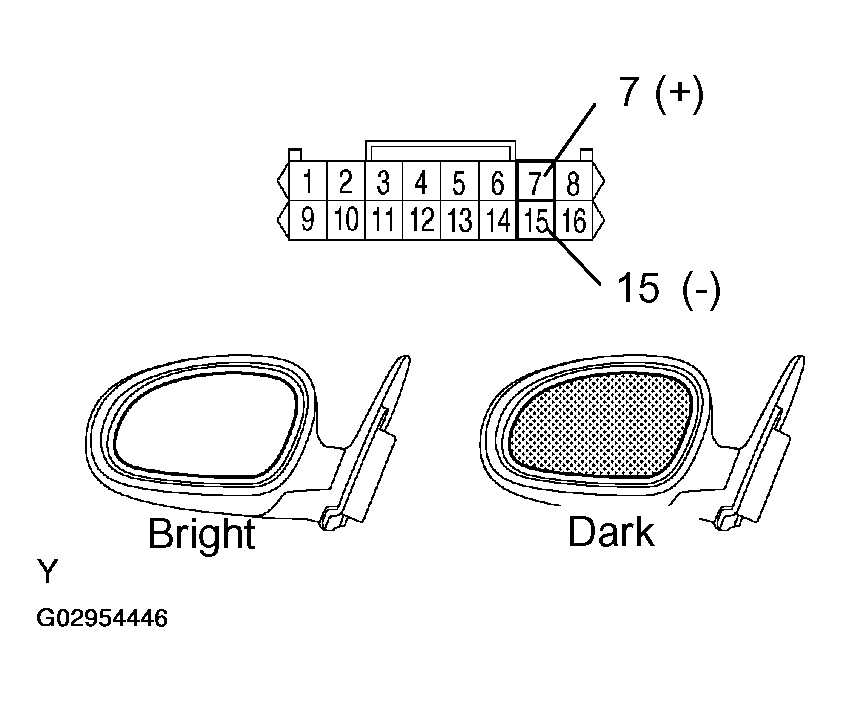

OUTER REAR VIEW MIRROR ASSY LHMeasurement Condition Specified Condition Battery positive (+) -> Terminal 15
Battery negative (-) -> Terminal 7Mirror brightens Battery positive (+) -> Terminal 7
Battery negative (-) -> Terminal 15Mirror darkens If the operation is not as specified, replace the mirror assy.
- Apply battery voltage and check operation of the mirror.
- INSPECT OUTER REAR VIEW MIRROR ASSY RH
- Apply battery voltage and check operation of the mirror.
OK:

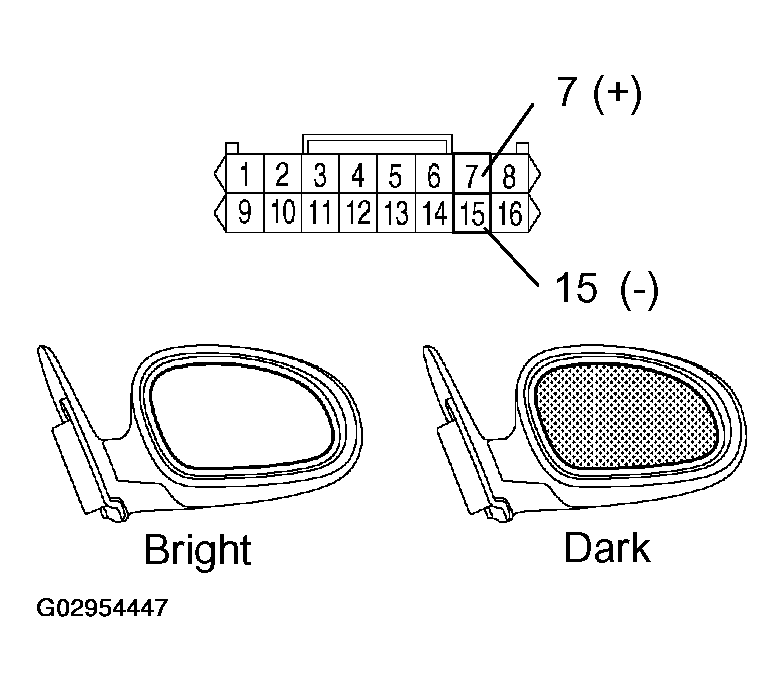

OUTER REAR VIEW MIRROR ASSY RHMeasurement Condition Specified Condition Battery positive (+) -> Terminal 15
Battery negative (-) -> Terminal 7Mirror brightens Battery positive (+) -> Terminal 7
Battery negative (-) -> Terminal 15Mirror darkens If the operation is not as specified, replace the mirror assy.
- Apply battery voltage and check operation of the mirror.
