Data List/Active Test

READ DATA LIST
HINT:

Using the hand-held tester's Data List allows switch, actuator and other item values to be read without removing any parts. Reading the Data List early in troubleshooting is one way to save time.
1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch ON.
3. Read the Data List according to the display on the tester.
  Combination meter assy:

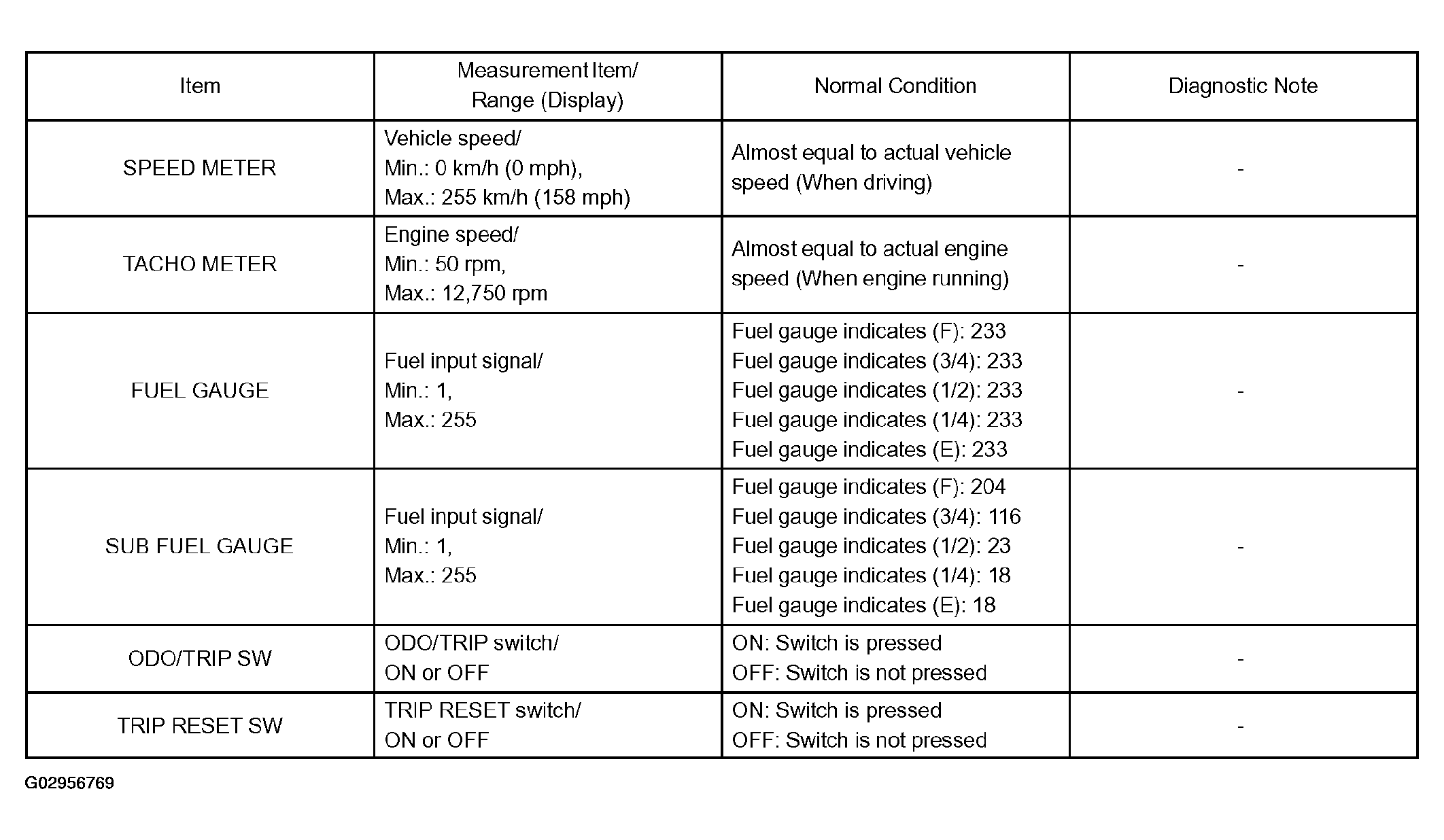

  Fig 1: Combination Meter Assy Data List
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Driver side J/B ECU:

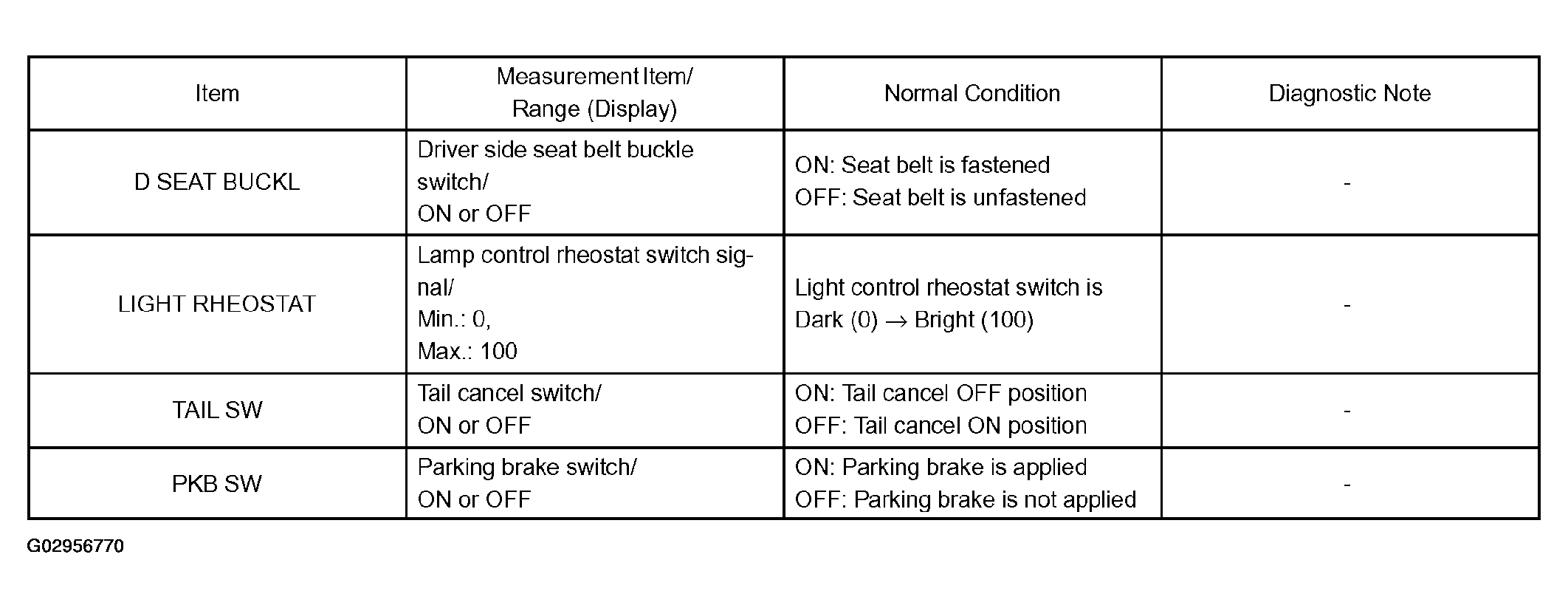

  Fig 2: Driver Side J/B ECU Data List
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Passenger side J/B ECU:

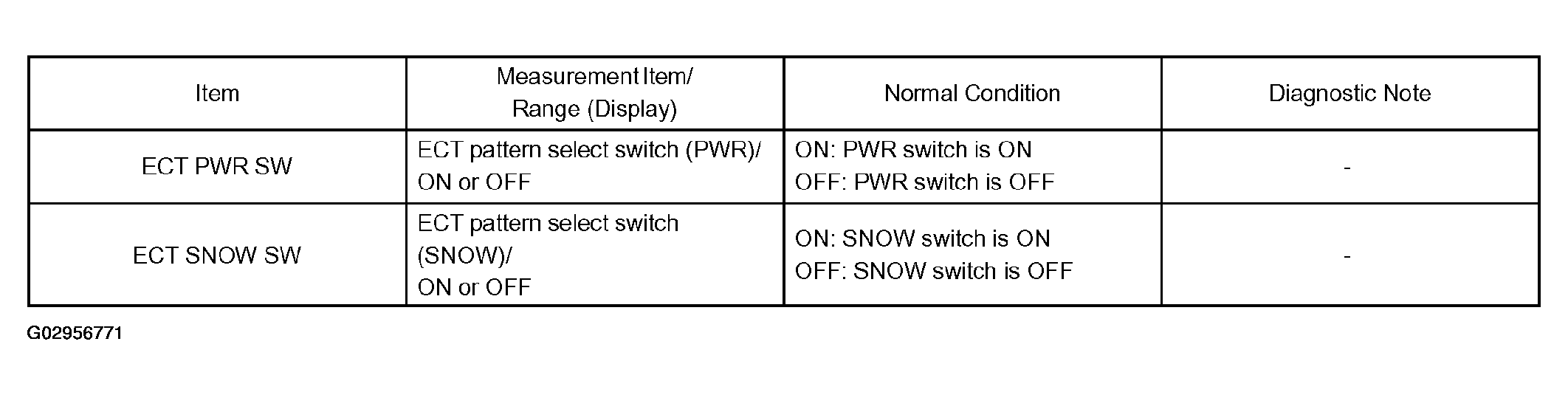

  Fig 3: Passenger Side J/B ECU Data List
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Multiplex network door ECU front LH:

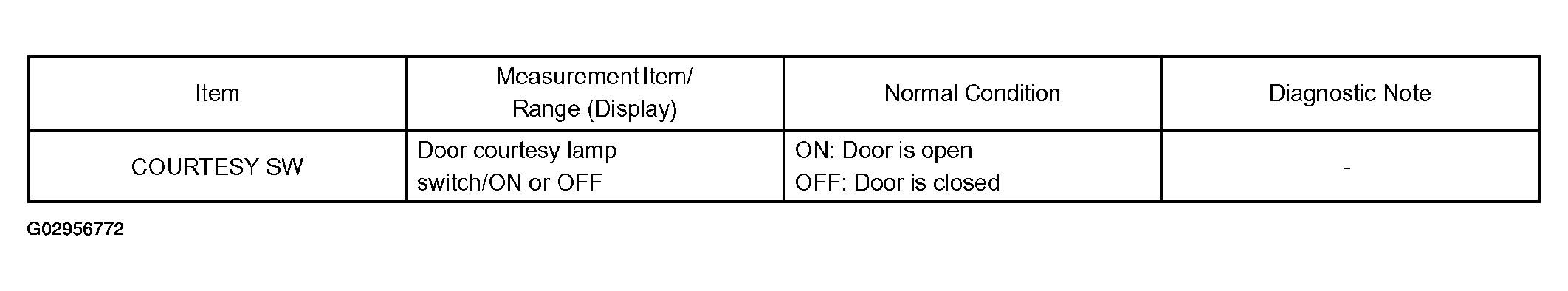

  Fig 4: Multiplex Network Door ECU Front LH Data List
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Multiplex network door ECU front RH:

  Fig 5: Multiplex Network Door ECU Front RH Data List
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

PERFORM ACTIVE TEST

HINT:

Performing the hand-held tester's Active Test allows relay, VSV actuator, and other items to be operated without removing any parts. Performing the Active Test early in troubleshooting is one way to save time. The Data List can be displayed during the Active Test.

Connect the hand-held tester to the DLC3.
Turn the ignition switch ON.

Perform the Active Test according to the display on the tester.

Combination meter assy:

COMBINATION METER ASSY ACTIVE TEST

Item	Test Details	Diagnostic Note
SPEED METER	Speedometer operation (mph (km/h)) 0 (0)/25 (40)/50 (80)/75 (120)/100 (160)/125 (200)/150 (240)/175 (280)	Confirm that vehicle is stopped and engine is idling. It is normal that doors will be locked automatically when performing speed meter Active Test. Displayed value has same units (km/h, mph) as main scale of vehicle's speedometer. Needle position should be within acceptable tolerance.
TACHOMETER	Tachometer operation (rpm) 0/1000/2000/3000/4000/5000/6000/7000	Confirm that vehicle is stopped and engine is idling
FUEL GAUGE	Fuel gauge operation EMPTY/1/4/1/2/3/4/FULL	Confirm that vehicle is stopped and engine is idling
COOLANT TEMP	Coolant temperature gauge operation (°C) 50/60/70/80/110/120/127	Confirm that vehicle is stopped and engine is idling
SHIFT INDIC	A/T shift indicator operation P/R/N/D/4 (m)/3 (m)/2/L	Confirm that vehicle is stopped and engine is idling
LOW FUEL WARN	Low fuel warning lamp operation ON/OFF	Confirm that vehicle is stopped and engine is idling
OPEN DOOR WARN	Open door warning lamp operation ON/OFF	Confirm that vehicle is stopped and engine is idling
P-BELT REMIND	Passenger side seat belt warning lamp operation ON/OFF	Confirm that vehicle is stopped and engine is idling
D-BELT REMIND	Driver side seat belt warning lamp operation ON/OFF	Confirm that vehicle is stopped and engine is idling
OIL PRESS WARN	Oil pressure warning lamp operation ON/OFF	Confirm that vehicle is stopped and engine is idling
DISCHARGE WARN	Discharge warning lamp operation ON/OFF	Confirm that vehicle is stopped and engine is idling
BRAKE WARN	Brake warning lamp operation ON/OFF	Confirm that vehicle is stopped and engine is idling
HEADLIGHT INDIC	Headlamp indicator operation ON/OFF	Confirm that vehicle is stopped and engine is idling
TAILLIGHT INDIC	Tail lamp indicator operation ON/OFF	Confirm that vehicle is stopped and engine is idling
CRUISE INDIC	Cruise indicator operation ON/OFF	Confirm that vehicle is stopped and engine is idling
ECT SNOW INDIC	EG snow indicator operation ON/OFF	Confirm that vehicle is stopped and engine is idling
ECT PWR INDIC	EG power indicator operation ON/OFF	Confirm that vehicle is stopped and engine is idling
OIL LEVEL WARN	Oil level warning lamp operation ON/OFF	Confirm that vehicle is stopped and engine is idling
Rr LIGHT INDIC	Rear lamp indicator operation ON/OFF	Confirm that vehicle is stopped and engine is idling
VSC WARN	VSC warning lamp operation ON/OFF	Confirm that vehicle is stopped and engine is idling
MIL (ENGINE)	MIL (engine malfunction indicator lamp) operation ON/OFF	Confirm that vehicle is stopped and engine is idling
LOW WASHER WARN	Low washer warning lamp operation ON/OFF	Confirm that vehicle is stopped and engine is idling
SRS WARN	SRS warning lamp operation ON/OFF	Confirm that vehicle is stopped and engine is idling
HIGH BEAM INDIC	High beam indicator operation ON/OFF	Confirm that vehicle is stopped and engine is idling
ABS WARN	ABS warning lamp operation ON/OFF	Confirm that vehicle is stopped and engine is idling
SLIP INDIC	SLIP indicator operation ON/OFF	Confirm that vehicle is stopped and engine is idling
ODO/TRIP DISP	ODO/TRIP meter, all segments display ON/OFF	Confirm that vehicle is stopped and engine is idling
TIRE PRESS WARN	Tire pressure warning lamp operation ON/OFF	Confirm that vehicle is stopped and engine is idling
AUTO LV INDIC	Headlamp auto level indicator ON/OFF	Confirm that vehicle is stopped and engine is idling
VSC INDIC	VSC segments of compass display ON/OFF	Confirm that vehicle is stopped and engine is idling
COMPASS DISP	ALL segments of compass display ON/OFF	Confirm that vehicle is stopped and engine is idling
KEY REMND BUZZR	Key reminder buzzer operation ON/OFF	Confirm that vehicle is stopped and engine is idling
LGT REMND BUZZR	Lamp reminder buzzer operation ON/OFF	Confirm that vehicle is stopped and engine is idling
SEAT BELT BUZZR	Seat belt warning buzzer operation ON/OFF	Confirm that vehicle is stopped and engine is idling
REVERSE BUZZR	Reverse warning buzzer operation ON/OFF	Confirm that vehicle is stopped and engine is idling
SPEED BUZZR	Speed warning buzzer operation ON/OFF	Confirm that vehicle is stopped and engine is idling
WARNING BUZZER	Warning buzzer ON/OFF	Confirm that vehicle is stopped and engine is idling
