System Diagram

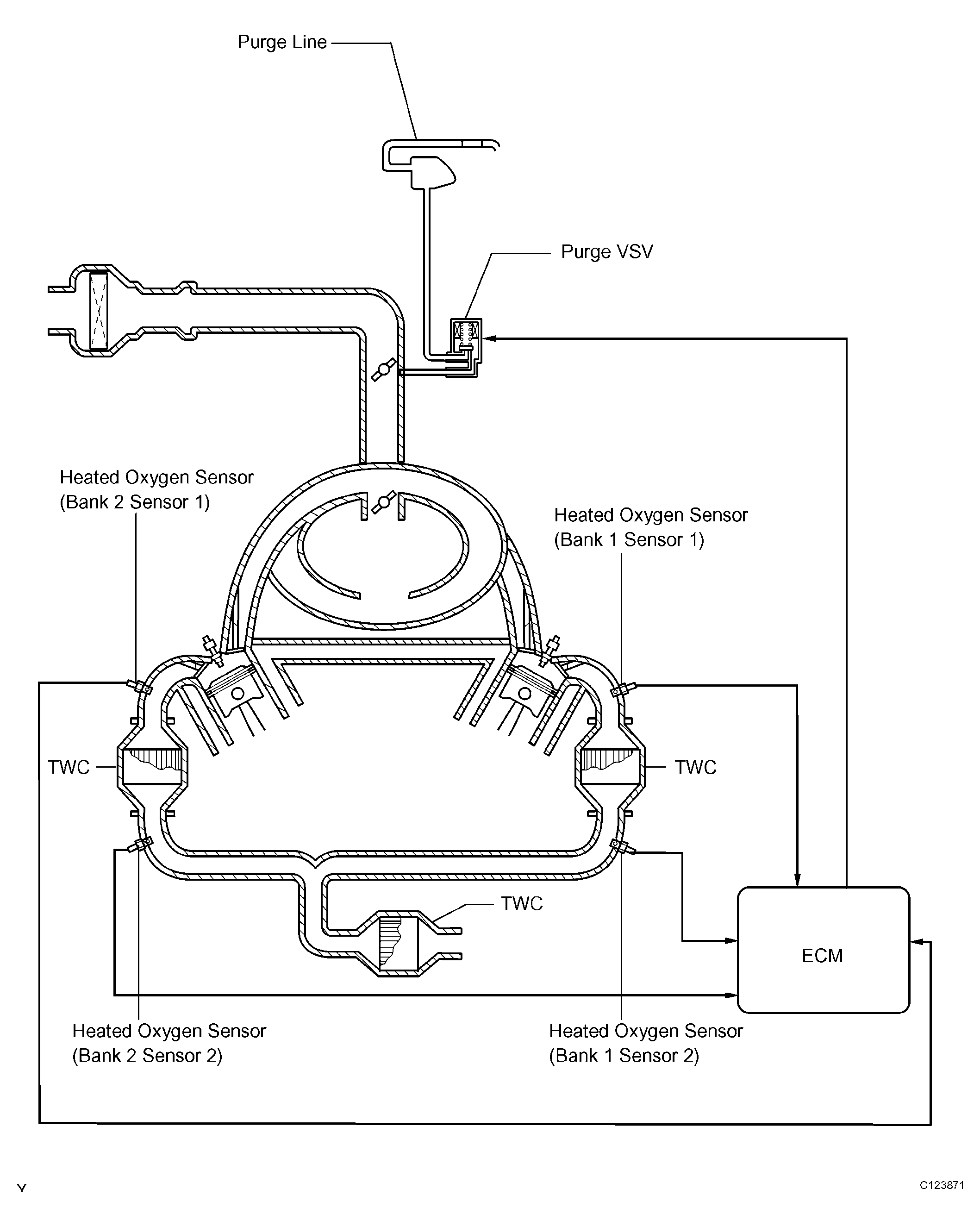

Fig 1: Identifying Emission Control System Diagram (1 Of 4)
G04107841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

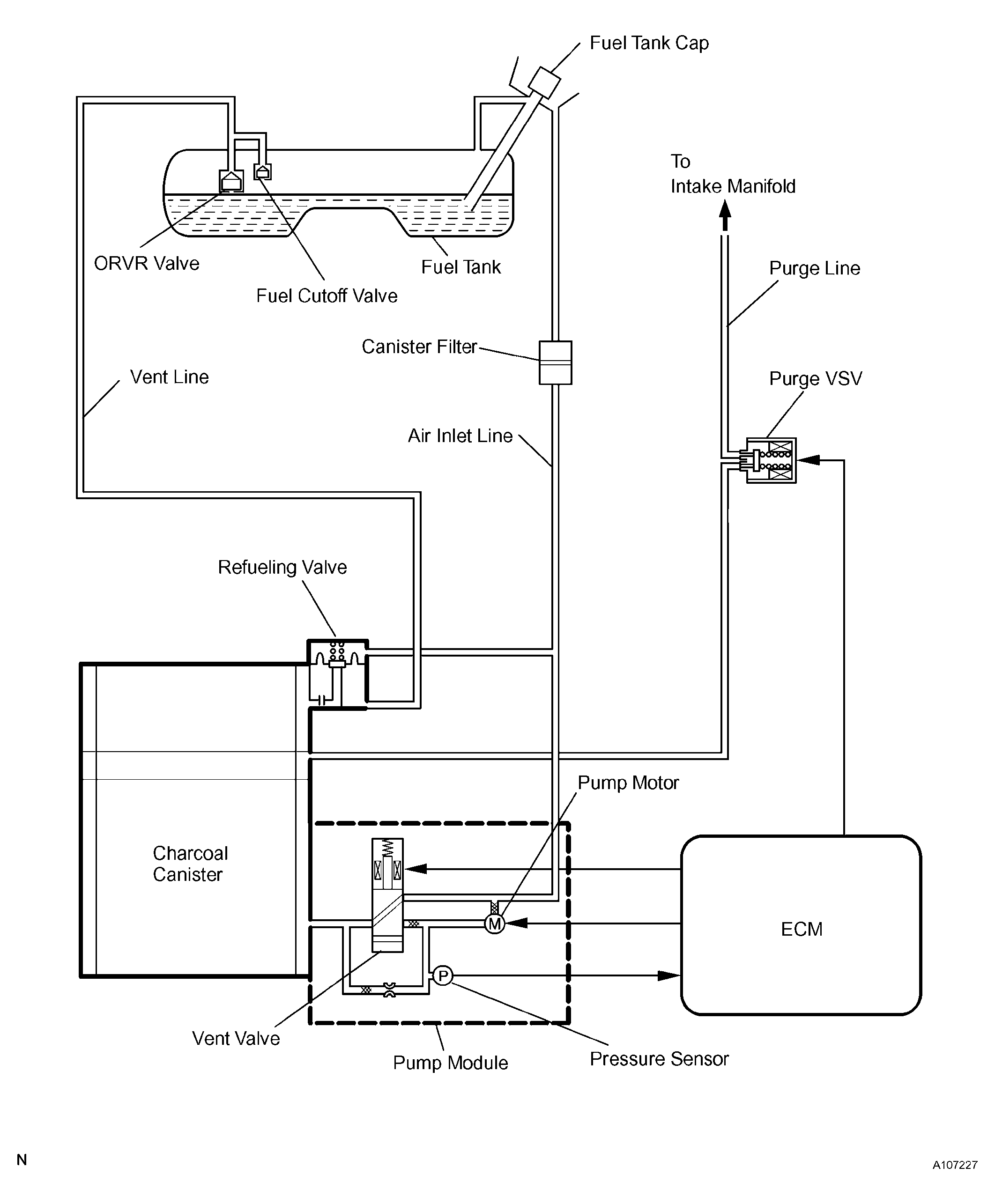

Fig 2: Identifying Emission Control System Diagram (2 Of 4)
G04107842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

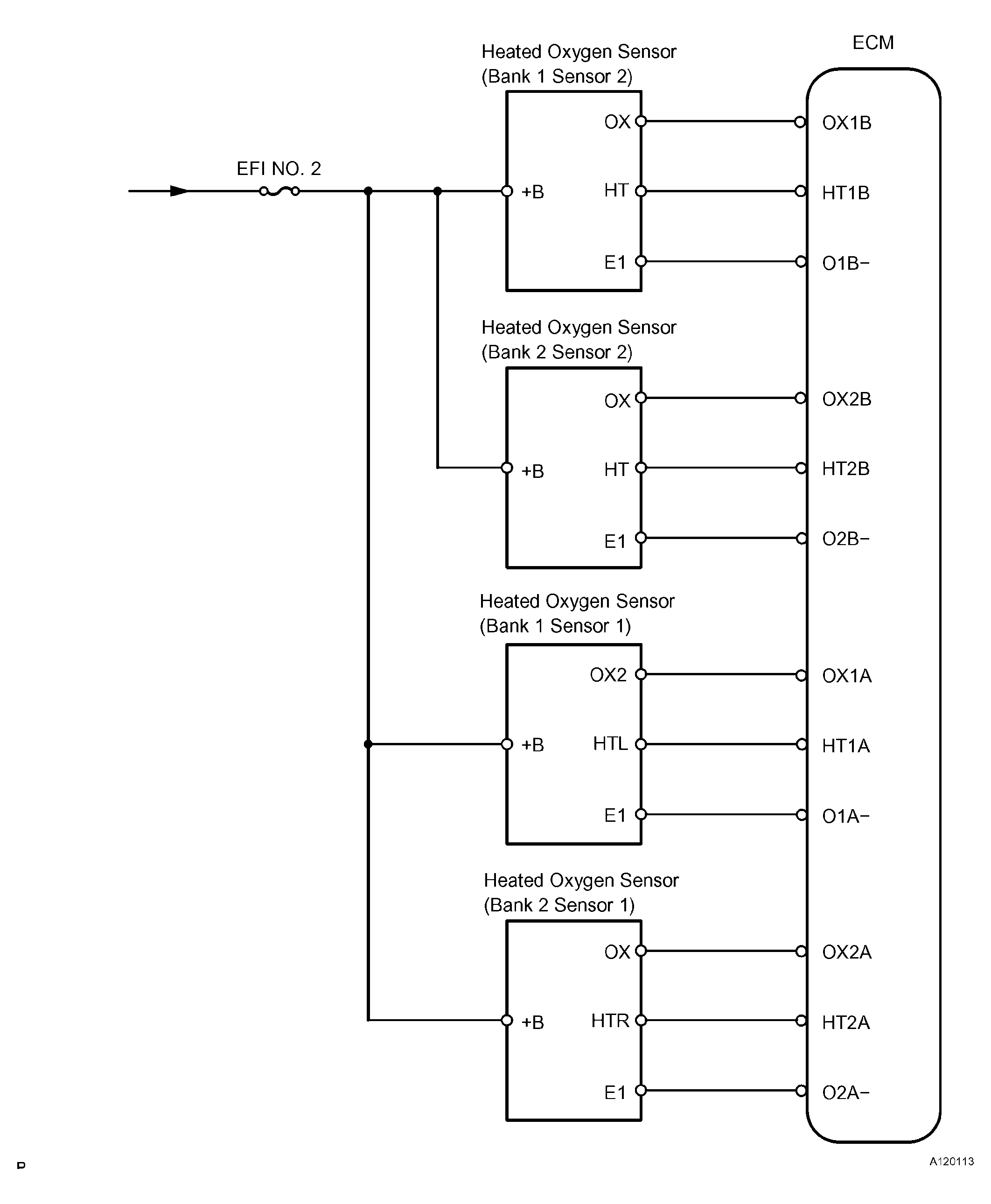

Fig 3: Identifying Emission Control System Diagram (3 Of 4)
G04107843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

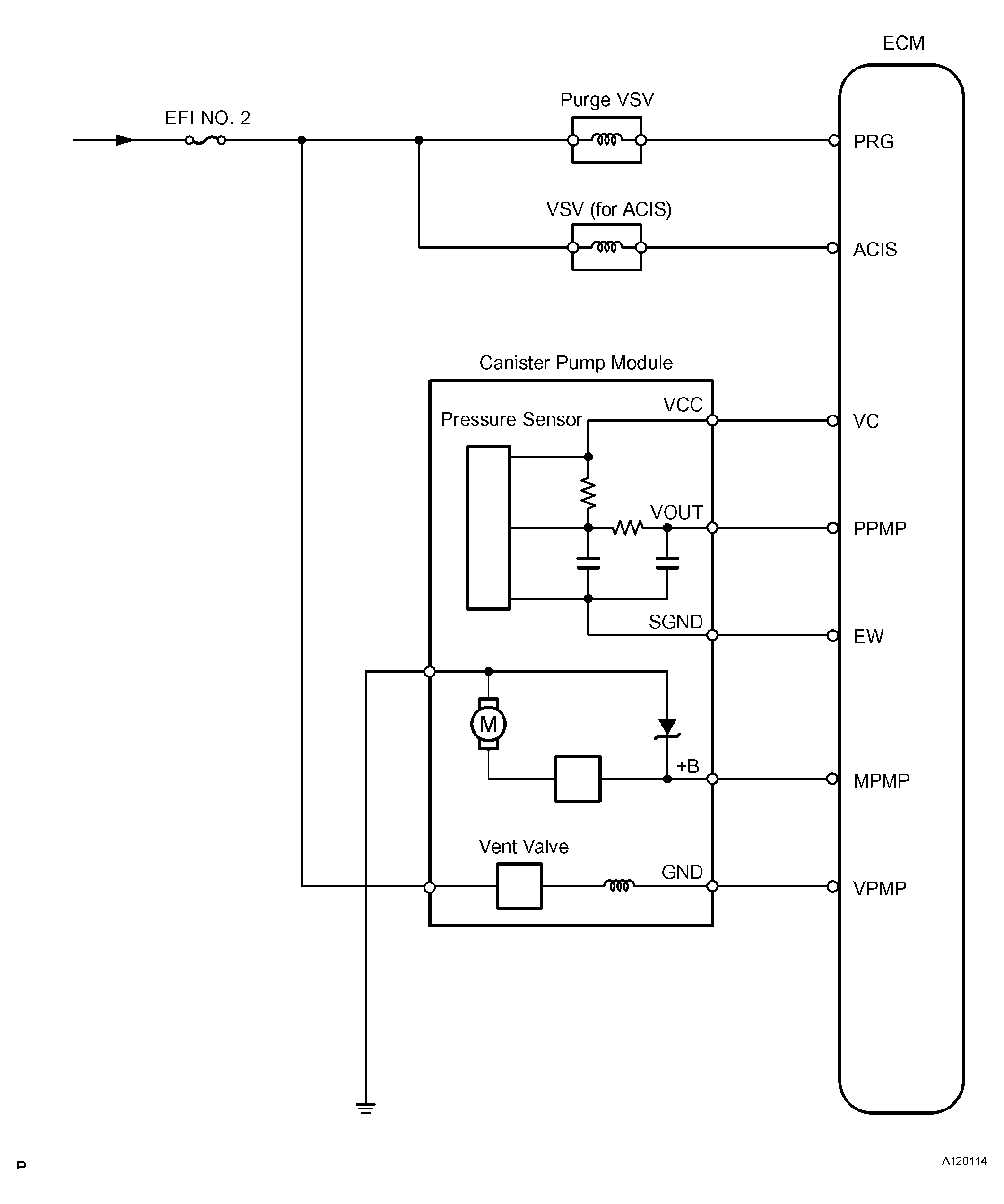

Fig 4: Identifying Emission Control System Diagram (4 Of 4)
G04107844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
