Ventilation Valve Sub-ASSY: Replacement

REMOVE V-BANK COVER
REMOVE VENTILATION VALVE SUB-ASSY
1. Disconnect the ventilation hose from the valve.
2. Remove the ventilation valve cover.
3. Remove the valve.
INSTALL VENTILATION VALVE SUB-ASSY
1. Apply adhesive to 2 or 3 threads of the valve.
  Adhesive: Part No. 08833-00070, THREE BOND 1324 or eguivalent

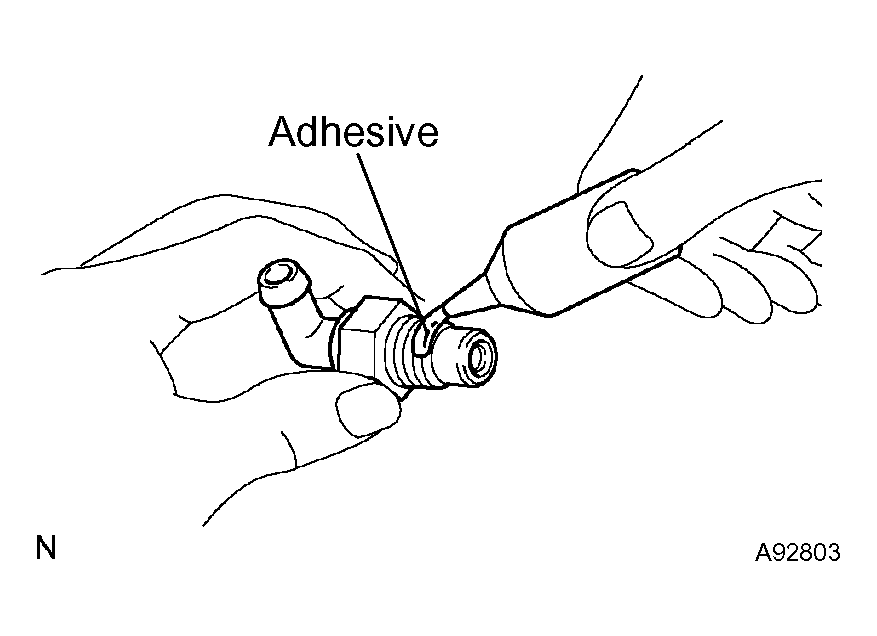

  Fig 1: Applying Adhesive To 2 Or 3 Threads Of Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the valve.
  Torque: 27 NVm (275 kgfVcm, 20 ftVlbf)

  HINT:

  After applying the specified torque, turn the valve clockwise with the port facing in the direction indicated in the illustration.
3. Install the valve cover.
4. Connect the ventilation hose to the valve.

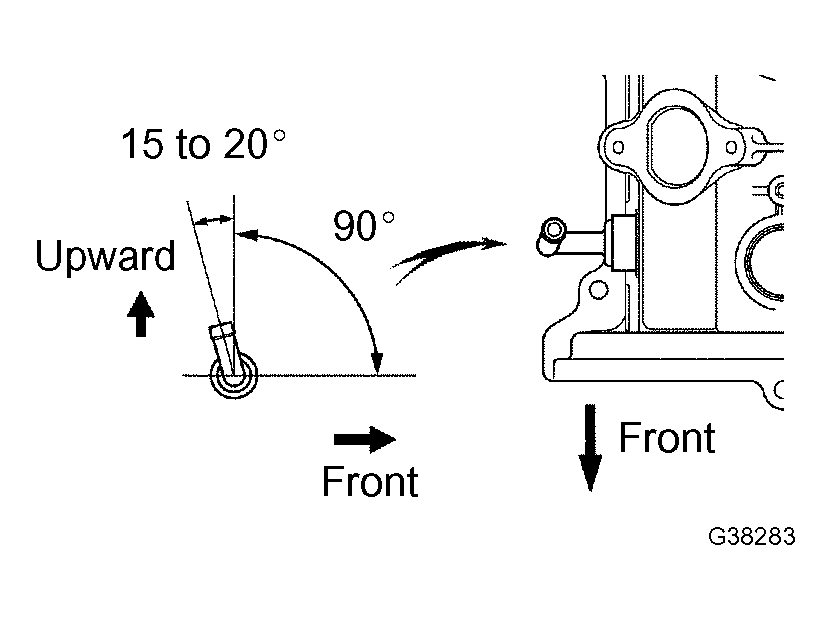

  Fig 2: Turning Valve Clockwise
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL V-BANK COVER
