SC 430
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Cooling Fan
>>
Cooling Fan System
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

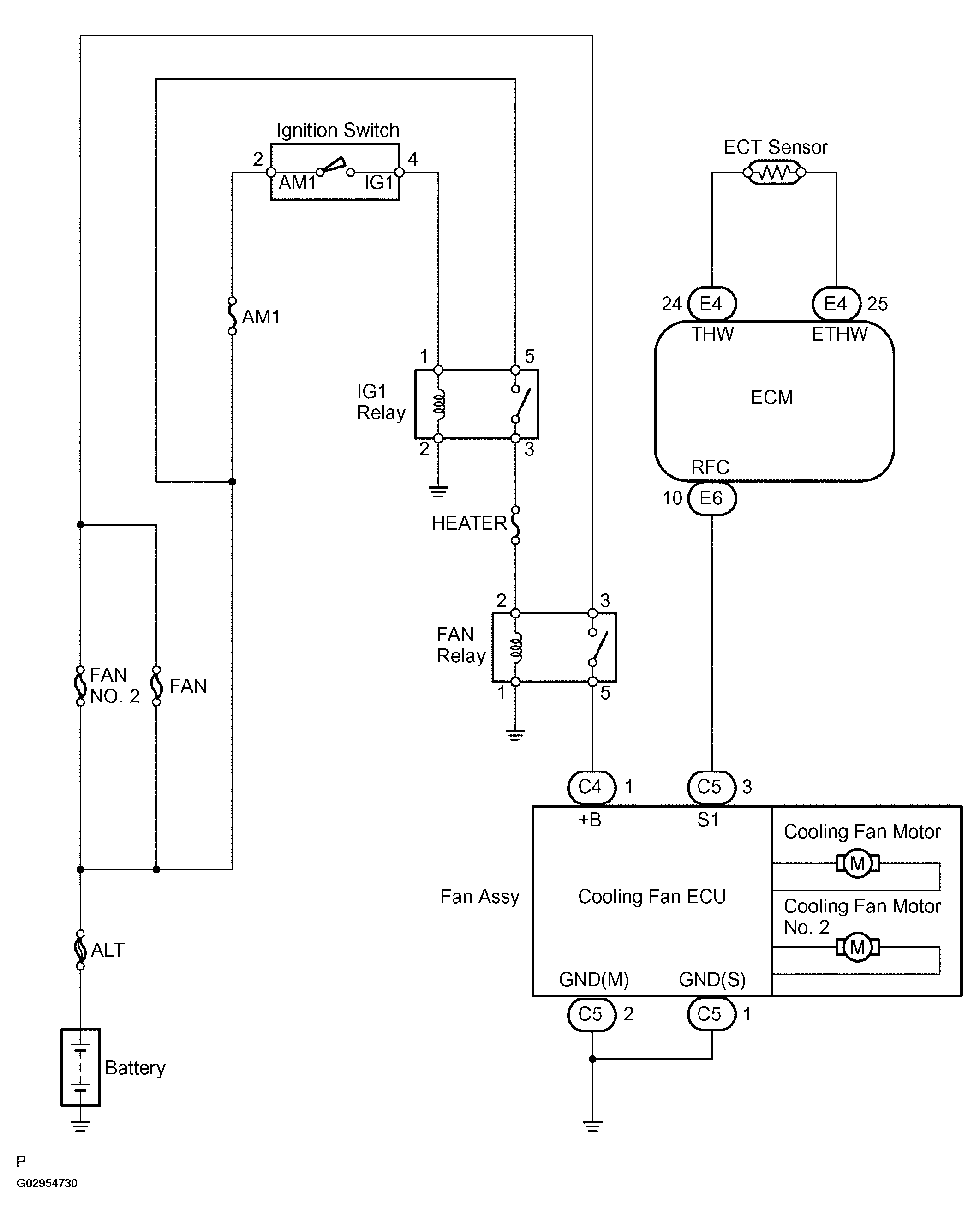

Fig 1: System Diagram - Cooling Fan System
