Fan ASSY: Components

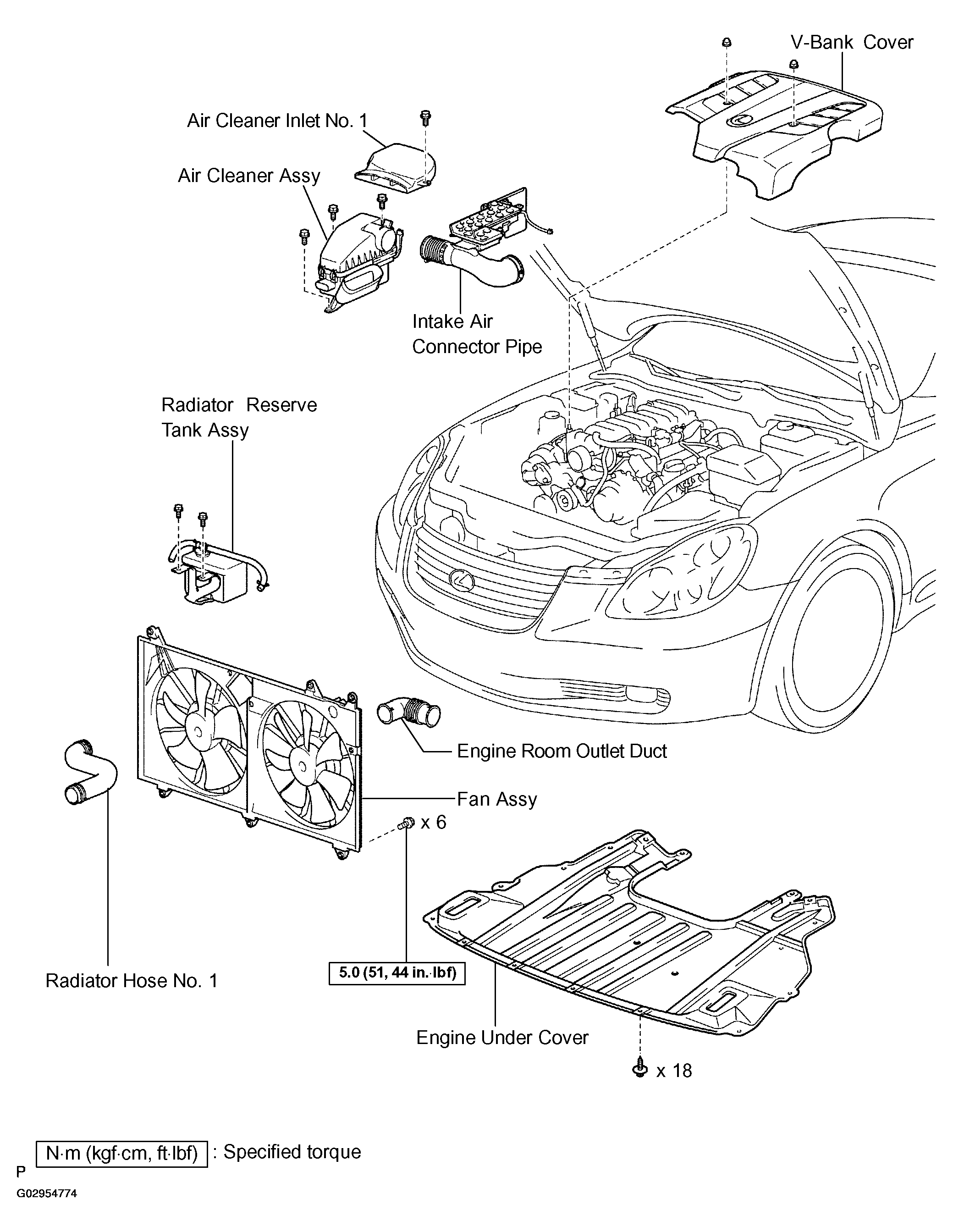

Fig 1: Identifying Fan Assy Components & Replacements (1 Of 2)
G02954774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

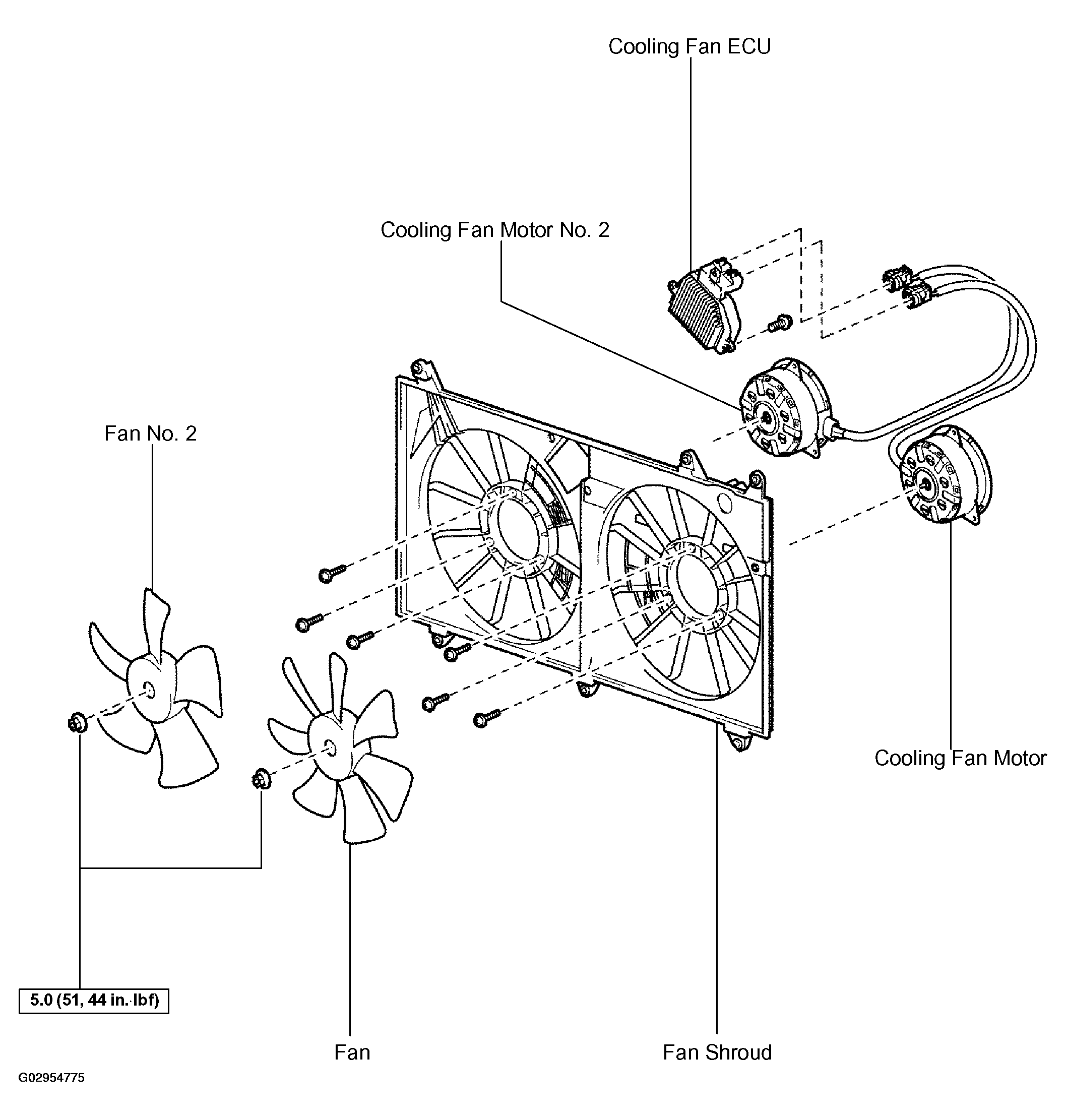

Fig 2: Identifying Fan Assy Components & Replacements (2 Of 2)
G02954775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
