Radiator ASSY: Replacement

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE ENGINE UNDER COVER
  3. REMOVE AIR CLEANER INLET NO. 1
  4. DRAIN ENGINE COOLANT
  5. REMOVE RADIATOR RESERVE TANK ASSY
  6. REMOVE V-BANK COVER
  7. REMOVE INTAKE AIR CONNECTOR PIPE
  8. REMOVE AIR CLEANER ASSY
  9. DISCONNECT RADIATOR HOSE NO. 1
  10. DISCONNECT RADIATOR HOSE NO. 2
  11. DISCONNECT OIL COOLER INLET TUBE NO. 1
  12. DISCONNECT OIL COOLER OUTLET TUBE NO. 1
  13. REMOVE RADIATOR ASSY
    1. Disconnect the cooling fan ECU connector.
    2. Remove the 2 nuts and 2 radiator support brackets.
    3. Remove the radiator and fan.
    4. Remove the 2 grommets.

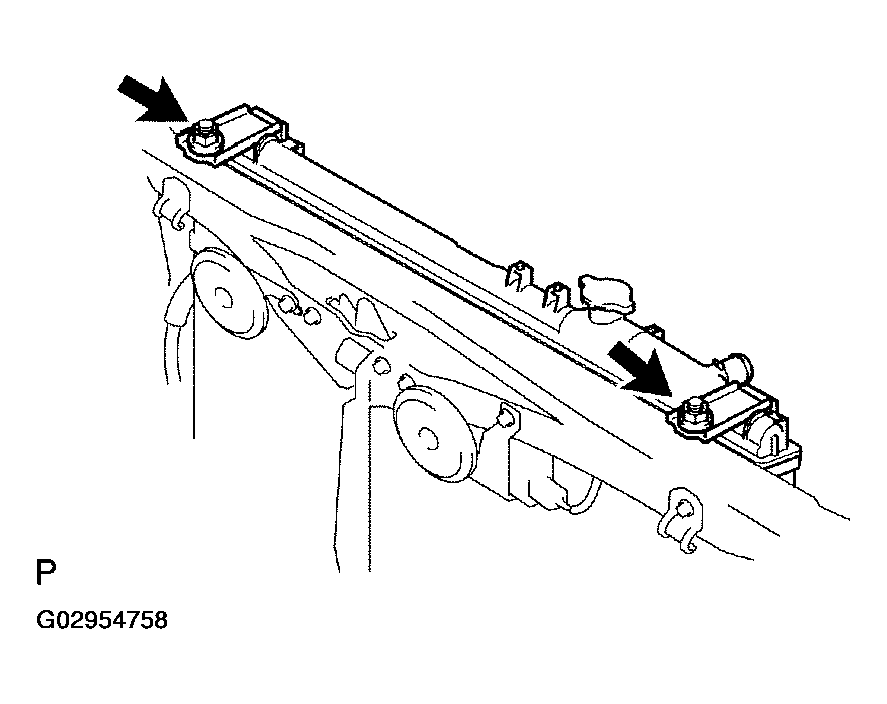

      Fig 1: Removing Radiator Assy
      G02954758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE FAN ASSY
    1. Disconnect the radiator reservoir hose from the radiator.
    2. Remove the 6 bolts and fan from the radiator.
  15. INSTALL FAN ASSY
    1. Install the fan assy to the radiator with the 6 bolts.

      Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

    2. Connect the radiator reservoir hose to the radiator.
  16. INSTALL RADIATOR ASSY
    1. Install the 2 grommets to the radiator.
    2. Attach the 2 grommets on the radiator to the body bracket.
    3. Install the radiator and fan with the 2 radiator support brackets and 2 nuts.

      Torque: 13.5 N.m (138 kgf.cm, 10 ft.lbf)

    4. Connect the cooling fan ECU connector.
  17. CONNECT OIL COOLER OUTLET TUBE NO. 1
  18. CONNECT OIL COOLER INLET TUBE NO. 1
  19. CONNECT RADIATOR HOSE NO. 2
  20. CONNECT RADIATOR HOSE NO. 1
  21. INSTALL AIR CLEANER ASSY
  22. INSTALL INTAKE AIR CONNECTOR PIPE
  23. INSTALL RADIATOR RESERVE TANK ASSY
  24. ADD ENGINE COOLANT
  25. CHECK FOR ENGINE COOLANT LEAKS (See  COOLING SYSTEM   )
  26. INSTALL AIR CLEANER INLET NO. 1
  27. INSTALL V-BANK COVER
  28. INSTALL ENGINE UNDER COVER
  29. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  30. PERFORM INITIALIZATION (See  INITIALIZATION  )
    NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
