Memory Positioning Module

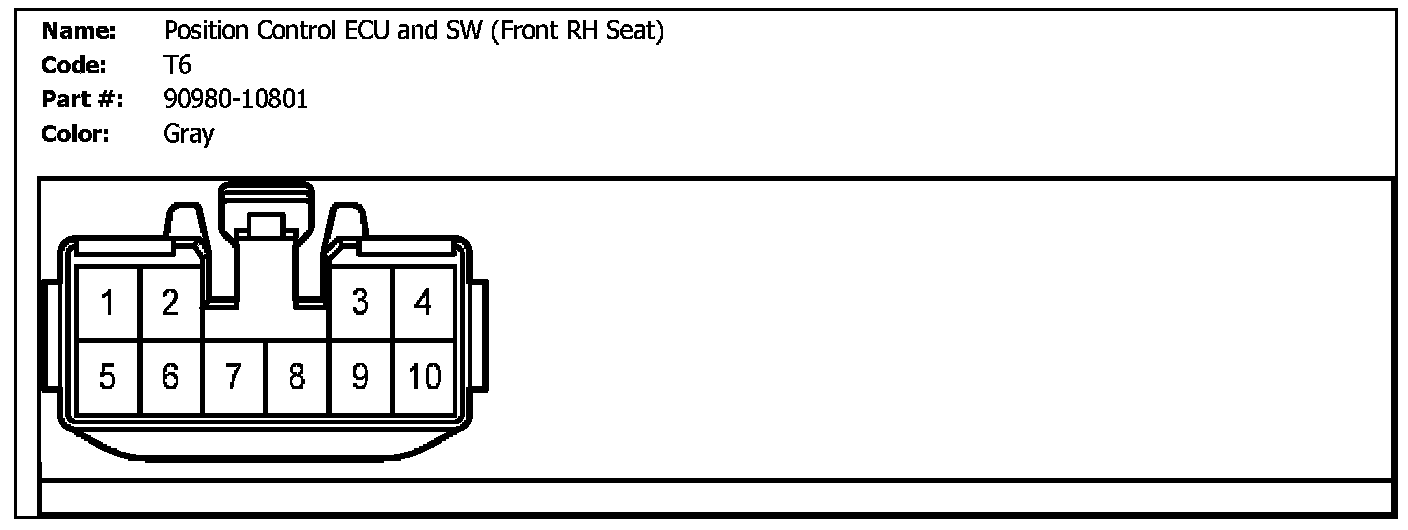

T6 (Position Control ECU And SW (Front RH Seat)):

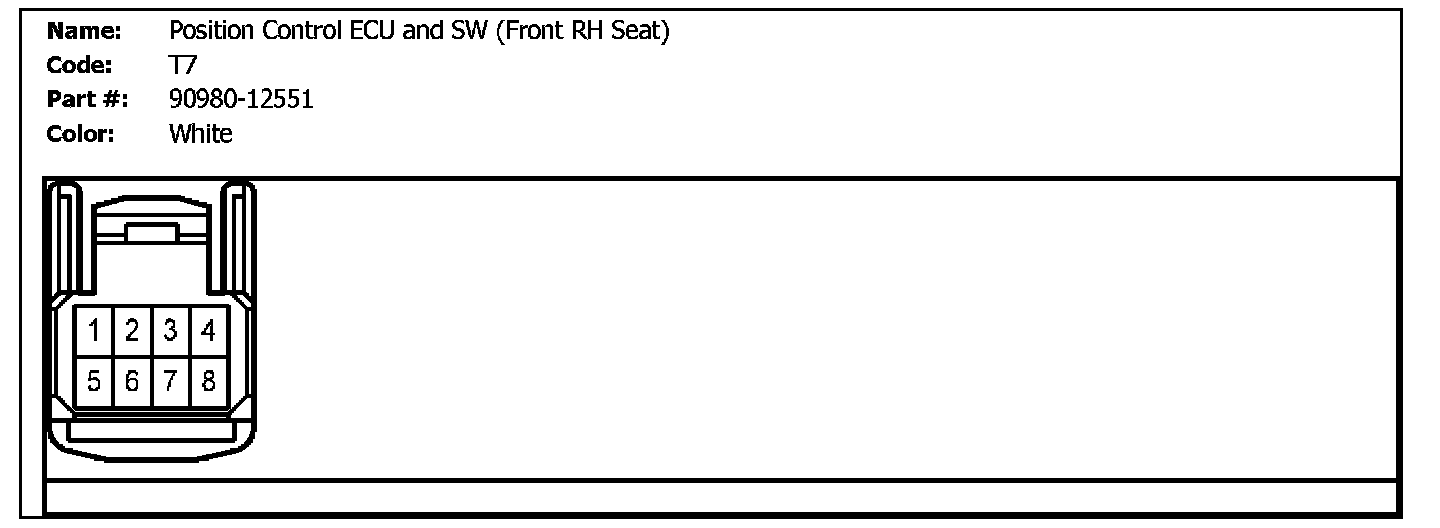

T7 (Position Control ECU And SW (Front RH Seat)):

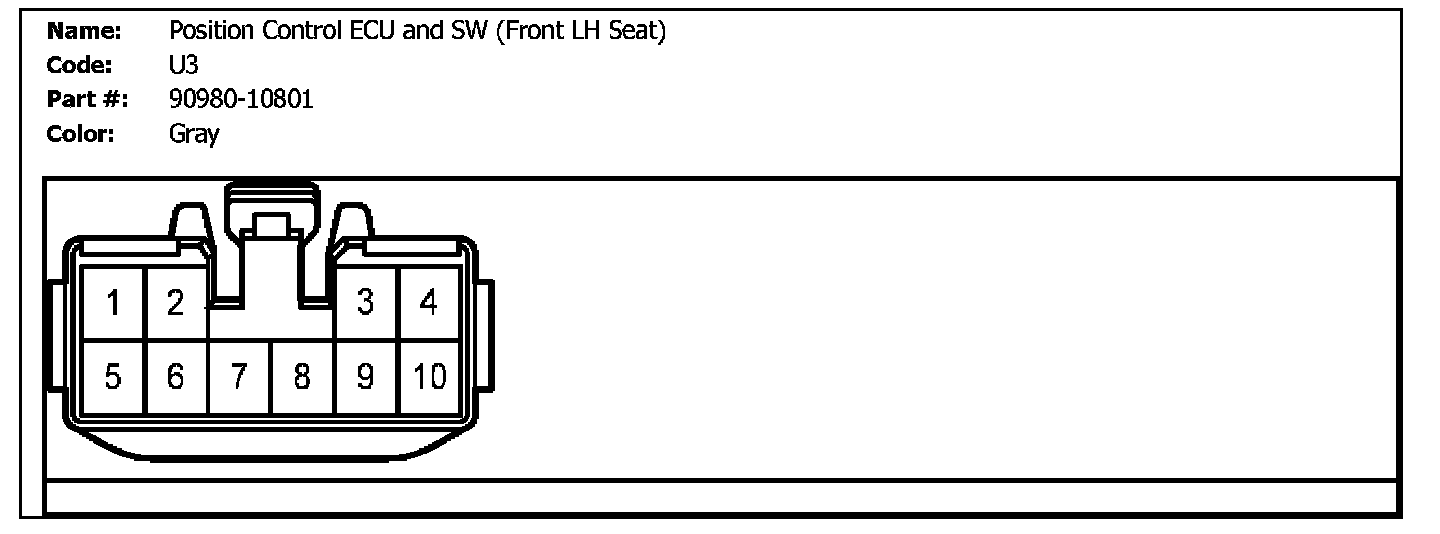

U3 (Position Control ECU And SW (Front LH Seat)):

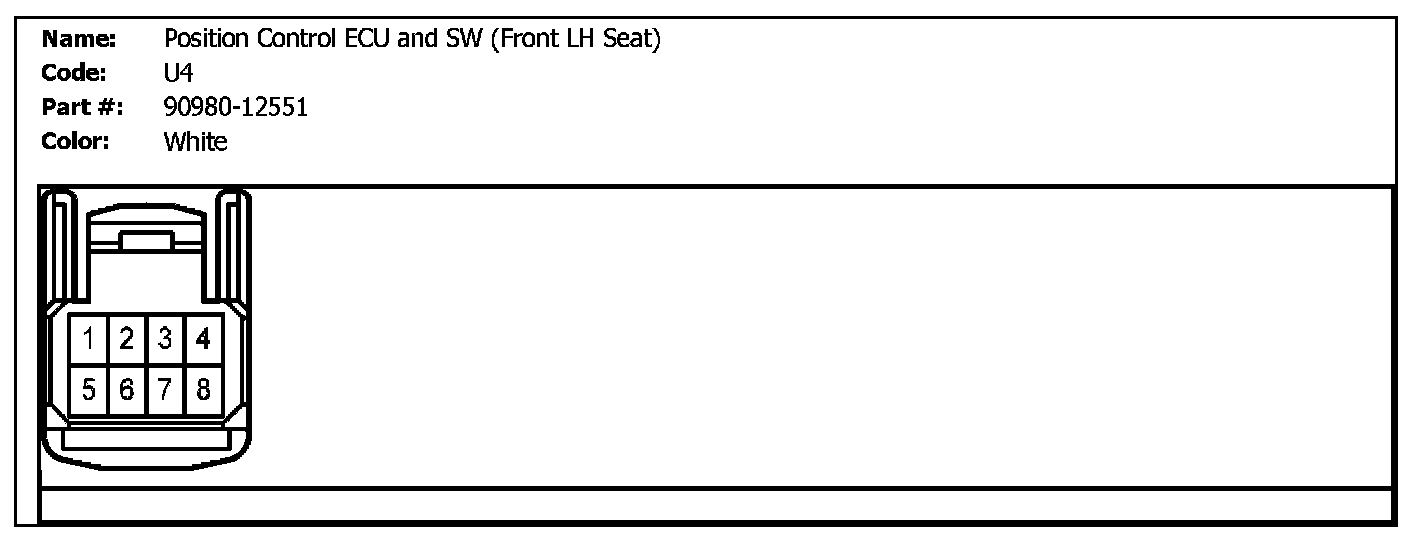

U4 (Position Control ECU And SW (Front LH Seat)):
