Power Window Control Module

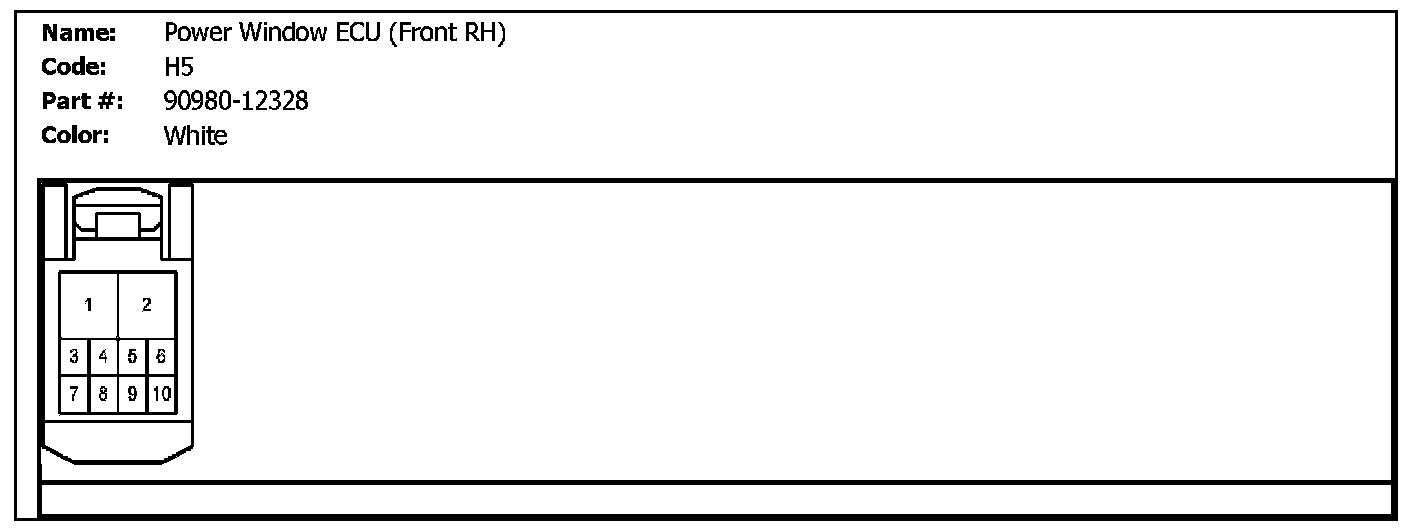

H5 (Power Window ECU (Front RH)):

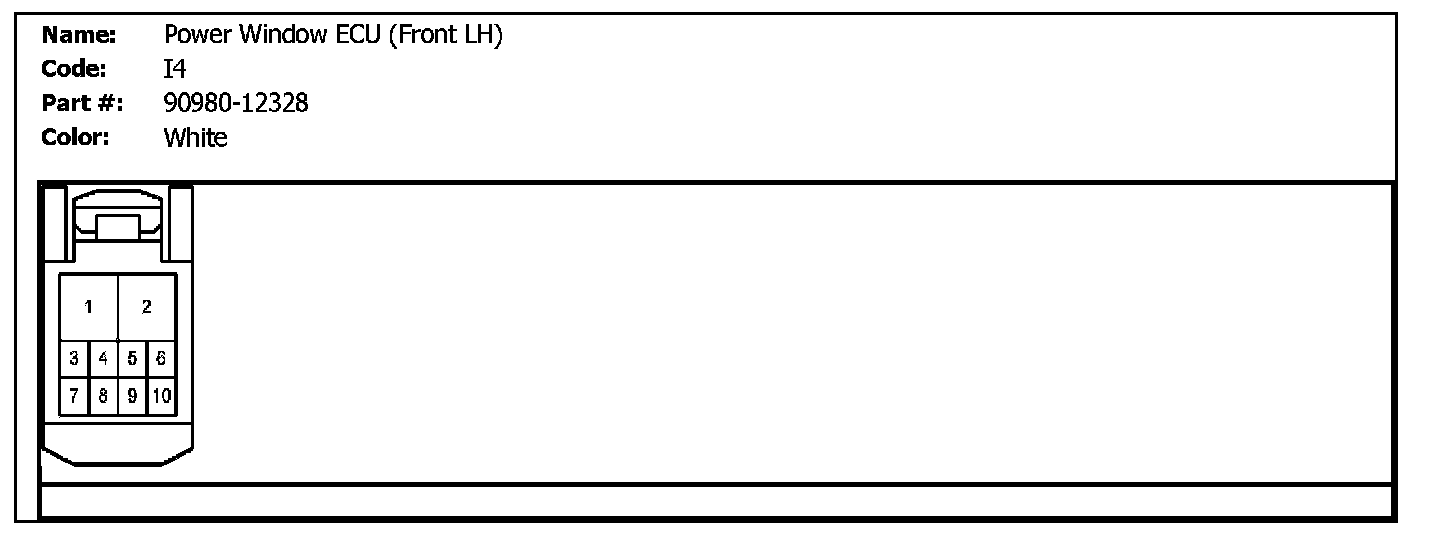

I4 (Power Window ECU (Front LH)):



J3 (Power Window ECU (Rear RH)):

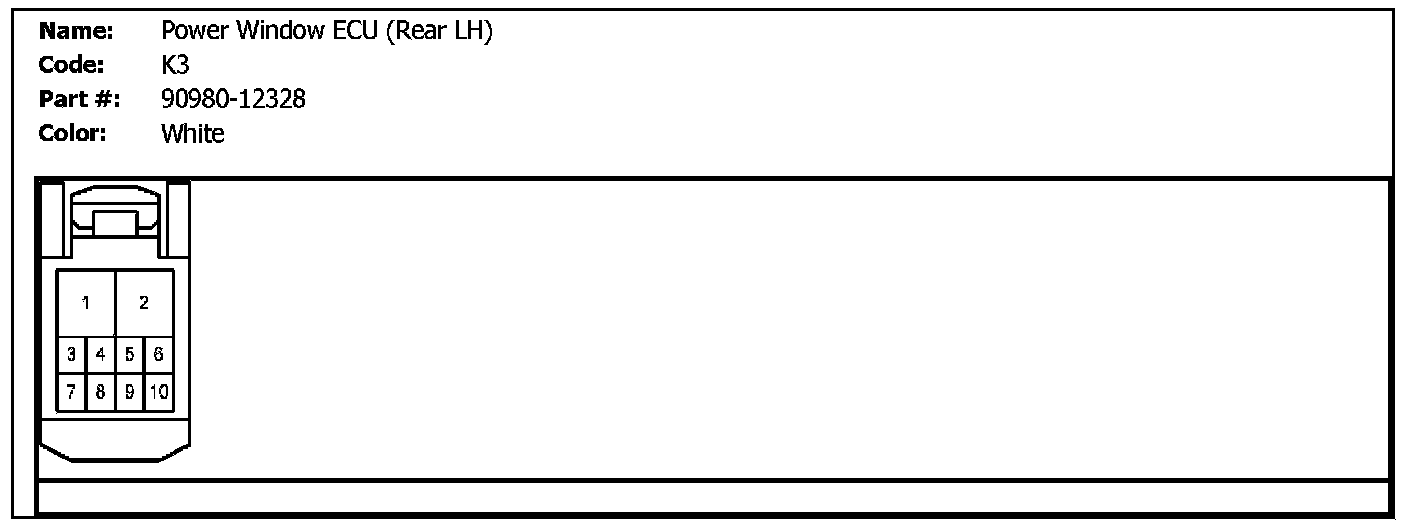

K3 (Power Window ECU (Rear LH)):
